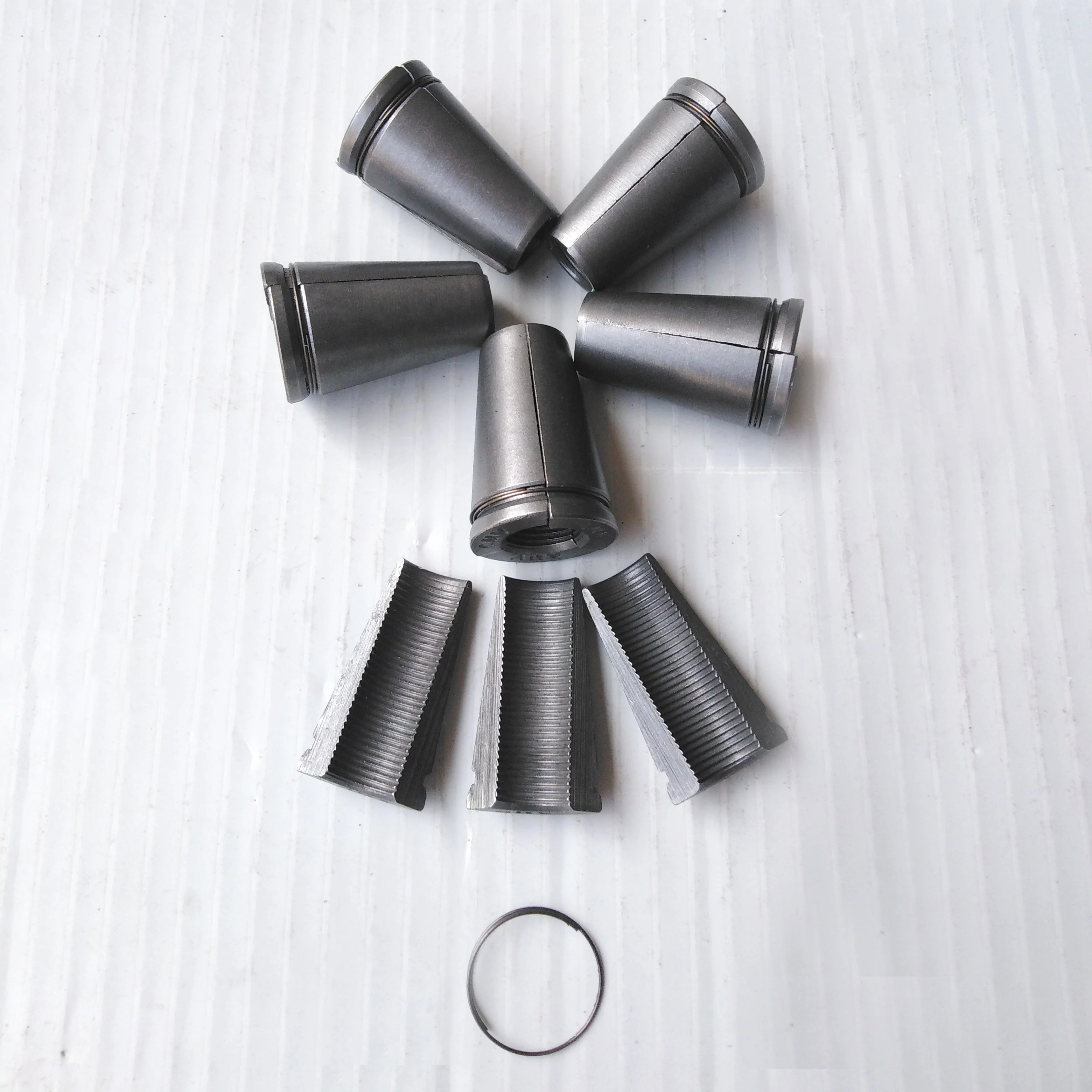

High quality post tension wedges grips clamp for prestressed prestressing steel wire strand with free shipping

Product Overview

Description

High quality post tension wedges grips clamp for prestressed prestressing steel wire strand with free shipping

It includes some parts like limit board and anchor plate etc.



Its Hardness

 work anchorage head and limit board: 25~4033HRC (306 HBS)        work gripper  :78~86HRA



Matched tensioning device:

   YCQQ series jack, ZB4-500 hydraulic pump

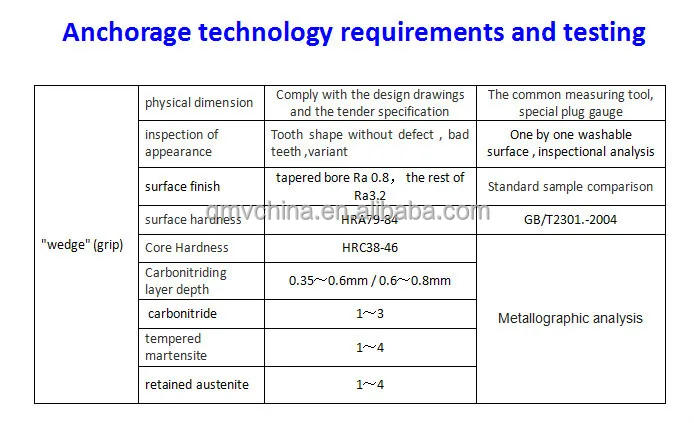

 Parameter sheet for reference :

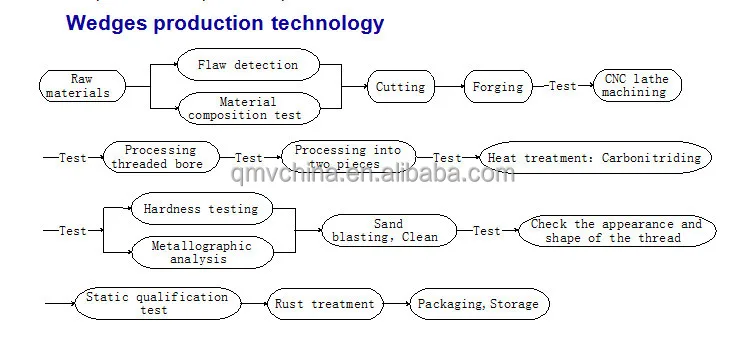

 The production process control

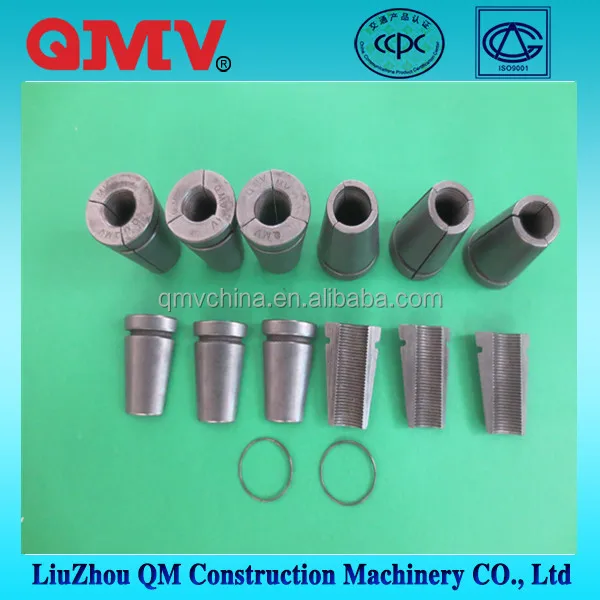

QMV anchor series includes parts wedge, the working anchor head, anchor plate, in order to make the anchorage can have reliable anchorage performance, our company is in the structure, the machining precision of the control and heat treatment method for the comprehensive aspects ensuring the product quality, and adopt various methods to meet the requirements of national standard and practical. Main components of the production process flow and characteristics are as follows.
