Product Overview
Description

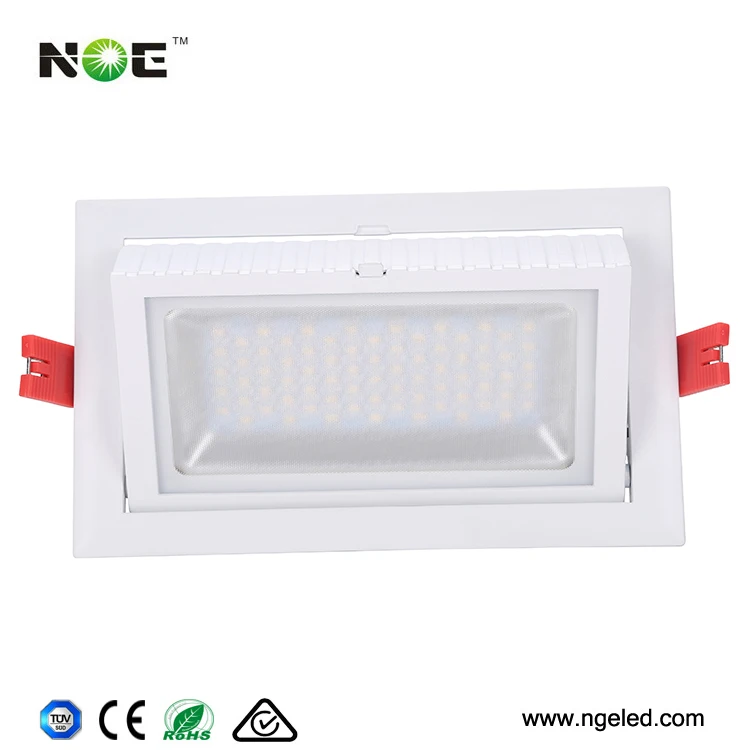

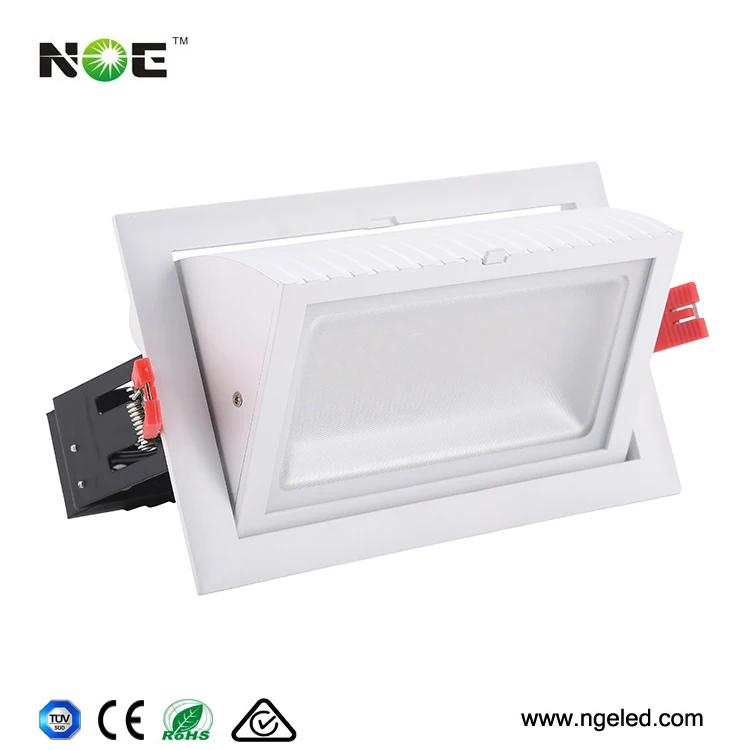

Samsung 5630 led downlight 28w rectangular recessed led ceiling lights smd
Product Description
NGE Rectangular LED downlight is the ideal replacement for the conventional HID downlight, energy-saving above 60%. Designed with advanced heat dissipation structure, used high brightness Samsung SMD LED and super constant current driver, NGE rectangular LED downlight is much better than most similar square LED downlight
Benefits
Replacement for HID 70/150W downlight
Energy saving over 50%
Environmental protection, no pollution
Significant reduction in maintenance cost
High CRI>80
Features
High lumen Samsung LED, 100lm/w for whole lighting, CRI ≥80;
Excellent driver wide input AC100V~240V, PF>0.90, low THD<15%.

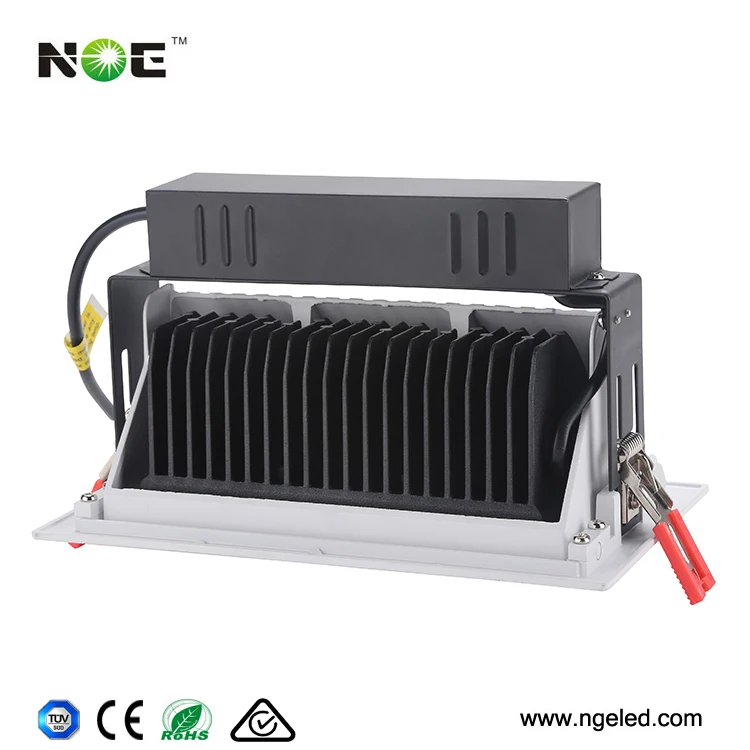

Good thermal structure, compliance with the U.S.Energy Star, L70>35,000 hrs.

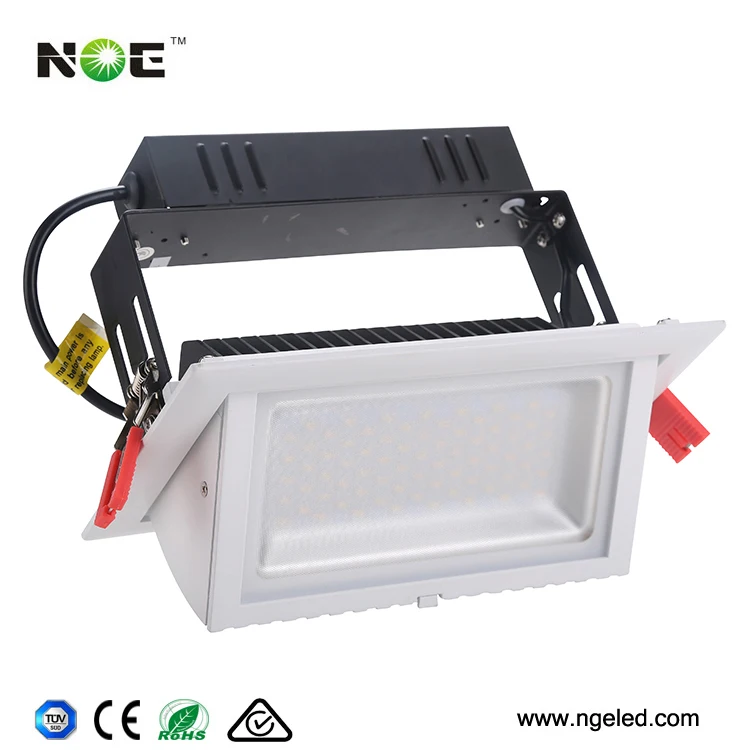

Humanized rotation design, 0-60 degree adjustable.
Dimmable and emergency items available.
CE,RoHS, SAA and C-Tick approved.
3 years warranty.
Product Specification
| Specification for Samsung 5630 led downlight 28w rectangular recessed led ceiling lights smd | ||
General Information | Product Type | 28w rectangular led ceiling lamp |
| Product Size | 240*145*135mm | |
| Cutout | 227*130mm | |
| Product Color | white | |
| Electric parameter | Driver Brand | Lifud |
| Input Voltage | AC100-240V/50-60Hz | |
| Power | 28W | |
| Power Factor (PF) | >0.90 | |
| Optical Parameter | LED Brand | Samsung G2 5630 |
| CRI | >80 | |
| Color Temperature (CCT) | 2700K-7000K | |
| Luminous Flux | 2750lm±5% | |
Luminous Efficiency | 100lm/w | |
| Beam angle | 120° | |
| Others | Lifetime | 50,000Hr |
| Operating temperature | -30℃~45℃ | |
| Warranty | 3 years | |
| Materials | AL housing+tempered glass +AL board | |
| Installation | Recessed | |
| Application | shops, supermarkets.,etc | |
Series Products of Samsung 5630 led downlight 28w rectangular recessed led ceiling lights smd
Item No. | Input Voltage | Power | Luminous Flux | Luminous Efficiency | CRI | PF | Cutout |
NGE-SMD01-RD20W | AC100-240V | 20W | 1950lm±5% | 100lm/w | >80 | >0.90 | 227*130mm |
NGE-SMD01-RD28W | AC100-240V | 28W | 2750lm±5% | 100lm/w | >80 | >0.90 | 227*130mm |
NGE-SMD01-RD38W | AC100-240V | 38W | 3700lm±5% | 100lm/w | >80 | >0.90 | 227*130mm |
NGE-SMD01-RD48W | AC100-240V | 48W | 4650lm±5% | 100lm/w | >80 | >0.90 | 227*130mm |
NGE-SMD01-RD60W | AC100-240V | 60W | 5950lm±5% | 100lm/w | >80 | >0.90 | 215*125mm |
Application
• Shop
• Supermarket
• Department store
• Showroom
Detailed Images
Product Advantages
Production Images
Packaging & Shipping
Item No. | Quantity/Carton | Net weight/Pcs | Gross Weight/ Carton | Carton Size | Notes |
Rectangular led downlight | 8 | 4.0kg | 18.5kg | 59*38.5*42.5mm | Each light packed by one PE bag, and use paper pulp packing in each box. |
Company Information
NGE Technology Limited, established in 2009, dedicates to R&D, manufacture and sales of LED Lighting. We are specialized in commercial LED lighting and industrial LED lighting, and our main products are Gimbal LED downlight, adjustable rectangular LED downlight, LED panel light, LED high bay light and LED tri-proof light.
NGE Technology has more than 120 experienced workers, 15 persons' R&D team and more than 8000 square workshop. It is equipped with auto SMT machines, reflow-soldering machine, integrating sphere and distribution photometer, etc. With expert R&D teams of electronic technology, structure technology, thermal management as well as optics design, NGE develops new LED lighting products every year. And most of our products are UL,TUV, SAA, CE and RoHS approved.
NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, Australia, Japan, Middle East and Southeast Asia market now. We have successfully achieved over 50% annual growth in the turnover in the past 3 years. Let's work together to devote to the new, green and eco-friendly cause for the world.
