Automatic car Tire Changer/ tyre service/tire changing machine T930
- Category: >>>
- Supplier: Yancheng,Dayang,Machinery,Co.,Ltd.
Share on:
Product Overview
Description

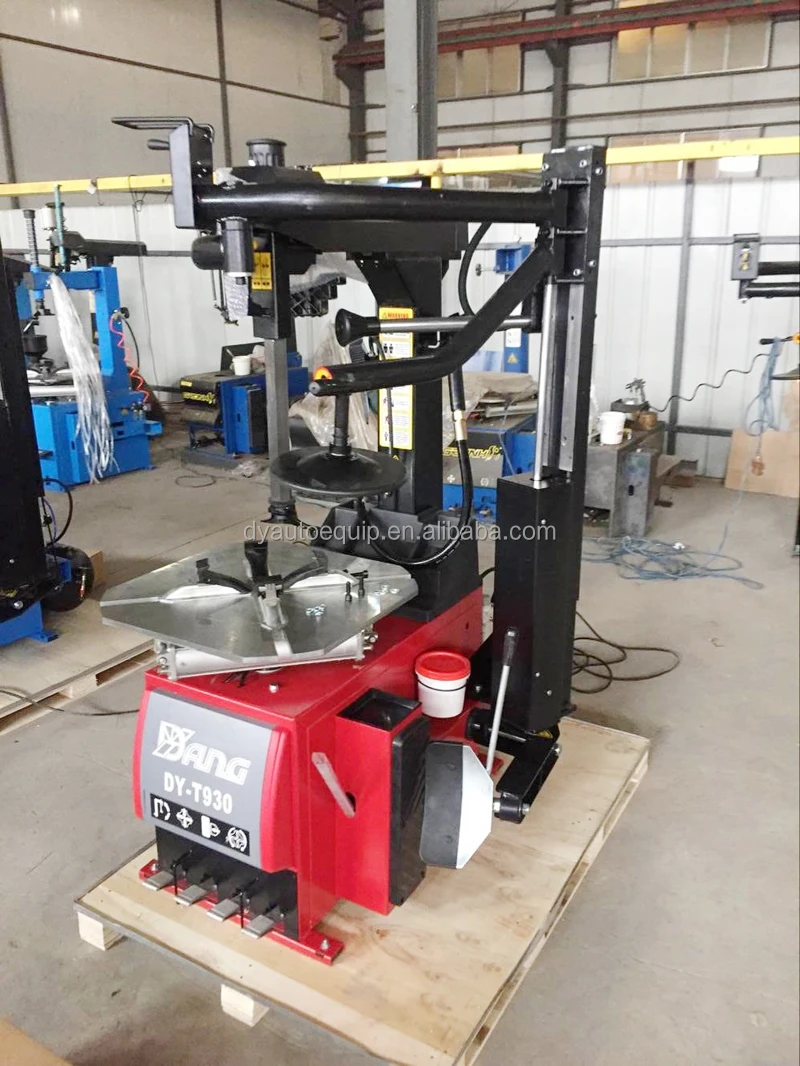

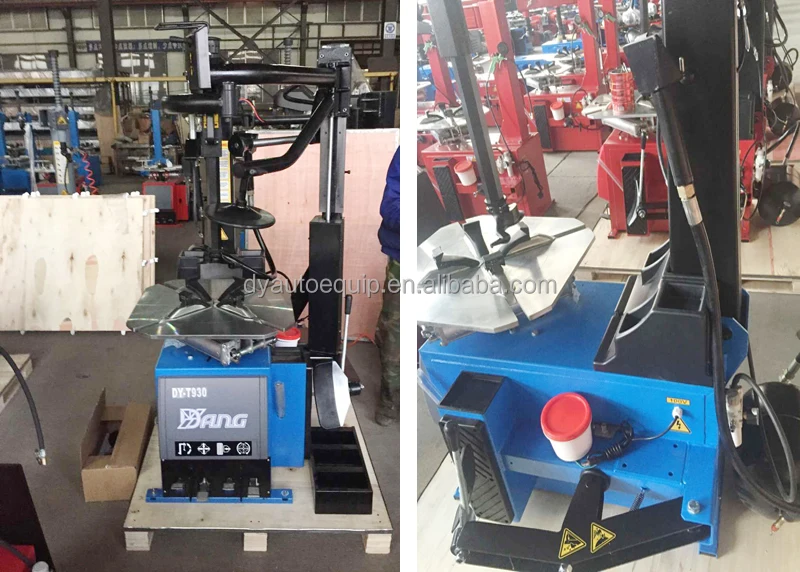

1. Pictures of tire changer
2. Main features of tire changer
1. Inclined column and mounting/demounting arm of pneumatic locking.
2. Six-axis guide sleeve extends to 270mm, avoid deformation effectively.
3. Special steel header of mounting/demounting.
4. Clamp jaws made by USA 8640 alloy steel, high strength, wear resistant and anti-rust.
5. External storage tank, fast air inflating device of handheld type.
6. Special pedal control, assistant helper arm can be used for wide flat tyres.
7. Adjustable clamp jaws extend to 8”-26”(optional).
3. Specifications
Motor power--------------- 0.75/1.1KW/0.55KW
Rim Clamping outside-----------10"-21"
Rim Clamping inside-------------12"-24"
Max. tire diameter------------- 44”(1120mm)
Max. tire width----------------- 14”(360mm)
Working pressure------------8-10bar
Bead breaker force----------2500kg
Power supply-----------------100V-415V,50/60HZ
N.W-----------------------------384kg
Package size---------------- 1100*950*950mm &1330*1080*300mm
4. Factory
5. Our machines in worldwide
6. Delivery
Our Services
Warranty will continue to be valid for a period of 12 months provided the following warranty conditions are observed.
Warranty Conditions:
1. This warranty is valid from the date of receiving equipments.
2. This warranty is given for the benefit of the first owner only and claims by parties other than the original purchaser will not be recognized, as the warranty is not transferable.
3. This warranty is only valid when the product has been used in accordance with the Installation, Operation, Maintenance and Instruction Manual and by a competent person trained in its use.
4. This warranty does not apply to damage or deterioration, which is caused by human.
5. During warranty period, shipping cost of replacement products or parts are our responsibility.
6. Beyond the warranty period, we provide spare parts to customers at factory cost.
