Polycrystalline diamond compact for concrete polishing tool

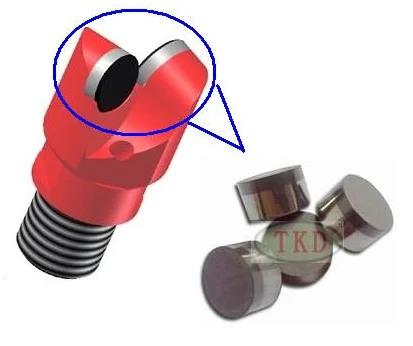

TKD supplies a wide range of rock drilling pdc cutters and toolings for most underground drilling requirements such as roof bolting, cable bolting and methane drainage applications, as well as PCD drill bits.

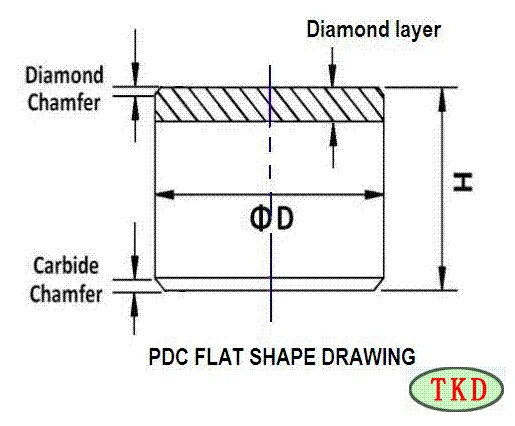

Here are the cutter specifications below:
Product No.
Diameter/mm (D)
Height/mm (T)
Diamond thickness/mm
Diamond Chamfer/mm
TC Chamfer/mm
804
8.00+/-0.03
4.50+/-0.10
1.0+/-0.2
0.30+/-0.10
0.50+/-0.10
808
8.00+/-0.03
8.00+/-0.10
1.0+/-0.2
0.30+/-0.10
0.50+/-0.10
1008
10.00+/-0.03
8.00+/-0.10
1.5+/-0.2
0.30+/-0.10
0.50+/-0.10
1208
12.00+/-0.03
8.00+/-0.10
1.5+/-0.2
0.30+/-0.10
0.50+/-0.10
1304
13.3+/-0.03
4.50+/-0.10
1.5+/-0.2
0.30+/-0.10
0.50+/-0.10
1308
13.44+/-0.03
8.00+/-0.10
1.5+/-0.2
0.30+/-0.10
0.50+/-0.10
1308-A
13.44+/-0.03
8.00+/-0.10
2.00+/-0.20
0.30+/-0.10
0.50+/-0.10
1908
19.05+/-0.05
8.00+/-0.10
2.20+/-0.20
0.30+/-0.10
0.50+/-0.10
PDC cutters with special sizes, shapes, chamfers can be machined as per client's drawing.
We have mining quality and oil quality both for your choosing.

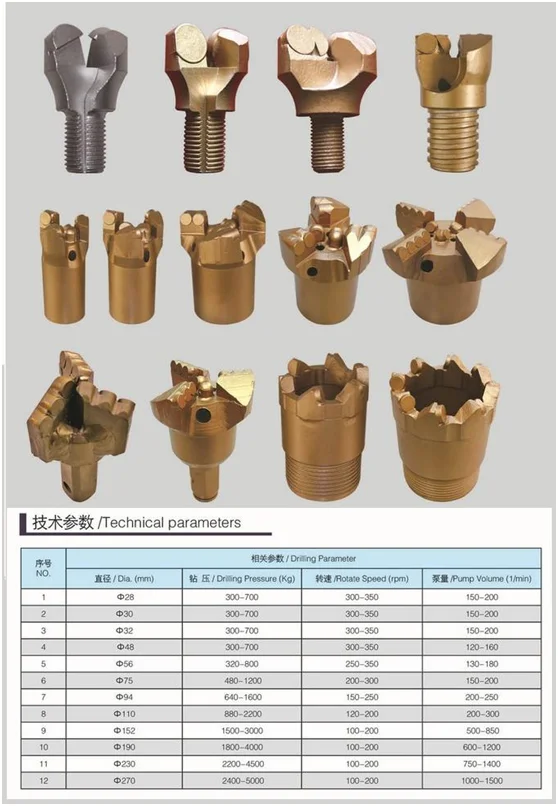

We also produce pcd drilling tools like anchor bits, drilling bits, we choose our oil quality pdc cutters for optimum performance. Each PDC drill bit and tools are individually assembled for maximum reliability. For special design and manufacture prototypes, our R&D department will help you for your great satisfaction.
Quality control:
Quality and Consistency has been our lifelong pursuit and promise. In our factory, all manufacturing processes are strictly controlled under ISO 9001:2008 Quality Management System and all our manufacturing and testing facilities are equipped with latest technology, such as 6-Cylinder Synthetic Diamond Hydraulic Press with 6x25000KN Pressure, Precision Wear and Impact Resistance Testing System and Ultrasonic Scanning System from European suppliers.
Packaging & Shipping
Our Services
We are the PDC materials and tools specialist, aiming to offer you the best pcd products and services, after-sale service. We are always here for you ! Please contact us directly when you have questions or problems.
Company Information
TKD Co., Ltd(Factory name) is the professional superhard materials and tools manufacturer in China, based in zhengzhou city, which is the superhard materials industry center, with 14 years of experience in development- research, we TKD have become the gaint for PDC and PDC tools in this area.
Also we own the high technique for PDC tools welding and our engineers keep long years with drilling field experiences, we know how to choose right PDC cutters to make qualified tools to maximum increasing the performance.
Our Main products: PDC cutter, TSP cutter, PDC tools.
Sales network and Factory capacity:
Our PDC mining cutters have been sold to Russia, Australia,North America, Europe, Asia markets etc.
We have 4 sets of 6 cylinder hydraulic press machines for PDC cutter production line.
Our production capacity:
10000 pcs of 1308
15000 pcs of 1304
We aim to serve clients with our sincere heart by making every pcs of qualified pdc cutters !
