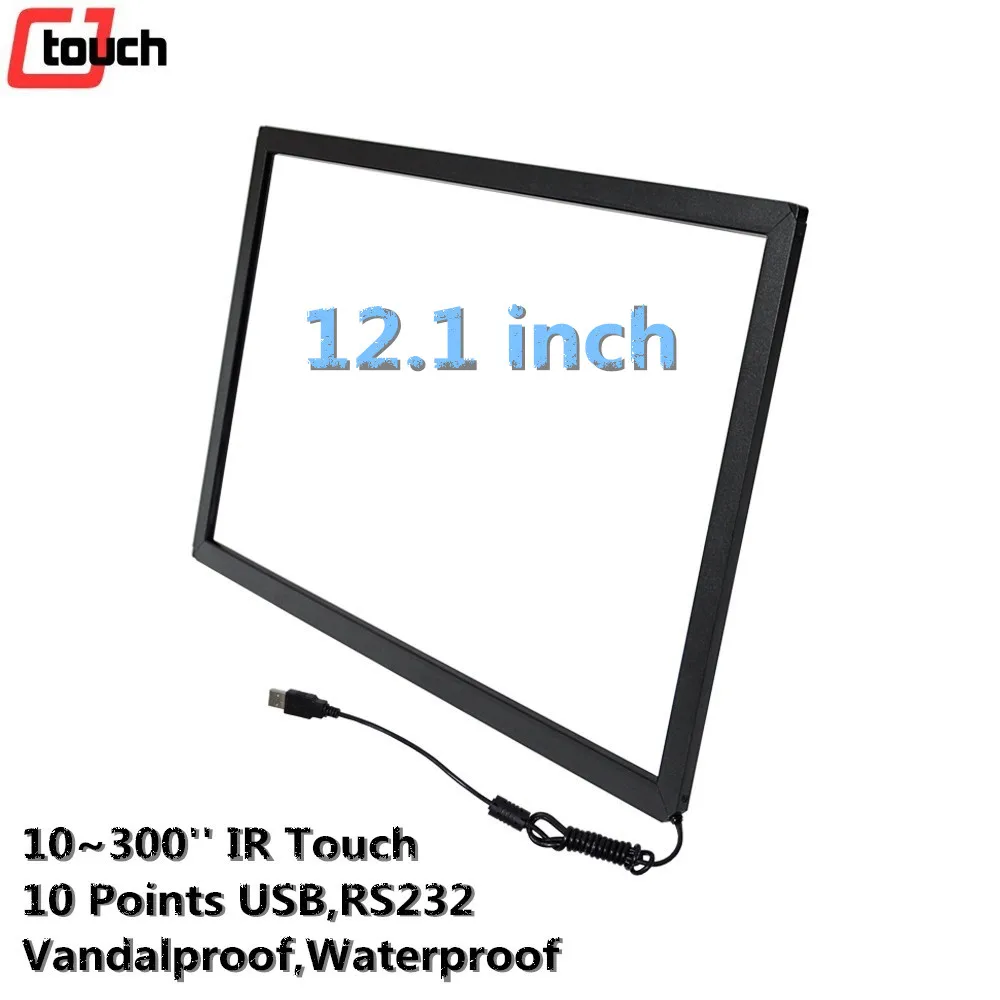

12.1Inch Open Frame Monitor interactive multuitouch ir frame 300inch available infrared touch panel transparent usb touch glass
- Category: >>>
- Supplier: Dongguan Cjtouch Electronic Co. Ltd.
Share on (60422502113):
Product Overview
Description
Product Details
10~27inch Small IR Infrared Indoor IP65 Vandalproof TouchScreen Touch Frame Overlay Kit
1,2,4,6,10,16,20 Interactive Multi points IR Infrared Touchscreen/Touch Glass Overlay kit;

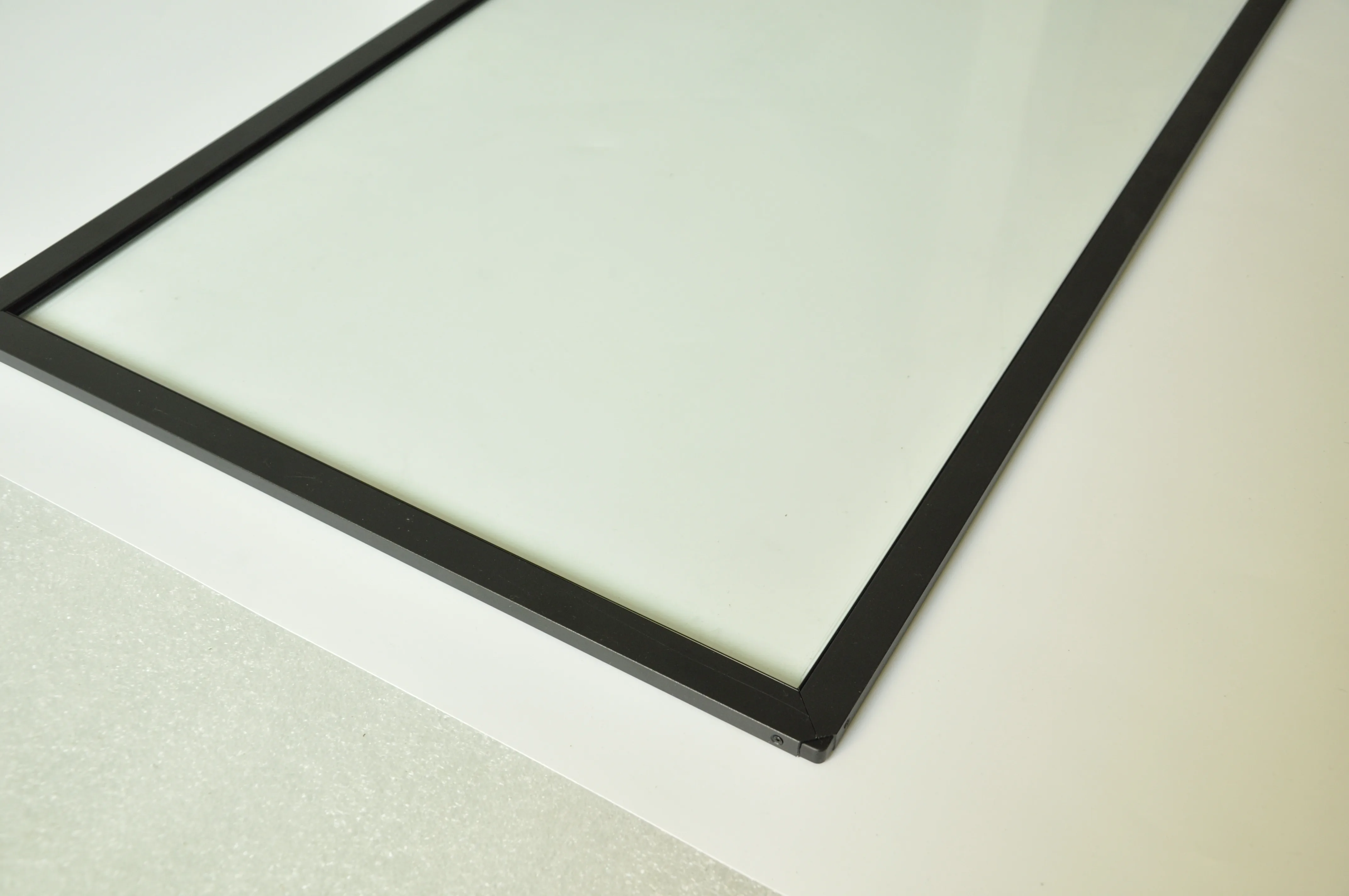

CIN Serial IP65 Vandalproof Dustproof 18.5mm Width *7.5mm Thickness Aluminum frame;
3/4/6mm IP66 IP67 Outdoor Waterproof Vandalproof Tempered Touchscreen Glass;
CE,FCC,ISO14001,ISO9001,RoHS Certifications;
USB,RS232,Serial Interface Touchscreen Panels ;
E LO/3 M Compatible USB,RS232,Serial Interface and Cables;
W indows,L inux,A ndroid,I mac,R aspberry pi OS Supported ;
Indoor IP 65 Waterproof,Dustproof, Vandalproof ,Shockproof Anti-Glare Touch Panels;
Sample supported,Custom made workable,Free for 3 Years Warranty;
Skype : Louis-CJtouch--CJTOUCH--Made in China Shenzhen Dongguan Factory Manufacture

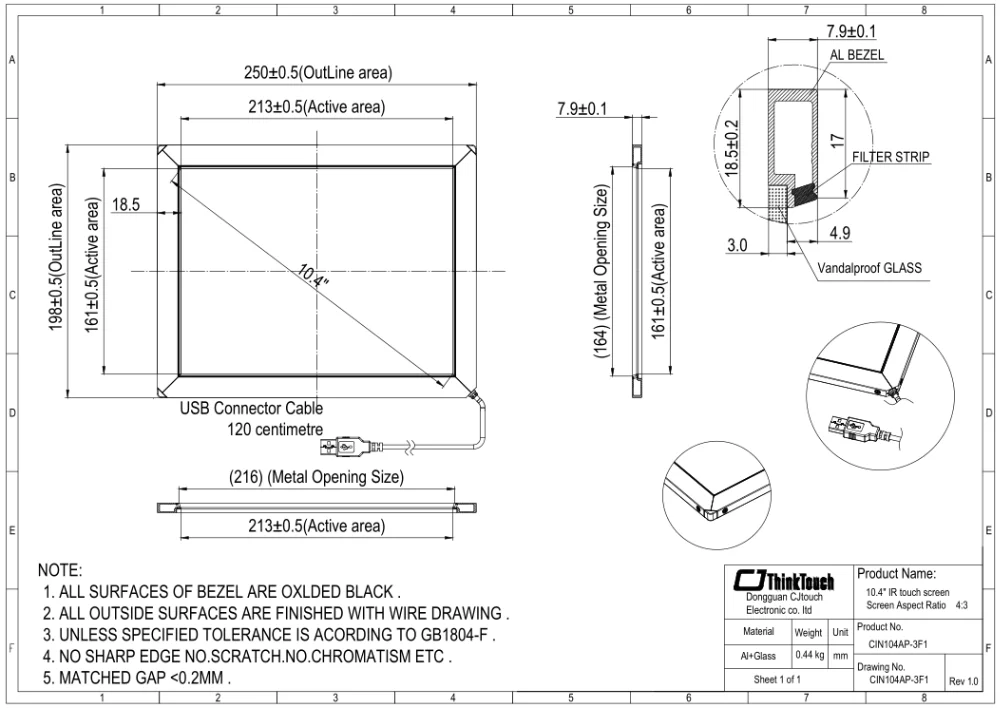

MECHANICAL | ||
P/N | CIN104AP-3K1-CNA2 ( 4:3 ) | |
Housing | Aluminum frame | |
Touch Panel Size(mm) | 250*198 | |
Active Area(mm) | 213*161 | |
TOUCH CHARACTERISTICS | ||
Input Method | Finger or Touch Pen(Support 1/2/4/6/10 points touch) | |
Position Accuracy | 2mm | |
Resolution | 4096(W) × 4096(D) | |
Response Time | Touch: 8ms ; Drawing : 8ms | |
Glass | No Glass or 3mm Vandalproof Glass,Transparence : 92% | |
Touch Intensity | > 60,000,000 Single Touch | |
ELECTRICAL | ||
Operating Voltage | DC 4.5V ~ DC 5.5V | |
Power | 1.0W (100mA at DC 5V) | |
ENVIRONMENT | ||
Temperature | Operating:-10 °C ~ 50 °C ; Storage:-30°C ~ 60 °C | |
Humidity | Operating:20% ~85% ; Storage:0%~95% | |
Altitude | 3,000m | |
Interface | USB2.0 full speed | |
Working Environment | Under Sunlight / Indoor /Outdoor / Vandalproof /Waterproof | |
Others | ||
OS | Windos/Androd/Linx/Ima | |
Drive | Free Drive, Plug and Play | |
Warranty | 3 Years | |
10~300inch Custom made Size IR Infrared TouchScreen Supported
Bar IR Infrared Custom tailer demension special IR Infrared Touch Frame optional
Touch Screen /Touch LCD Monitor / Touch All in one PC Applications
1. Business Institutions: Department Store, Super Market, Exclusive Store, Hotel, Restaurant, Medicine Store`
2. Financial Institutions: Bank, Stock Market, Insurance Company, etc.
3. Public Services: Hospital, School, Telecom Hall, Post Office, etc.
4. Public Places: Subway, Airport, Bookstore, Park, Exhibition Center, Stadium, Museum, Ticket Agency, etc.
5. Real Eatates: Apartment, Villa, Business Building, HR Market, Lottery Center,etc.
6. Entertainment Places: Cinema, Gym, Holiday Inn, Nightclub, Massage Parlor, Internet Cafe, Golf, etc.
Related Products
Click Below Pictures to get More Products Details ( Skype : louis@cjtouch.com )
IP 66 Outdoor Waterproof
800/1000/1500 High Brightness
P-cap Waterproof Monitor
10~65 inch
55'' Large Size IR LCD Monitor
32''43''55''65''75''98''
Cheap SAW Touch Panel
7~32 inch
Outdoor Waterproof IR Touch
15''17''19''21.5''
PCAP Touch Foil/ Touch Film
15~110 inch
7'' Cheap Resistive Monitor
7~32 inch
8'' SAW Touchscreen Monitor
8~32 inch
Desktop Touch LCD Monitor
15''17''19''
E-ETI Capacitive Touch Panel
5~65 inch
Touch All in one PC
8~65 inch
Resistive Touchscreen
5~24 inch
Company & Packing
Dongguan CJTOUCH Electronic Co., Ltd are 10 Years of a Professional OEM Manufacturer and Supplier ;
Main Product : Touch Screen, Touch Foil, LCD/LED Monitor, Touch PC and Accessories etc.
Our Main Factory is located near Shenzhen,China.
Infrared IR Touch Screen Panel /Touch Frame Packing & Delivery
Packing:
< 32 inch with Glass : 1/2/10/12/20 pcs in 1 Carton
> 32 inch without Glass : 1/3/5/10 pcs in 1 Tube
Delivery time:
Standard Dustproof Sample order 1-2 Days,Vandal proof/Anti-Glare type 2-4 Days.
100 Pcs 7 Days, 500 Pcs 20 Days,More than 500 Pcs Order,Contact us for detail delivery time.
