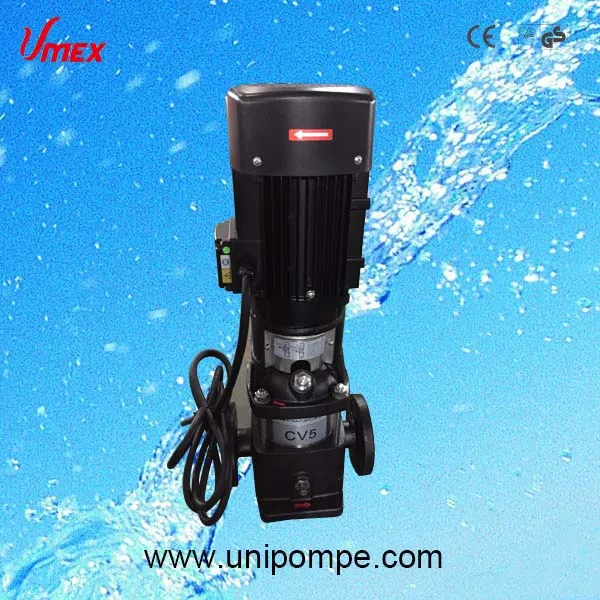

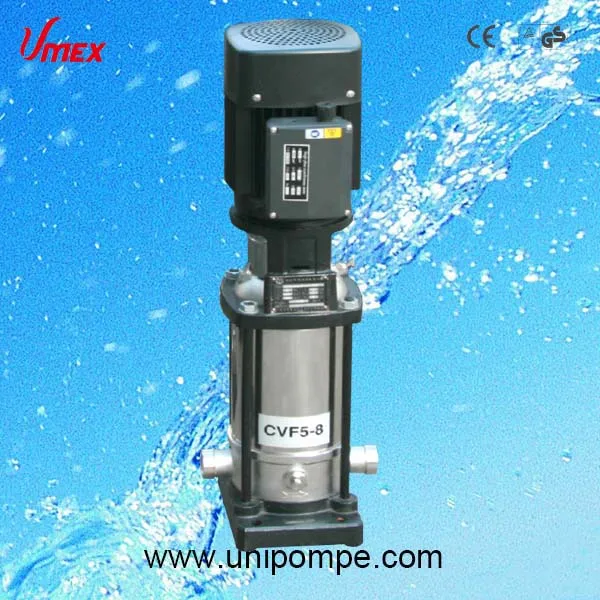

60Hz vertical centrifugal pump jockey pump

CV, CVF are non-self priming vertical multistage centrifugal pump, the pumps are available with standard motor, the inlet and outlet are located at the pump bottom at the same plane (inline type).

All pumps are equipped with a maintenance-free mechanical seal set of the cartridge type.

CV, CVF are fitted with a totally enclosed fan-cooled, 2-pole, three-phase standard motor.

From 0.37Kw to 2.2Kw, are also available with single-phase motor.( 1*220V-230V/240V)

(1) single phase motor have a built-in thermal overload switch.

(2) Three-phase motor must be connected to a motor protective circuit breaker according to local regulations.

Ambient temperature: maximum +40°c

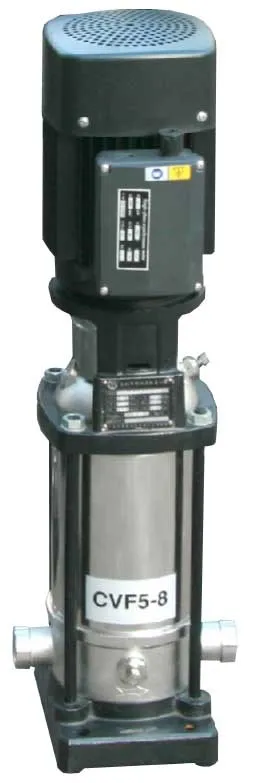

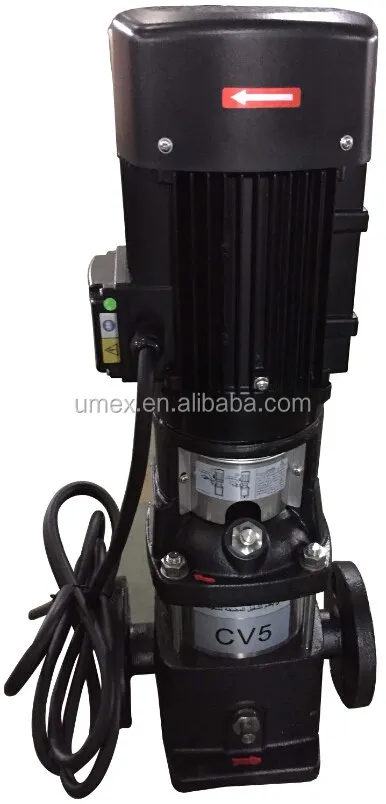

         CV5 Series ( Oral flange)             CVF5 Series ( SS screw connection)

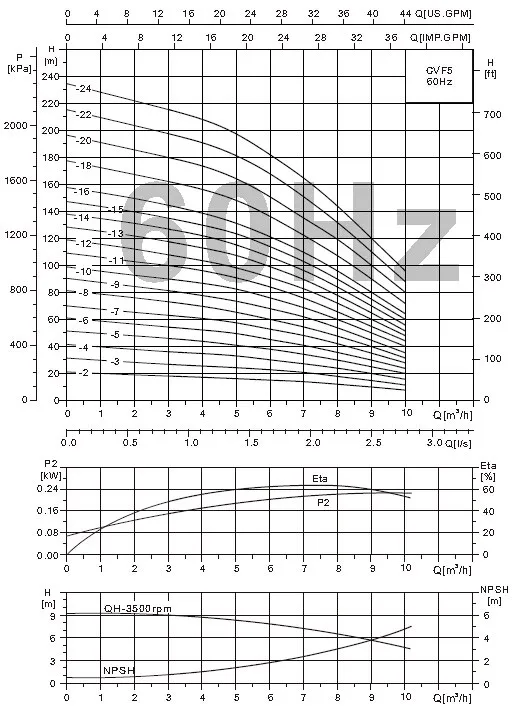

CV5 / CVF5  Performance Curve

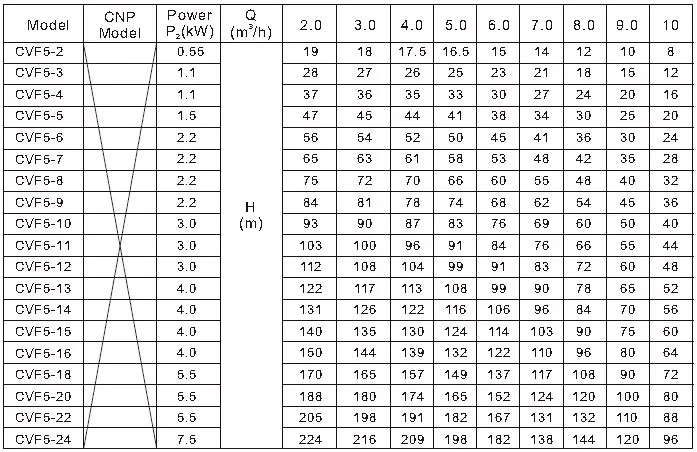

CV5/ CVF5 Performance Table

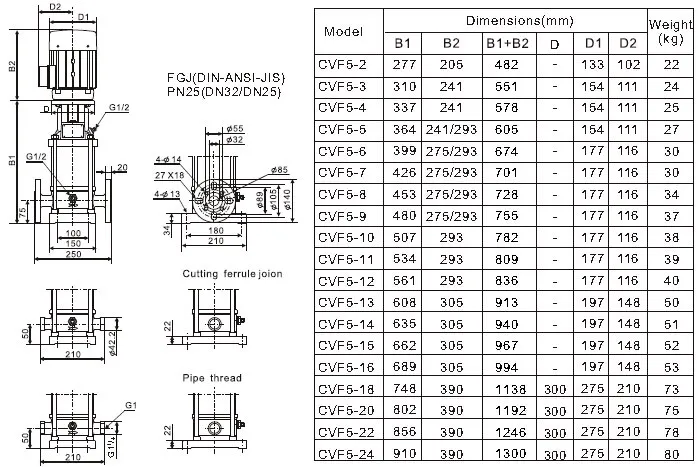

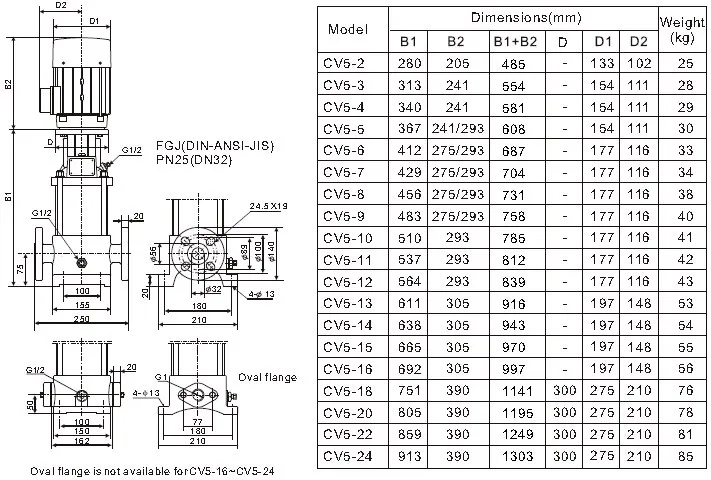

 CV4/ CVF4 Installation Sketches          Dimenstions and Weight

Q1.What will you do for after sale?

A: We will follow up and await your feedback after we delivery the goods to you.

Q2.Why did you choose us?

 A:We have more than 10 years of experience in designing, manufacturing and trading a wide variety of pumps  and pump fittings.

Q3.How does your factory do regarding quality control?

A:Quality is priority, and we will do 100% quality inspection before shipment.

Q4.Can we use our own logo and design?

A: Yes, you can. We'll produce pump on your brand and according to your design.

Q5.What's the delivery time of your products?

A: Usually the delivery time is 30-45 days after confirming order and detail. Delivery time is depend on your purchasing quantity and production season.
