500w 12v 24v wind dynamo for sale
- Category: >>>
- Supplier: Wuxi Feng Teng New Energy Technology Development Co. Ltd.
Share on (60422884776):
Product Overview
Description
500w 12v 24v wind dynamo
This 500w 12v 24v wind dynamo also has 400w option.
Product Description

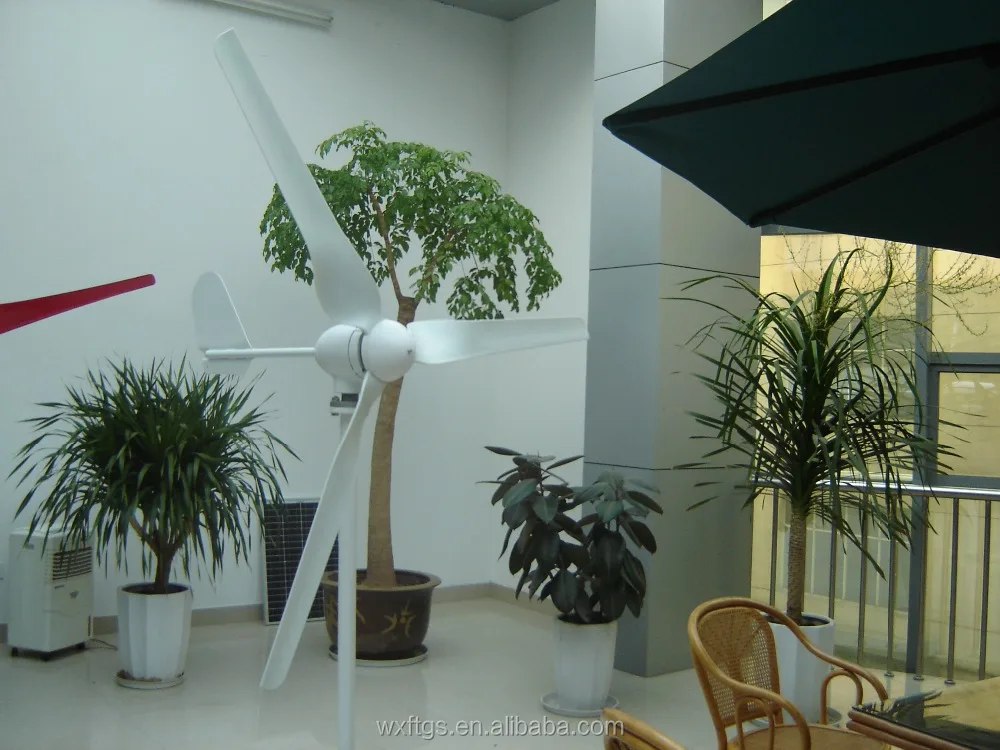

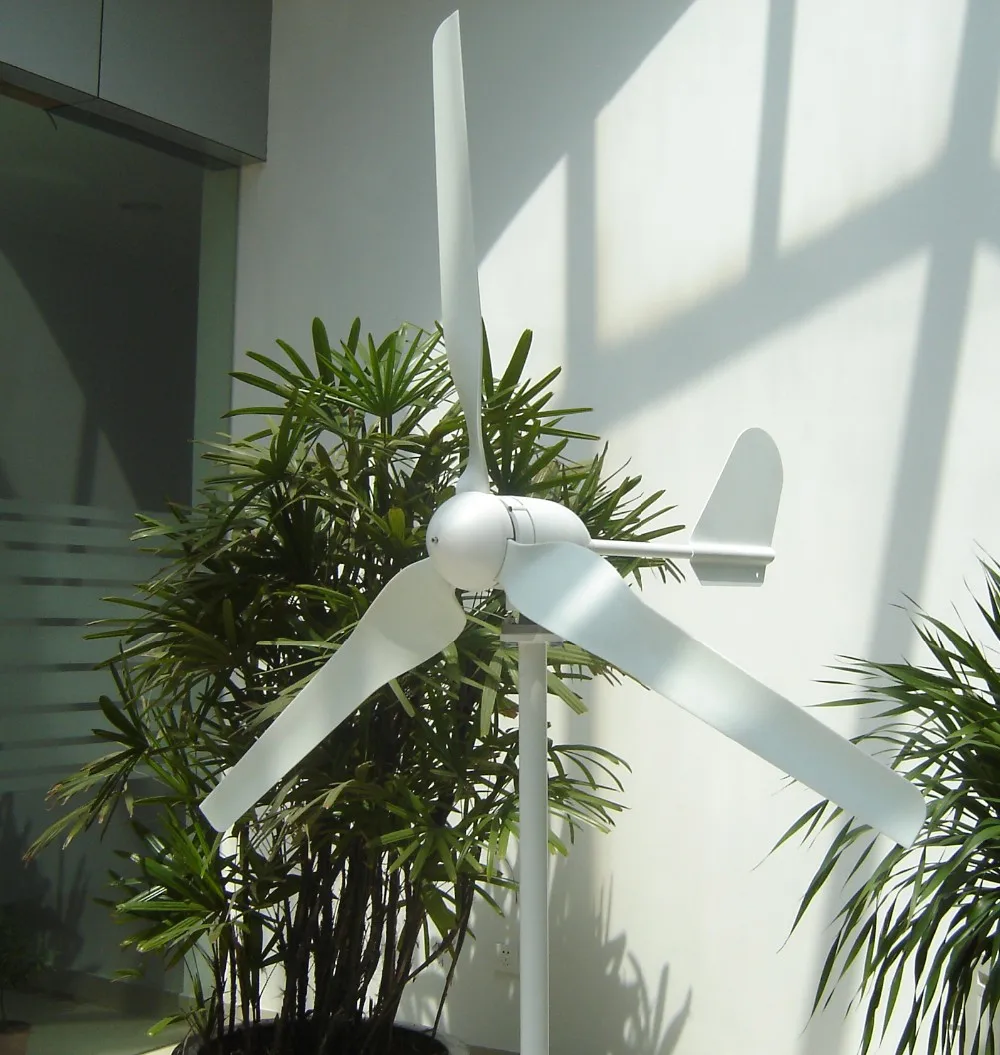

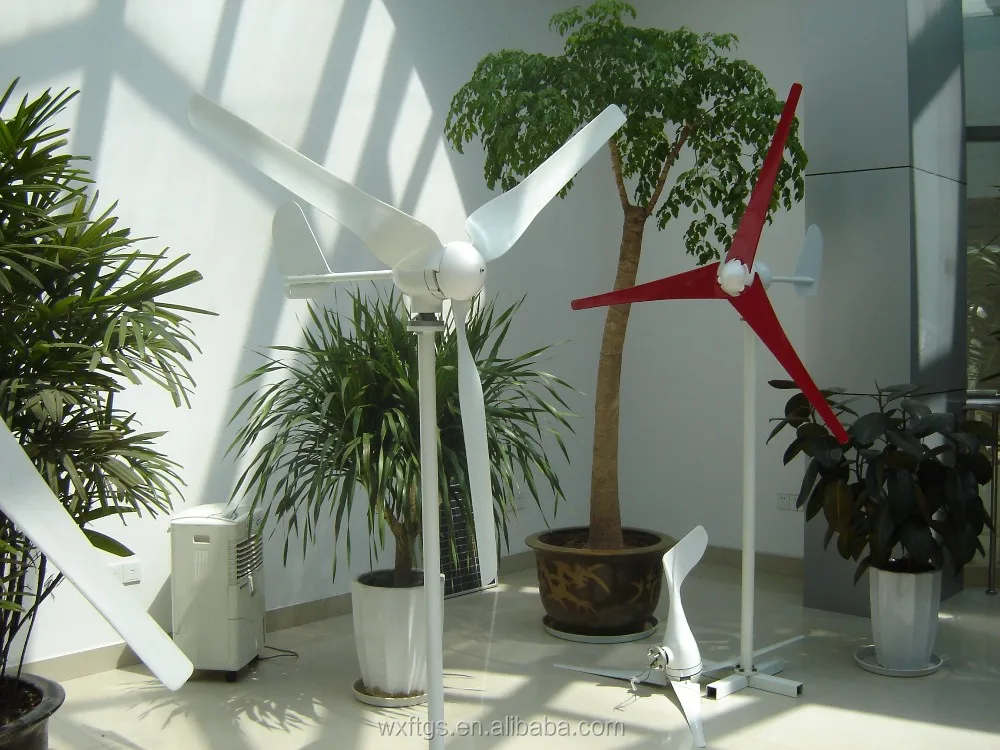

Real pic for 500w 12v 24v wind dynamo

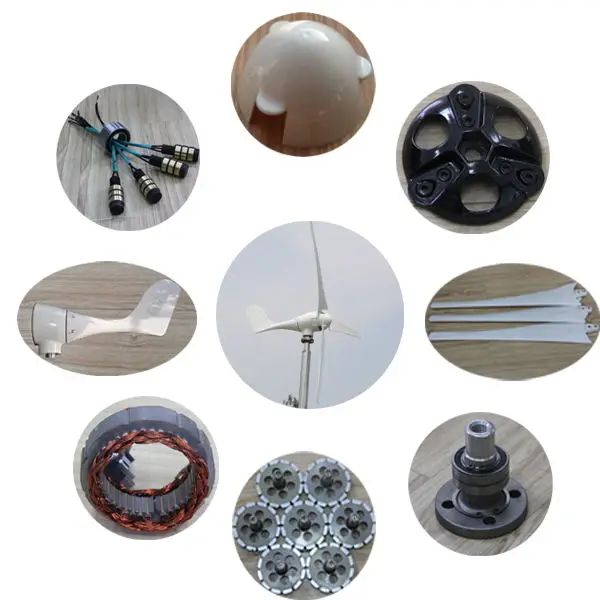

Detail parts for 500w 12v 24v wind dynamo
Parameters for 500w 12v 24v wind dynamo
Model | FT-500M3 |
Rated power | 500W |
Maximum power | 510W |
Rated voltage | 12/24V |
Start-up wind speed | 2.5m/s |
Rated wind speed | 13m/s |
Survival wind speed | 55m/s |
Top net weight | 11.5kg |
Wheel diameter | 1.8m |
Number of blades | 3 |
Blades material | Nylon fiber |
Generator type | Three phase permanent magnet AC synchronous generator |
Magnet material | NdFeB |
Generator case | Casting aluminum alloy |
Control system | Electromagnet/wind wheel yaw |
Speed regulation | Tail furling |
Working temperature | -40°C - 80°C |
Design life | 20 y |
Gross weight | 25kg |
Certificates | CE, ISO14001, ISO 9001,TUV |
Features for 500w 12v 24v wind dynamo
1.Casting aluminum alloy body, compact, safe.
2.Reinforced glass fiber blades,matched with optimized aerodynamic shape and structure,
which enhance the wind energy utilization and annual output.
3.Patented permanent magnet ac generator with special stator,effectively reduce torque,
well match the wind wheel and generator, and ensure the performance of whole system.
4.Tail adopts mechanical yaw technique, making it survive storm and run safely.
5.With epoxy zinc rich primer and polyurethane anti-corrosion treatment,be ultraviolet-proof, acid rain resistant, salt resistant.

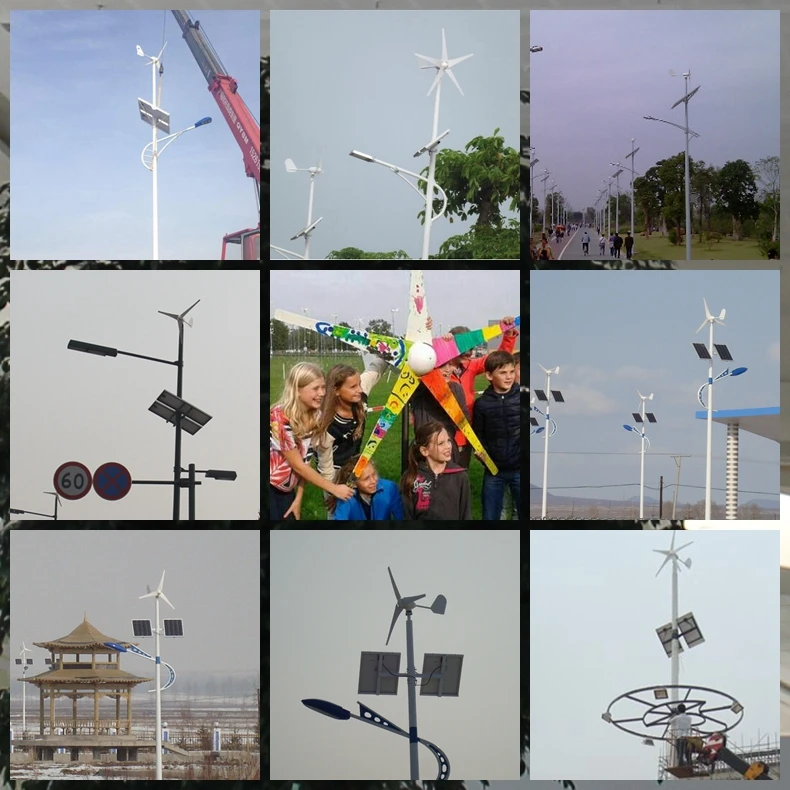

Projects of 500w 12v 24v wind dynamo

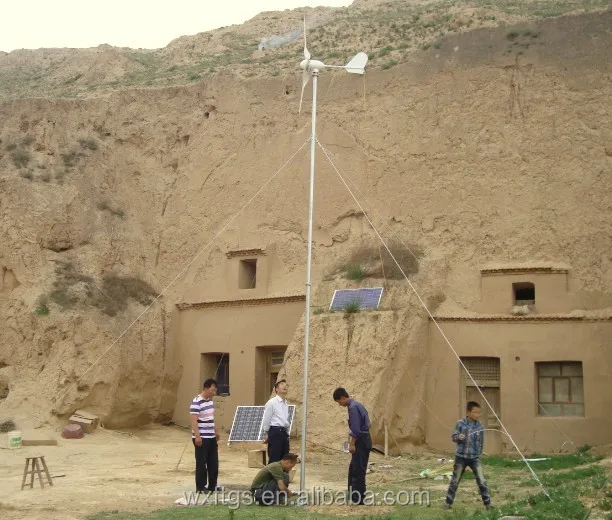

Wind dynamo system
Wind dynamo and solar panels system
Packaging & Shipping

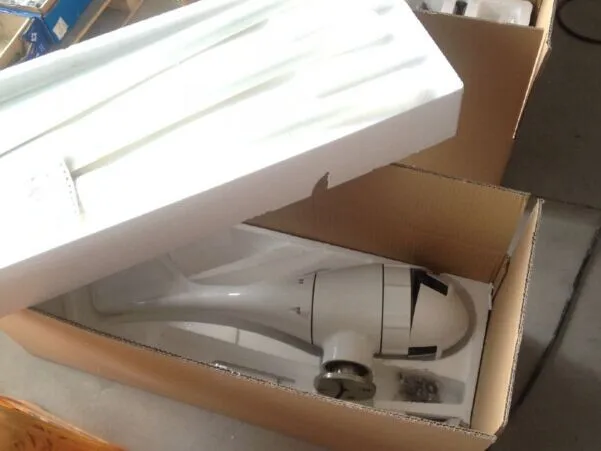

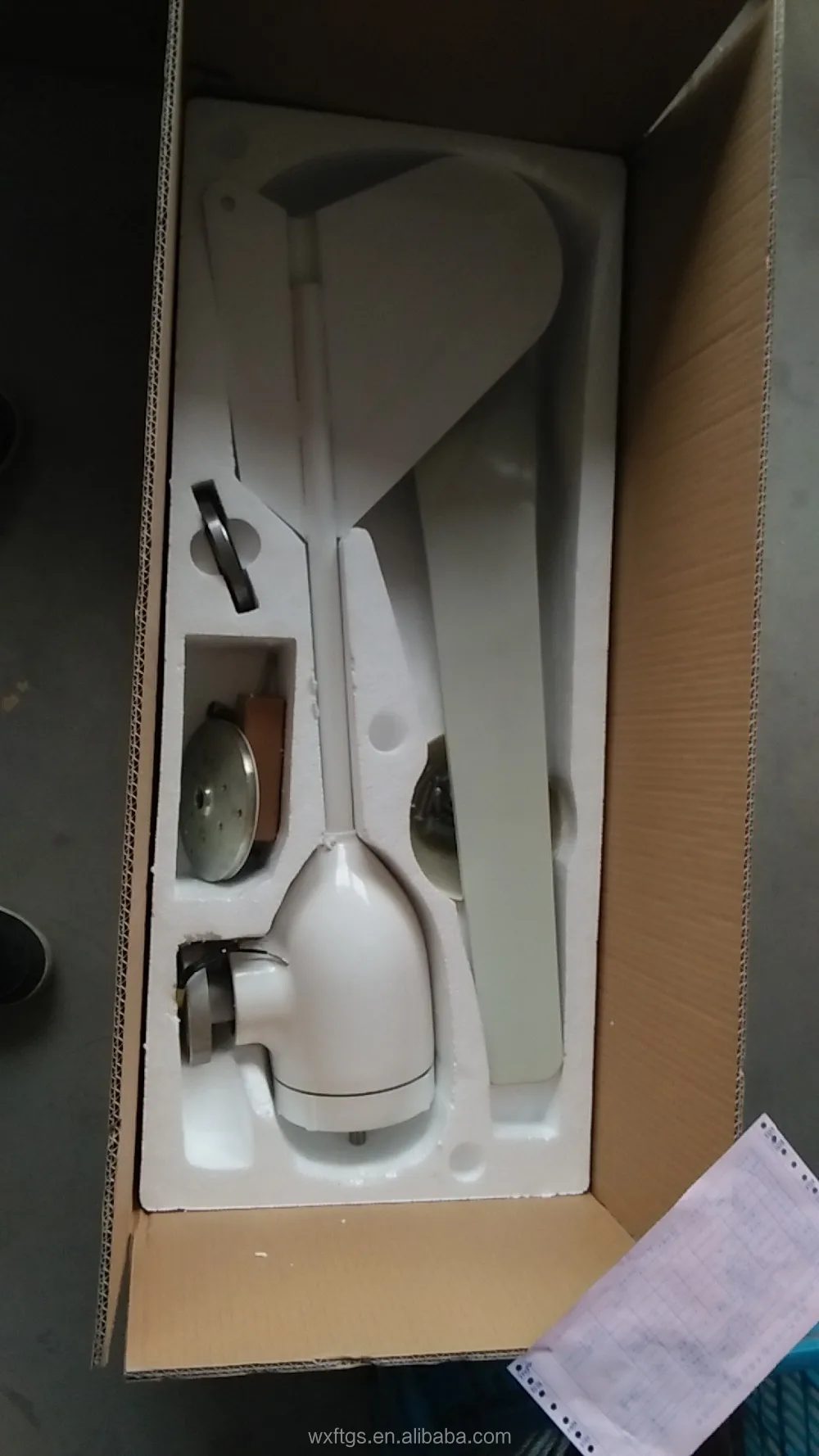

Pakaging for 500w 12v 24v wind dynamo
Our Services
1.Reply your inquiry for wind dynamo in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. OEM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained
and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6.Certain warranty for every wind dynamo.

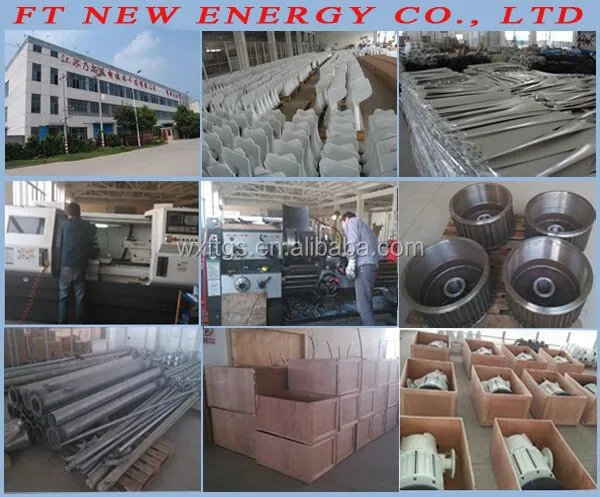

Company Information
As professional manufacturer of wind dynamo for 6years,we have our own R&D team.
We can offer horizontal axis wind dynamo 50w-10kw,
vertical axis wind dynamo 50w,100w,200w,300w,400w,
and permanent magnet generator 100w-60kw.
For any requirement of wind dynamo ,feel free to contact with us
FAQ
Some questions you may have for wind dynamo :
1. Q: Where is your factory?
A: Wuxi city, Jiangsu Province, about one hour drive from Shanghai.
2. Q: Is this wind turbine installation easy?
A: Yeah, it's very easy, every customer can do it by themselves. We supply you all the components and the installation manual.
3. Q: Is our wind enough for a wind dynamo?
A: Our wind generator can start running at low wind speed, 3m/s. So if your average annual wind speed is more than 5m/s, you can use it.
4. Q: Which model should I choose?
A: If you are not sure to choose the model, please contact our sales with the following points:
1. What appliance do you want to run by the system? How many watts are they? How long do they work?
2. Your annual wind speed.
3. What kind of system do you want? On-grid or off grid?
5. Q: Can I only buy parts of the whole system?
A: Yes.
Any other questions for 500w 12v 24v wind dynamo , please contact me.
