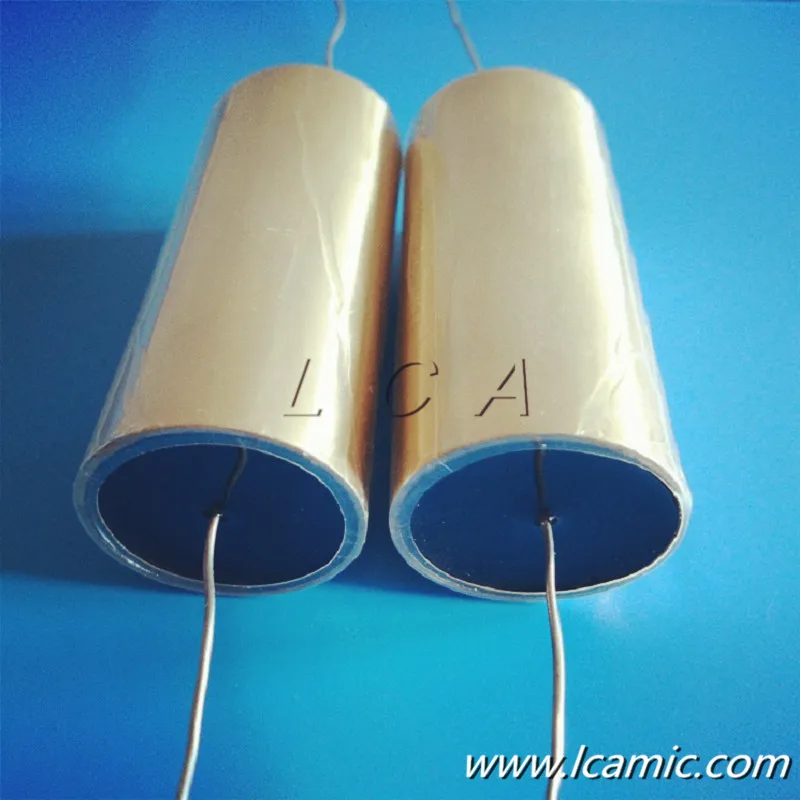

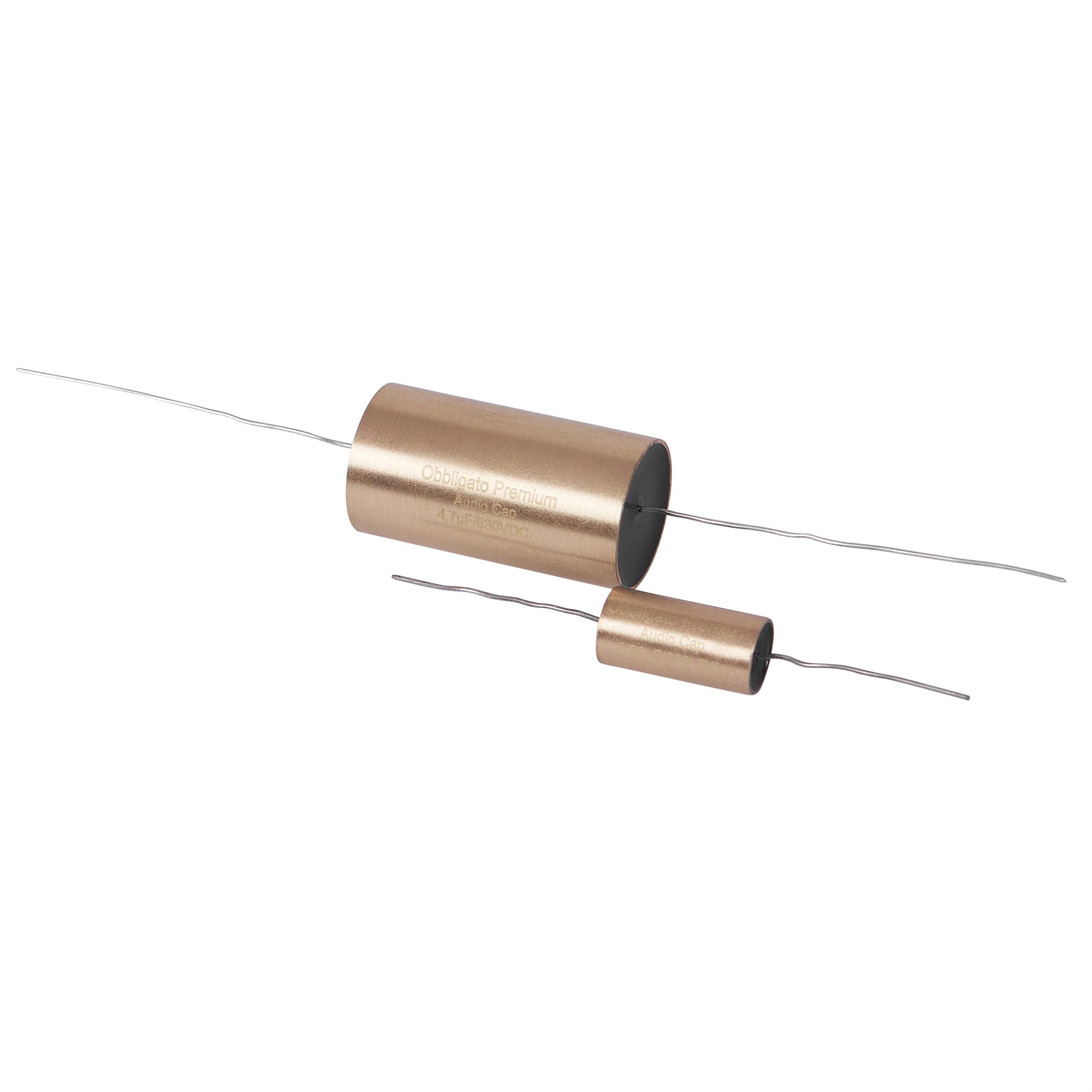

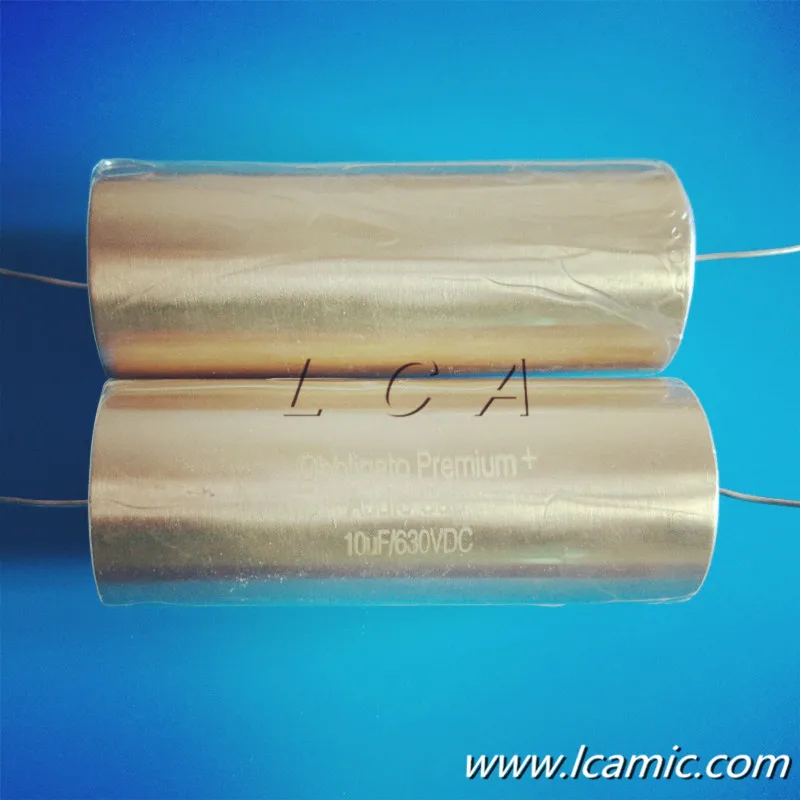

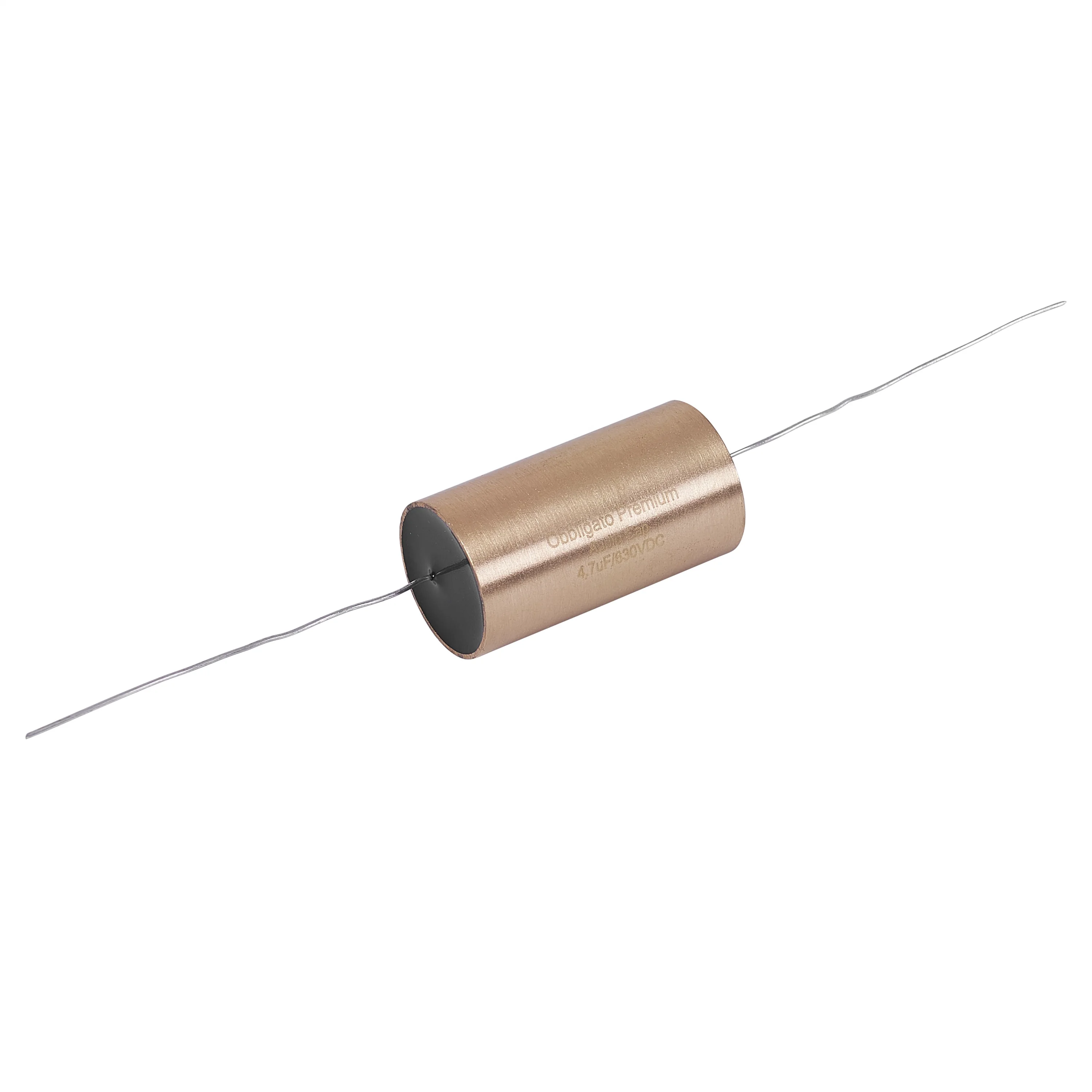

0.047uF 100uF Obbligato premium gold capacitor

Product Overview

Description

0.047uF--100uF Obbligato premium gold capacitor

1.Temperature Feature	-40 C to +85 C
2.Capacitance	0.047uF--100uF
3.Dissipate Factor	<1%
4.Insulation Resistor	>3000 M Ohms
5.Rated Voltage	100VDC/250VDC/400VDC/630VDC....
6.Withstand Voltage	150VDC/372.5VDC/600VDC/945VDC...
7.Dielectric Strength	1.5 Vr
8.Capacitance Tolerance	J(+-5%),K(+-10%)

Technical Characteristics			GB/T 14004-92 IEC384-6
1.Operating temperature			-40℃ ~ +85℃
2.Capacitance range			10nF ~ 47uF
3.Capacitance tolerance			J(±5%)
4.Rated voltage			250V,630V
5.Withstand voltage			1.4Ur  2S
6.Dissipation factor			C<0.1uF             ≤0.0015				10KHz
			0.1uF≤C≤1uF   ≤0.0025
			C>1uF                ≤0.0010				1KHz
7.Insulation resistance					Ur>100VDC
			C≤0.33uF		≥50000MΩ
			C>0.33uF		≥15000S
8.Weather category			40/100/21
9. Endure weld head			Max 2S at 270℃
10.Lead diameter			d=1.0mm

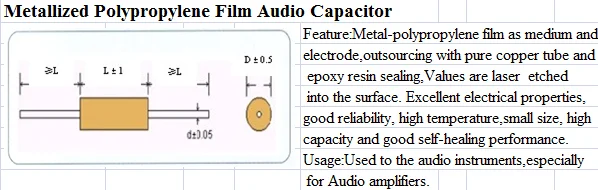

Dimension(mm):
Specs	250VDC		630VDC
Capacitance(uF)	D	L	D	L
0.047			15	20
0.1			15	20
0.15			15	30
0.22			15	30
0.33			15	30
0.47			20	30
0.68			20	30
1.0			20	30
1.5			20	40
2.2			20	40
3.3			30	55
4.7			30	55
6.8			30	55
10			30	55
15	30	55
22	45	65
33	45	65
47	45	65



 CUSTOM DESIGN IS AVAILABLE.
