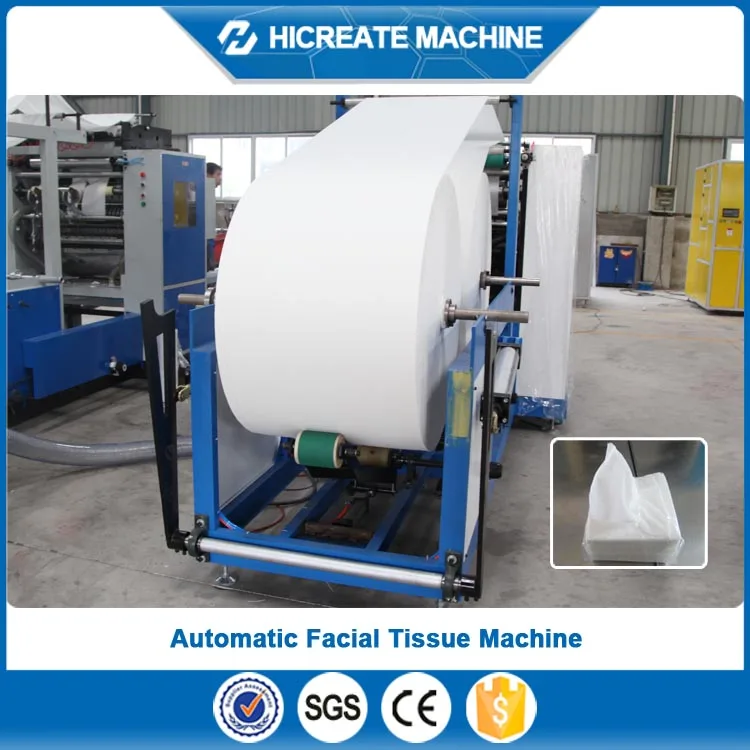

china supplier changzhou machinery facial tissue For Used Cross Paper Folding Machine

Product Overview

Description

china supplier changzhou machinery facial tissue For Used Cross Paper Folding Machine

Main function and features:

1.Paper is conducted by spiral cutting by sections with convenient adjustment in cutting tool

2.Folding type: V type folding, paper in upper and lower position are jointed and folded with auto counting unit and output in stack, folding with vacuum adsorption.

3.Adopt PLC and frequency speed regulator control

4.Unwinding of jumbo roll is pushed an fed by the flat belt, equipped with stepless speed regulator to adjust tension of unwinding.

5.It can be equipped with embossment unit as per client‘s requirement

6.Slitting width can be adjustable while products are in trim.



Technology parameters:

Model(Lane)	2L	3L	4L	5L	6L
Max raw Paper Roll Width	420mm	630mm	840mm	1050mm	1260mm
Raw Paper Material	12-18g/m x 2layers
Max Raw Paper roll Dia	Standard φ1100mm
Raw Paper Roll Core Dia	3'(76.2)mm
Finished Products Opened Size	(140,150,160-210)x(140-210)(mm)
Finished Products Folded Size	(70-105)*(140-210)mm
Operate Speed(sheets/min)	1600	2400	3200	4000	4800
Mechanical Driving	Driven by stepless frequency control system
Programme Controller	PLC control,Touch Screen
Edge Embossing	Steel to Steel,Independent Adjustment
Slitting Unit	Full Cutting
Lubricating System	Key Parts Regularly Lubricaing Automatically
Counting System	Alternate Stack by Stack
Pneumatic System	3HP Air Compressor,Mini Pressure 5kg/cm2 Pa
Paper Layer	2-3Layer
Machine Speed	60-100m/min
Vacuum System	5.5kw	7.5KW	11KW	13.5KW	16KW
Main Power	2.2kw	3KW	4KW	5.5KW	7.5KW
Machine Size(m)	4.1x1.3x2.1	4.1x1.5x2.1	4.1x1.7x2.1	4.1x2x2.1	4.1x2.3x2.1
Weight(ton)	1.8T	2.2T	2.6T	3.0 T	3.5T
Optional Device
Bottom Embossed Roller	Steel/Fellt/Woolen/Rubber
Edge  Embossing	Steel to Steel,Steel to Felt, Steel to Woolen, Steel to Rubber,Independent Adjustment

The finished product of machine:
