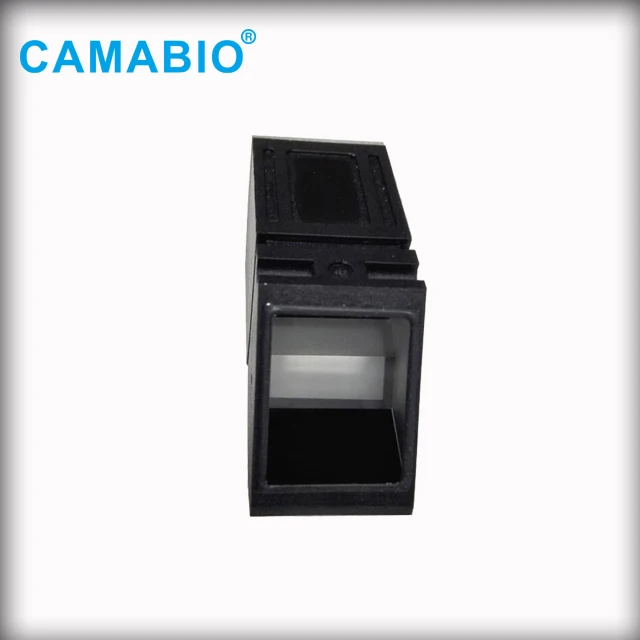

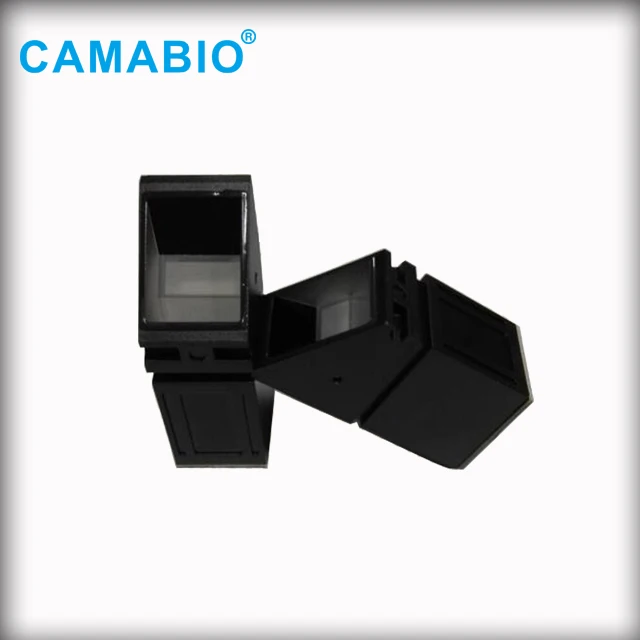

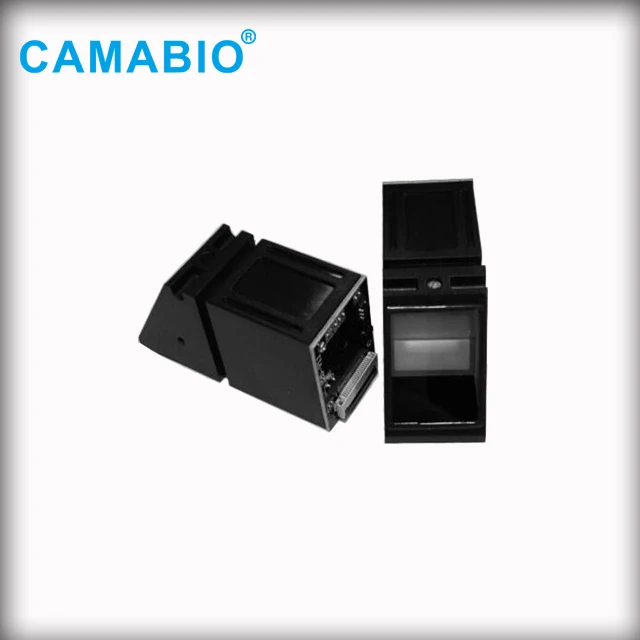

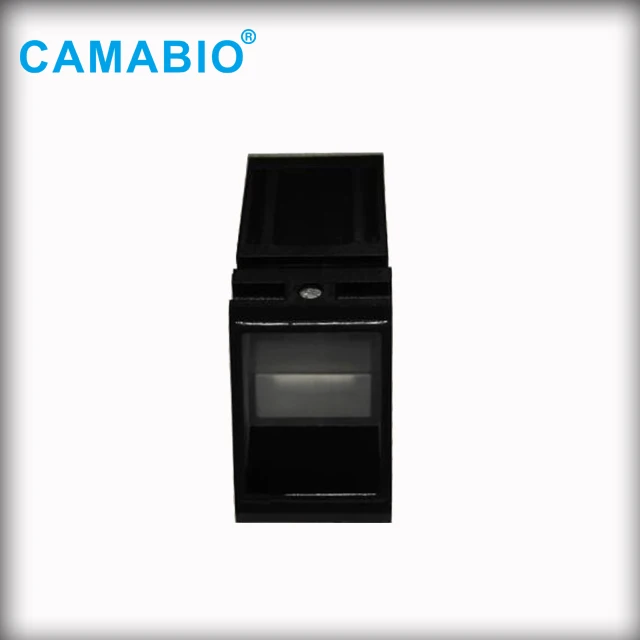

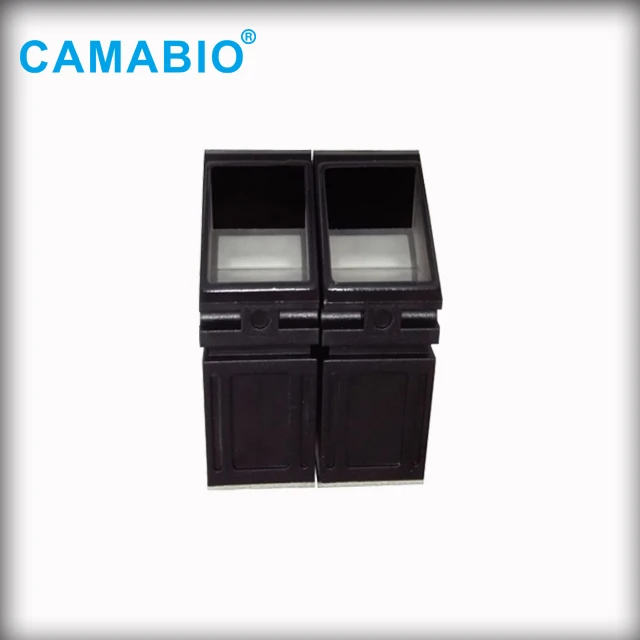

CAMA S25 China optical fingerprint reader sensor manufacturer for biometric security device

Product Overview

Description

CAMA-S25 China optical fingerprint reader sensor manufacturer for biometric security device











Adopting high precise optical image element, identify correctly.
It combines a wide range of optical technology from fingerprint optical manufacturer home and abroad
with super high image capturing ability
Have a good image processing capabilities, can successfully capture image up to resolution 500 dpi
Adjust image distortion, assure fingerprint matching consistency.
Built-in precise micro potentiometer imported from Japan, able to adjust the back brightness
Adopting Self-innovated patent of focus optical fine-tuning to achieve extremely clear fingerprint
Low power consumption, stable and reliable



Optical fingerprint sensor: CMOS GC0308

Keyword: fingerprint touch sensor

Image Processing: Rectangular distortion
Glass material: ZF1
Sensor: 1/4.5 Inch
Identification time ≤ 250ms
Scan area : 18mm X 22mm
Resolution: 500dpi
Work current: <20mA
Static power consumption: <10uA
Anti-static voltage: >15kV
Power supply: 3.3V
Temperature / humidity: -20-55 °C / 20% - 80%
