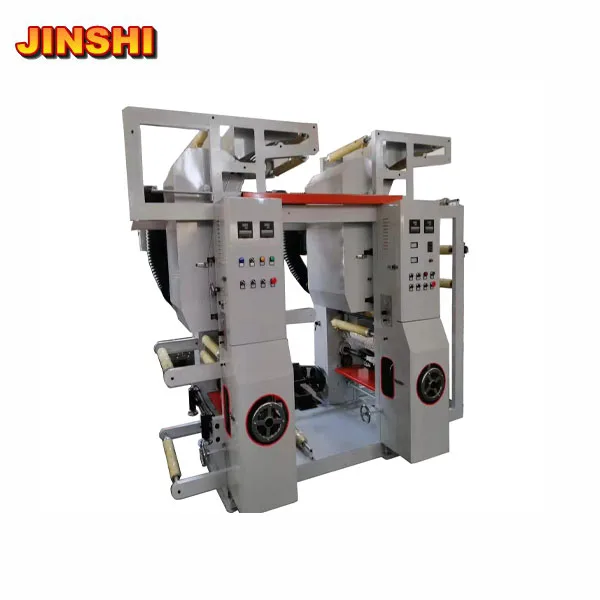

High Speed China Top 10 Automatic PET Rotogravure Gravure Intaglio Printing Press Machine 5 Color (Jinshi brand)
Product Description
This machine is suitable for printing such packing materials as polyethylene, polypropylene plastic bag, cellophane and roll paper, etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket carry bag ,vest bag and clothes bag, etc.
Printing material
PVDC
35-60micron
PET
12-60micron
OPP
20-60micron
BOPP
15-60micron
PE
30-100micron
Nylon
12-50micron
CPP
25-60micron
Composite film
15-60micron
Cellophane
20-30micron
PVC
30-60micron
Paper
30-80gsm
Main parameter
Direction
From unwind to rewind
Printing colour
4
Max printing width
800mm
Max machinery speed
100m/min
Max printing speed
10-80m/min
Diameter of printing cylinder
Φ120mm-Φ300mm
Precision of register
Vertical ±0.12mm(Auto )
Horizontal ±0.15mm(Manual)
Max.Dia.of unwinding&rewinding
ø650mm
Air Supply
0.8Mpa
Tension Range
5-30Kg
Tension Precision
±0.3Kg
Machine Overall Dimensions
15500x3200x3000mm
Machine Weight
About 7.2Ton
Electrics
CHNT brand
Motors
Gongtai brand in Shanghai
Pneumatic Element
From Kaogeer Element Co.
Inverter
Huichuan brand from Shenzhen
Machine Structure & support plate
Alloy casting of high strength and low stress

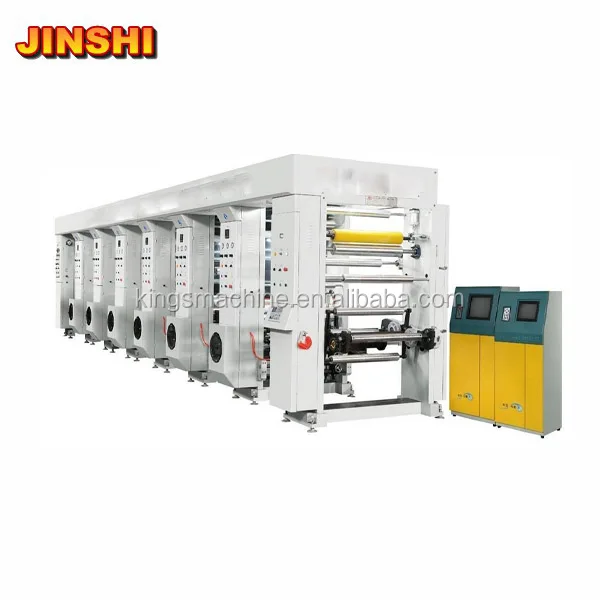

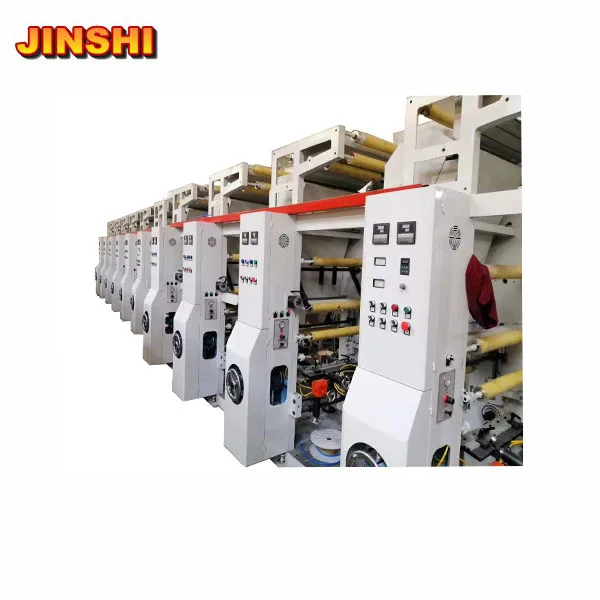

Detailed Images
Packaging
After-Sales Service
1- We provide 24 hours call service-- 0086-18815155383
2- We can provide you skillfull knowlege on the machines.
3- Our engineers are available to install and test your machines at any time if requested by the customers.
4- All machines will be examined and tested before shipment.
5- All of our machines are with CE certification.
6- We have already exported to Vietnam, India,Indonesia,Kenya,Egypt,Russia,Turkey etc.
