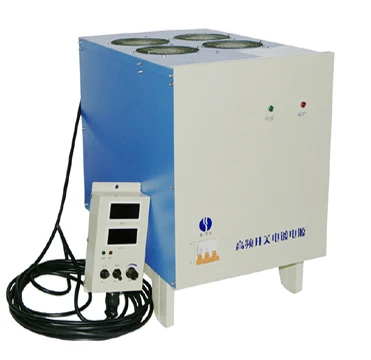

Air cooling IGBT dc adjustable rectifier for water electrolysis
Product Description
Product Description: Index parameters:
Input voltage
380VAC 360VAC-450VAC (three phase) 50Hz
Output Voltage
50V
Output Current
500A
Output current stability
≤2%
Output voltage stability
≤1%
Efficiency
≥85%
Power factor
≥0.9
Start-up postponing time
≤10s
Inverting frequency
18kHz ± 2kHz (800A-1000A)
8kHz ± 2kHz (300A-500A)
Cooling mode
air cooling

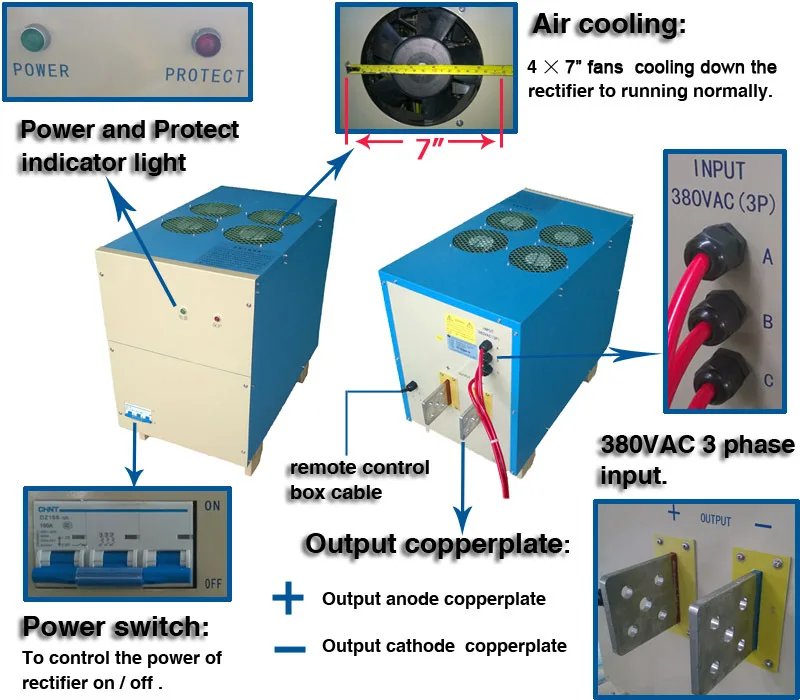

Panel control
Voltage and current display, start/stop,indicator
light of protect and power , adjustment of
output value, CC/CV,timer.
Display
Digital meters or touch screen ,
Ampere hour meter ,timer alarm ,etc
Signal interface
PLC 0~10V , RS485
Modulation mode
PWM control
Complete protection functions
over current,over voltage,over heat ,
short circuit,phase lack ,input undercurrent
protection,over temperature,diode defect.
Product features:
1. Small size, light weight, high efficiency,
high control precision.
2. High –frequency pulse current output,
Suitable for plating small sized no-ferrous
metaland alloy work pieces,
it has high enetration ability,
strong adhesive force, and
caneffectively enhance the brightness
of the plated surface.
3. Output voltage and current can be adjusted,
limiting voltage and current can be adjusted,
greatly enhance application flexibility of
the product for users.
4. With complete protection functions, over current,
overheat protection functions. Highpower factor,
less pollution to the electric network, no interference
Scope of application
It is suitable for sea water electrolysis
Product details:
Six Advantages :
1.5 sole agents good reputation.
2. The appearance design of Our dc adjustable plating rectifier is attactive and graceful.
3. Air cooling professional design.
4.IGBT is inport from Japan Fuji.

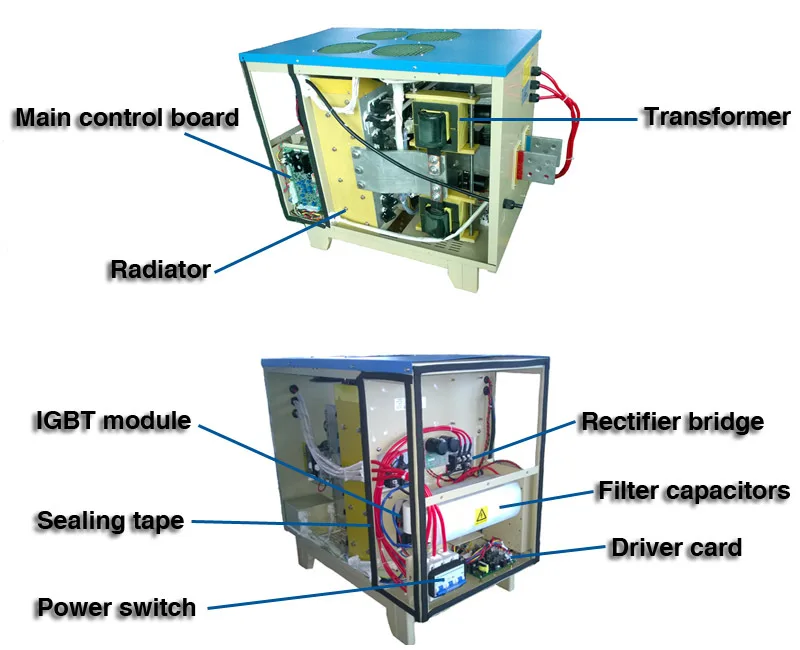

5. The transformer,main transformer,circuit board,and radiator are made by ourself.
6.Our dc adjustable plating rectifier is anticorrosive and waterproof .
Additional function :
Every plating rectifier can add the functions as below: (timer is our general function so that is for free)
Product making process:
Smooth waveform:
Packaging & Shipping
Packaging and Shipping:
Our Services
After sell service:
1.1 years warranty,by replace/repair/free spare parts for bulk order.
Within the first year, if you need any spare parts for replacement, we can provide to you without paid. And we will offer lifelong technical support and service.
2. Considering the expensive shipping cost for you,broken rectifier is no need to send back to China,
just let us know the problem through a video or a picture, then,we will send the replacement to you immediately.
Company Information
Company information:
FAQ
FAQ:
1.Q:Are you a factory or trading company? A: We are a factory.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Foshan Shunde City, Guangdong Province, China, about half an hour
bus ride from Guangzhou Baiyun Airport. All our clients, from home or abroad, are warmly welcome
to visit us.
3. Q:When can I get the price?
A:Usually we quote within 24 hours after we get your inquiry.
4. Q:How can I get a sample to check your quality?
A:After price confirmation, you can require for samples to check our quality. Maybe the price of
sample is higher than the mass production.
5. Q:How long can I expect to get the sample?
A:After you pay the sample charge and the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 5-7 days.
