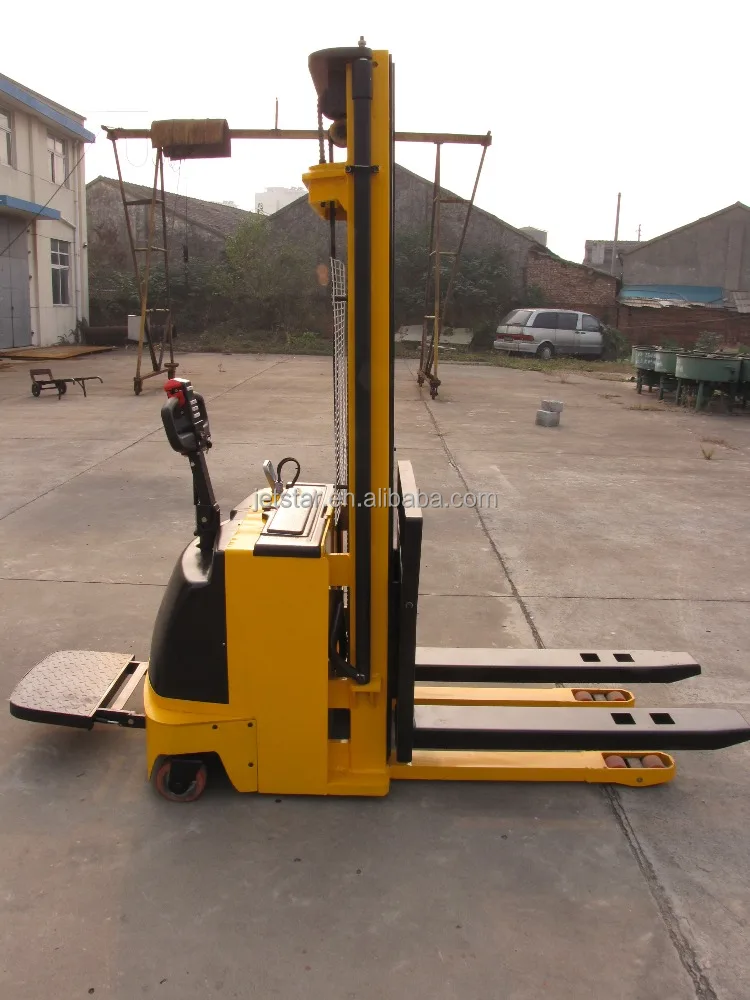

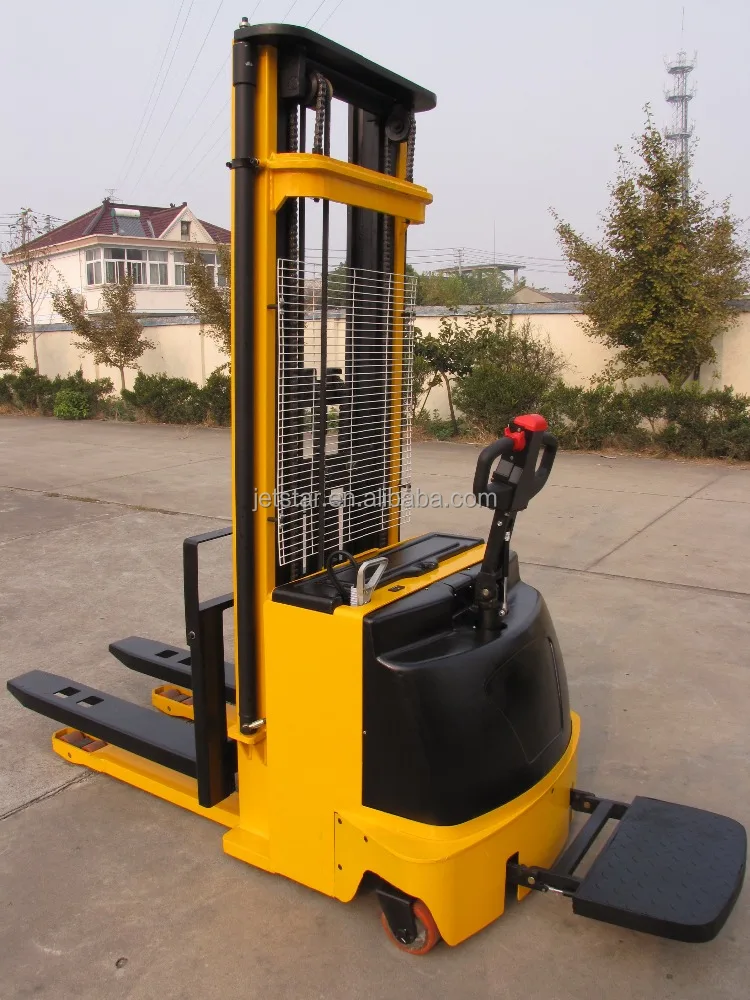

3m Cargo handling small electric pallet stacker fork lift
3m Cargo handling small electric pallet stacker fork lift are designed to operate in narrow passage and limited space, and are ideal facilities to load/unload and stack goods in stacking warehouse, supermarket and workshop etc. these trucks have following features and benefits, human system engineering design, continusous y variable drive, wide view mast assembly made of germang steel, maximum lifting height 6 meters, with optional standing plat.
Technical Data
General
Model
Unit
HL10
HL12
HL15
Rated load capacity
kg
1000
1200
1500
Power
Tractive-type battery
Operator type
Pedestrian / rider (pedal)
Characteristics
Maximum lifting height
mm
1600
1600
1600
Lowered height of fork
mm
≤90
≤90
≤90
Minimum turning radius
mm
1425
1425
1650
Minimum aisle width
mm
2300
2300
2500
Minimum ground clearance
mm
30
30
30
Standard fork length
mm
1150
1150
1150
Standard fork width
mm
160
175
175
Fork overall width
mm
560
570
570
Fork individual width
mm
240
220
220
Chassis
Overall length
mm
1800
1800
1988
Overall width
mm
850
850
1000
Mast extended height
mm
1975
1975
1975
Mast lowered height
mm
1975
1975
1975
Performance
Maximum traveling speed
Laden
km/h
4
4
4
Unladen
km/h
6
6
6
Maximum lifting speed
Laden
mm/h
80
80
80
Unladen
mm/h
130
130
130
Maximum lowering speed
Laden
mm/h
110
110
110
Unladen
mm/h
90
90
90
Gradeability
Laden
%
5
5
5
Unladen
%
8
8
8
Brake
Braking type
Electromagnetic
Wheel
Wheel type front/rear
Poly/Poly
Wheels
1×Driven wheel,2×Balance wheel,4×Front wheel
Balance wheel dimension
mm
Φ156×50
Φ156×50
Φ156×75
Axis space
mm
1228
1228
1450
Motor
Driving motor
kw
1.2
Lifting motor
kw
2.2
Battery
Battery(Voltage/Capacity)
V/Ah
12/120×2
12/165
24/210
Control
Control system
Curtis I207a
Weight
Weight
kg
650
690
690
this paramter only for reference,we provice 1600mm-6000mm and load 1000-2000kg stackers,please contect me,if you have nterest.

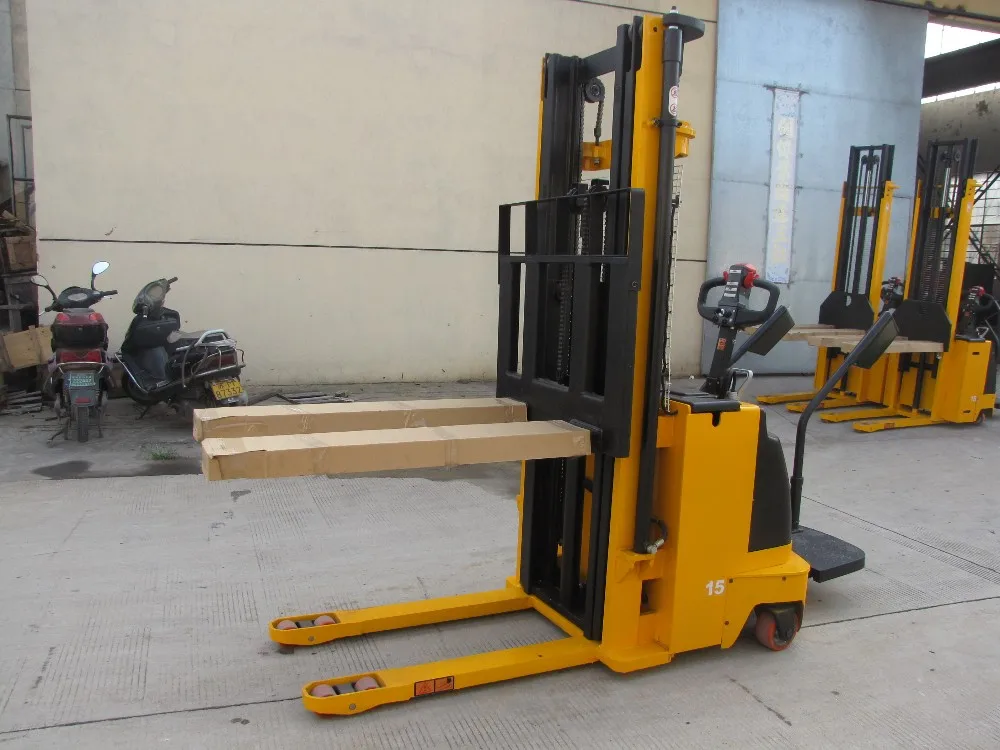

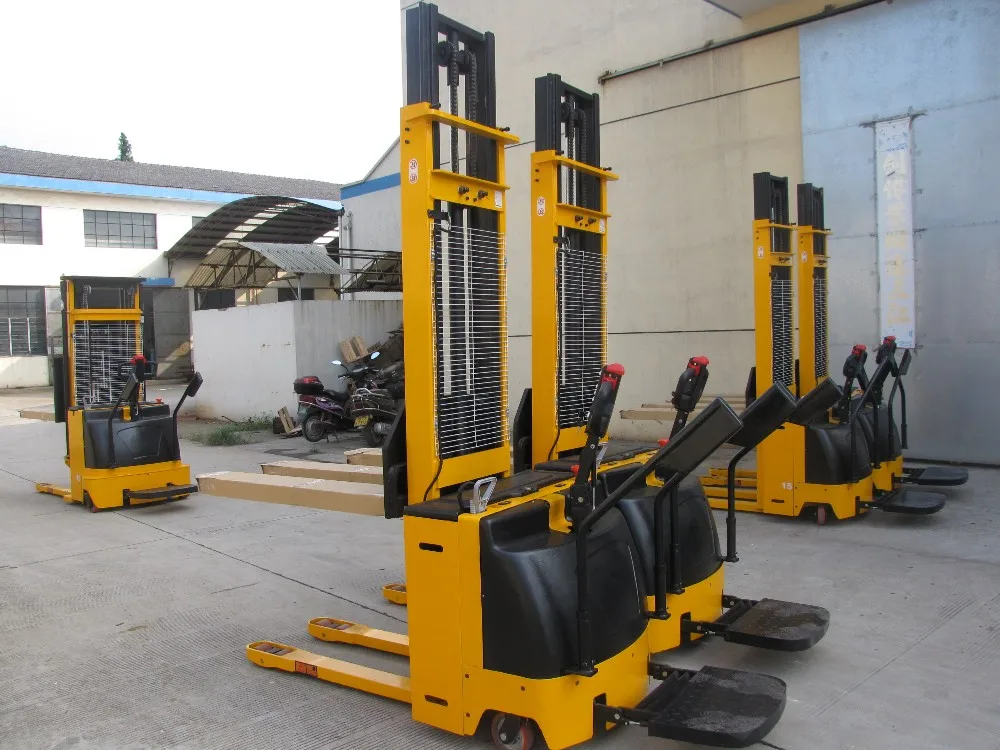

Pictures

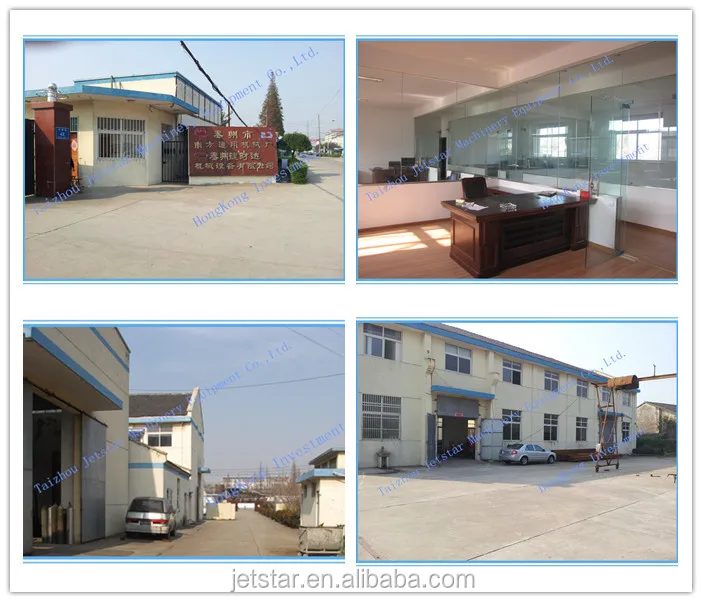

Company Information
Hong Kong Investment Taizhou Jetstar Machinery Equipment Co. Ltd. is a diversified, high-tech, and internationalized large modern company. She was established in 2006 as a professional manufacturer and exporter of forklift. The head office was located in Hong Kong, as a window for overseas business, and the factory is located in the Economic Development Zone, Taizhou city of Jiangsu Province.
During the development of our company, we realize that people are the most important resources of all and we invested very heavily on our staffs. Currently, we have 20 veteran engineers and experts who were having been busy in developing new electric logistics machines. Also our products are of streamline design and have many components made in America and Europe. So the surface, the structure and the useful life about our products are achieved the international level.
Backed by our own and our partner factories, professional technology and valuable customers, our products has steadily developed into one of the largest and most experienced suppliers of forklift, electric stackers, electric pallet trucks, series semi-electric stackers in China. Our products are marketed under “Jetstar” brand and sold into the markets of America, Europe and different area of the world.
Our company passed CE certification and ISO 9001:2000, we completely carry out the quality management system of it. We persist with the principle of “Quality first, customer first, management first”, so that we can offer you the first class products and the first class service. We also have OEM service to manufacture products according to customers’ specific requirements. Please don’t hesitate to contact us for more details or visit our website if you have any questions or inquiries.
