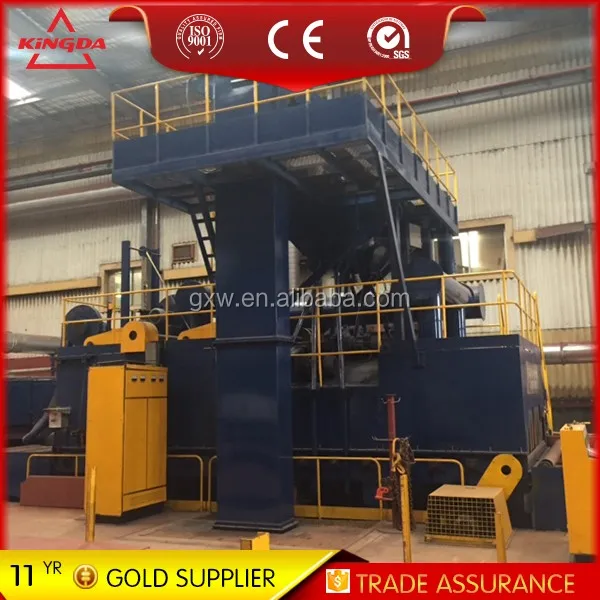

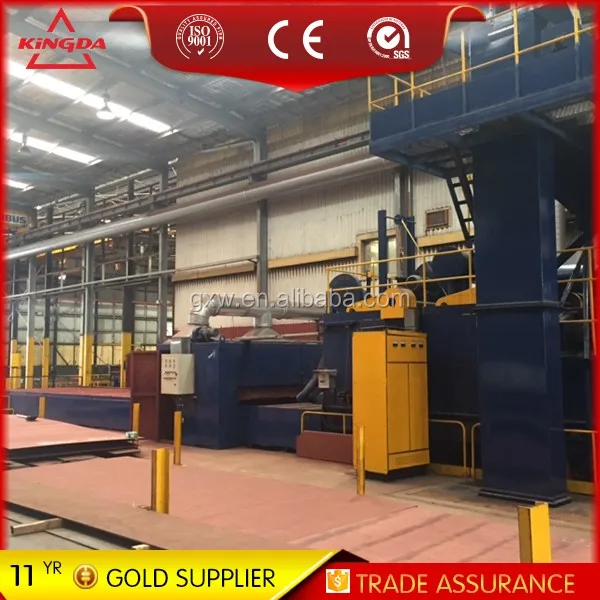

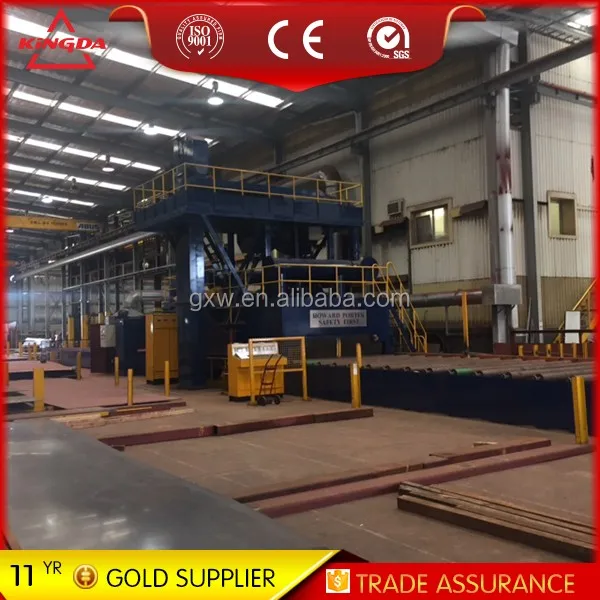

Automatic roller type shot blasting machine for Steel plate,H beam,tube and pipe surface cleaning

Product Overview

Description

      Automatic roller  Wheel Blasting Machine for Steel plate,H-beam,pipe's surface cleaning

Introduction of machine

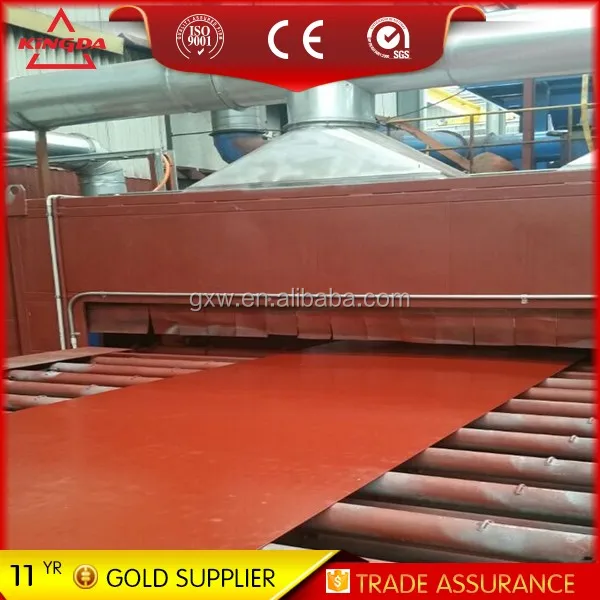

 steel profiles ,steel plate, h-beam , trailer body surface  abrasive finishing machine applies to shipping,car,motorbike,bridge,steel structure to remove the rusty spot,rusty layer and scale cinder on it to abtain a uniform,smooth and glossy metal surface to allow improved coating quality and higher anti-corrosion performance.

Feature

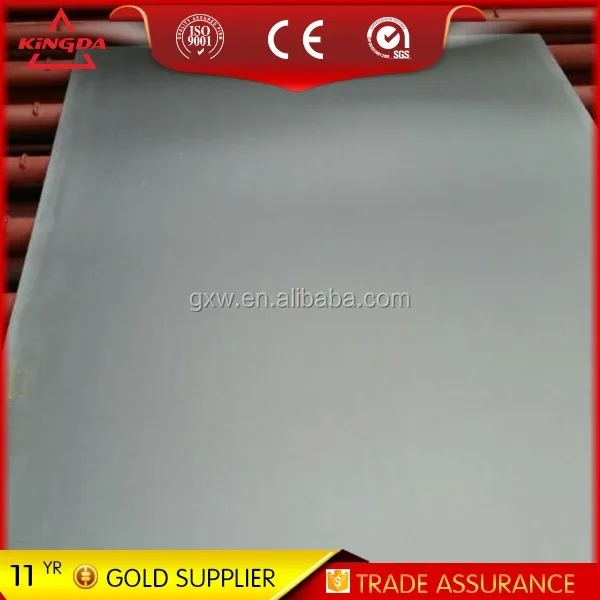

 1.Used to remove the rusty spot, rusty layer and scale cinder on steel to obtain a uniform, smooth and glossy metal surface

  2. Allowing improved coating quality and higher anti-corrosion performance

 3.This series of steel sheet shot  blasting machine is consist of pre-heat,shot blasting, spray painting ,drying systems

Specification of different models

Model	Q6908	Q6910	Q6915	Q6925	Q6930	Q6950
Effective cleaning width(mm)	800	1000	1500	2500	3000	5000
Dimension of inlet size (mm)	1100*400	1300*400	1800*400	2800*400	3300*400	5300*400
Length of cleaning workpiece(mm)	2000~12000	2000~12000	2000~12000	2000~12000	2000~12000	2000~18000
Work speed of roller (m/min) frequency control of speed	0.5~5	0.5~5	0.5~5	0.5~5	0.5~5	0.5~5
The thickness of cleaning steel sheet (mm)	3~60	3~60	3~60	3~60	4.5~60	5~60
Steel profiles(mm)	800*300	1000*300	1500*300	2500*300	3000*300	5000*300
Qty of shot blasting (kg/min)	4*200	4*250	6*250	8*250	6*360	10*420
First time load shots qty(kg)	2000	2000	3000	4000	5000	10000
Roller brush height(mm)	350	350	400	450	800	850
Lift elevator capacity(t/h)	48	60	90	120	130	260
Separator capacity (t/h)	48	60	90	120	130	260
Air rate (m3/h)	17560	19000	22000	28000	35000	68000
Total power	80	86	155	189	210	450
