Best selling 35mm 10N.m torque electric awning Tubular Motor

Product Overview

Description

WY35-10S AC Tubular motor

1.The detail information

Model	WY35-10S	WY35-10S
Rated Torque(N.m)	10	10
Rated Speed(rpm)	17	18
Rated Power(W)	135	135
Rated Current(A)	0.7	1.0
Running Time(min)	>4	>4
Limit Rating(turn)	35	35
Complete Length(mm)	520	520
Complete Weight(KG)	1.5	1.5
Rated Voltage(V)	220-230	100-110
Rated Frequency(Hz)	50	60
Tube Diameter(mm)	35	35

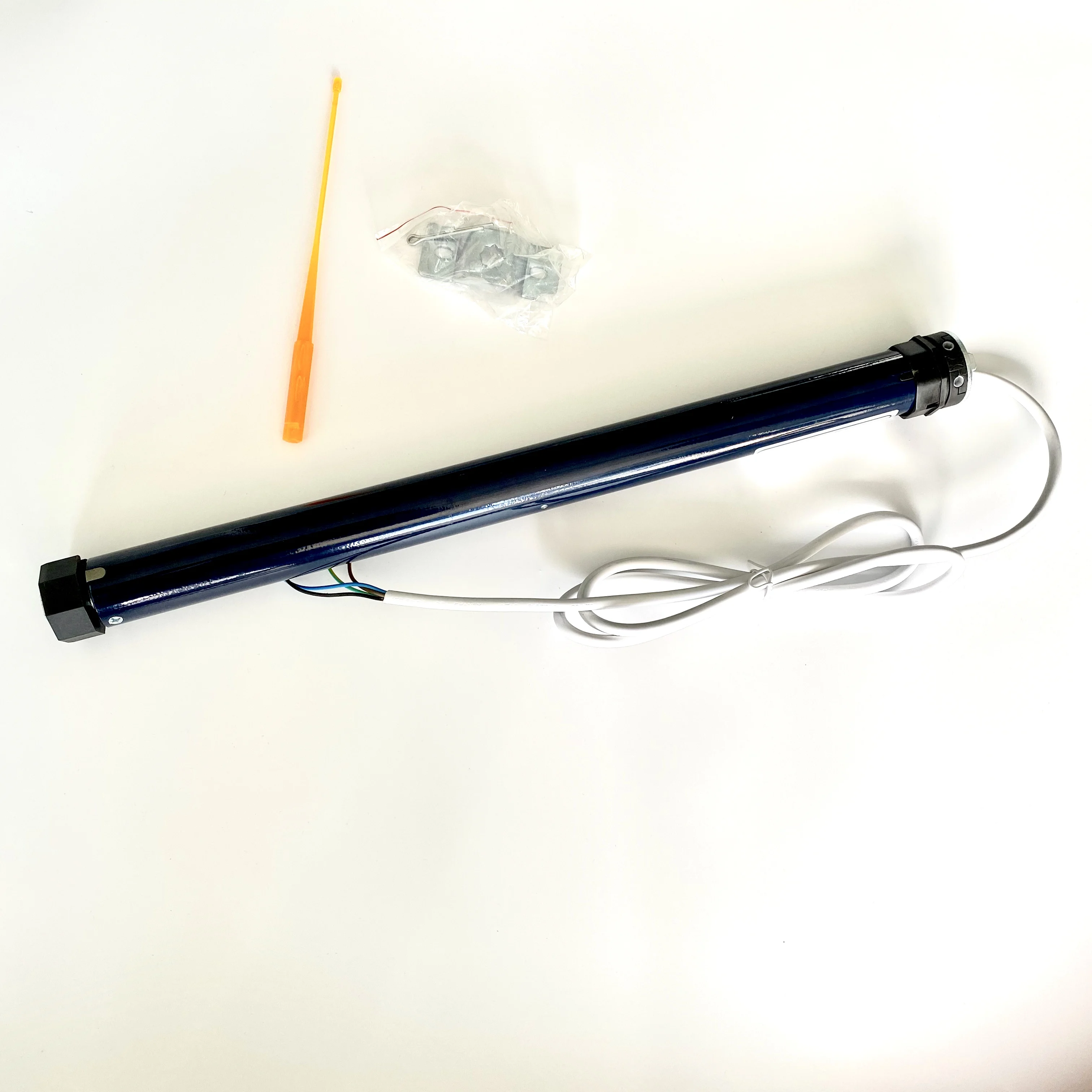

2.The accessory:







3. The package:
Every one seprate packed in a box; 10 boxes in one carton.
The box dimension: 600*75*75mm
The outer carton dimensions: 660*450*200mm

4. The usage: it usually can be used for the electric awnings, blinds, roller shutters and so on.



5. The Warranty:  we promise 5 years !

 All of them have passed CE certificate . So you can rest assured the goods quality . the warranty is 5 years .  If the tubular motor cannot work normally during the 5 years , we promise we will resend you new ones free of charge .



Any question, pls contact me  freely……
