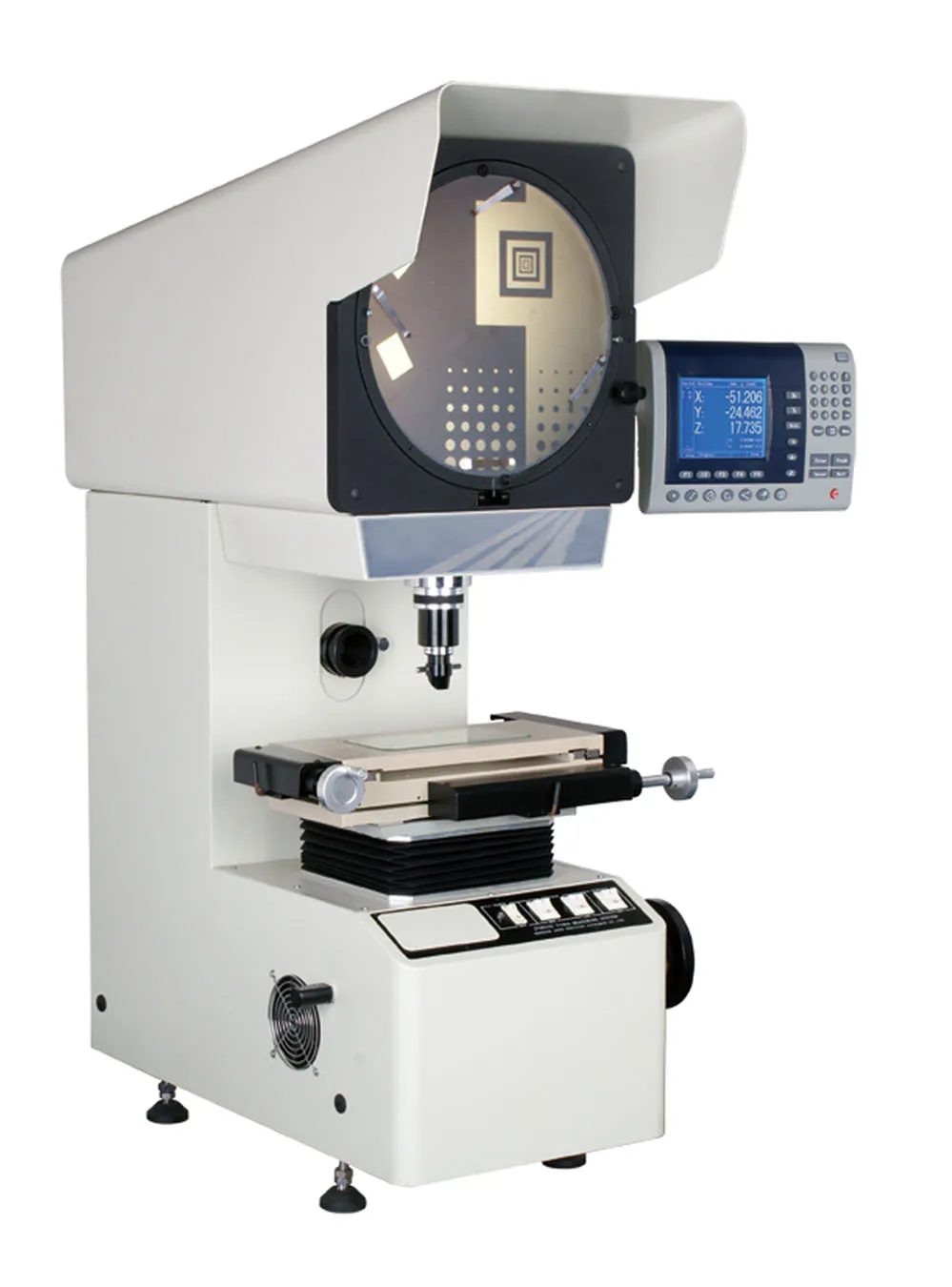

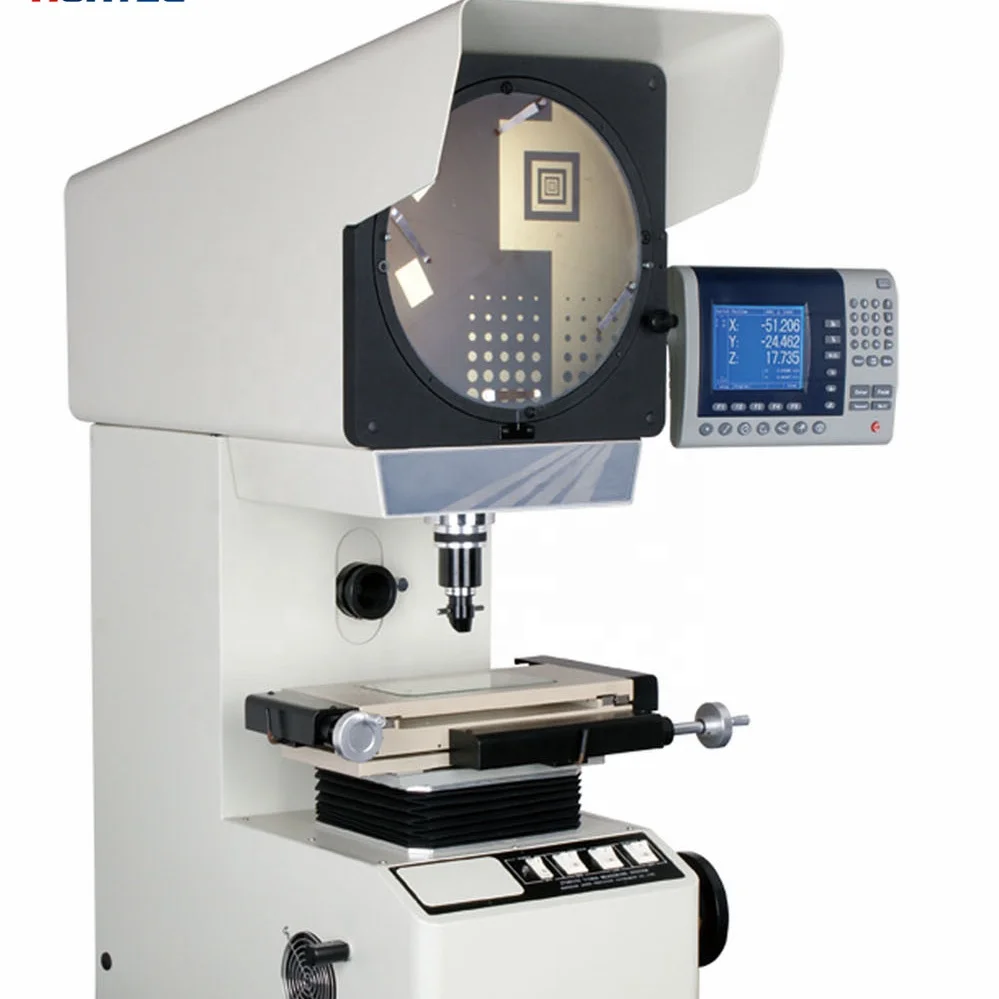

HVT12 2010T High accuracy profile projector, inspect surface and outline
- Category: >>>
- Supplier: Huatec Group Corporation
Share on (60423774138):
Product Overview
Description
information display

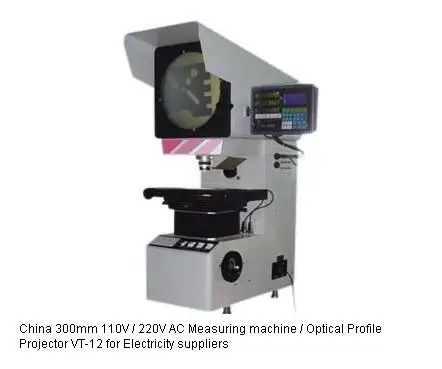

Profile Projector VT12 series are precise and excellent effective measuring instrument integrating Optic, Mechanic, Electricity, and Computer technology.
It is widely used in the field of mechanic, electronic, rubber industry, and college, research institute and the measuring checking department for checking product quality. VT12 can inspect all kinds of surface and outline of complicated work-pieces such as Template, Pressing work-pieces, Cam, Screw thread, Gear, etc.
Technical Specification:
The Technical Specification of Profile Projector VT12 series (Unit: mm) | ||||
1, Model | VT12-1550T | VT12-2010T | ||
2, Stage Travel: X and Y-axis | 150×50 | 200×100 | ||
3, Metal stage dimension | 340×152 | 350×170 | ||
4, Glass Stage Dimension | 196×96 | 246×120 | ||
5, Resolution of X and Y-scale | 0.001 | |||
6, Travel: Z axis | 90 (for focusing) | |||
7, Screen diameter | Ø308, effective range≥Ø300mm | |||
8, Rotary range of screen | 0~360° | |||
9 Resolution of Rotary Indicator | 1'/0.01° | |||
10, Accuracy | ≤4+L/50 (um) | |||
11, Objective magnification | 10X(Std.) | 20X(Opt.) | 50X(Opt.) | 100X(Opt.) |
12, Object view-field | 30 | 15 | 6 | 3 |
13, Work distance | 78.33 | 44.3 | 24.5 | 25.3 |
14, Data Processor | Multifunctional LED Digital Readout DC 3000 | |||
15, Instrument Illumination | Surface and Contour Illumination: 24V/150W halogen lamp | |||
16, Power | 110V/ 220V(AC), 50/60HZ | |||
17, Dimension (D× W × H) | 770 × 550 × 1100/770 × 810 × 1120 | |||
18, Instrument Weight | 130Kg | 170Kg | 130Kg | 170Kg |
 |  |
 |  |
 |  |
HUATEC Group is a reliable manufacturer and supplier of testing instruments in Beijing China. HUATEC Group combines all the R/D and production advantage of all its own subsidiaries, takes advantage of its years marketing and sales experience in global market, contributes to offering most qualified competitive products and service to international markets.
HUATEC Group products are composed of all kinds of metal and non-metal testing equipments, such as portable hardness tester, micro hardness tester, shore durometer, vickers hardness tester, Rockwell hardness tester, Brinell hardness tester, portable X-ray flaw detector, mobile X-ray flaw detector, Real-time X-ray image flaw system, holiday detector, digital portable eddy current electrical conductivity meter, digital ultrasonic flaw detector, coating/painting thickness gauge, ultrasonic thickness gauge, vibration tester, surface roughness tester, profile projector, etc, and all of their accessories such as ultrasonic transducer, test block, IQI, lead screen, densimeter, film viewer etc.
We have more than 15 R&D engineers in our group company, who make sure the produced product to be best quality. And more than 10 new products will be developed every year.
Q1. How about your samples?
Yes, we can serve you our samples for your test (Freight collect). You also can get a refund of the freight cost when the bulk order is placed.
Q2. How much for the freight?
It depends on your area, we will use DHL, FedEx and EMS bulk service, it had discount as normal express service. And we can return freight while you place order.
Q3. Do you have discount for large quantities?
Yes, It not only depends on your order quantity, but also the item you booked.
Q4. What about delivery?
Prompt shipment after receipt of order confirmation for regular products.
We can offer the free samples
We can accept OEM/ODM
The mass production is accordance with the samples
We can packed the production well and safe.
We can answer your questions in time after sale
