Reliable quality Sand Pump centrifugal pump for solid control

Product Overview

Description

1,Sand pump technical parameters:

Model	Flow (m3/h)	Lift(m)	Power (Kw)	Speed (RPM)	Impeller Size(Inch)	Weight(Kg)	Dimension(mm)
GNSB8x6A-14J	320(1408GPm)	35	75(100HP)	1450(50Hz)	14	1096	1968×650×1017
GNSB8x6A-12J				1750(60Hz)	12
GNSB8x6A-13J	272(1200GPM)	35	55(75HP)	1450(50Hz)	13	987	1894×650×957
GNSB8X6A-11J				1750(60Hz)	11
GNSB6x5A-13J	200(880GPM)	35	45(60HP)	1450 (50Hz)	13	786	1811×558×858
GNSB6x5A-10J				1750(60Hz)	10
GNSB6x5A-12J	150(660GPM)	30	37(50HP)	1450(50Hz)	12	771	1786×558×858
GNSB6x5A-9.5J				1750(60Hz)	9.5
GNSB5x4A-13J	120(528GPM)	35	30(40HP)	1450(50Hz)	13	696	1696×568×805
GNSB5x4A-11J				1750(60Hz)	11
GNSB5x4A-12J	90(400GPM)	30	22(30HP)	1450(50Hz)	12	583	1649×568×800
GNSB5x4A-10J				1750(60Hz)	10
GNSB4x3A-13J	65(286GPM)	35	18.5(25HP)	1450(50Hz)	13	561	1595×505×800
GNSB4x3A-12J				1750(60Hz)	12
GNSB4x3A-12J	55(242GPM)	28	15(20HP)	1450(50Hz)	12	482	1550×505×755
GNSB4x3A-10J				1750(60Hz)	10
GNSB4x3A-11J	45(198GPM)	25	11(15HP)	1450(50Hz)	11	464	1510×505×755
GNSB4x3A-9.5J				1750(60Hz)	9.5



2,Company information:

Dongying Xincheng Petroleum Technology Co., Ltd. was established in 2003 and located at the second oilfield

of China —Shengli Oilfield. We have the specialized technicians, senior engineers and peofessional marking team. The company is  committed to develop, manufacture and supply a variety array of  oilfield equipments, the main products include : Petroleum  equipments & tools such as drilling equipments, production equipment,tubular goods, Wellhead quipments, downhole equipments, well control equipments, cementing tools etc.;Petrochemicals.

We have established a complete quality control system,  all products& equipments manufactured as  per international standard and API standard.

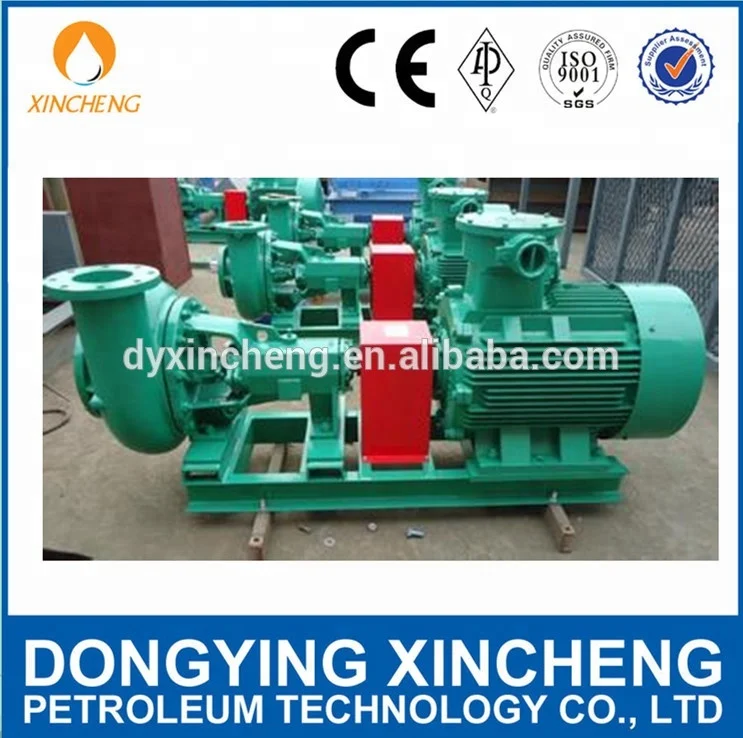

3,Pictures:
