high pressure horizontal die casting machine continuous casting machine
- Category: >>>
- Supplier: Jiangmen Zhenli Machinery Co. Ltd.
Share on (60423911603):
Product Overview
Description

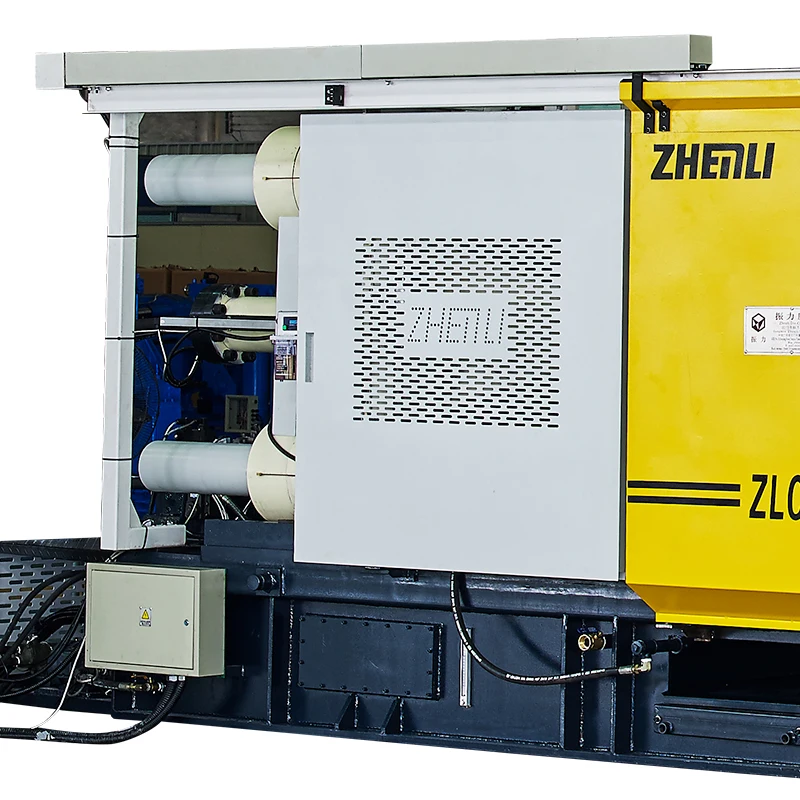

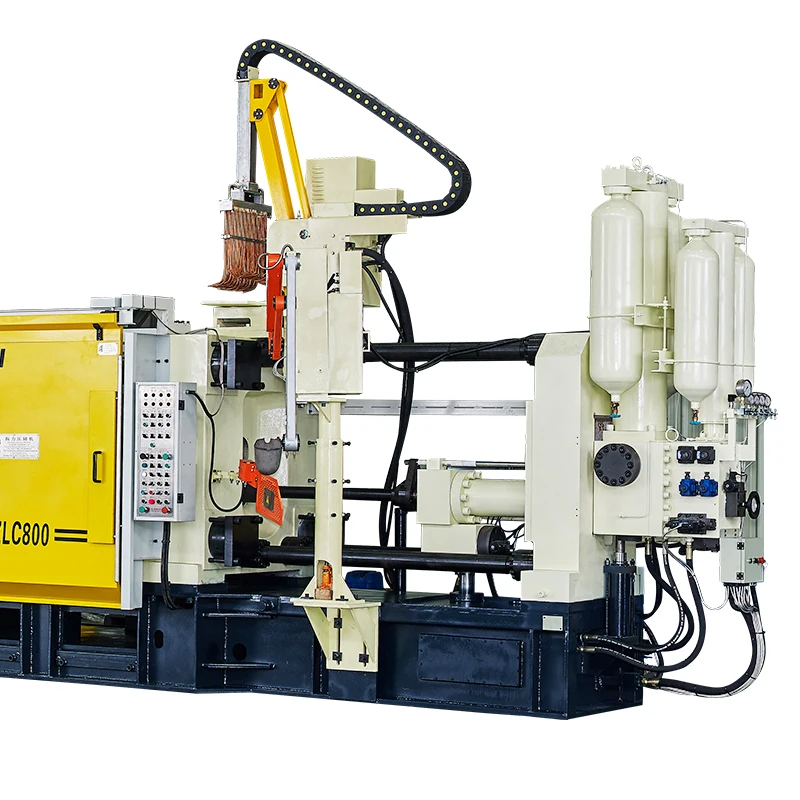

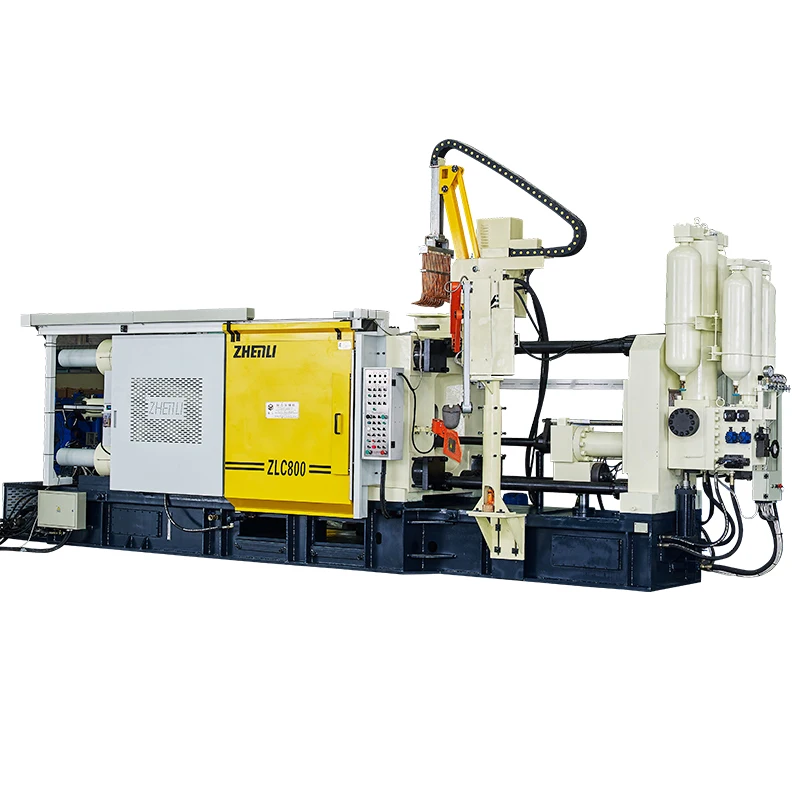

High pressure horizontal die casting machine continuous casting machine
Details Images
Products Description
ITEMS | UNIT | ZLC-800T |
Locking Force | kN | 8000 |
Die Open Stroke | mm | 760 |
Ejector Force | kN | 315 |
Ejector Stroke | mm | 180 |
Die Height（Min.-Max.） | mm | 400-950 |
Die Platen Size（HXV） | mm | 1400×1438 |
Space Between Tie Bars | mm | 910×910 |
Shot Position | mm | 0，-250 |
Shot Strock | mm | 760 |
Casting Force（intensify） | kN | 680 |
Plunger Diameter | mm | 80,90,100 |
Injection Weight | kg | 7.1,9.0,11.2 |
Casting Pressure | MPa | 135,106,86 |
Casting Area | cm² | 591,748,924 |
Casting Area Max | cm² | 2000 |
Chamber Flange Diameter | mm | 200 |
Chamber Flange Protrusion | mm | 20 |
Plunger Penetration | mm | 295 |
Main Pump Driving Motor | kW | 45/55 |
Working Pressure | MPa | 14 |
Oil Tank Capacity | L | 1300 |
Machine Dimensions (L×W×H) | mm | 8600×2600×3250 |
Referential Machuine Weight For Uplifting | T | 40 |

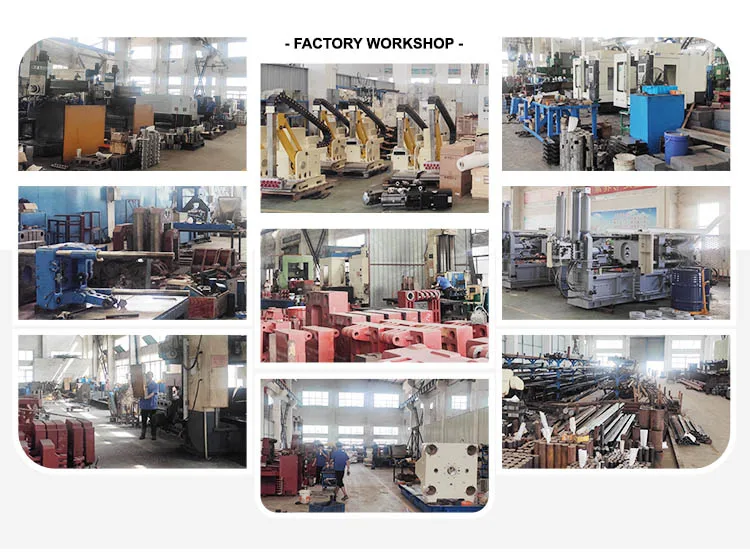

Company Profile
Certificate
Sales and Service
Transport & Payment
FAQ
Q: Is your company a trading corporation or manufacturer?
A: Our company is a die casting machine manufacturer with more than 25-year experience.
Q: How's your products?
A: We use YUKEN machine valves imported from Japan. Imported components are used for hydraulic units including REXROTH from Germany and Eaton VICKERS (America).The SiemensS-7200 control system with LCD monitor(Germany) can accurately control the movement of machine.
Q: How can I choose the suitable machine?
A: Our machines have many types. Different type depends on your product size. The bigger product you make, the bigger machine you need.
Q: How’s your price?
A: We do our best to keep our price as low as possible without sacrificing quality.Considering the quality of the machine offered, the price is very competitive.
Q: How’s your after-sales?
A: One year after sales warranty.We can also send our engineer to your factory to install and commissioning the machine, and train your staff.
A: Our company is a die casting machine manufacturer with more than 25-year experience.
Q: How's your products?
A: We use YUKEN machine valves imported from Japan. Imported components are used for hydraulic units including REXROTH from Germany and Eaton VICKERS (America).The SiemensS-7200 control system with LCD monitor(Germany) can accurately control the movement of machine.
Q: How can I choose the suitable machine?
A: Our machines have many types. Different type depends on your product size. The bigger product you make, the bigger machine you need.
Q: How’s your price?
A: We do our best to keep our price as low as possible without sacrificing quality.Considering the quality of the machine offered, the price is very competitive.
Q: How’s your after-sales?
A: One year after sales warranty.We can also send our engineer to your factory to install and commissioning the machine, and train your staff.
