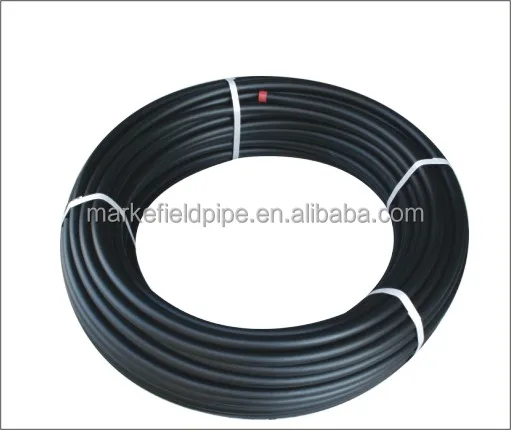

AS/NZS 2492:2007 Standard Pex pipe black color with watermark certificate

Product Overview

Description

AS/NZS 2492:2007 Pex-b pipe black color with watermark certificate:



 1,Pex-b pipe Description:

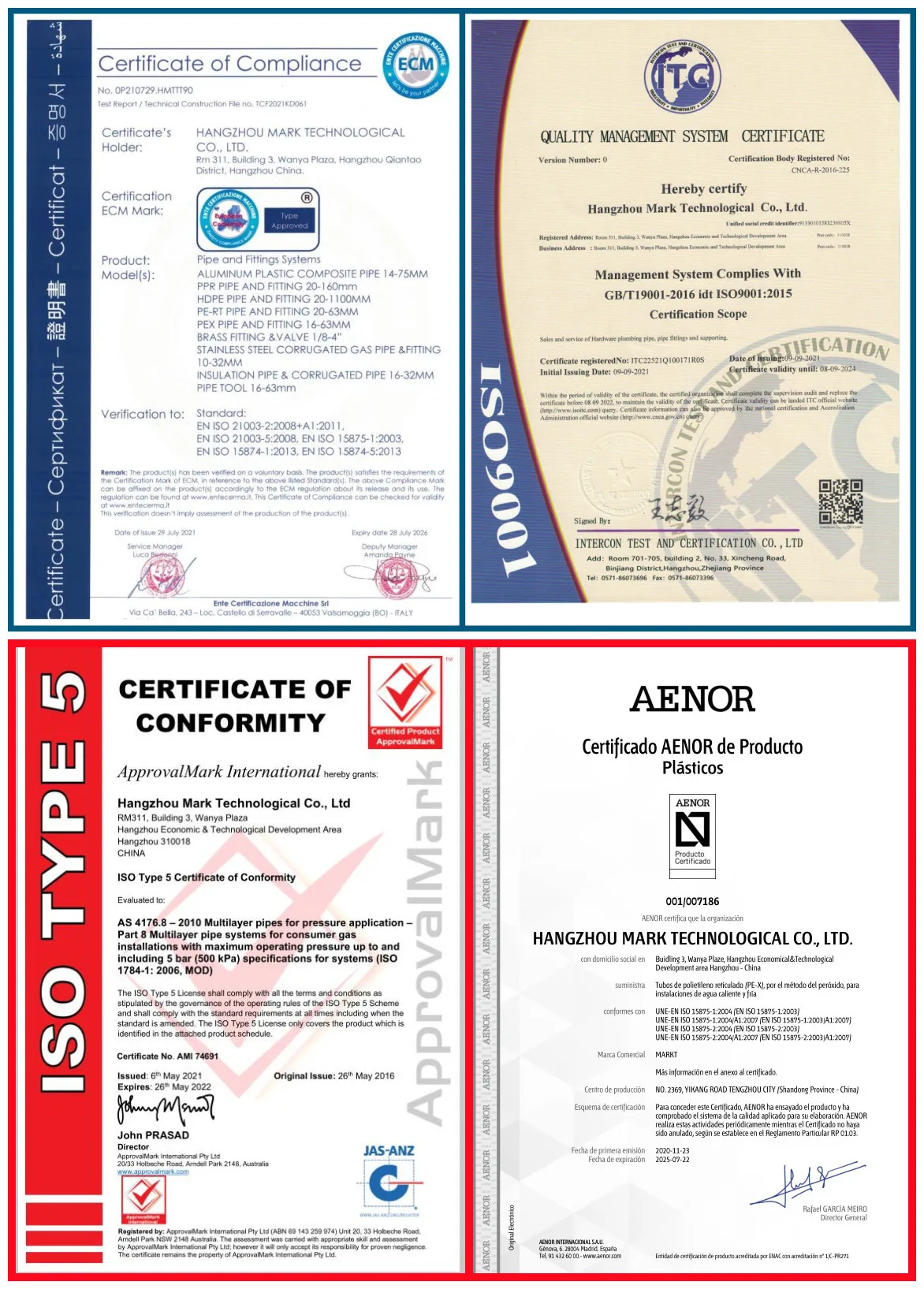

         Hangzhou mark PEX pipes are all  WaterMark approved and of the highest quality for water &gas systems.

 As a specialist in PEX pipes and fittings, we are able to provide you with latest in PEX technology for the lowest possible price.

 Key Benefits of PEX pipes over conventional pipe systems

          It is light weight, flexible and durable

• Not adversely affected by freezing


• Unlike copper there is no need for soldering or welding


•

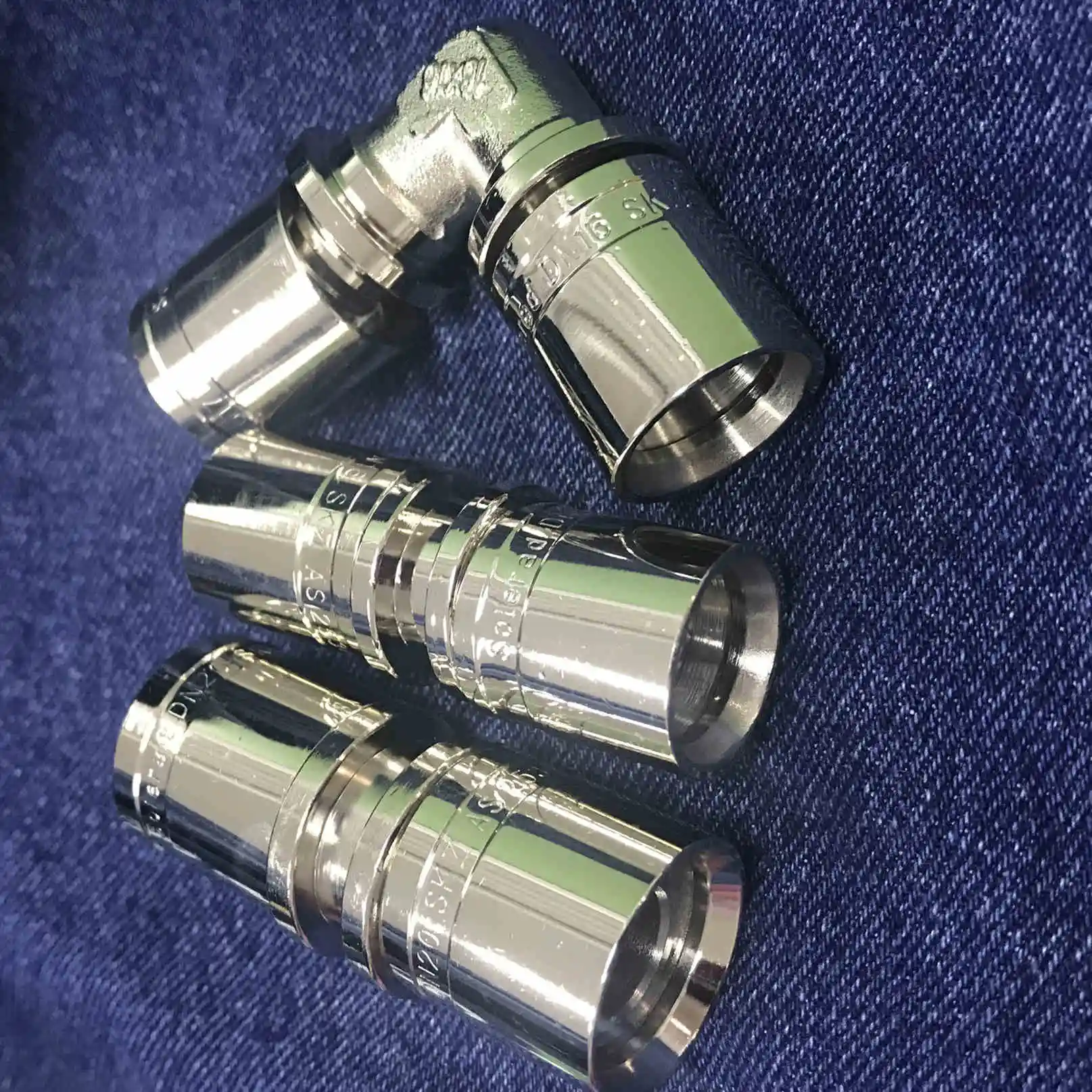

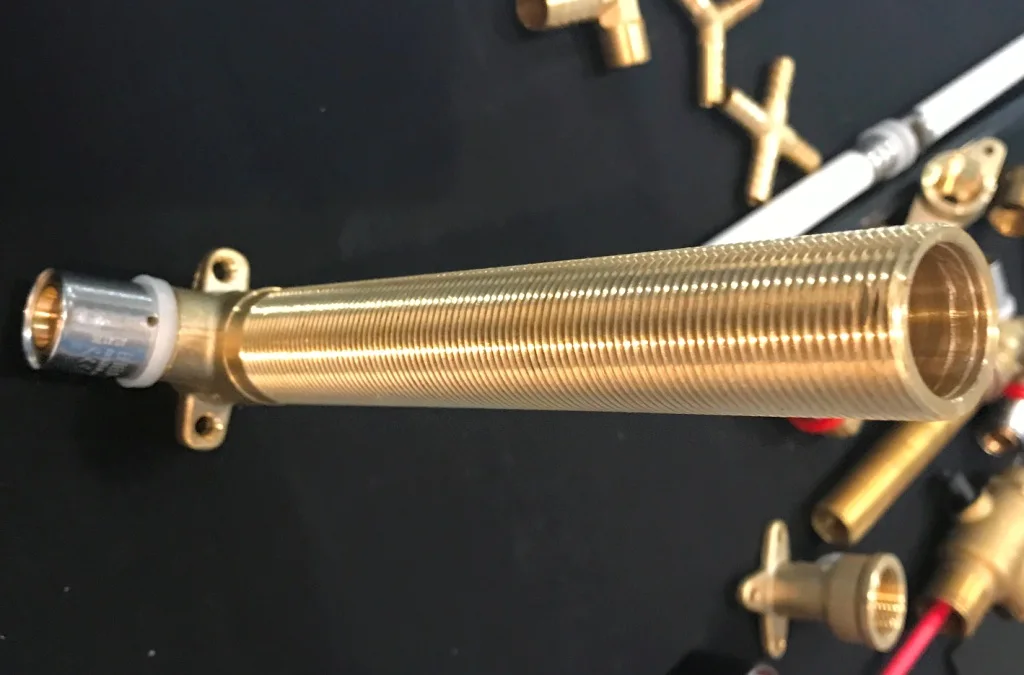

 When using the Markt PEX system, every plumber, builder and home handyman can rest assured that they are using premium quality PEX pipes and all  our water fittings are DR brass.

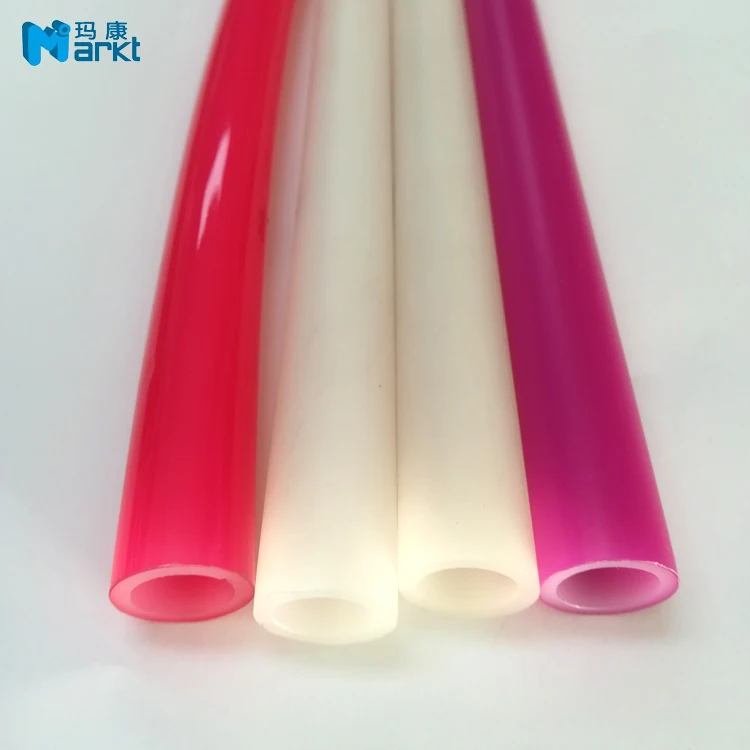

 We supply a number of different colour codes of PEX pipes

• Black - use for either air, hot or cold water lines


• Red - to identify hot water lines


• Green - use for rainwater


• Lilac - use for reclaimed recycled water


• Yellow - use only for gas

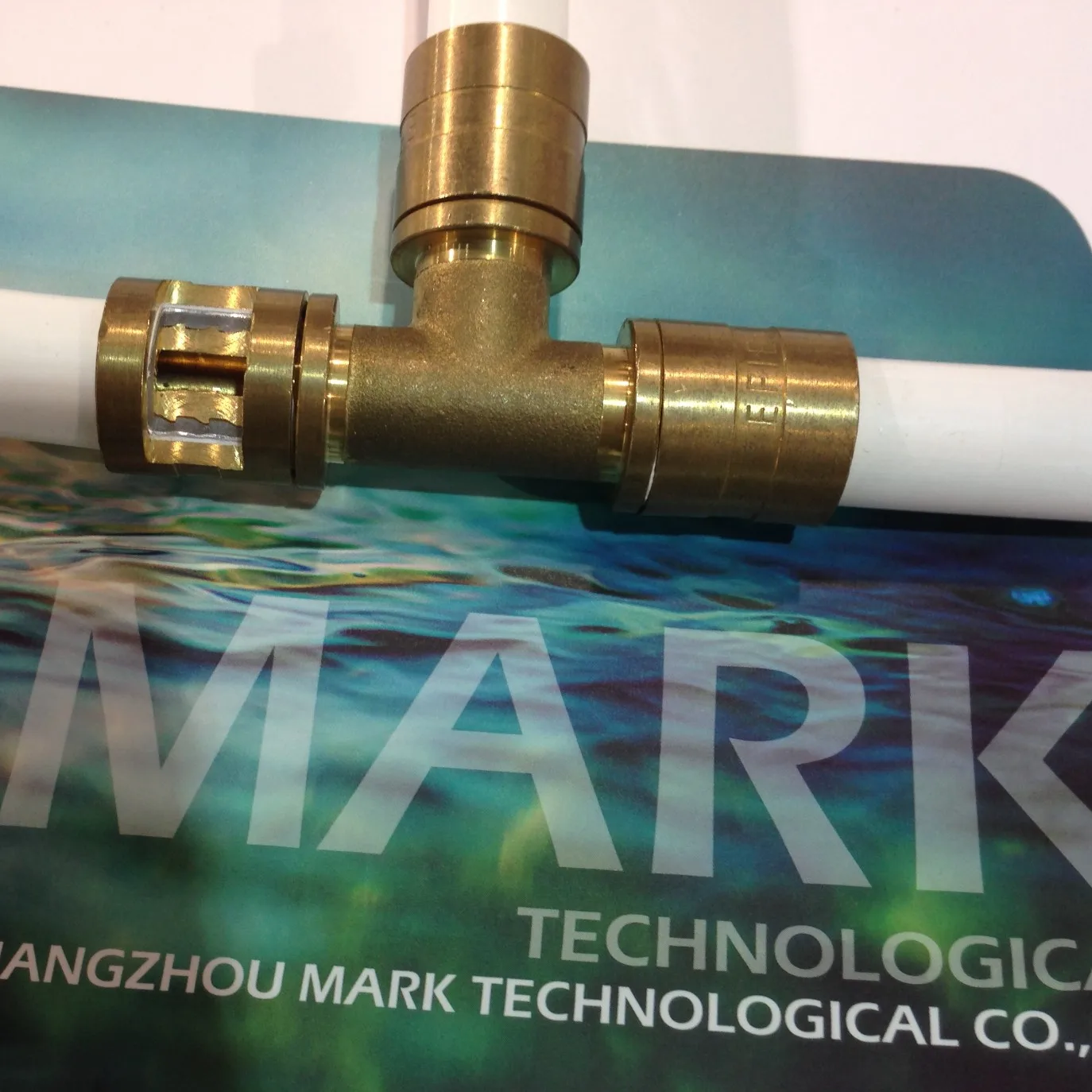

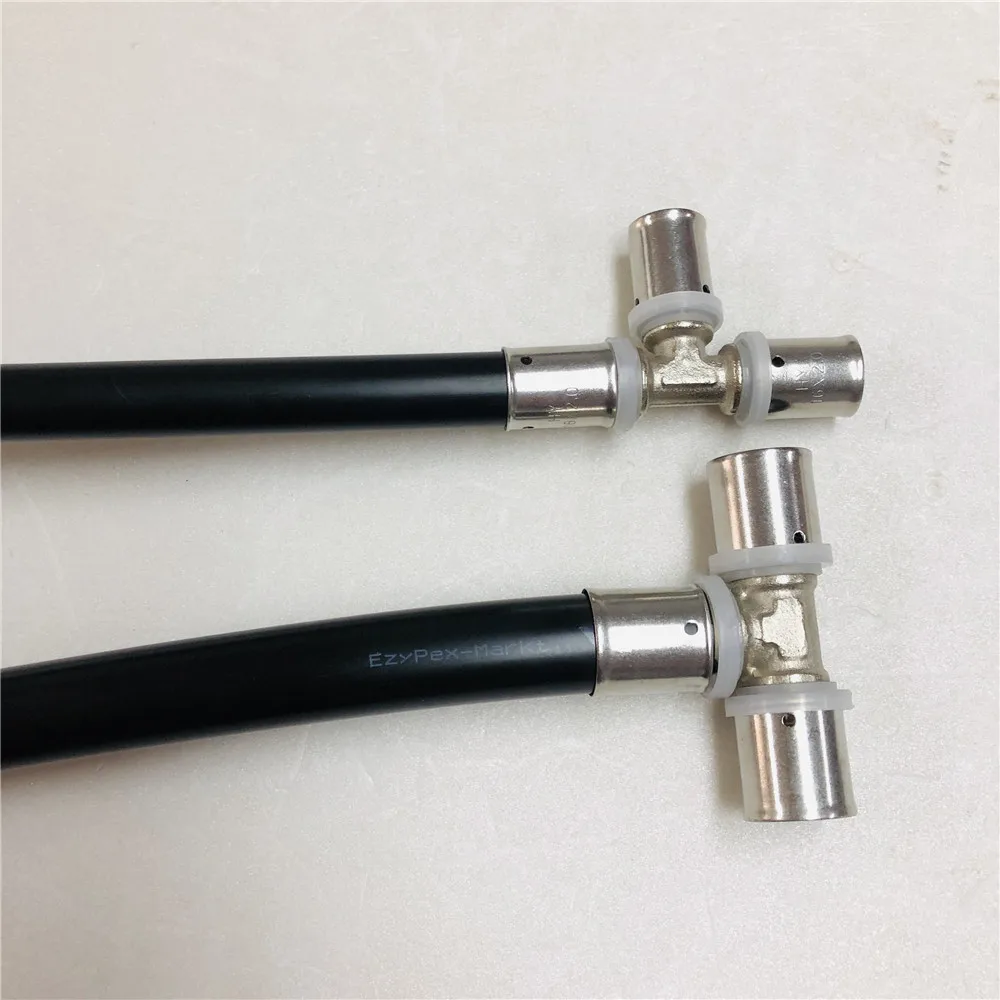

The key benefit of our Mark water PEX pipes, can be used in conjunction with either of our  Slide PEX system or Crimp PEX system.

 2, Quality PEX Pipe +Deatails size :

A,Type of Mark PEX Pipes:

           1,PEX-a pipe

          2, PEX-b pipe

          3,Pex-b pipe in two layers

          4,Pex-b pipe with evoh

          5, Pex-a pipe with evoh

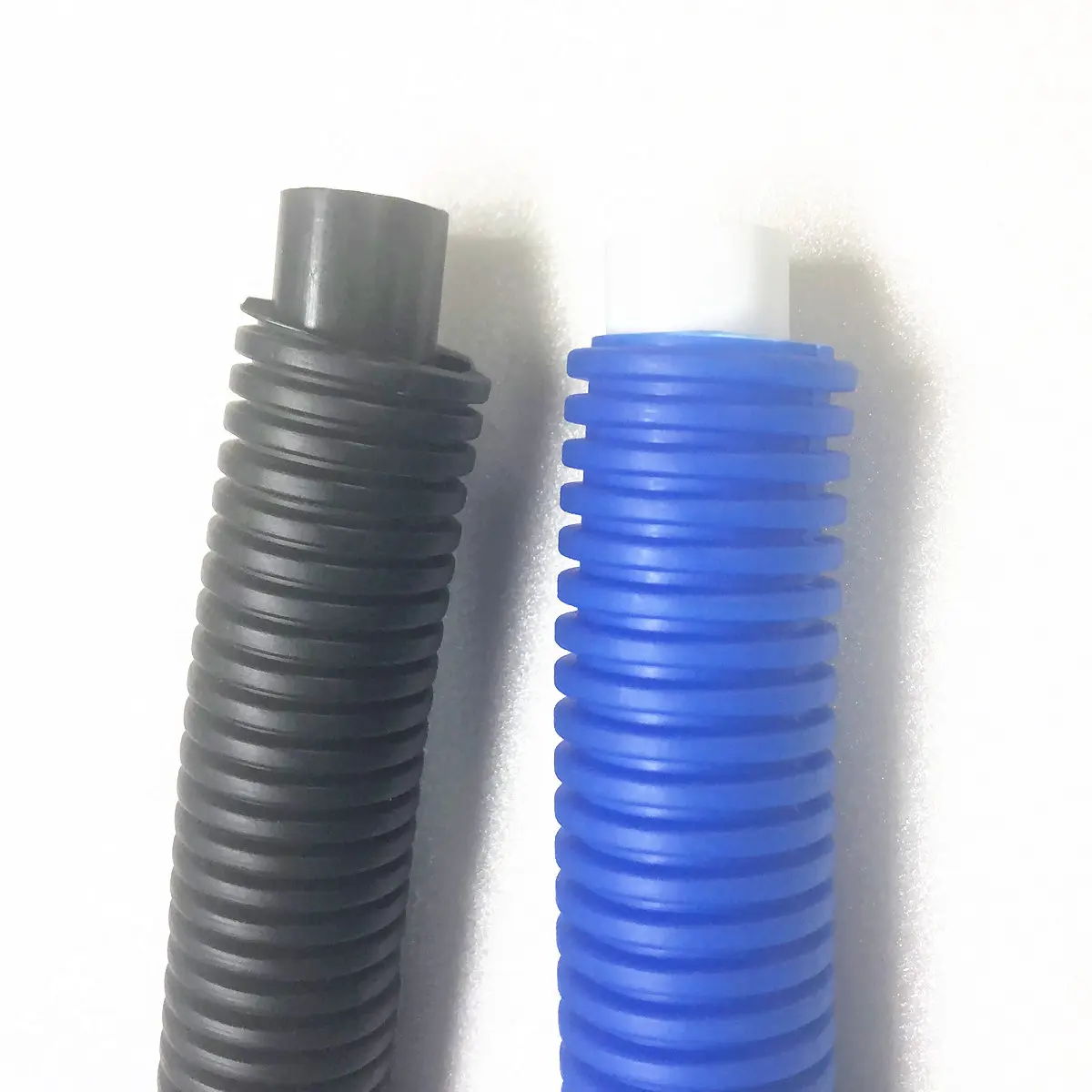

          6,Pex pipe with corrugted pipe

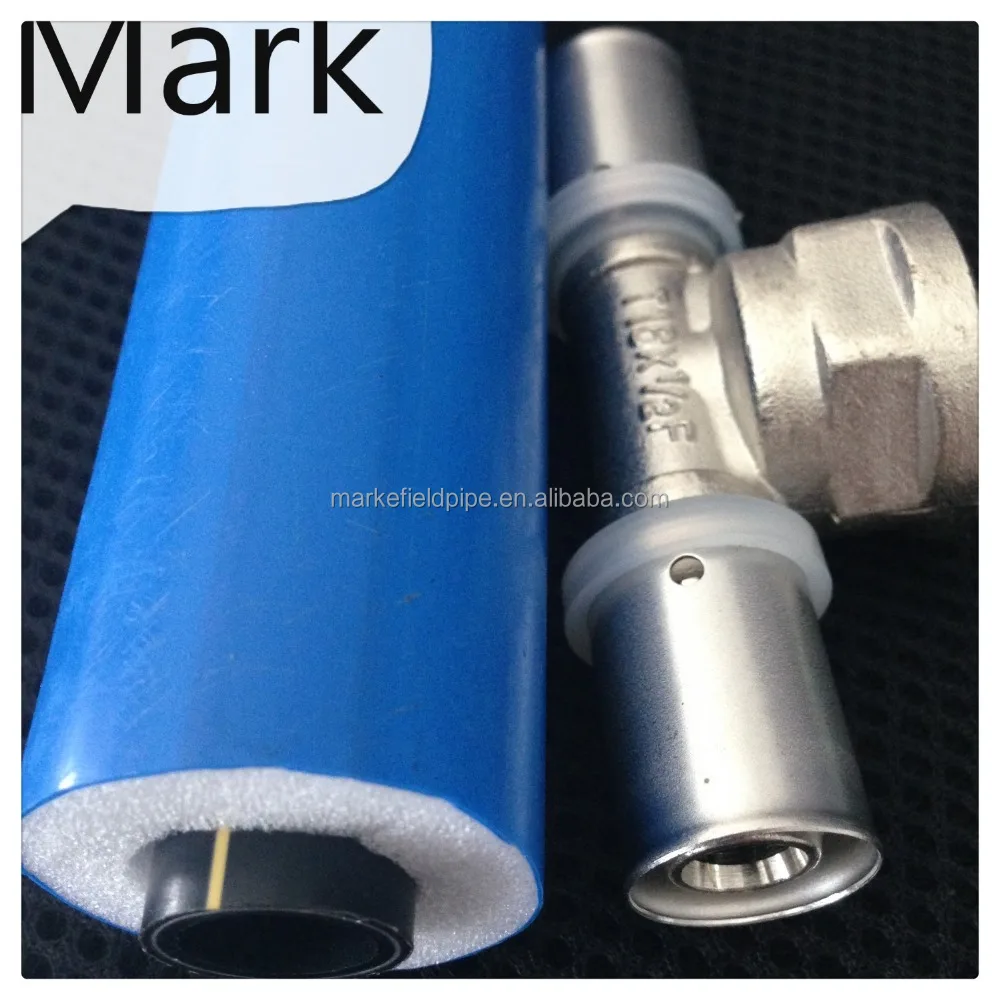

          7,Pex pipe with insulation pipe

          8,Two layer pex pipe

B:Size

16mm,20mm,25mm ,32mm



Name	Type	Modle No.	Spec.
PE-X a Pipe	S5/SDR9 PN16	MPEXA01	Φ16×2.0
		MPEXA02	Φ20×2.3
		MPEXA03	Φ25×2.8
		MPEXA04	Φ32×3.6
		MPEXA05	Φ16×2.2
	S4/SDR7.4 PN20	MPEXA06	Φ20×2.8
		MPEXA07	Φ25×3.5
		MPEXA08	Φ32×4.4
		MPEXA09	Φ32×3.6
PE-X b Pipe	S5/SDR9 PN16	MPEXA10	Φ13×2.0
		MPEXA11	Φ16×2.0
		MPEXA12	Φ20×2.3
		MPEXA13	Φ25×2.8
		MPEXA14	Φ32×3.6
	S4/SDR7.4 PN20	MPEXA15	Φ16×2.2
		MPEXA16	Φ20×2.8
		MPEXA17	Φ25×3.5
		MPEXA18	Φ32×4.4



C,Data of Mark PEX Pipes:

1,Cross-linked:≥65%.

2,Base material:Quality PEX-a,Pex-b

3,Carbon Black,Black polyethylene compounds contain 2.25+0.25% mass of carbon black.

4,Suface:smooth no any chips.

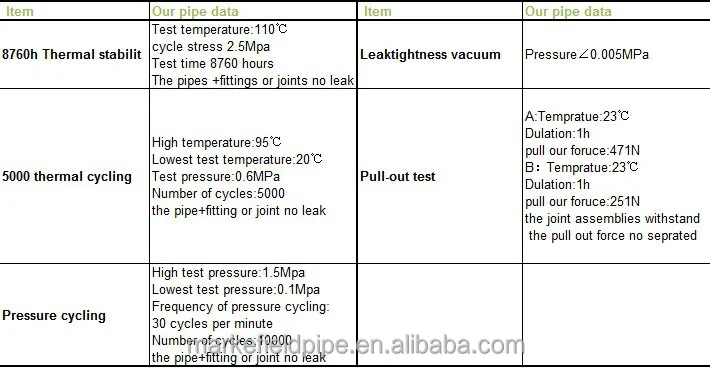

5,Pass the test 8670 hours and 5000 times cycles ,no leakage.



 3,Packing&delivery:

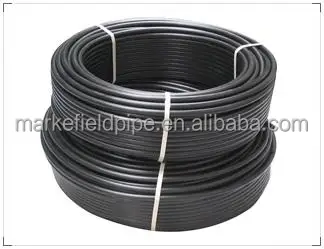

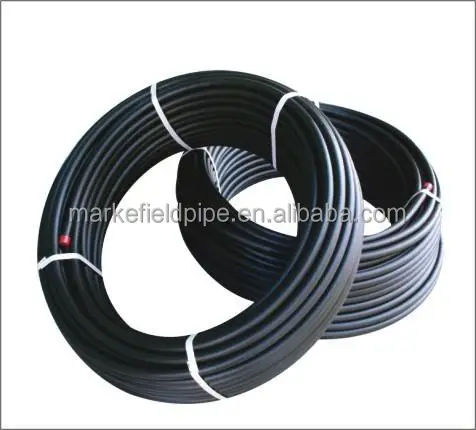

A ,Packing:In roll or coils as need

                      In bags or cartons as need.

 1,100m/roll Or 5m/bar or as customer request.

2,Rolls packed with Nylon bag

3,Then in carton or pallet as request

4,All in strong exporting packing

 B:Delivery:

1,10-15 days for one container after order confirmed.(5 lines of pex pipe in workshop worked 24 hours)

 2,LCL goods accept

3,Shipped by express ,air or sea. all shipped with economical cost .

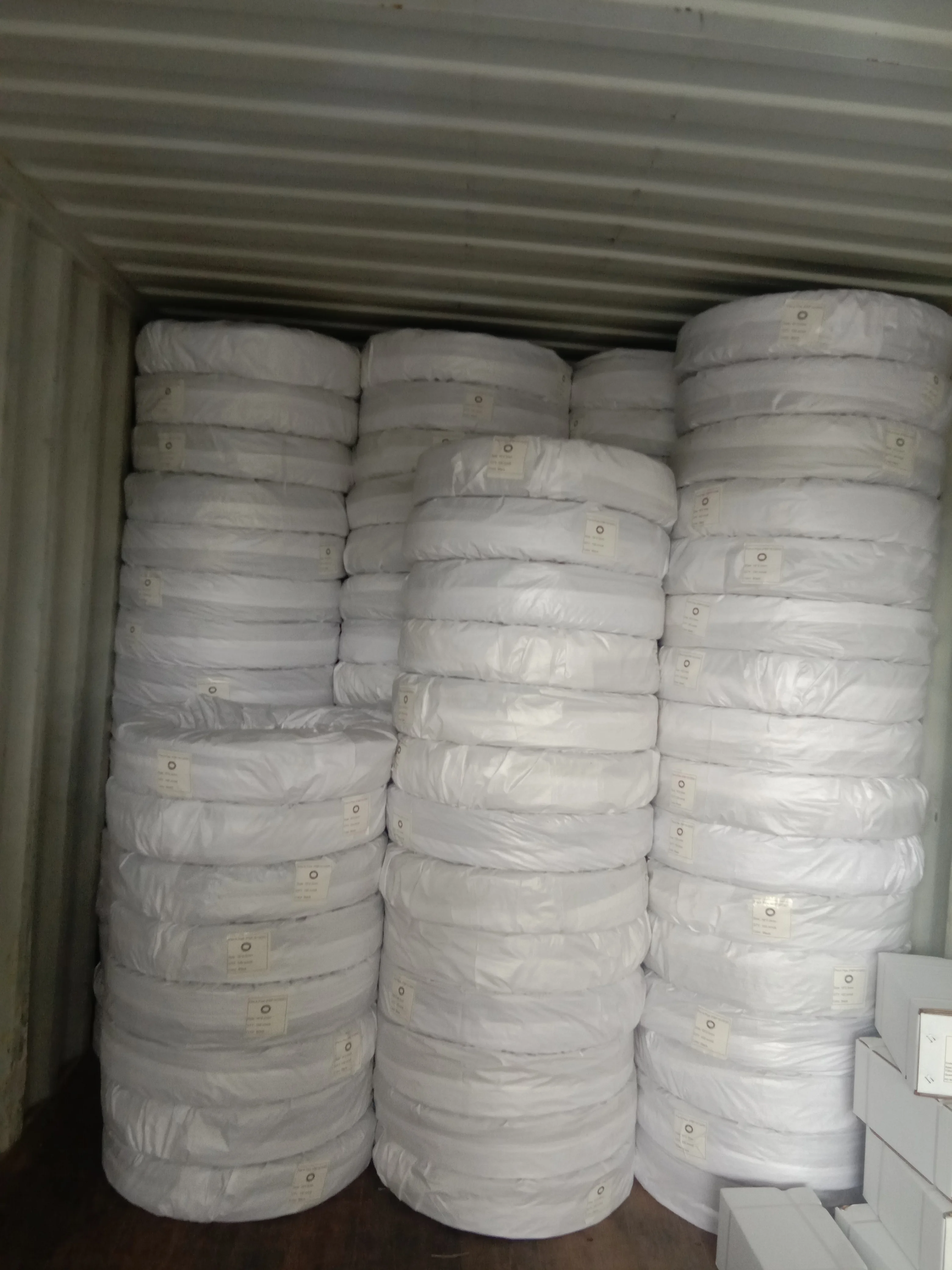

4,Loading step:Check empty container first

                          Clean empty container then

                           Load the goods carfule



 4,Our good service:

1,High+stable quality.

   2,Quick delivery:10 days delivey and 100% delivery in time.Shipped by air ,express and sea.Very fexible.

 3,24 hours on line for sevice

4,We supply pipe and fitting ,tools all ,Customer can buy all relation goods from us ,Save area ,cost and size very fit.

5,20 years of experience in pipe and fitting produce,Low cost and reasonable price for the market.



6,Company infomation:

        As an manufacture without middle man ,We ensure all benefits and cost savings are passed straight to you our customers. Our staff are knowledgable to help with all your enquiries and pipe sizing needs. Whilst PEX pipe ,pex-al-pex pipe  is our core product, we have other range that will help you complete the job quickly, If you have any other plumbing,fitting ,tools needs, please feel free to ask our team as we can easily source other products for you.

       We offten go to visit our customer and atten show to know more information from market and our customers to have a good develop with our products and bussiness ,Hope we have the chance to serivce for you .

7 ,Use advice :

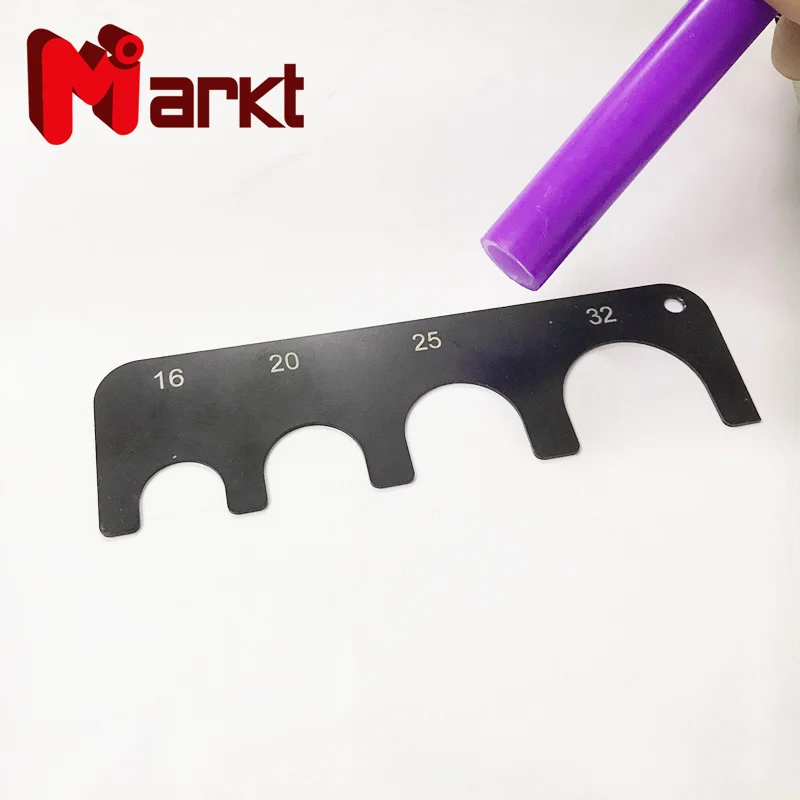

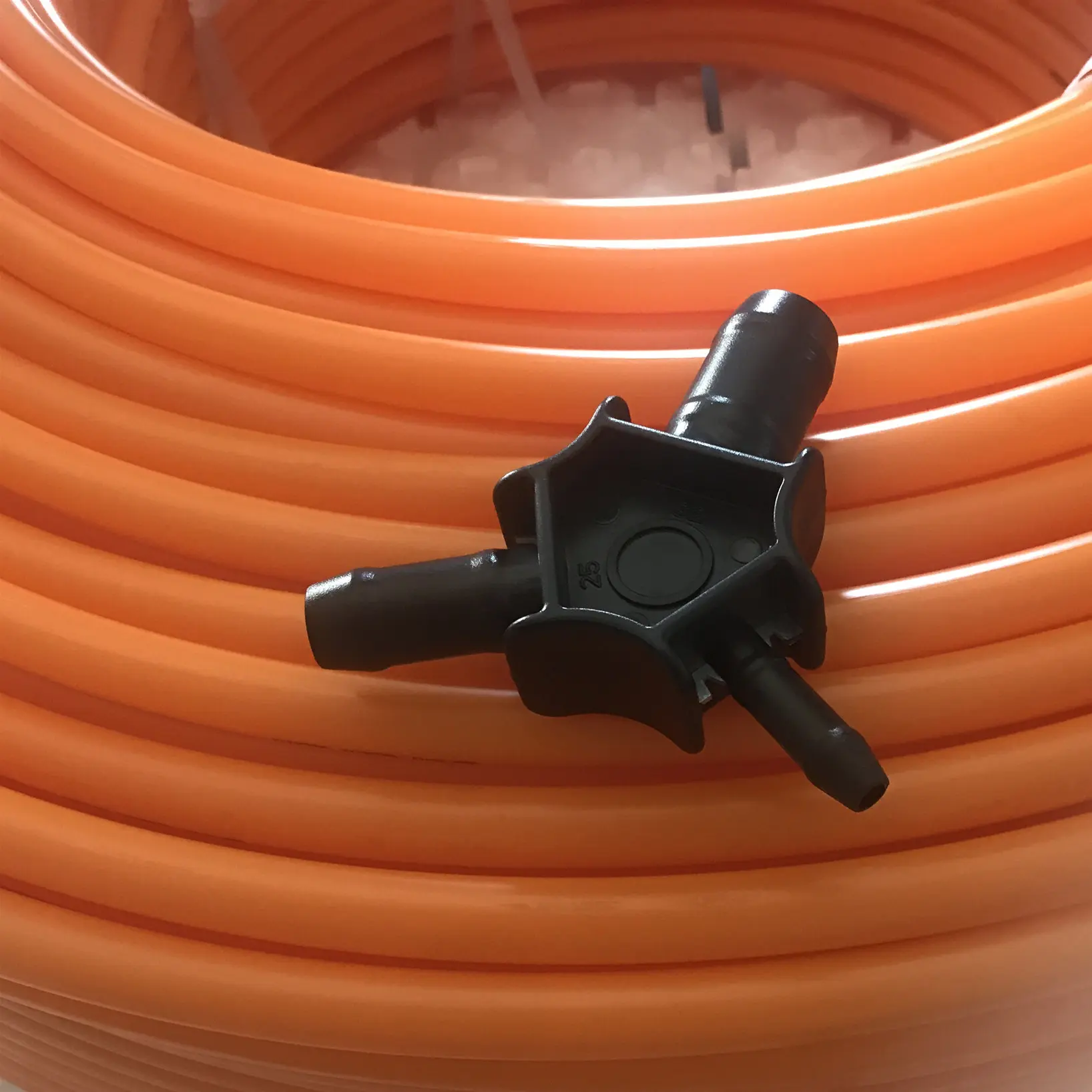

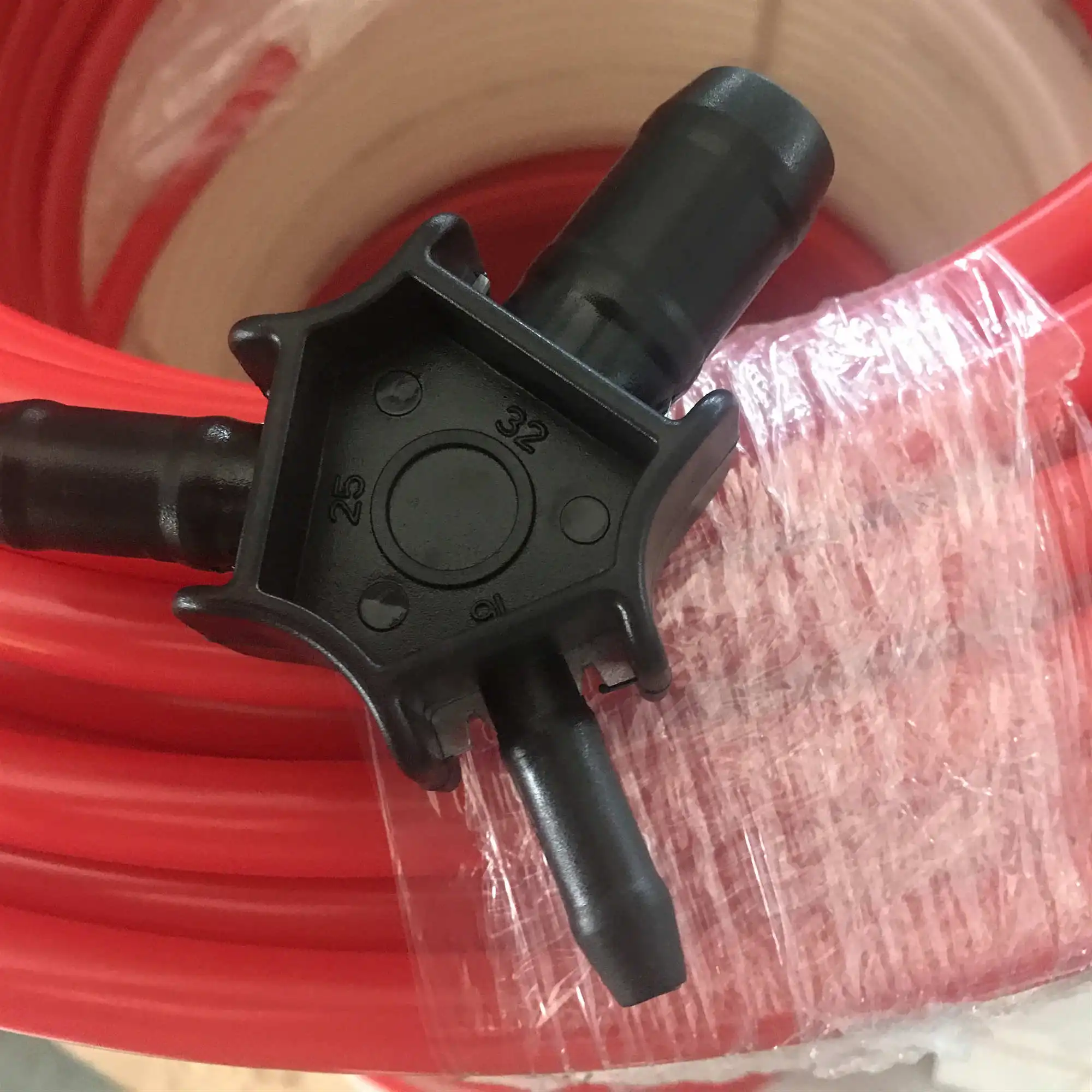

When you installen PEX Pipe ,Better use plastic reamer and clips.

Markt supply both plastic reamer ,also best quality of plastic clips, Brass fittings .
