ISY 90T Pipe Beveling Machine Pipe Beveler
- Category: Pipe Making Machinery >>>
- Supplier: Aotai Machine Manufacturing Co. Ltd.
Share on (60424000973):
Product Overview
Description
Product Description

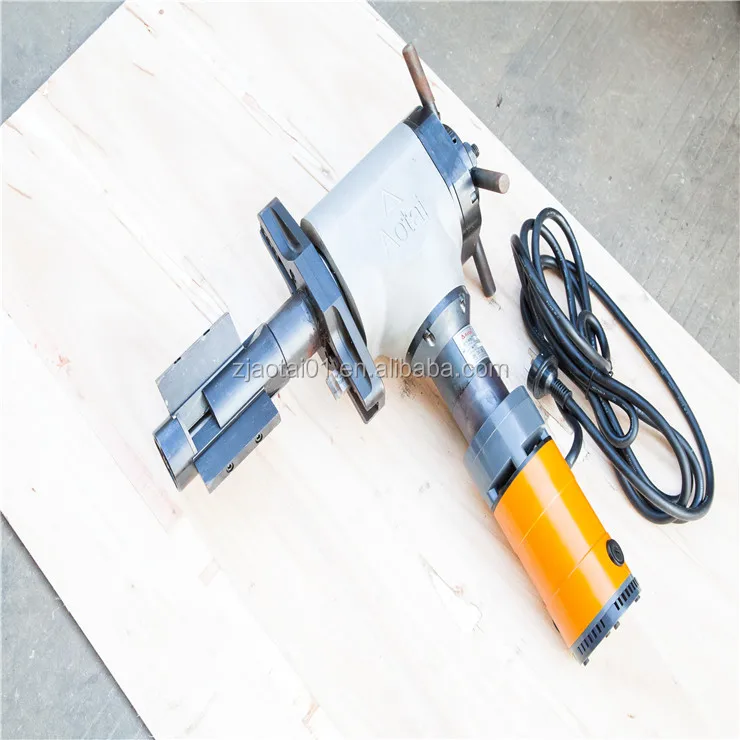

ISY 90T Pipe Beveling Machine Pipe Beveler
The machine adopts automatically feed mechanism, easy to operate, the cutting quantity can be adjusted and
beveling angel can be adjusted from 0°-37°,it can be used for beveling thick pipe and prepare for welding
flange faces.
Patent No.: ZL200430081798.4, ZL200420104471.9, ZL200430081799.9
Features
ISY 90T Pipe Beveling Machine Pipe Beveler
- Enhanced edition for C series, more compact structure and lighter weight
- Automatic feeding, no manual.
- Aluminum body, suitable for working aloft.
- Pipe Out-mounted, self centering, secured clamping, easy to operate.
- Bevel the pipe in the narrow space and small size pipe
| Electric | Pneumatic | Working range (I.D.mm) | Wall thickness (mm) | Rotating rate (rpm) | Gross Weight |
| ISY-90T | TCM-90T | Φ25-90mm | ≤15mm | 16 rpm | 22kg |
| ISY-351 | TCM-351 | Φ150-330mm | ≤15mm | 14 rpm | 48kg |
| ISY-630 | TCM-630 | Φ330-600mm | ≤15mm | 10rpm | 58kg |
| ISY-850 | TCM-850 | Φ600-820mm | ≤15mm | 8rpm | 183kg |
| ISY-1050 | TCM-1050 | Φ770-1020mm | ≤15mm | 7rpm | 258kg |
| ISY-1300 | TCM-1300 | Φ1015-1255mm | ≤15mm | 5rpm | 320kg |
| ISY-1500 | TCM-1500 | Φ1270-1470mm | ≤75mm | 4rpm | 150kg |
Company Information
AOTAI,since 1998,focus our attention on manufacturing all kinds of pipe beveling machine.
Group photo
Certificate
Youtube video
www.youtube.com/zjaotai01
