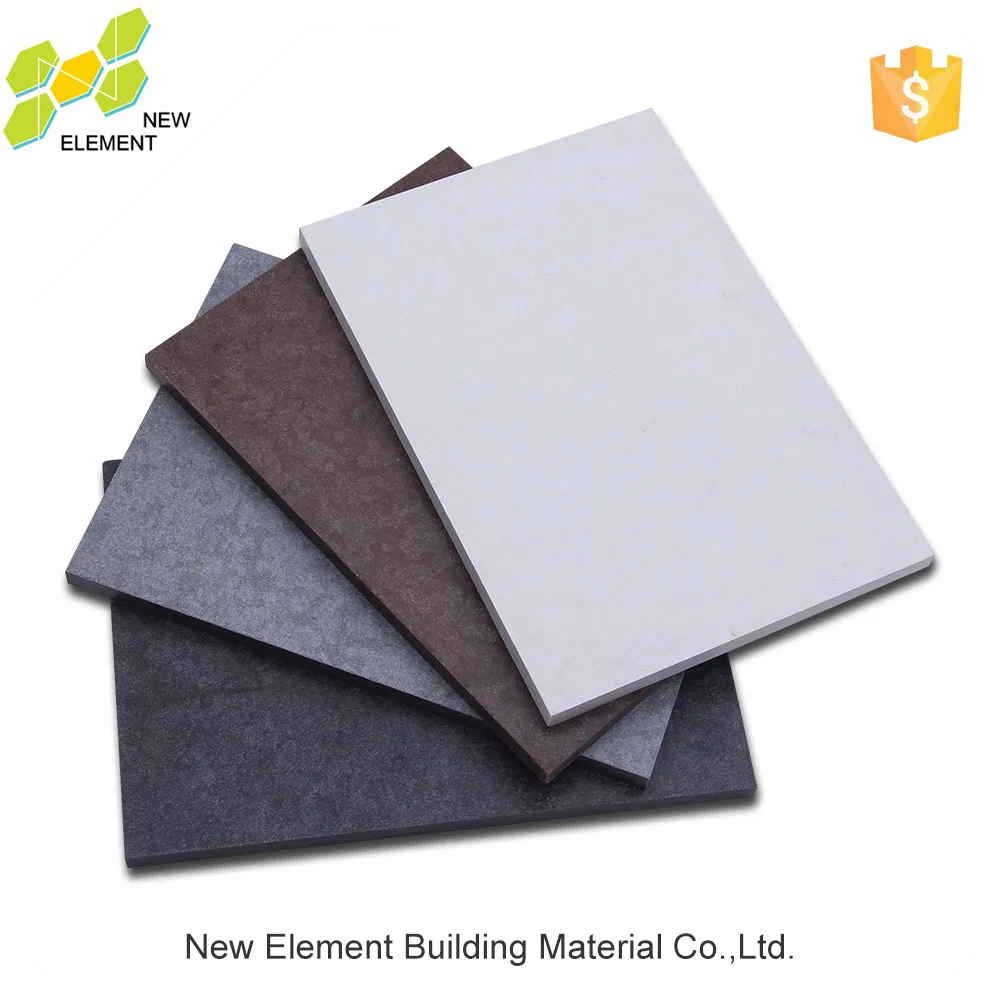

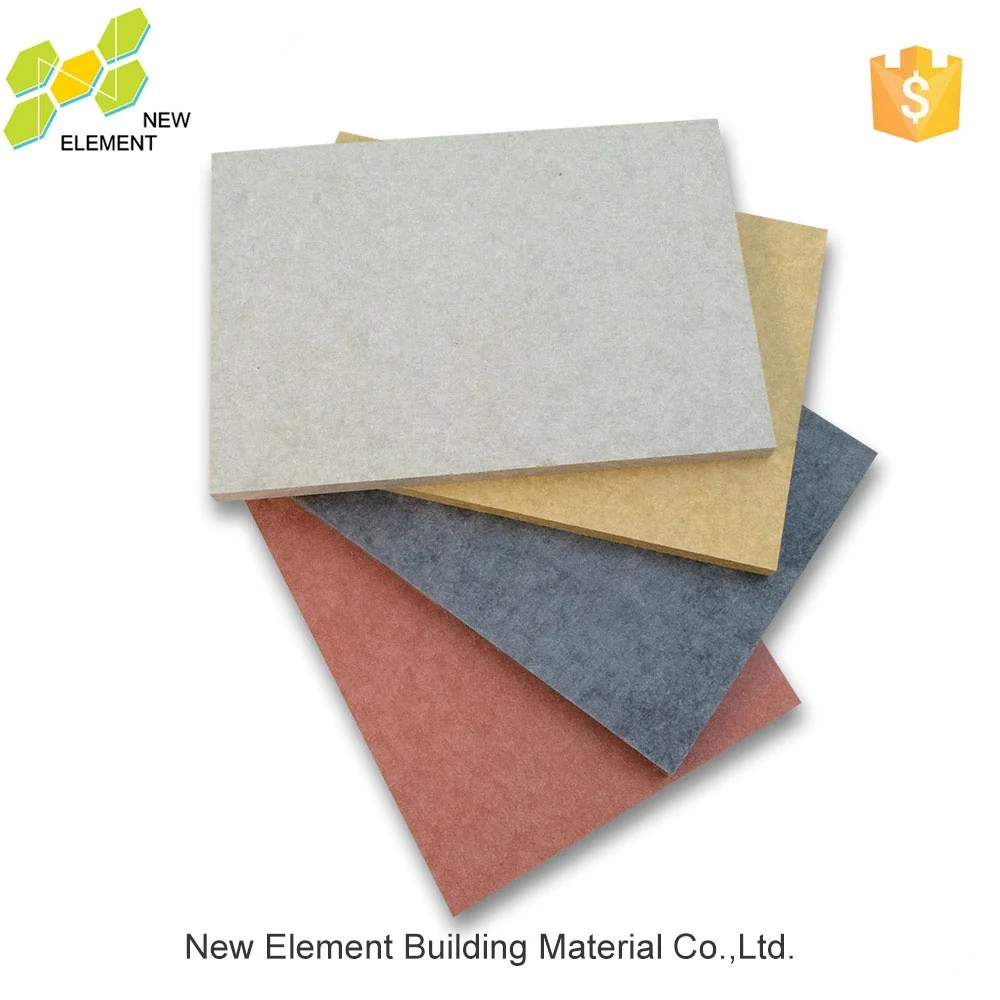

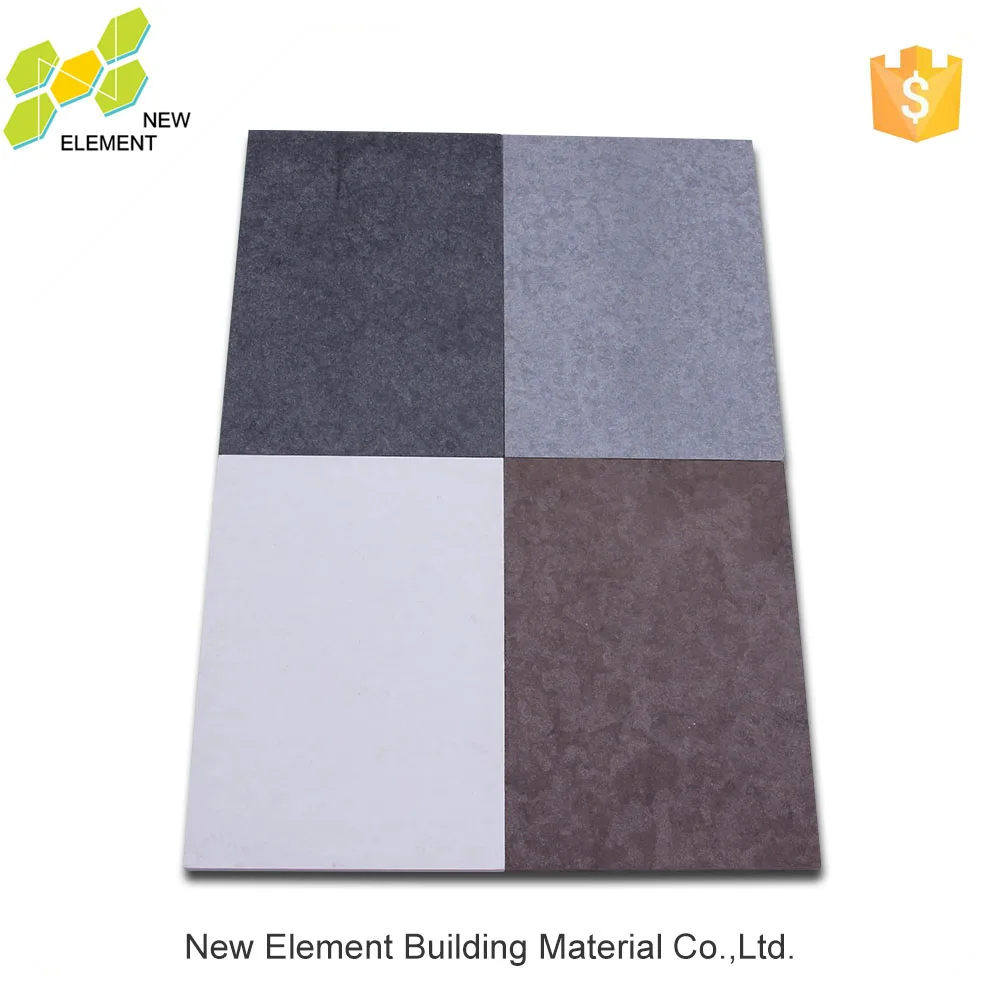

FOSHAN Factory New Condition Facade Construction Fiber Cement Board/ Cement Fiber Panel

Product Overview

Description

FOSHAN Factory New Condition Facade Construction Fiber Cement Board



Thickness	Width	Length
6,8,9,12,15mm	1220mm	2440,3050mm
REMARK: We can also supply other specification as the client’s specially requirement



The following data are the average tested figures during manufacturing

Item			Index	Unit
Density			≥1.40	g/cm3
Thermal Conductivity			≤0.35	W/(m·k)
Water Absorption			≤28	%
Water Contain			≤10	%
Moisture Movement			≤0.25	%
Freezing			No cracking or delaminating after 25 times of freeze-thaw cycles
Non-water soaking			No Water Forms after being tested for 24 hours
Non-combustibility			GB 8624 Class A		/
Bending Strength	Oven dry	Cross	≥20.0		Mpa
		Parallel	≥15.0		Mpa
	Saturated	Cross	≥15.0		Mpa
		Parallel	≥10.0		Mpa
Screwing withdraw			≥110		N/mm
Impact resistance		Oven dry	No Continuous Cracking After An Impact		/
REMARK: Please contact our technical department if you need more technical index.



3.Safety Capability

Item	Index	Spection
Asbestos Including	100% asbestos free	safe for application
Radioactive	<1.0 IRa	safe for application
	<1.0 Ir	safe for application
noncombustibility	A	the highest grade

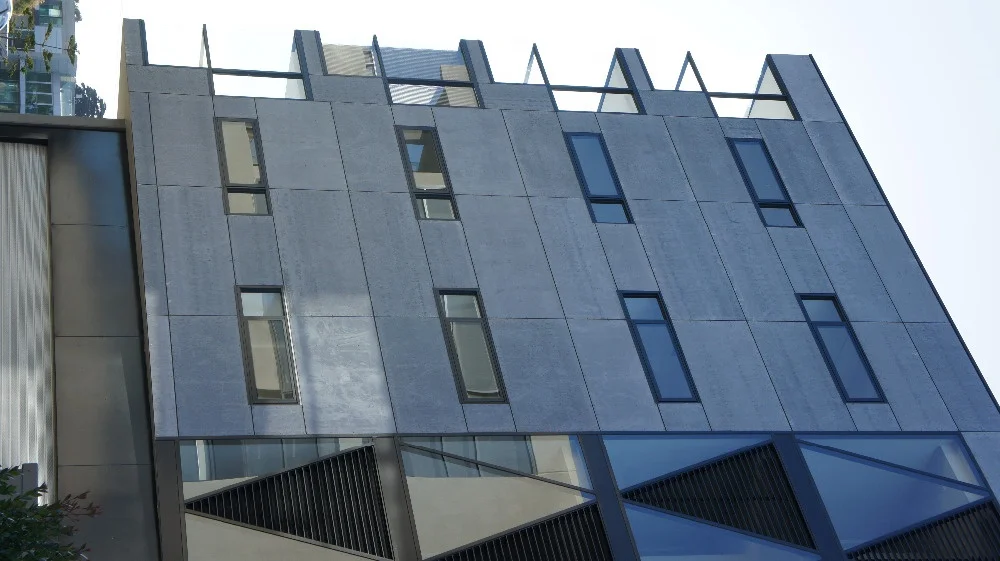

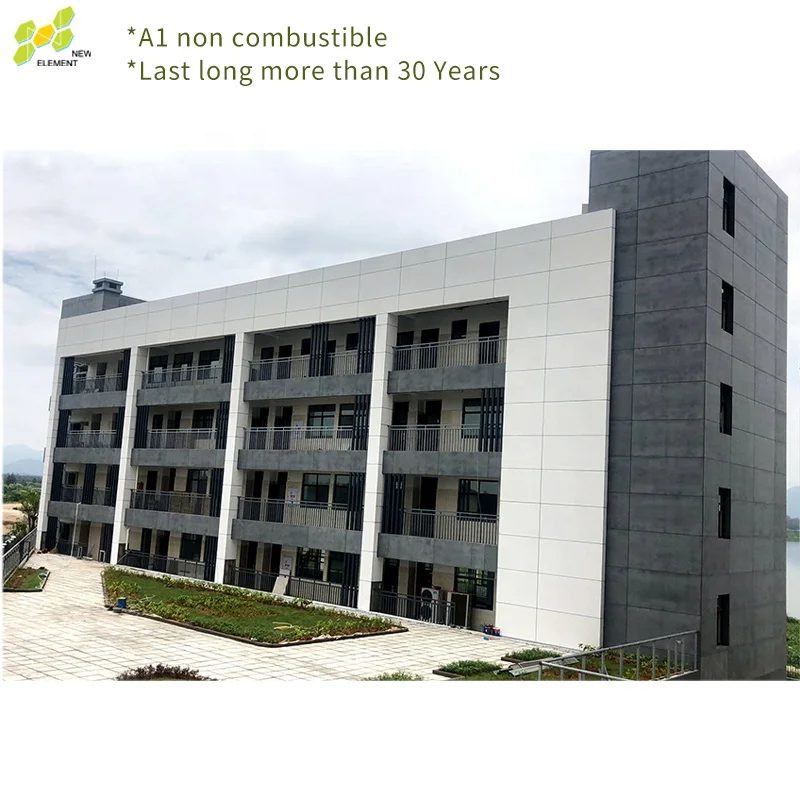

Our Cladboard can be used in exterior wall cladding and facade of various high-class and high rise

civil buildings, especially for the building located in the seaside.



1.Curtain wall and facade

2.Base house

3.Shops, hotels, schools

4.Entertainment places and hospitals





1.Guangdong New Element Building Material Co.,Ltd was estabilished in 2003.

   It has 3 highly mechanized pulp flowing production line.

2.Annual output for Non-Asbestos fiber reinforced calcium silicate board / fiber cement board are

  more than 10 million square meters.

3.The unique manufacturer which produce low, medium and high density products in China.

4.CE,BS,AS,ISO9001,14001, China Environmental Labeling Product Certificate.

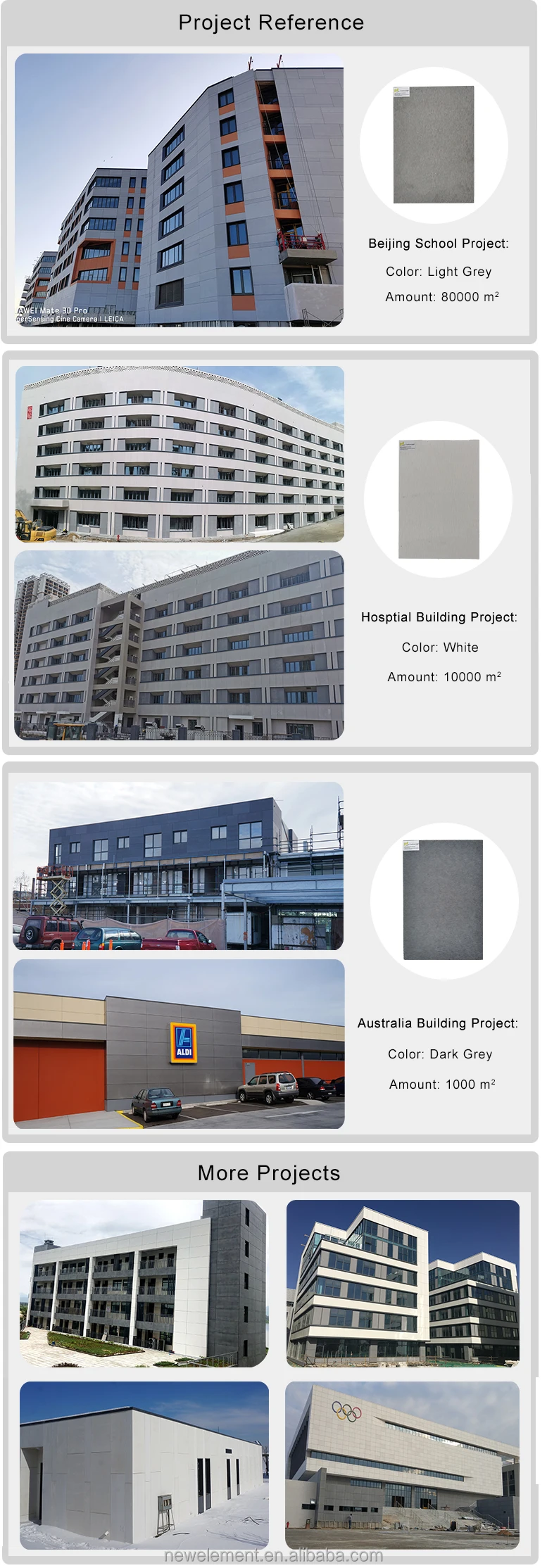

5.Protectpan in Tianjin tunnel poject, Cladboard in National stadium olympic project, and Starpan in

   Guangzhou TV tower project that were awarded “New Century, New Architecture, New Material -

   China Building Application & Innovation”

6.Have our own R&D team.
