Firestop PPC Firestop Collar

Product Overview

Description

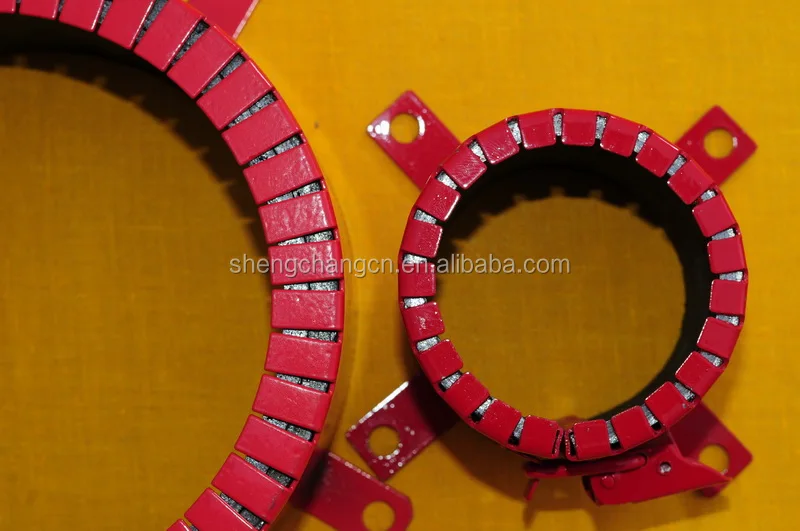

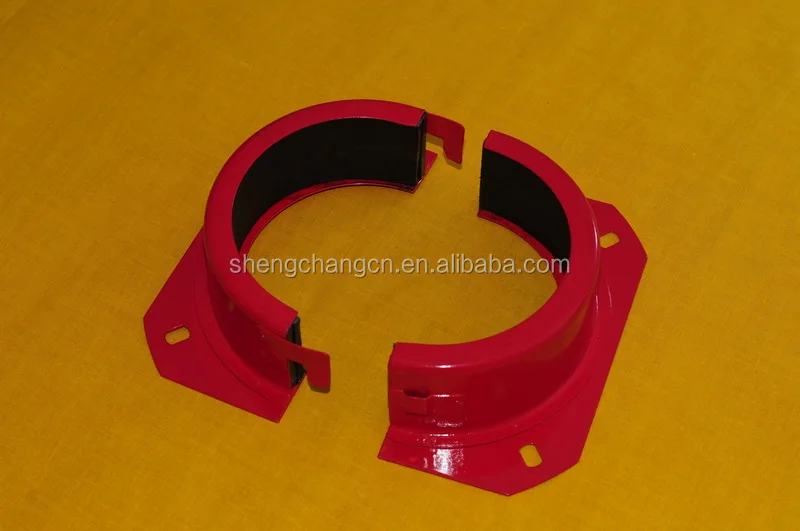

  Firestop PPC Firestop Collar



The graphite sealing fire collar is an installation component of building fire protection, which is composed of a graphite fire sealing strip and a metal casing, and a fire prevention member is arranged. It can be installed in each floor of the building or between the walls, wires, pipes, water pipes and ventilation pipes, when the fire occurs, the fire resistance of the collar can be quickly sealed off the pipe, to prevent the fire heat source of gas, smoke and flame to the other floor or room penetration and spread. It is simple in construction, and has a remarkable effect on the ideal fire seal.
Our company has complete production process and production assembly line. We can produce a variety of types of graphite sealing fire collar, and we can provide a variety of types of graphite seal fire protection component  according to customer drawings and technical parameters.

Fire collars are developed according to British Standard, European Norm, Australian Standard and Chinese Standard, to meet the different demands from the markets. It is used around a synthetic pipe like HDPE, PVC, UPVC, PE, PP… pipes for fire retardant, with a fire resistance of up to 2 hours and 4 hours. We can also produce at customers’ designs and sizes.





Specification



Code	size	Di	Do	Height
HG-FCC80	80	85	120	43
HG-FCC110	110	112	145	53
HG-FCC125	125	127	165	63
HG-FCC160	160	162	200	73
HG-FCC200	200	204	260	103
HG-FCC250	250	254	315	123

























Code	Size	Di	Do	Height
HG-FCP55	55	85	120	43
HG-FCP80	80	112	145	53
HG-FCP110	110	127	165	63
HG-FCP125	125	162	200	73
HG-FCP160	160	204	260	103
HG-FCP200	200	254	315	123























Why choose us?



1. We produce parts by ourselves, which makes more competitive price and faster delivery;



2. We provide OEM service and submit Various styles, latest designs to our clients;



3.We have great experience on provide high quality service to clients;



4. Welcom to visit our factory
