2 LED Strips Motion Activated Illumination With Automatic Shut Off Under Bed Night Light Motion Sensor Dual Sensor Kit for Bed

Product Overview

Description



2 LED Strips Motion Activated Illumination With Automatic Shut Off Under Bed Night Light Motion Sensor Dual Sensor Kit for Bed





Patent No.: ZL 2014 2 0480261.5



1. Under Bed Night Light Motion Sensor specification:

Item No.: WST-1800-2PIR

Size: 1500*8mm

Power: DC12V



2. Under Bed Night Light Motion Sensor technical data:





The human body induction distance	1-5 meters
LED QTY	90pcs SMD3528
Power supply	DC12V
Switch	sensor switch
Material	ABS
Warranty	1 year
Application	beds, chairs,outdoor,Bar,closets,bathrooms,hallways
Life span	50000 hours
Power	12W
Induction angle	120 degrees
Delay time of output	about 3 second ~ 60 second (adjustable)
power supply	length 1150mm
Cable Y length	2700mm
Sensor size:	φ35×21.5mm, cable length: 2150mm
Strip light length:	1500mm, cable length: 22mm
The environment temperature	- 10 ~ + 50 ℃







3. Under Bed Night Light Motion Sensor Feature :





1)Characteristic:



1. Automatic induction. When human approaching, light on; when leave after several seconds, light off.



2. During the light on, when human move, the induction switch will delay automatically.



3. The time-delay and lighting time can be setting.



4. The light sensor is to keep the light turning on during the night only( or adjusted by yourself )







2) Instructions for using:







1.According to the wiring diagram to connect the switch, turning on the power supply and preheat for 2 minutes. After preheating, the light begin working. When the switch sensing the human activities, the light will be on automatically, otherwise, light off.











3)Notes







Output delay adjustment: The Delay-time will longer when you turn the knob clockwise. The time will shorter when you turn the knob anticlockwise.

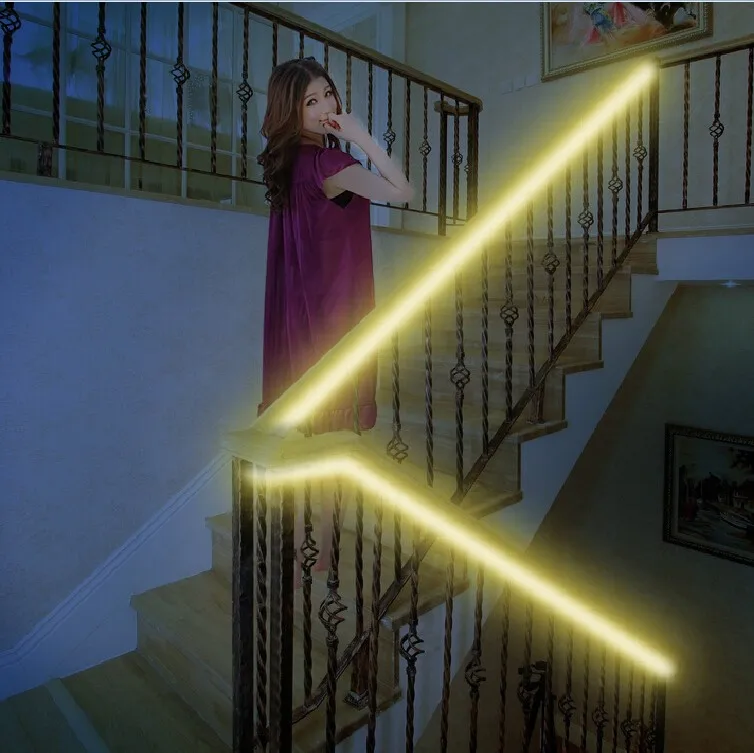

4. Under Bed Night Light Motion Sensor image picture:













5.  Under Bed Night Light Motion Sensor Packing details:

2 LED Strips Motion Activated Illumination With Automatic Shut Off Under Bed Night Light Motion Sensor Dual Sensor Kit for Bed packing details:

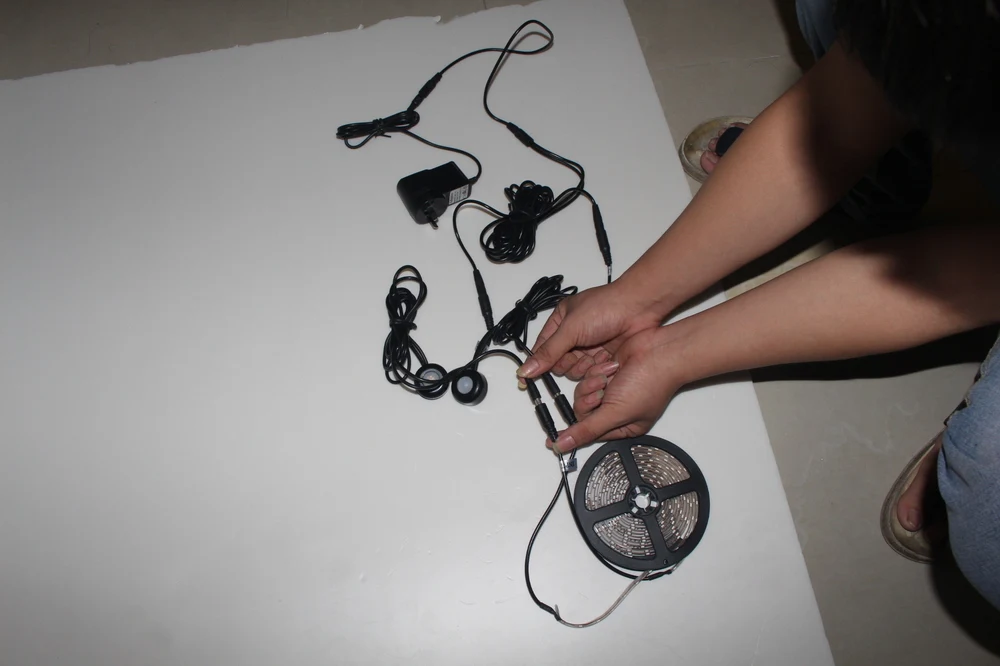

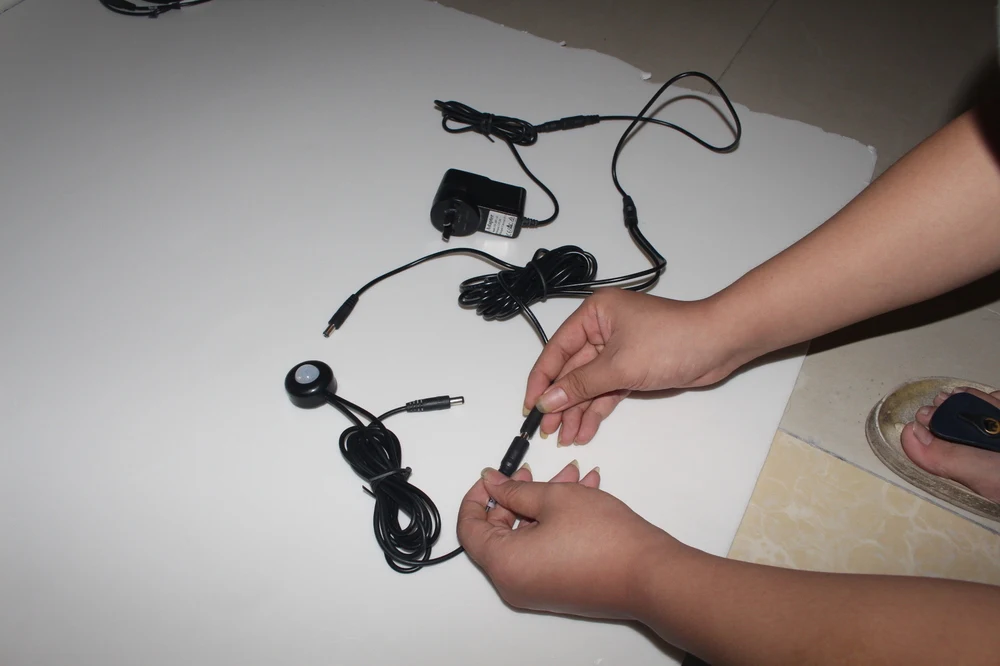

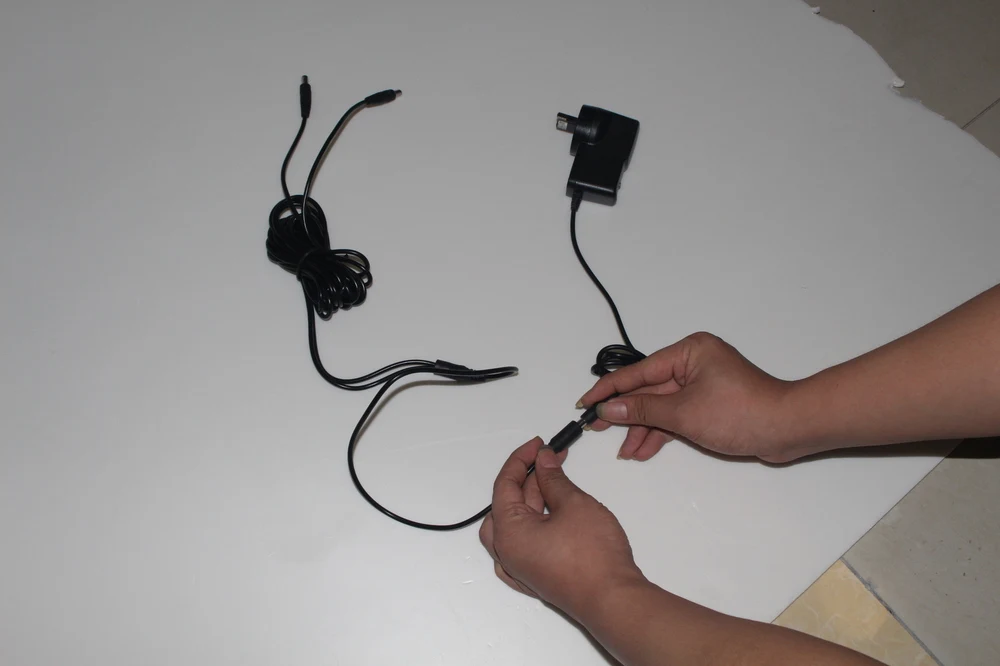

  Under Bed Night Light Motion Sensor Installation Instructions:

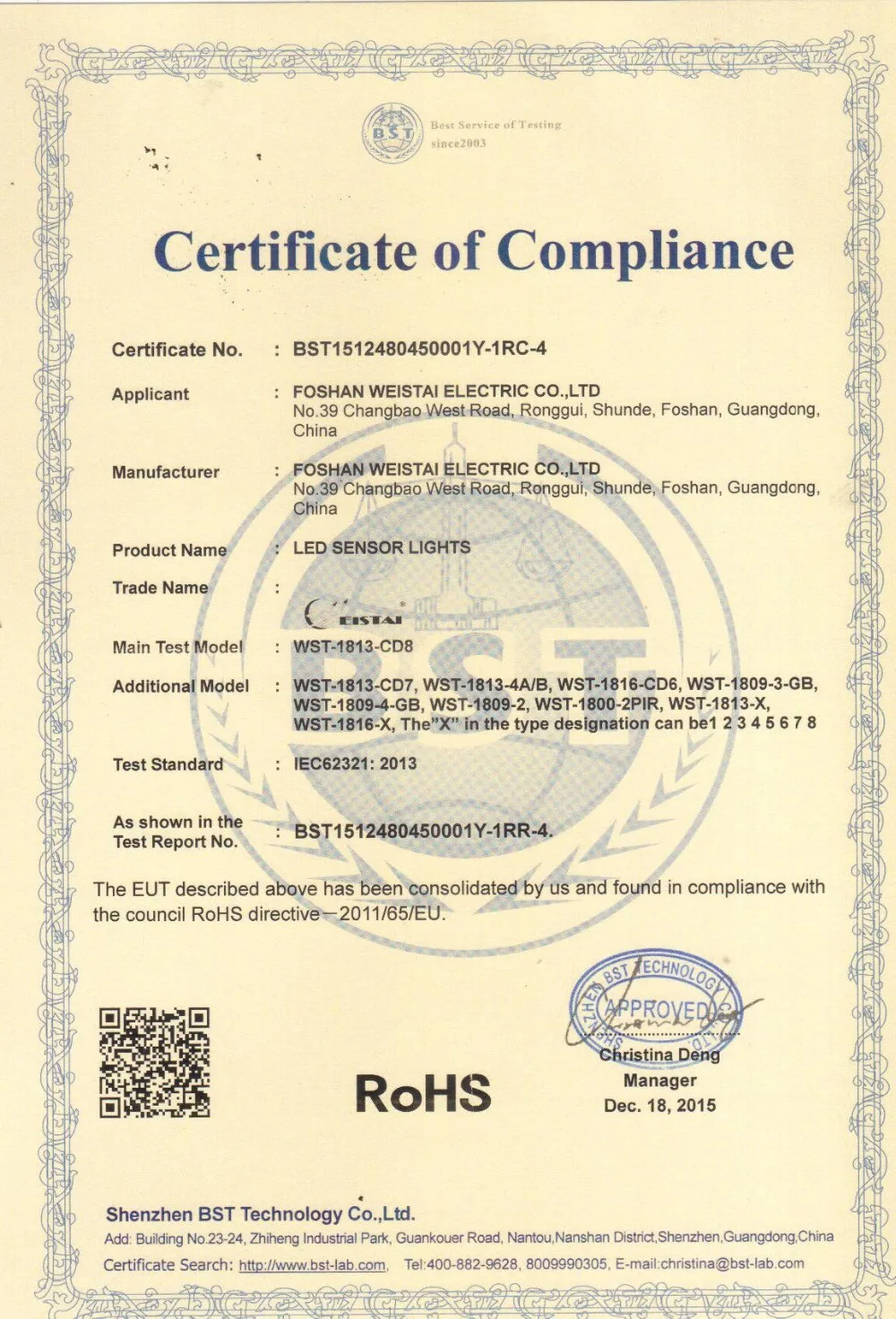

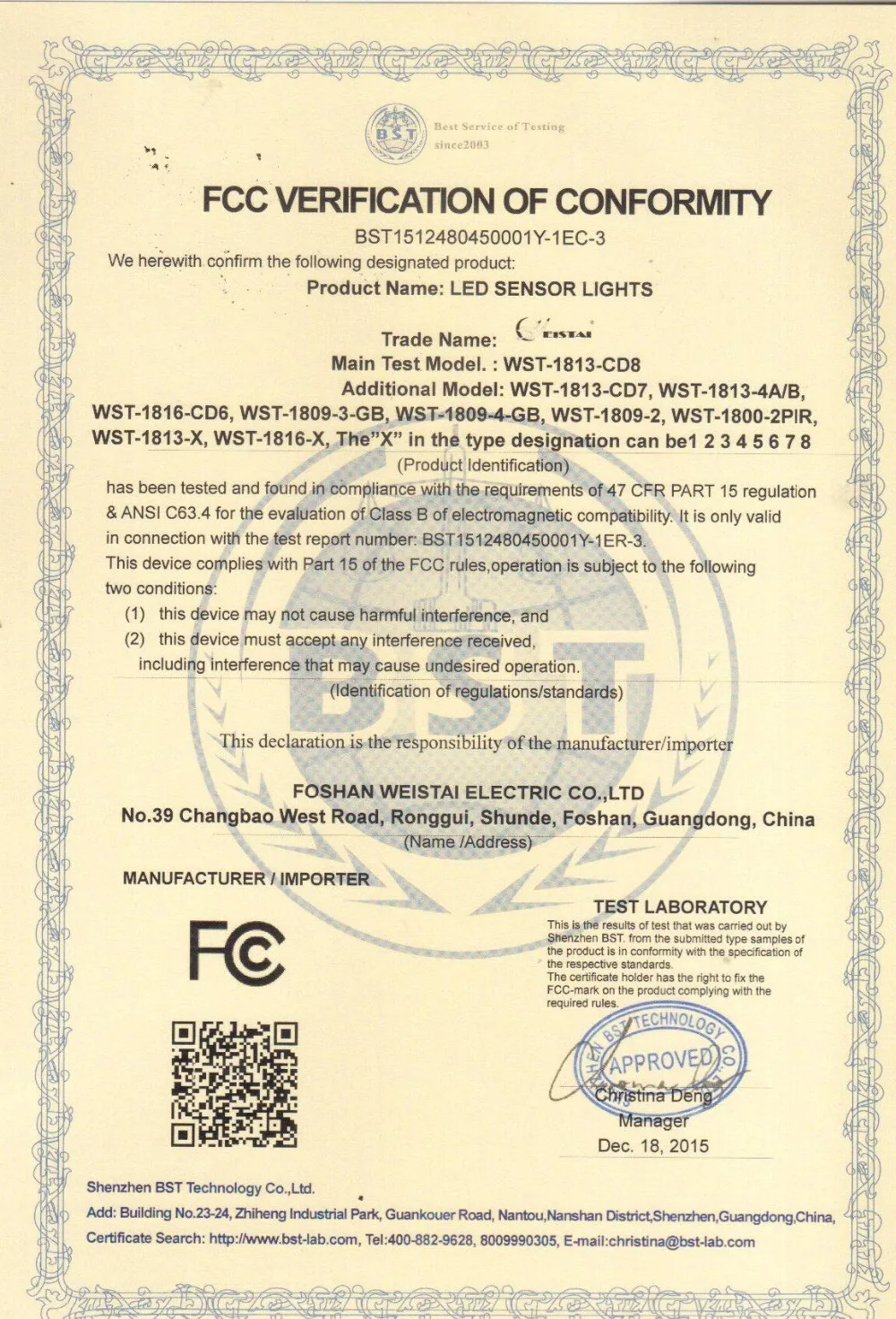

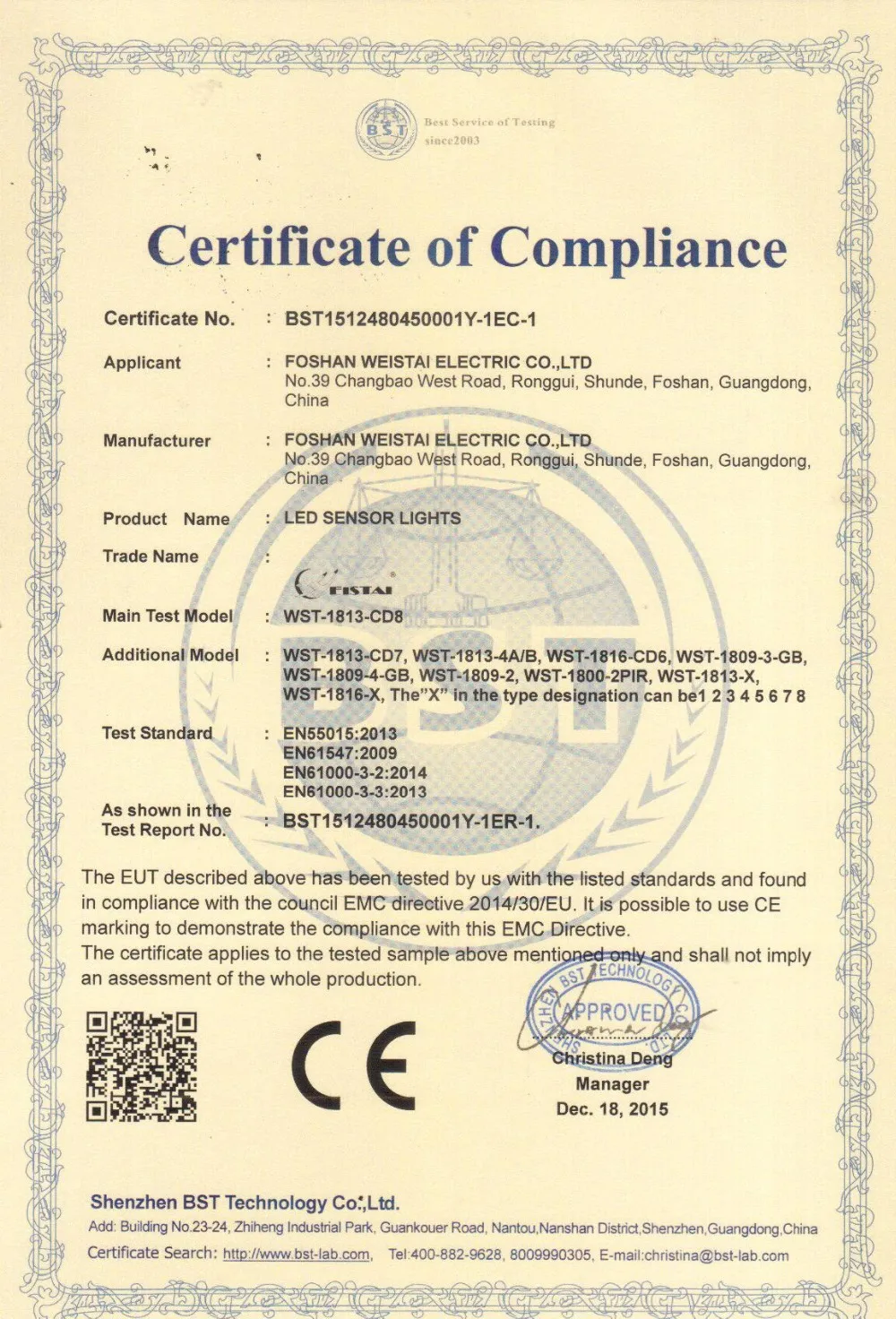

6. Certificates:











7. Factory view:







Foshan Weistai Electric Co., Ltd was established in 1998. We are the manufacturer of electric products, specializing in environment-protecting,energy-saving,safe, healthy, long-life span products. Our products are LED Bathroom Lights, LED Ceiling Lights, LED Cabinet Light etc.



Weistai is a company of products designing, researching, producing and distributing. We sincerely invite friends all over the world to establish business relationship with us, and we are sure we can achieve mutual benefits.



Hope we can sincerely serve to you, welcome to contact with us!





1.Your inquiry will be promptly replied in 12 hours.



2.Well-trained and experienced staffs will answer your inquires in fluent English.



3.OEM&ODM is acceptable



4.Free-design according to customer's demand.



5.All your private information will be protected.



6.Any defective products within warranty will get maintenance or replacement.
