and fibrous material, such as bamboo, stalk, grass and shrub. A screen with cutting edges is used to control the wood particle size. If the size is larger than screen, these material will be sent back to be grinded again until they can get though the screen. The size of the grinded material depend on the size of screen and the rotation speed.

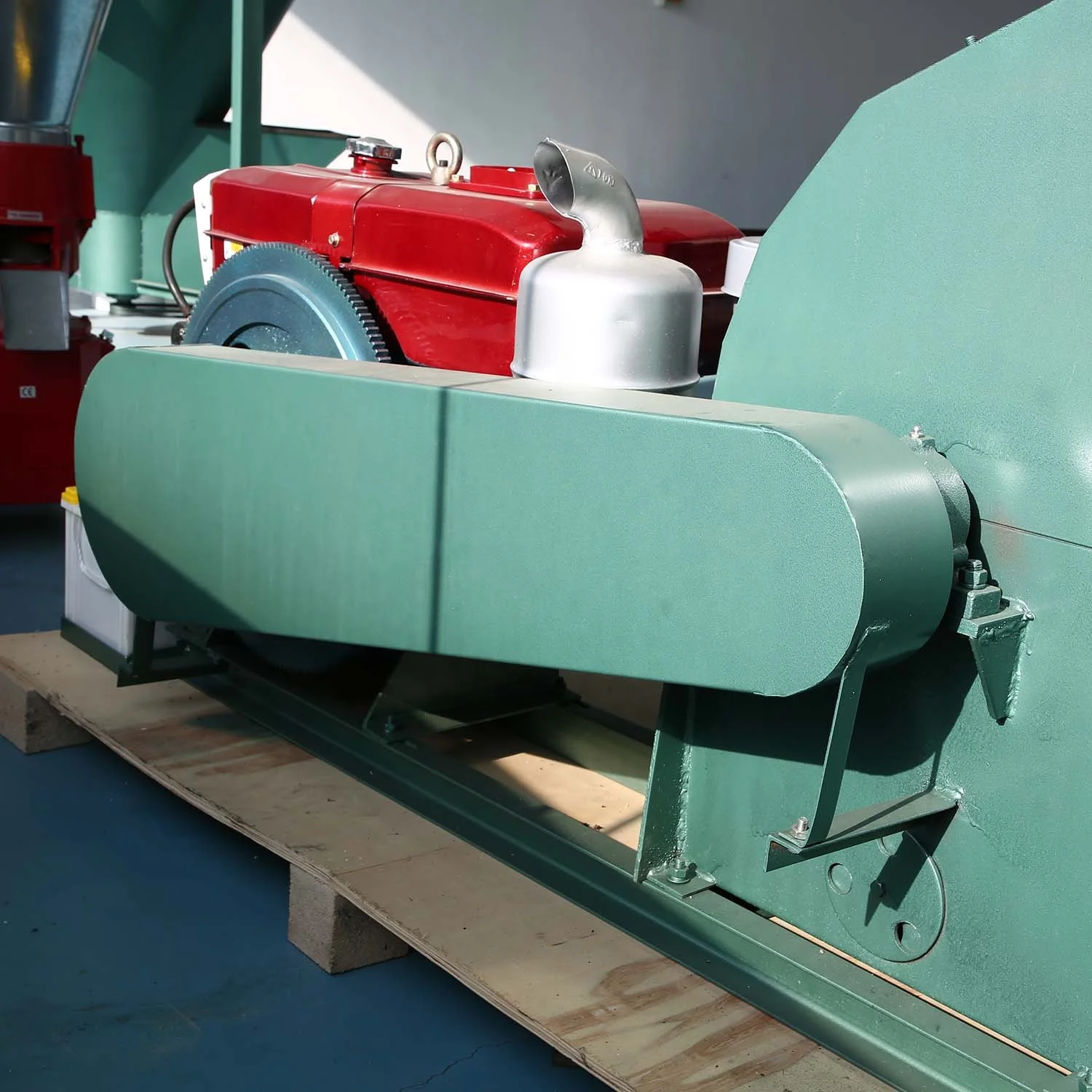

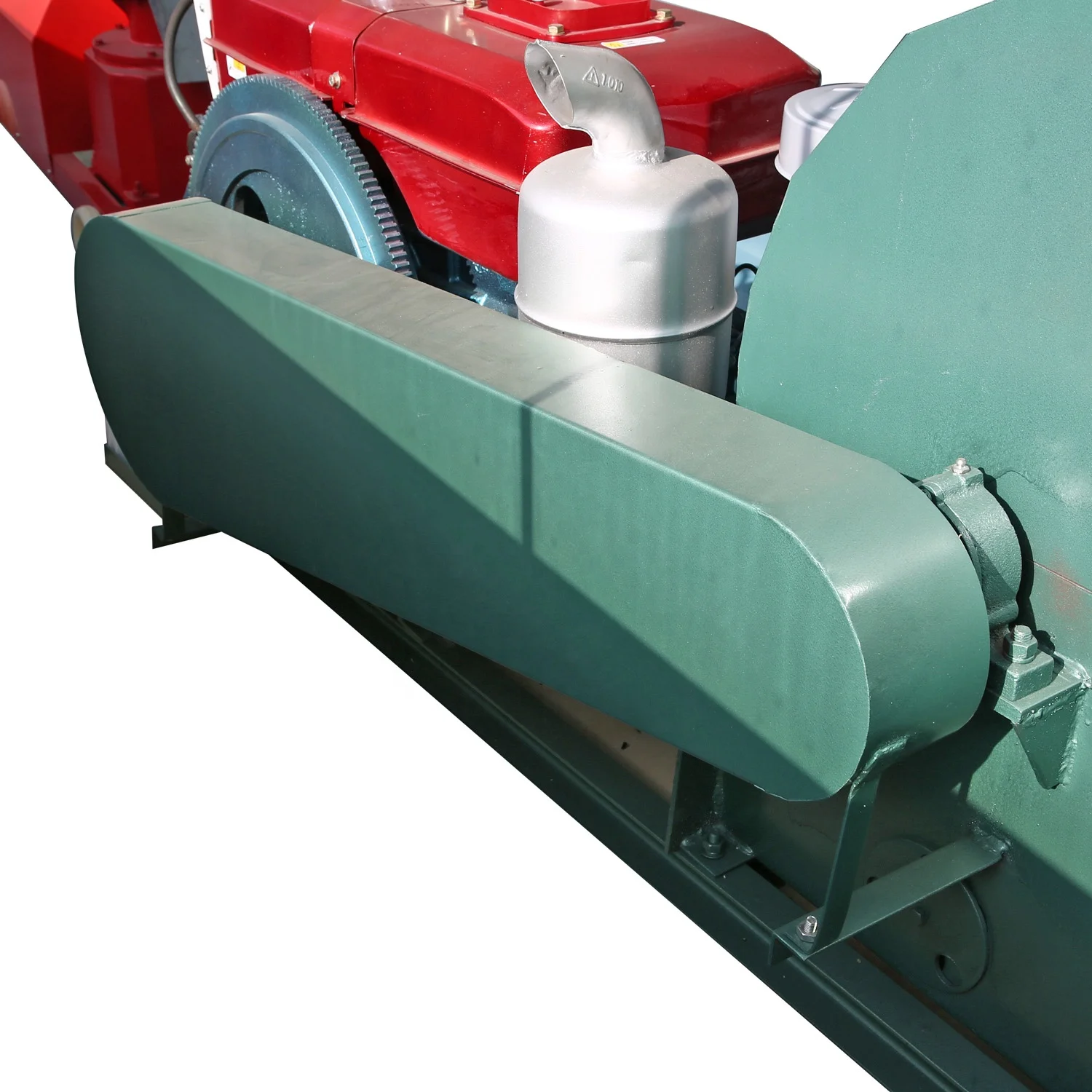

New condition diesel engine powered hammer mill for straws wood corn with CE
- Category: >>>
- Supplier: Laizhou Chengda Machinery Co. Ltd.
Share on (60424215072):
Product Overview
Description
Product Description
Product Description |
Our hammer mill is newly developed machine which is endowed with many advantages compared to other kind of crushers such as simple construction, convenient operation, high efficiency, saving power consumption, and safe condition. It is suitable to crush raw and hard materials with big size such as tree branches, bamboo, wood scrap, wood brick,old cardboard and newspaper, straw, crop stalks and corn cobs and so on. After crushing, raw materials are uniform and with proper moisture content to meet further processing. With capacity 300-500kg/h, it is can surely meet the production requirement in the farms, middle sized feeding factory or family. |
Specifications | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

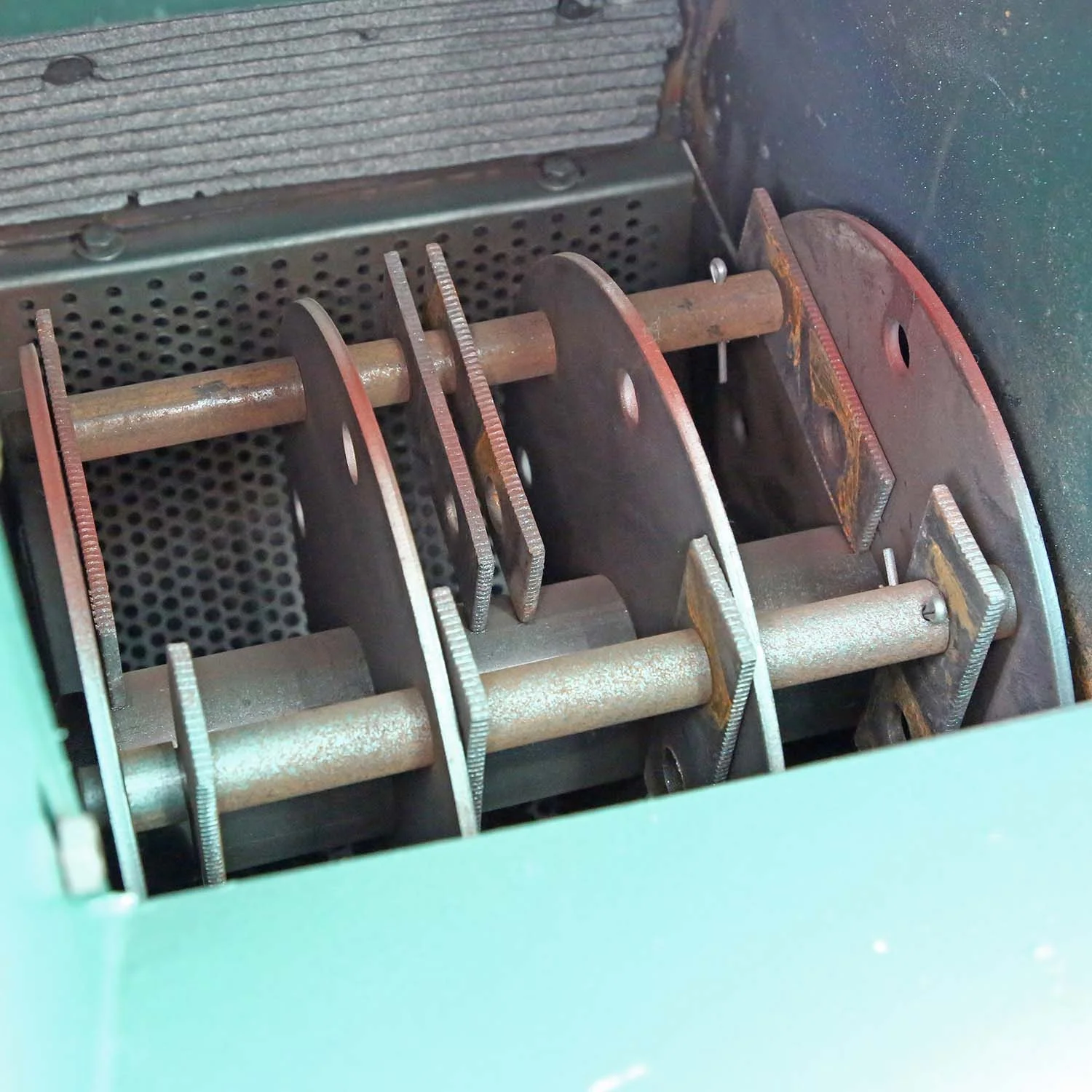

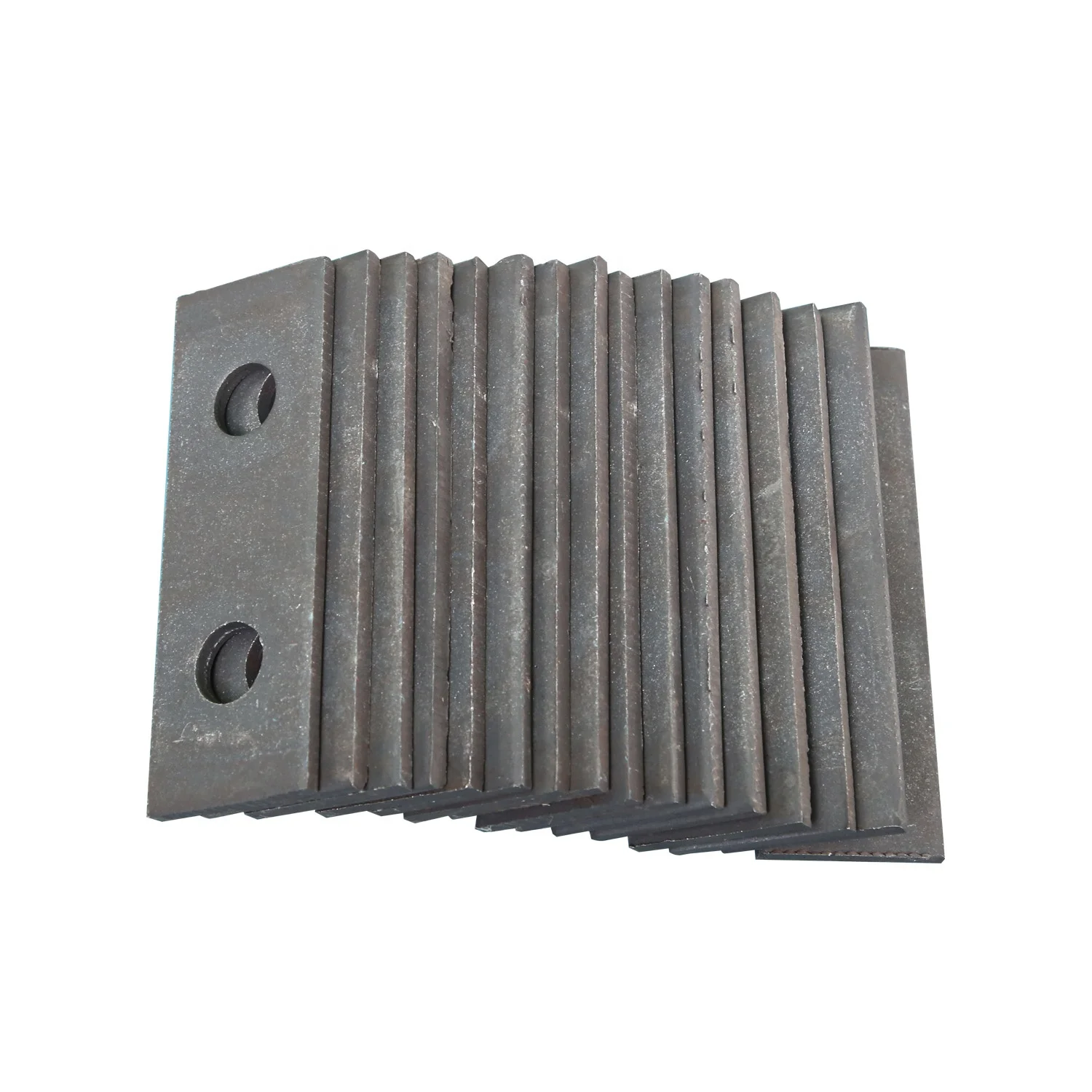

1. With capacity 300kg---600kg/h, this hammer mill can satisfy a large production demand on a daily basis. 2. The ability to change screen size, and the option of a variable speed frequency drive control, enable processing a variety of materials using the same hammer mill. 3. Both coarse and fine grinding can be realized through adjusting the gap between hammers and screen. 4. The core part ---the hammer flake is scientifically designed to have two concussion parts, thus when one part is worn out, you can turn over to use the other part. 5. The angle of the screen can be 180° which allows for high throughput at lower power consumption. 6. Equipped with air blower, the crushed material can be directly collected and transported to next machine for further processing. electric engine hammer mill/crusher
diesel & gasoline engine crusher CF-B series & CF-C series
|
| How to choose a good quality wood hammer mill |
|---|
|
Wood hammer mills are able to crush both forestry and agricultural material, brittle
|
What is the terms of warranty and spare parts?
When we are talking about spare parts for a hammer mill, by and large, we are talking about die, roller and bearing. Practically, that how often you will need to renew spare parts is depending on what raw material you are making pellets from. Apparently, compared with making straw pellets, pellet mill that are making wood pellets requires a higher frequency for changing spare parts. We supply clients with high quality pellet mill dies, rollers, bearings and other parts. Clients are available to order at anytime. If you need spare parts, please contact me or test message.
|
Do you know Cyclone |
In actual production, a cyclone is always a necessary device in wood hammer mill. What’s the function of cyclones? How does it work? Does the cyclone really work? Cyclonic separation is a method to remove wood particles from air steam though vortex separation without filters. In wood chips and sawdust collection, rotational effects and gravity are main ways to separate the mixed air flow. This method can be also used to separate fine droplets of liquid from a gaseous stream. A high speed rotating airflow is established within a cylindrical or conical container called a cyclone. Airflow begins at the tops of cyclone and ends at the bottom, moving in a spiral way. Wood particles out from wood hammer mill are drew up into airflow starting separation procedure. Wood chips and sawdust in the rotating steam have much inertia to follow the moving airflow. They will strike the inner wall until falling to the bottom, waiting to be collected. The main advantage of cyclones is to reduce the dust content in air to protect your lungs and breathing system. Pneumoconioses and black lung disease are all cause by long term exposure to dust. Please taking heath into consideration when purchasing a wood processing machines.
|
Processing |
|
Packaging & Shipping
Certification
CE CERTIFICATION |
|
FAQ
Payment method. We support kinds of payment methods, T/T, trade assurance, Western Union, Paypal etc. |
| 1. How to order? |
| After you decide to purchase, we will send you proforma invoice with our bank information, bring this PI to the bank, and ask to make T/T for the deposit. For single set, your machine can be ready within 7-10 working days after we getting the deposit, we will send to the port and deliver to you by sea. -In case for more handling charges, you can transfer 100% of the payment, we can arrange the products and shipping under your allowance. |
| 2. Related products? |
| PTO type, diesel type, electric type. |
| 3. Can i order 1 set for sample? |
| Yes, Sample acceptable, You can test the quality of sample. |
| 4. How do we visit you and your factory? |
First of all, welcome you or any appointed agent to visit and inspect our factory. You can fly to Shanghai airport, then come from Shanghai railway station to weifang city. You can fly to Qingdao airport, then we can pich you up there. We can pick up you at Qingdao airport or Weifang railway station. Please kindly let us know your schedule in details, so we can arrange everything for you. |
5. Why you choose us? |
As manufacturer, our products have excellent quality and competitive price. Good after-sale services and 12 months warranty are visible. Strictly testing and checking before shipping. 25 years experience in manufacturing and 10 years exporting experience. Doing OEM for many famous brand. |
Our Services
24 hours online service |
As 7/24 email and phone call service is available, I am ready to answer your any specific questions regarding to our machinery and pellet mill in particular. In addition, we prepare the teaching videos in terms of installation, lubrication, trial running, parts replacements and so forth.
|
