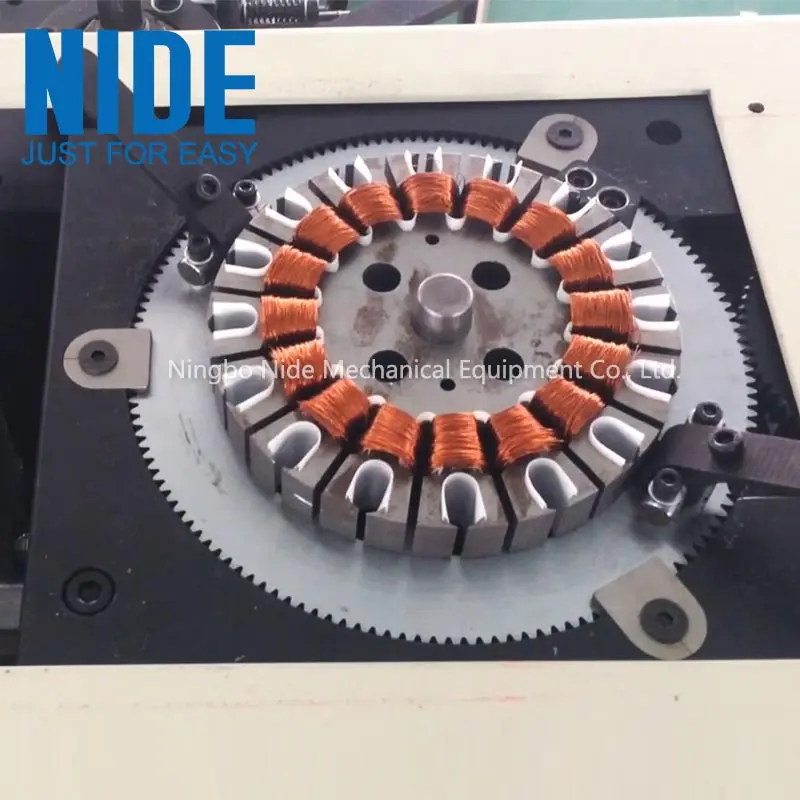

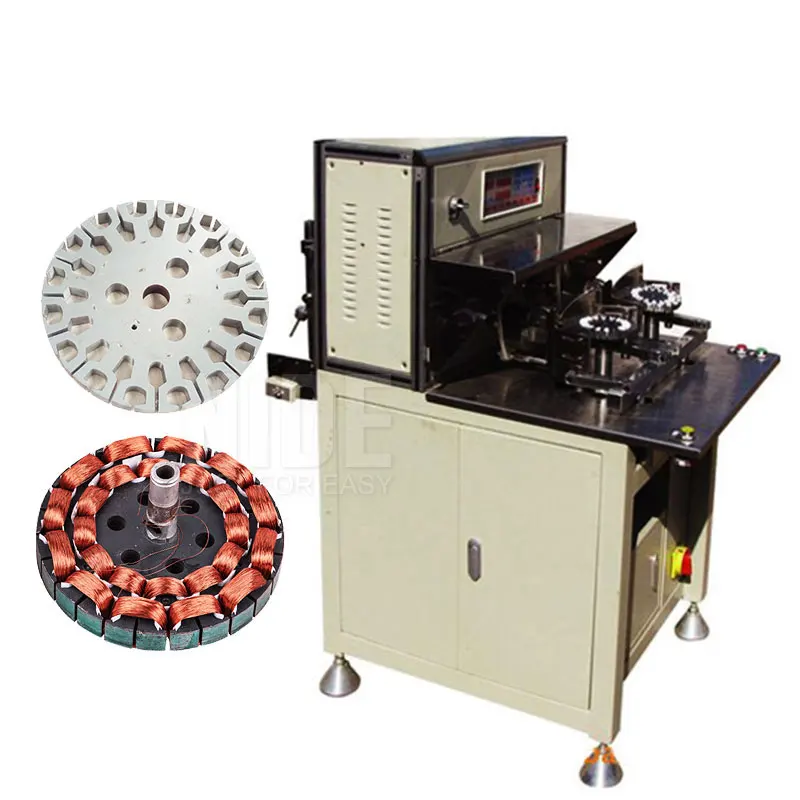

Automatic ceiling fan winding machine BLDC fan stator coil winder for sale

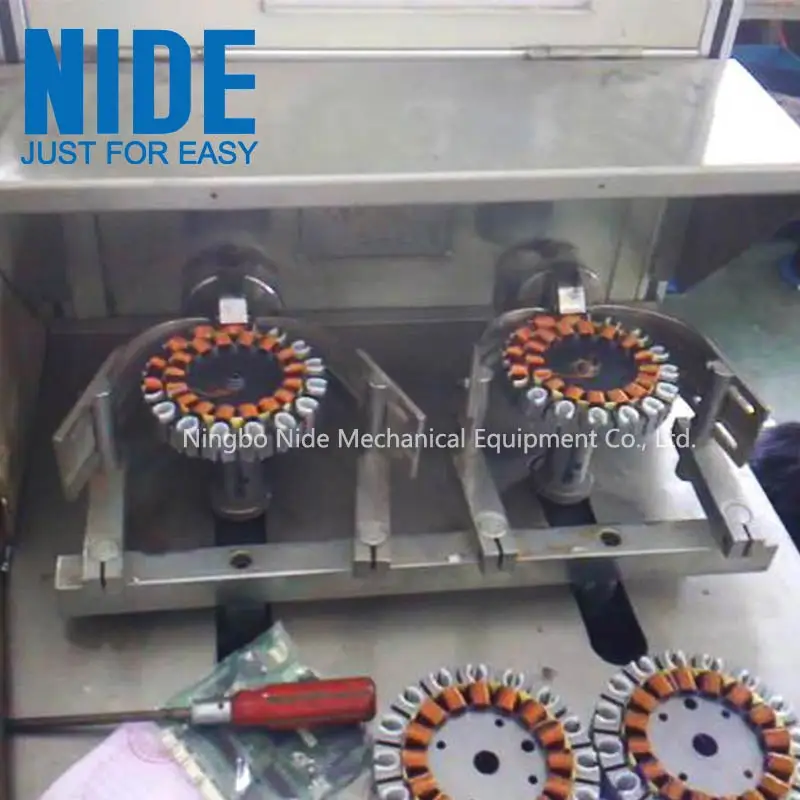

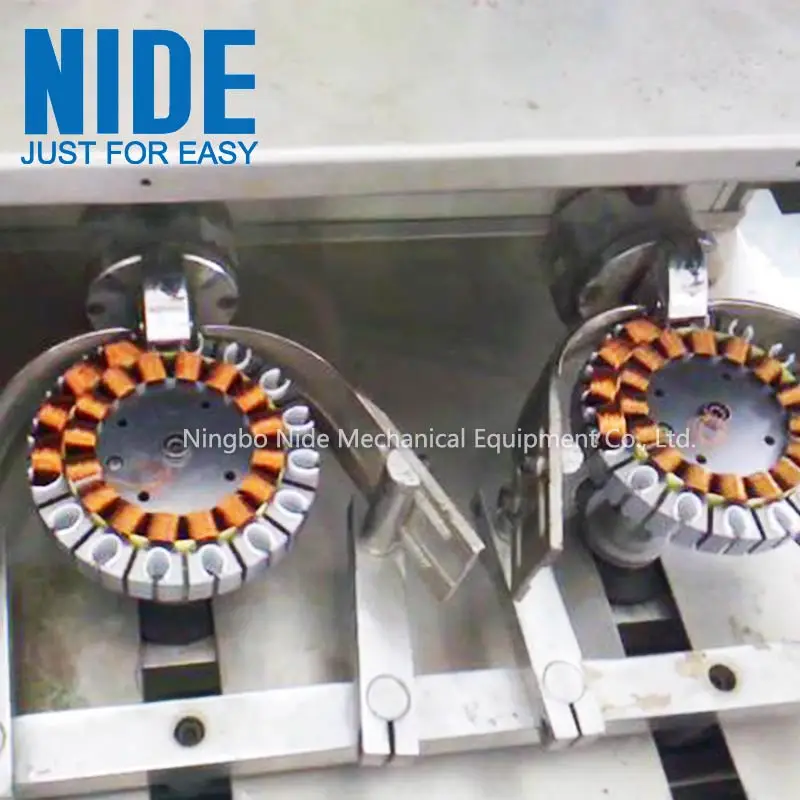

This automtaic ceiling fan coil winding machine has two working stations. Controlled by micro computer, it can do auto winding, auto array, auto indexing; array and indexing are controlled by stepping motor, winding is controlled by frequency converting motor, turn number could be accurated up to 0.1 round.
Application: Ceiling Fan Coil Winding Machine is suitable for winding ceiling fan stator, external armature such as frequency conversion alternator and generator armature.
Technical paramter:
Wire diameter
0.05~0.45mm
Stator O.D
100~163mm
Slot number
Less than 24 slots
Stack height
6~30mm
RPM
Max 2500RPM
Voltage
220V/50Hz, or customize
Power
AC 1.5KW
Weight
135Kg
Dimension
1350mm*630mm*1130mm

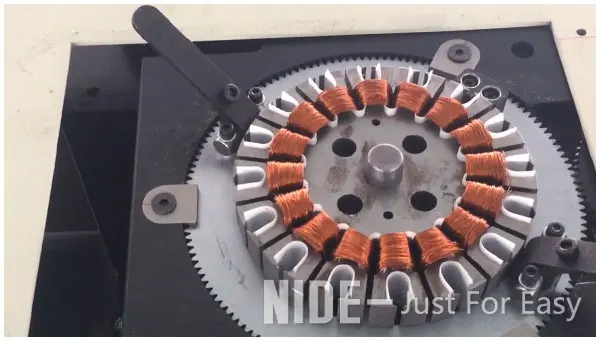

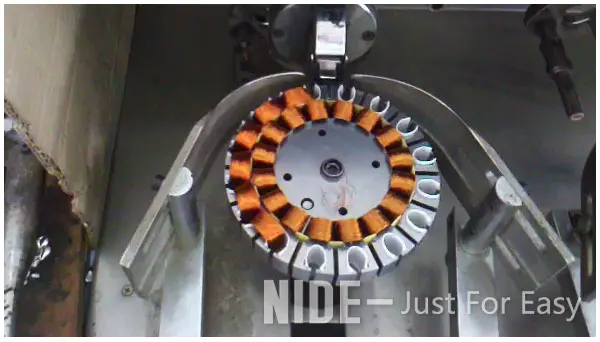

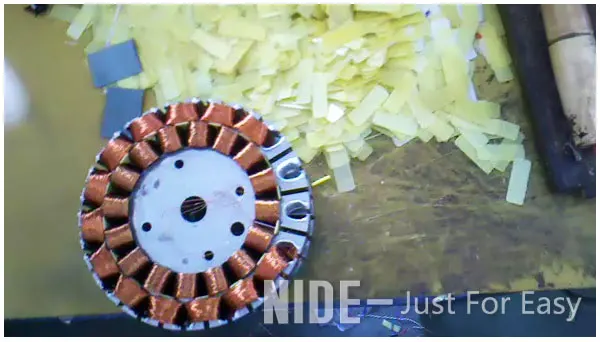

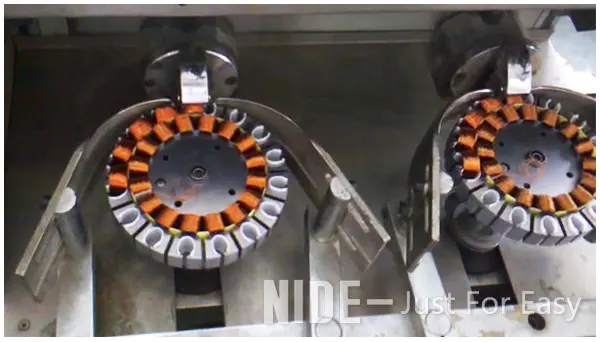

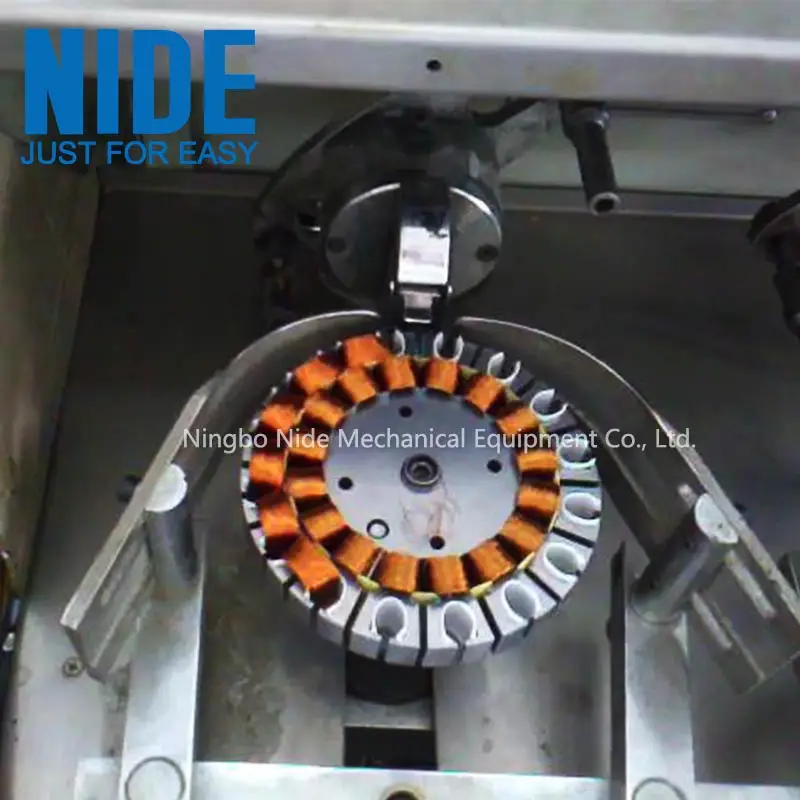

Picture show
Competitive advantages
Variety of application, easy operation. We directly supply our machines to many countries, like USA, France, Turkey, Brazil, Argentina, Mexico etc. We could customize machine for our customer as per their requirement.
We have Overseas Service Center.
Stator production
Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.
