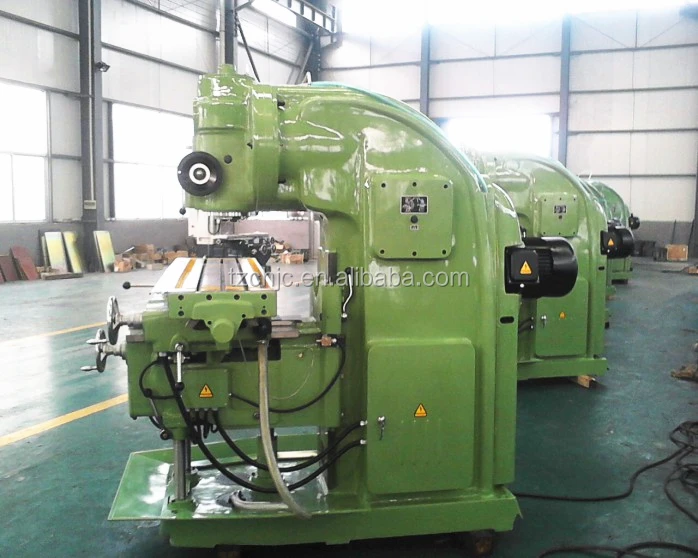

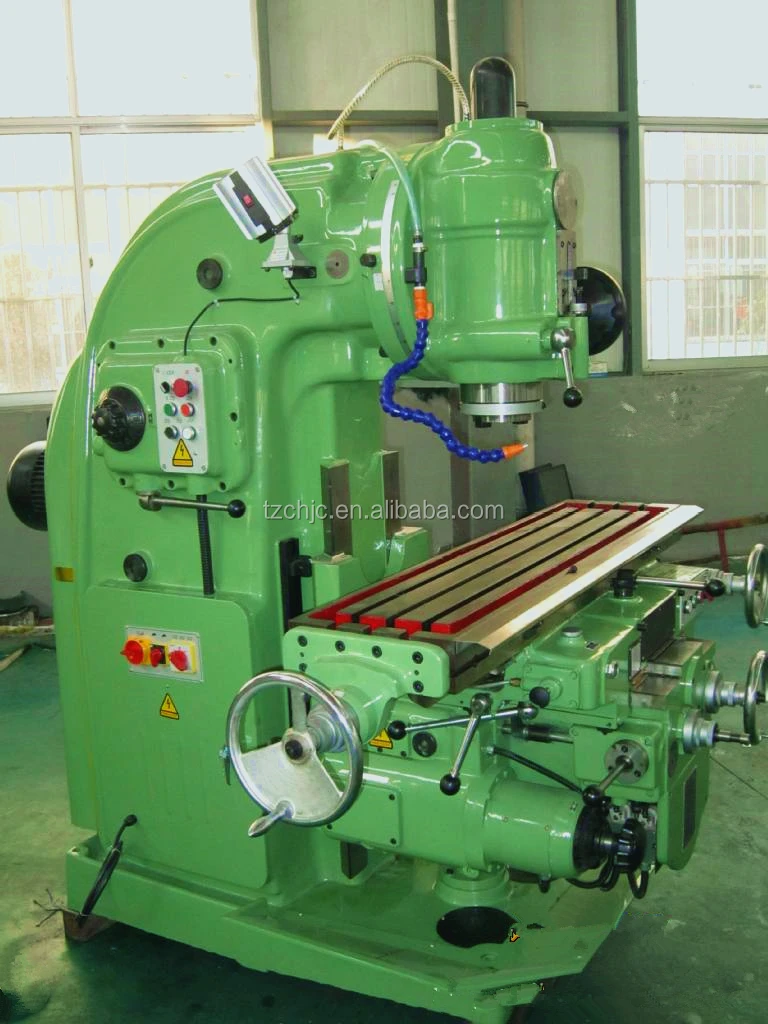

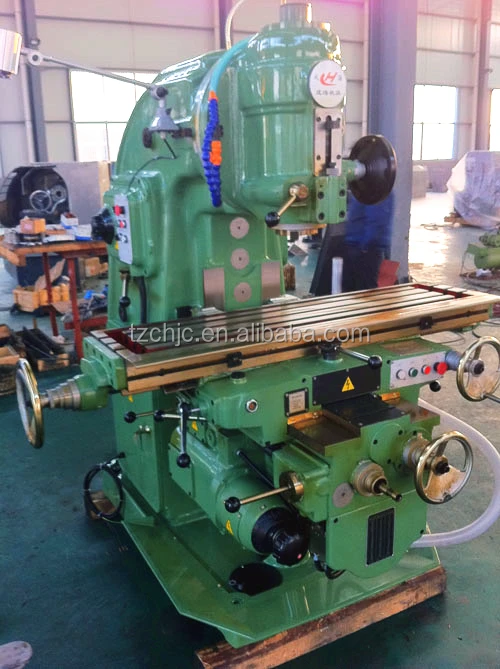

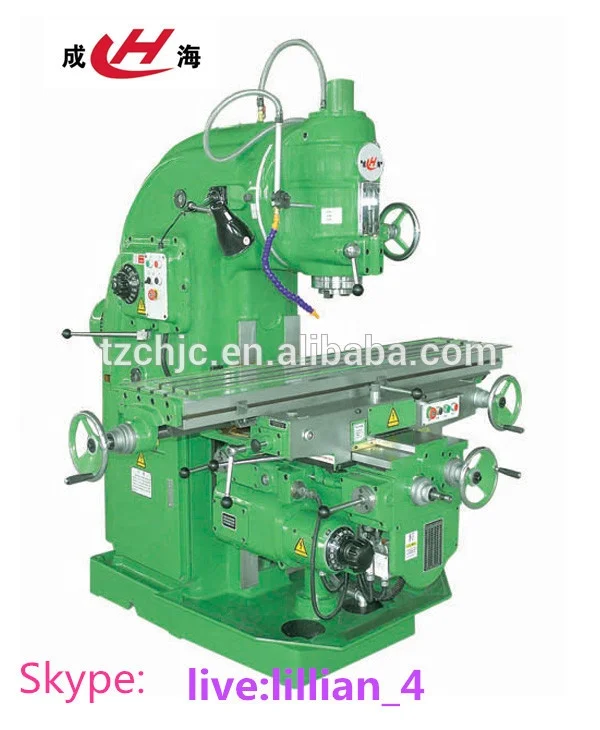

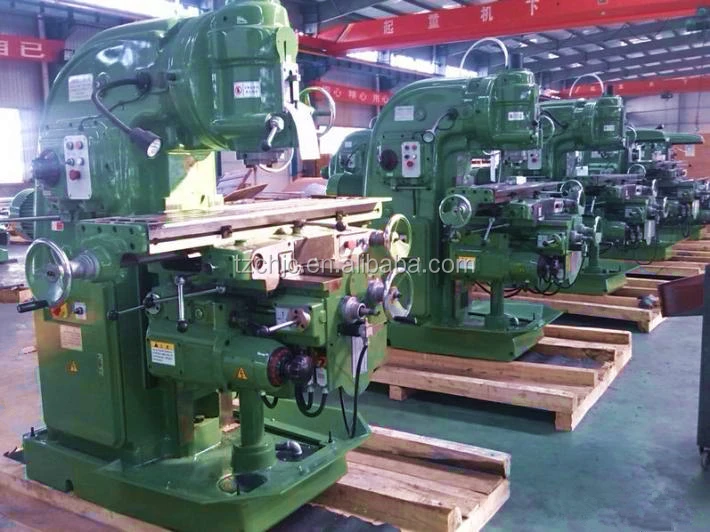

Precision vertical knee type milling machine X5032
- Category: >>>
- Supplier: Tengzhou Chenghai Machine Tool Co. Ltd.
Share on (60424669473):
Product Overview
Description

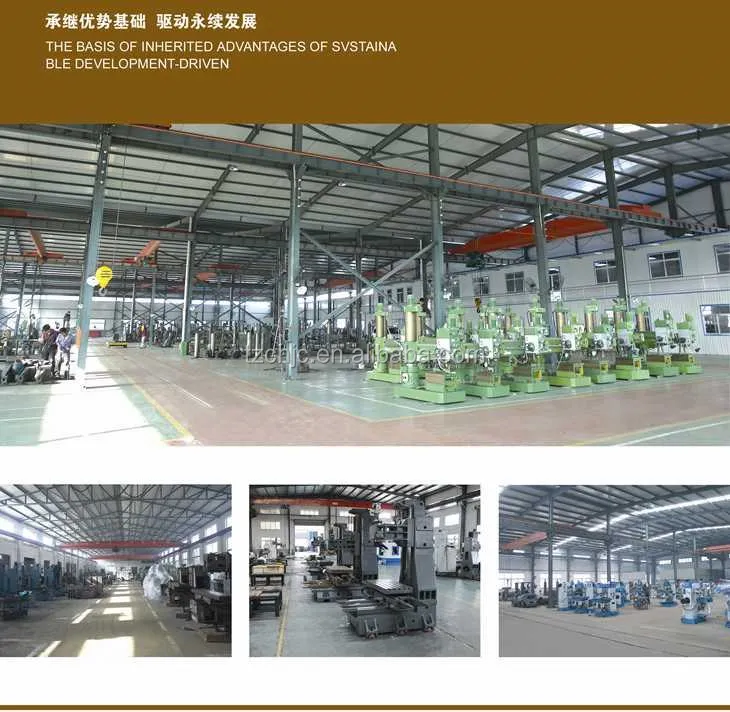

Company Information
We are manufacturer of radial drilling machine from 32mm drilling to 80mm drilling machine, milling machine,
lathe and shaper. We have our own factory, so we can provide the factory price with good quality.
We always pay more attention to the quality of our machines under the ISO standard system, and our quality
control team are responsible to insure the product quality in every process. So you can trust us. Customers'
satisfaction is the eternal pursuit of our company.
Chenghai machine to ensure product quality, implementation of stringent vendor management, all of the key
components of the machine purchased directly from the country of origin, shorten delivery time, reduce production
costs and improve product quality.
Product Description
Specifications of precision milling machine X5032 from China:
Specification | X5032 | X5032B |
Table size (mm) | 320*1325 | 320*1600 |
T-slots (No/width/pitch) (mm) | 3/18/70 | 3/18/70 |
Max. longitudinal travel(M/A) (mm) | 700/680 | 900/880 |
Max. Cross travel (M/A) (mm) | 255/240 | 255/240 |
Max. Vertical travel (M/A) (mm) | 370/350 | 370/350 |
Rapid speed of table (X.Y.Z) (mm) | 2300*1540*770 | 2300/1540/770 |
Swivel angle vertical milling head | ±45° | ±45° |
Spindle travel (mm) | 70 | 70 |
Distance between spindle axis and column guide way (mm) | 350 | 350 |
Spindle bore (mm) | 29 | 29 |
Spindle table | 7:24 ISO50 | 7:24 ISO50 |
Distance between spindle nose and table surface (mm) | 45-415 | 45-415 |
Spindle speed step | 18 | 18 |
Spindle speed range (r.p.m) | 30-1500 | 30-1500 |
Feeding step of working table | 18 | 18 |
Main motor power (kw) | 7.5 | 7.5 |
Feeding motor power (kw) | 1.5 | 1.5 |
Overall size (mm) | 2294*1770*1904 | 2294*2050*1904 |
N.W./G.W (kg) | 2900,3200 | 3000/3300 |
Packaging & Shipping
Packaging: 1 set X5032 vertical knee-type milling machine packed in 1 wooden case.
Delivery: Delivery time should be with 10 days after receiving deposit.
Shipping: Usually by SEA.
Exhibition Display
FAQ
1. Payment Method:30% deposit T/T in advance, rest against the copy of B/L or before delivery.
2. Delivery Time:
For one set machine, will be within 15 days after deposit.
For 5-10 sets same machines, will be within 30 days after deposit.
For 5-10 sets different machine, will be more than one month.
3. MOQ:1 set machine
4. Shipping: Usually by sea
