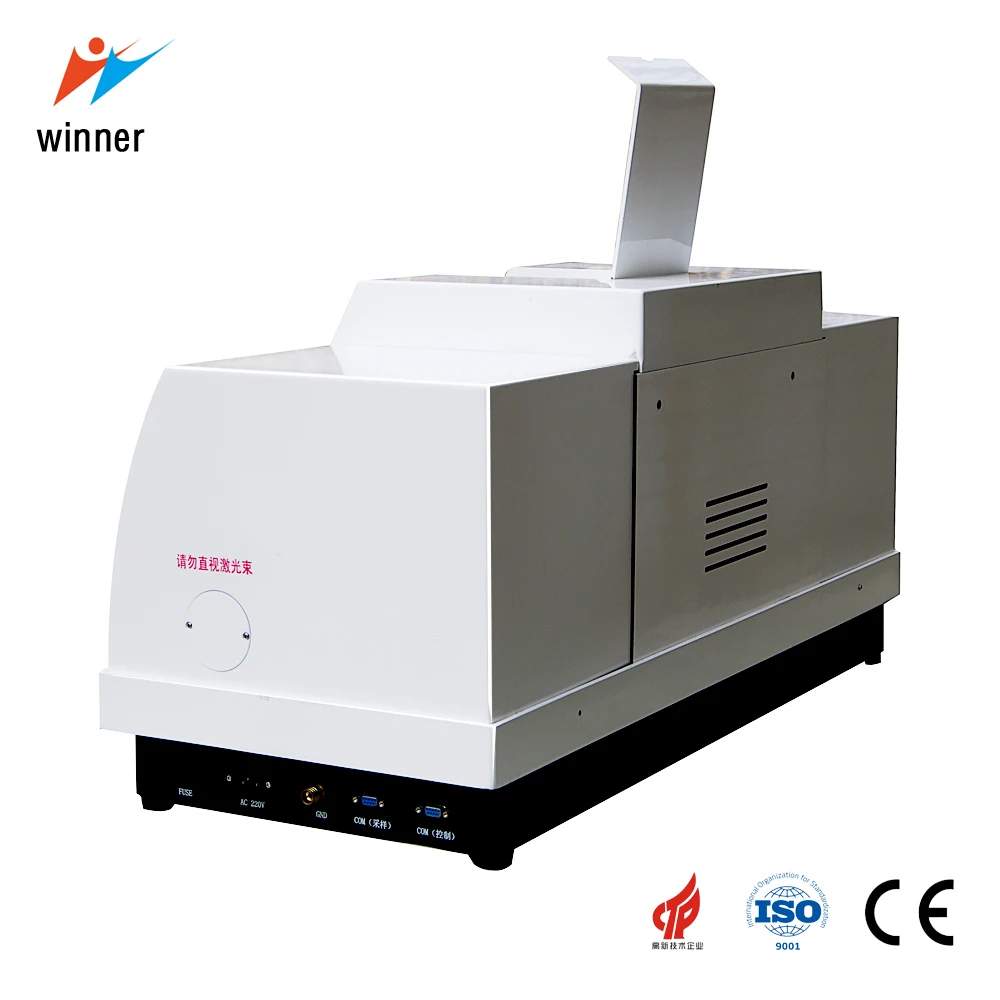

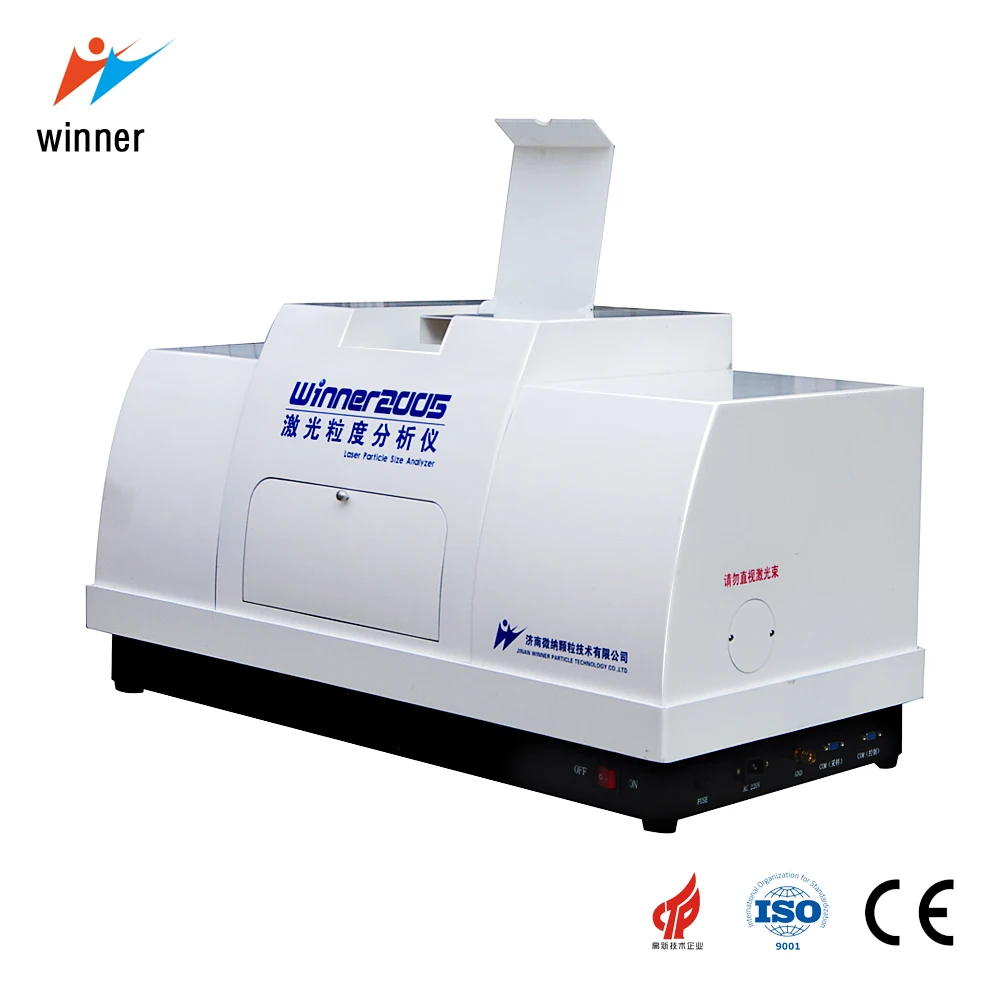

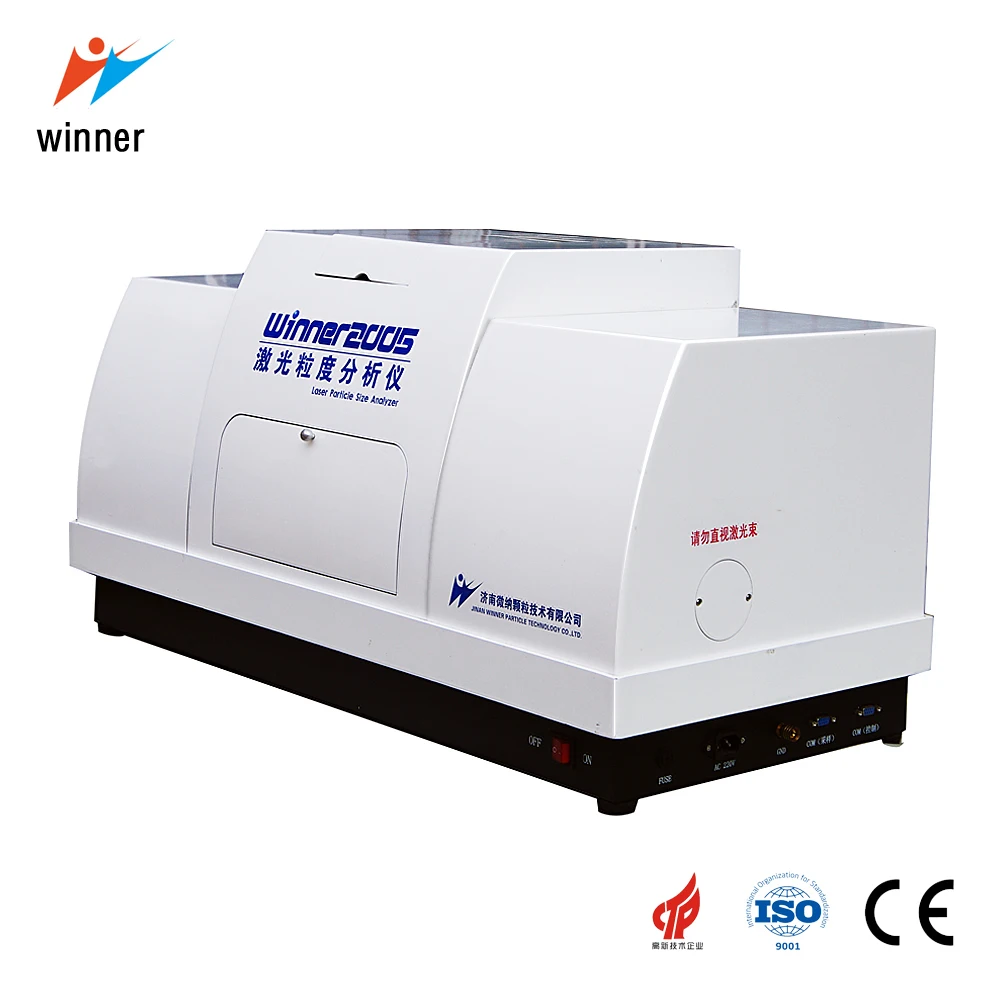

Winner 2005A wide testing size range automatic wet laser particle size analysis instrument
- Category: Testing Instrument & Equipment >>>
- Supplier: Jinan Winner Particle Instrument Stock Co. Ltd.
Share on (60424763969):
Product Overview
Description
Winner 2005A wide testing size range automatic wet laser particle size analysis instrument
Winner2005 is intelligent full automatic laser particle size analyzer. It enables you understand materials well,
such as painting,dyes, minerals power, calcium carbonate, kaolin, waterslurry Photosensitive material,Medicine and Metal oxide etc. Our Reliable data enables scientists, researchers and engineers to evolve formulations and processes with confidence. Our products guide research and product development, manage and control manufacturing quality, and optimize output.
Application industry:
1. Non-metallic powders such as calcium carbonate, talcum powder, kaolin, zirconium silicate, wollastonite, graphite, silica powder, tourmaline, mica, barite, plaster, bentonite, diamond, quartz, diatomite, feldspar, calamite,clay, garnet, vermiculite, Titanium white power, etc.
2. Metallic powder such as aluminum powder, iron powder, magnesium powder, molybdenum powder, copper powder, zinc powder, other rare metal power and varied alloy powder, etc.
3. Pharmaceutical, agricultural pesticide, grinding particle, foodstuff, scientific research, teaching, cement, ceramic, glass, chemical industry, military industry, soil, pigment, oil exploration, geological analysis, river silt and electronic particle, etc.
Main Specification:
Model Name | Winner2005A | Winner2005B |
Standard | ISO13320-1:1999, GB/T19077.1-2008, Q/JWN001-2009 | |
Measuring Range | 0.01-780μm | 0.1-780μm |
Channels Number | 76 | 68 |
Accuracy | <1% (Deviation of D50 on national standard sample) | |
Repeatability | <1% (Deviation of D50 on national standard sample ) | |
Light source | Main: He-Ne laser (λ= 632.8nm, P>2MW) Auxiliary: Semiconductor laser: | |
Sample Pool | Volume:350mL | |
Micro-Sample Pool | Volume: 10mL ( Optional) | |
Ultrasonic | Frequency:40KHz Power:35W, Time: ≥1S | |
Stir | Revolutions Speed: 0-300RPM (Adjustable) | |
Circulate | Rated Flow:8L/min Rated Power:10W | |
Operation Mode | Full automatic software control | |
Optical Calibration System | Full automatic | |
Test Speed | <2mins for each time | |
Volume | L87cm×W40cm×H45cm | |
Net Weight | 37Kg | |

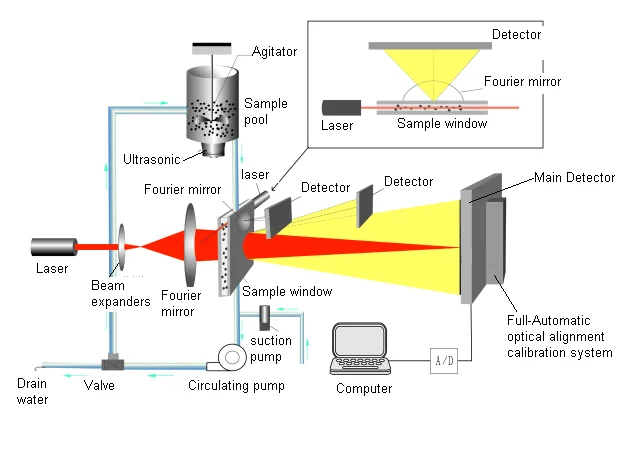

Working Principle:
Main Features:
1, Manual and Automatic mode
Intelligent operation mode realize one key test and decrease workload, Automatic water inflow, remove bubble, ulatrasonic ,circulation, draining water, and analysis etc. Get better repeatability after remove human factors errors.
2,Automatic Sample wet dispersion system:
Full builtin dispersion system, set mechanical stirring, ultrasonic dispersion, and circulation path in one, It ensures particles uniform dispersion and distribution,avoids many bad phenomenon, such as uneven distribution of particles, large particles deposit because ofthe long outer dispersing system tube, And it guarantees the representativeness of test result.
3,Software support:

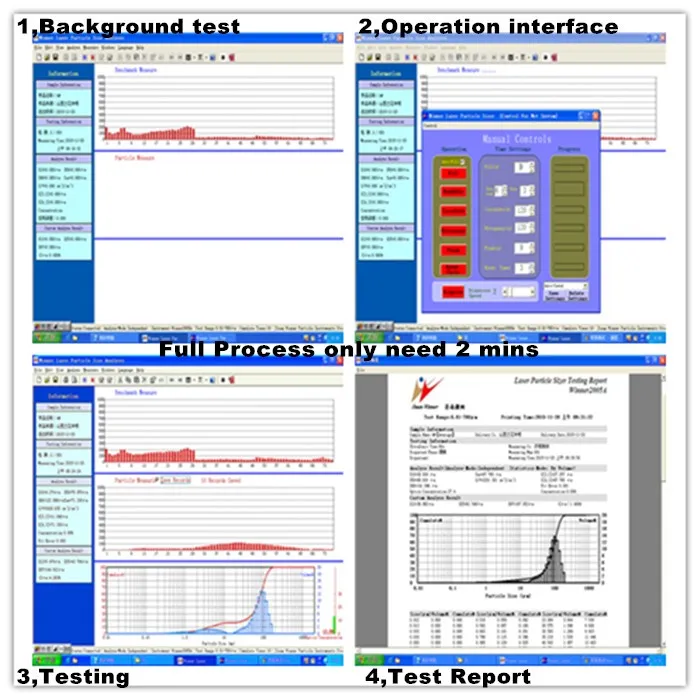

Unique software analysis system, Unconstrained free fitting technology make particle analysis not be restricted by any functions, truly reflect particles distribution, and caculated particles size, surface area and other characteristic by collecting the scattering data.
4, Optical path system:
Converging light Fourier transformation patent technology and gears test technology, which is not only overcomes limitation of lens aperture on scattering angle but also choose proper gear to test according the sample size distribution. It have high resolution and accuracy.
Automatic Optical light alignment System ,Which is composed of precise four phase hybrid stepper motor, Its inching precision is reach to micron level,make optimum optical paths to
ensure accurate and stable test.
Certifications
Our Exhibitions
Packaging & Shipping

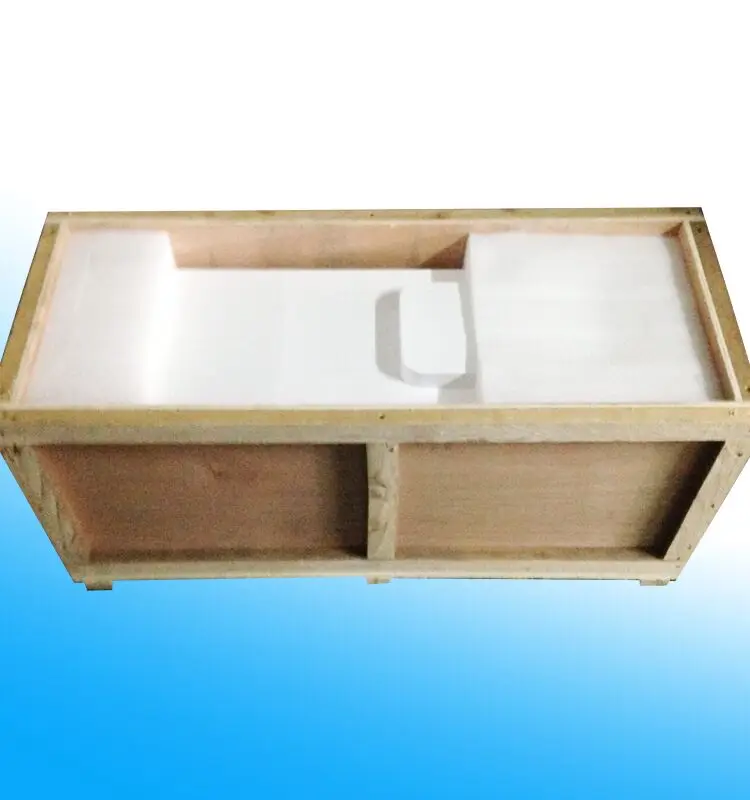

Wooden box package, G.W.:60KG.
We would ship machine by DHL, FeDex, China express, by sea and by air.
Our Services
Quality assurance
1. Strictly conforming to ISO9001-2000 quality management system,
2. Strict control from purchasing materials, process inspection to final test,
3. QC department to execute quality control regulations,
4.Only qualified components will be assembled and total equipment must be inspected completely before sale.
5, Machine will be processed preventing -shake test before delivery.
After sale service
1. We will send our technician to install instruments.( operation demo video CD will be offered also.)
2. Offer free-training service.
3. The quality assurance date is 1 year since finishing payment, Technology support in all a life. And after that, we will collect the cost if provide repair accessories.
4. Maintenance for equipment failure caused by improper handling (appropriate cost will be collected).
5. We offer the components with favorable price and perdurable maintenance.
Why choose us
Company Information
Winner Particle Instrument Stock Co.,Ltd. have been specialized in laser particle size analyzer since 1985, as the leading manufacturer in China, winner undertake the national science and technology project for many times, get more than 30 patents technology, Strongly recommended by 500 Universities in China!
1st Circulation test wet particle size analyzer
1st Dry particle size analyzer
1st Dynamic particle image instrument
1st Nano particle size analyzer
1st Image laser particle size analyzer
1st Inline particle size analyzer
Our goal is to provide super quality and competitive price laser particle size analyzer for clients all over the world!
We created more than 10 first particle size analysis technology in China!
FAQ
1. How about the package ? Is it safe during the delivery ?
All Particle size analyzer is packed by standard strong wooden carton with foam inside.
It is safe when shipping.
2. What is the delivery way ? How many days will the machine
We will ship the particle size analyzer by DHL,FedEx, UPS,etc (Door to Door Service), around 5 days to arrive.
Or by Air to your airport (Door to Airport Service ), around 3 days to arrive.
Or by Sea to the seaport, Minium CBM requirement : 1 CBM, around 30days to arrive.
3. Do you provide the Warranty ? How about the after sales service ?
2 year warranty free for spare parts, Whole life technical support.
We have professional after sales team, if any question, assistant videos are also provided in after-sale service.
4, This machine is easy to use ? if I have no experience, I can also operate it well ?
Do you provide the user manual and operating videos to support us ?
Yes, our particle size analyzer is designed to use easily, computer control. Normally it will take you 2-3 hours to learn how to operate, if you are a technician, it will much faster to learn.
We will provide the English user manual for free , and the operation video is available.
5, If we come to your factory, if you will provide the free training ?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
6. What is the payment way ?
We accept the payment terms: Bank transfer, Western union, Money gram, Paypal, etc.
If any question, you can send INQUIRY , or CHAT with us, we will be glad to service you !
