remote for mechanism curtain drapery electric motor
- Category: >>>
- Supplier: BINTRONIC ENTERPRISE CO. LTD.
Share on (60424818161):
Product Overview
Description
Product Description

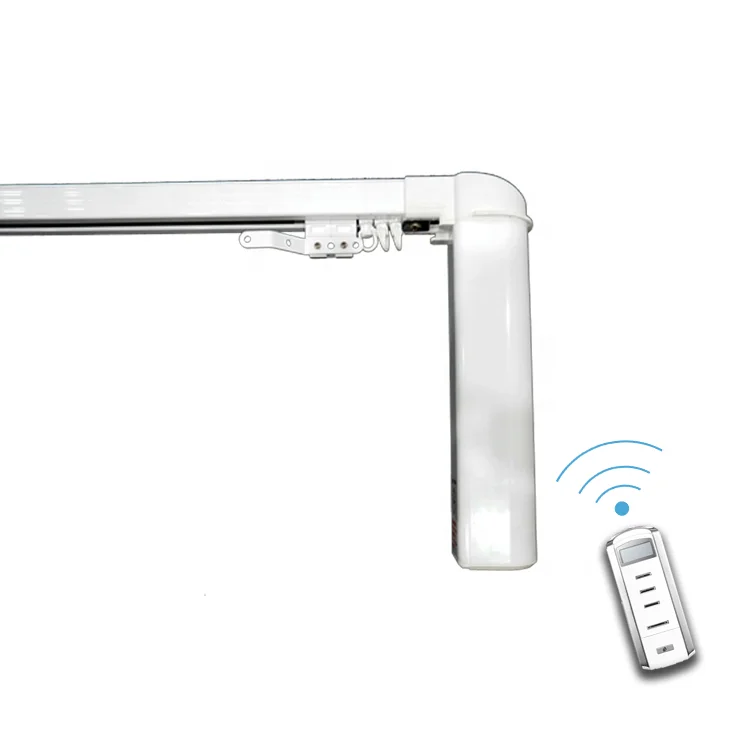

Motorized Drapes-Belt Driven
Motorized Drapes-Belt Driven offer great versatility. It can suit for most of decor requiring a functional and elegant window treatment solution. The innovative technology brings customers a reliable, affordable and userfriendly product for home or bussiness enviroments.
Great versatility
- Open and close automatically individual or Groups of blinds
-It can manually control the curtain when power failure
Smart control
-Use Remote control to open and close
-can Connect to your Smart Home system
Features
Low Noise - Smooth and quiet operation
Durable Belt and Motor - Durable quality belt and aluminum DC motor
Flexible switch control - It can manually control the curtains when power failure
24V DC Transformer - Reliable and safe DC transformer
Smart Home System - Able to be integrated with smart home sysytem
Overload Portection Device - Safety device of overload protection
Multi Control - Able to control the individual or groups of blinds
Technical Data
DC motor
DC Motor Types | DC B40 |
Working Voltage | DC 24V, 1A |
Radio Frequency | 433.92MHz, ASK |
Load Capacity | 5Kgs (Max.) |
Range of Remote Control | 30M |
Diameter of Motor | Φ35mm |
Diameter of Outer Tube | Φ47mm |
Power | AC 100-240V, 50-60Hz |
Detailed Images
Runner
Spacer
Track
Belt
DC Motor
Adapter
Master Carrier
Ceiling Bracket
Wall Bracket
Our motorized can be operated by not only remote control but also smart home system.
Dry contact - Let your electric blinds connect to smart home device.
Control type | Model | Radio Frequency | Battery | Channel & buttom |
Remote Control | B96-1 | 433.92 MHz, ASK | DC 3V | (1)Single Channel |
Remote Control | (1)B03 (2)B95-4 | 433.92 MHz, ASK | DC 3V | (1) 16 Channel (2) 32 Channel |
Touch Panel Remote Control | 433.92 MHz, ASK | AA*2 pcs | ||
Wall Panel | (1) BT-129A (2) BT-129A4 | 433.92 MHz, ASK | DC 3V | (1)Single Channel, 4 Keys (2)4 Channel, 4 keys |
Wall Panel | BT-129B2 | 433.92 MHz, ASK | DC 3V | (1)2 Channel, 6Keys |
About us
About Us
Bintronic was founded in 1989 in Taiwan, dedicated to developing on smart home products over 30 years experience. Since accessing to the home automation market, we have been engaged in the manufacture and production of electric roller shutter remote control, electric curtain and home automation system.
In the future, Bintronic will lead the innovation of curtain technology and continue to produce exclusive electric curtain boutique made in Taiwan.
In the future, Bintronic will lead the innovation of curtain technology and continue to produce exclusive electric curtain boutique made in Taiwan.
Our Advantages
Our Services
-Quality assurance :
*ISO9001 and CE quality approved
*Standard and strict leave-factory check
-Services:
*Sample order is acceptable.
*Customize the length of electric curtain track
*Generally, product delivery time takes 7-14 working days, depending the goods quantity you order
-Rich Experience:
*More than 30 years manufacture experience
*We have our own R&D team and factory
*We produce our private brand motor in our motorized curtain
