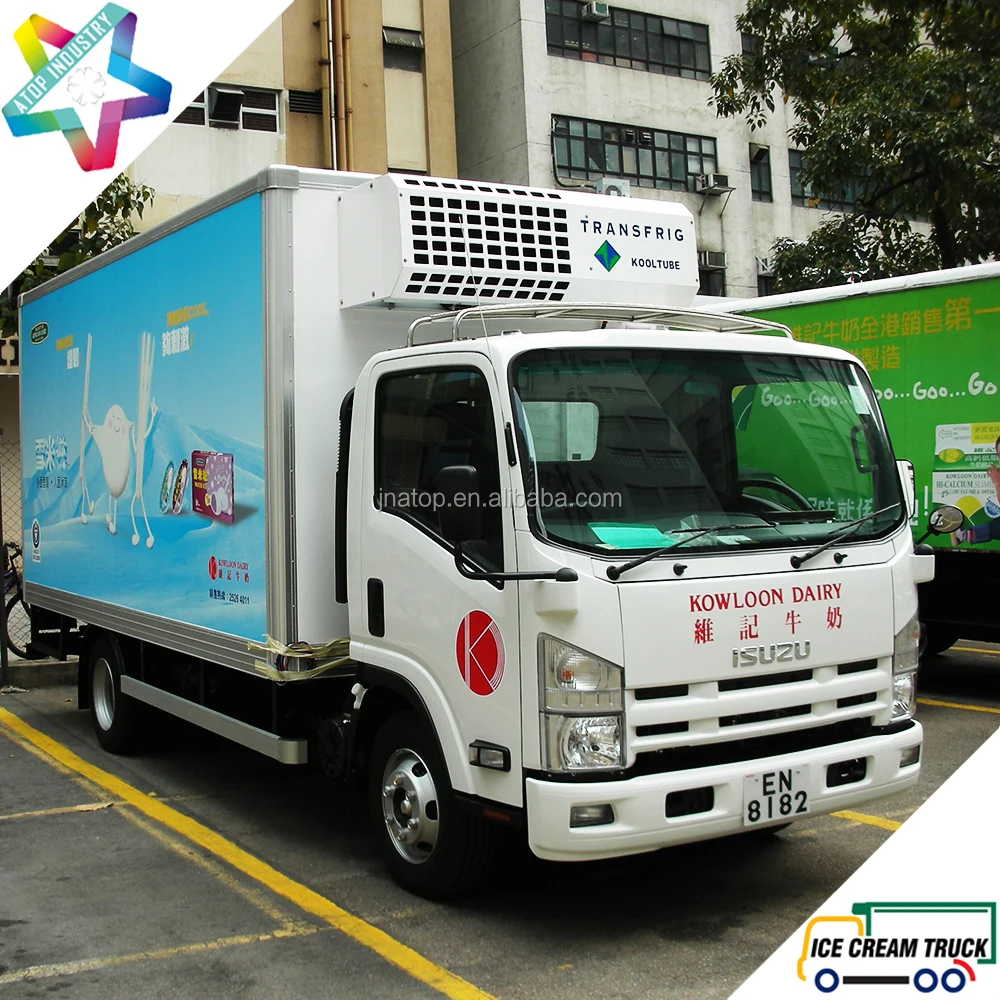

ColdKing 4.8m length ice cream truck body for NPR chassis Kooltube eutectic truck refrigeration units ice cream truck for sales

Share on (60424954965):


Price:

Quantity:


Product Overview

Description


Ice Cream Truck
\t
Ice Cream Truck Brand
\t
ColdKing
\t
Ice Cream Truck Model
\t
AJC320IC1-2SD-2RD
\t
Ice Cream Truck Outer Size
\t
5,000mm(L) × 1,900mm(W) × 2,800mm(H) ice cream truck for sales
\t
Ice Cream Truck Body Outer Size
\t
3,200mm(L) × 1,850mm(W) × 1,900mm(H) ice cream truck for sales
Ice Cream Truck Body
\t
Ice Cream Truck Body
Key Features
\t
ColdKing ice cream truck body is made of all-closed sandwich structure panels, which is made by special technology to vacuum form complete panels. We use free-Freon molding polyurethane foam as inner insulation materials. The internal and external coverings are integral FRP sheets (fiberglass reinforced polyester), therefore, homogeneous construction (without any metallic reinforcements).
\t
Ice Cream Truck Body Outer Size
\t
4.8m(L) x 2.2m(W) x 2.0m(H)
eutectic ice cream truck body
\t
Ice Cream Truck Body Inner Size
\t
4.59m(L) x 1.99m(W) x 1.79m(H)
eutectic ice cream truck body
\t
Roof/Floor Panel
\t
105mm Thickness
\t
Side Wall Panel
\t
105mm Thickness
\t
Front Wall Panel
\t
105mm Thickness
\t
Rear Door Panel
\t
105mm Thickness
\t
Panel Structure
\t
All Closed Sandwich
\t
Panel Insulation
\t
FRP + PU Foam + FRP
\t
Side Door Quantity
\t
1 (One) Set
\t
Side Door Location
\t
1 Set On Left
\t
Side Door Type
\t
Single Opening
\t
Side Door Size
\t
600mm(W) x 900mm(H)
\t
Rear Door Type
\t
800mm(W) x 1,600mm(H) Vertical Double Opening Rear Door ice cream truck for sales
\t
Truck Body Flooring
\t
Reinforced Floor Covered With 3.0mm Thickness Aluminum Checkered Plate
\t
Ceiling Light
ice cream truck body
\t
4 (Four) Sets of 12/24V Multi-Voltage LED
\t
Marker Light
ice cream truck body
\t
2 Sets Of White LED On Front;
2 Sets Of Red LED On Rear
\t
Ceiling Light Switch
ice cream truck body
\t
1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch
\t
Insulating Curtain
ice cream truck body
\t
European Standard -40C PVC Strip Curtain System For Side & Rear Doors
\t

Refrigeration Unit Service Ladder

\t
Stainless Steel
ice cream truck body
\t
Refrigeration Unit      Service Platform
\t
Stainless Steel + Aluminum Chekered Plate

Lock Set With Internal Release Device

Optional lock set with internal release device for emergency inside opening for side door and rear door

Aluminum Flooring ice cream truck body

Reinforced Floor Covered With 3.0mm Thickness Aluminum Checkered Plate ice cream truck body

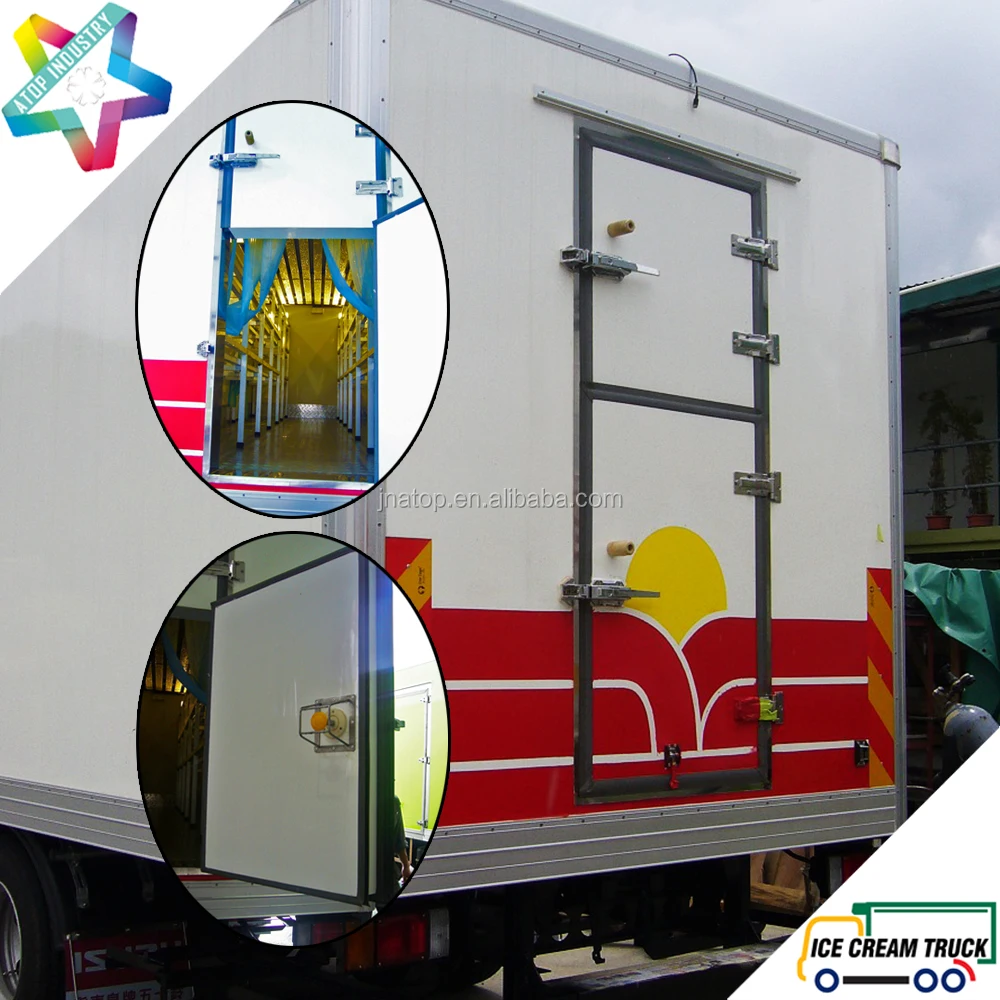

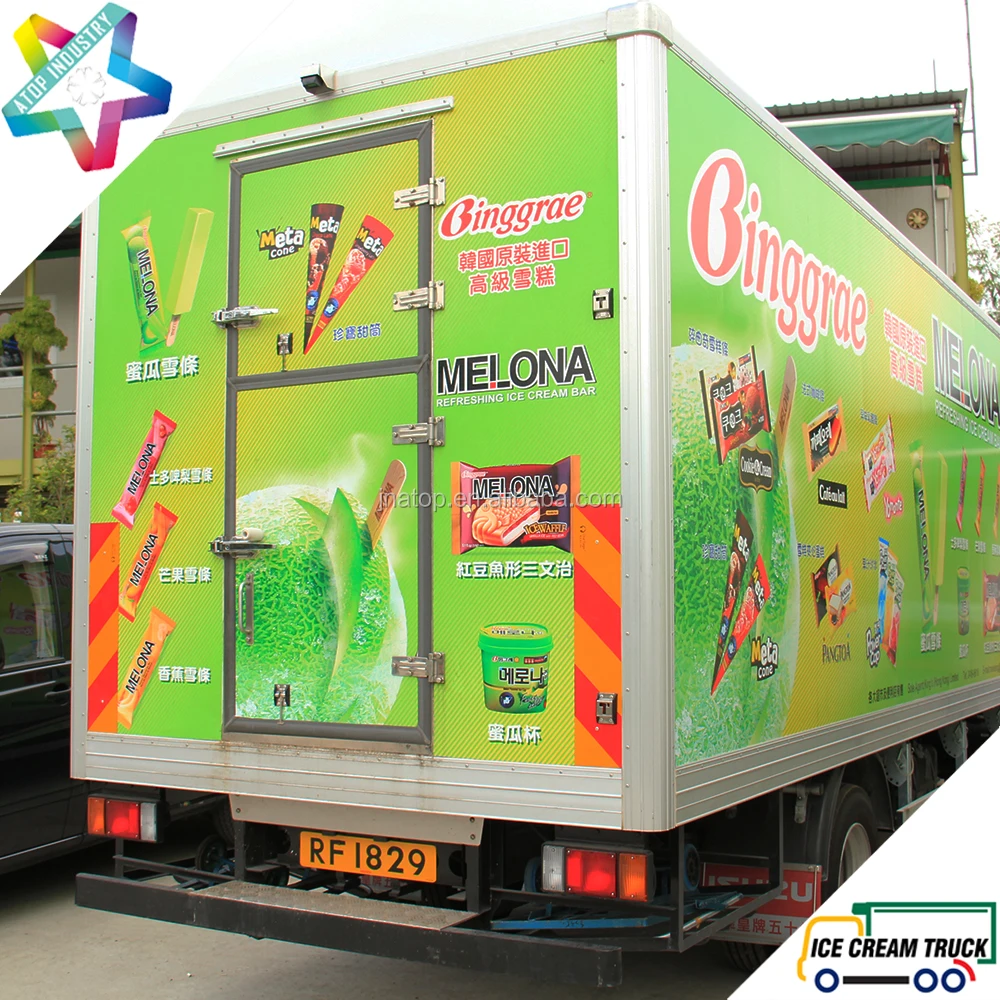

Customized Size Rear Door

Customized vertical double opening rear door with internal release device for emergency inside opening ice cream truck for sales ice cream truck for sales

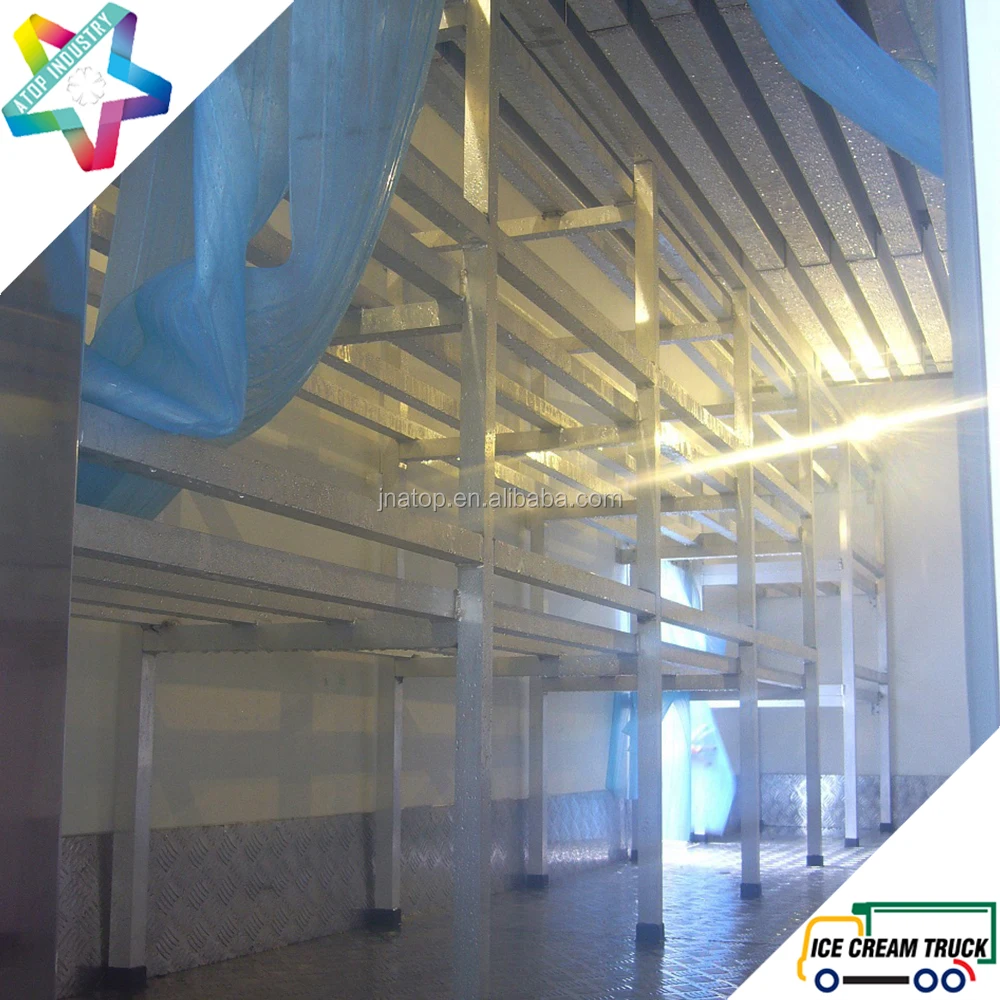

Cargo Versatile Shelving

Offers a wide variety of cargo shelving from stainless steel to aluminum alloy for standard & efficient cargo loading & unloading management

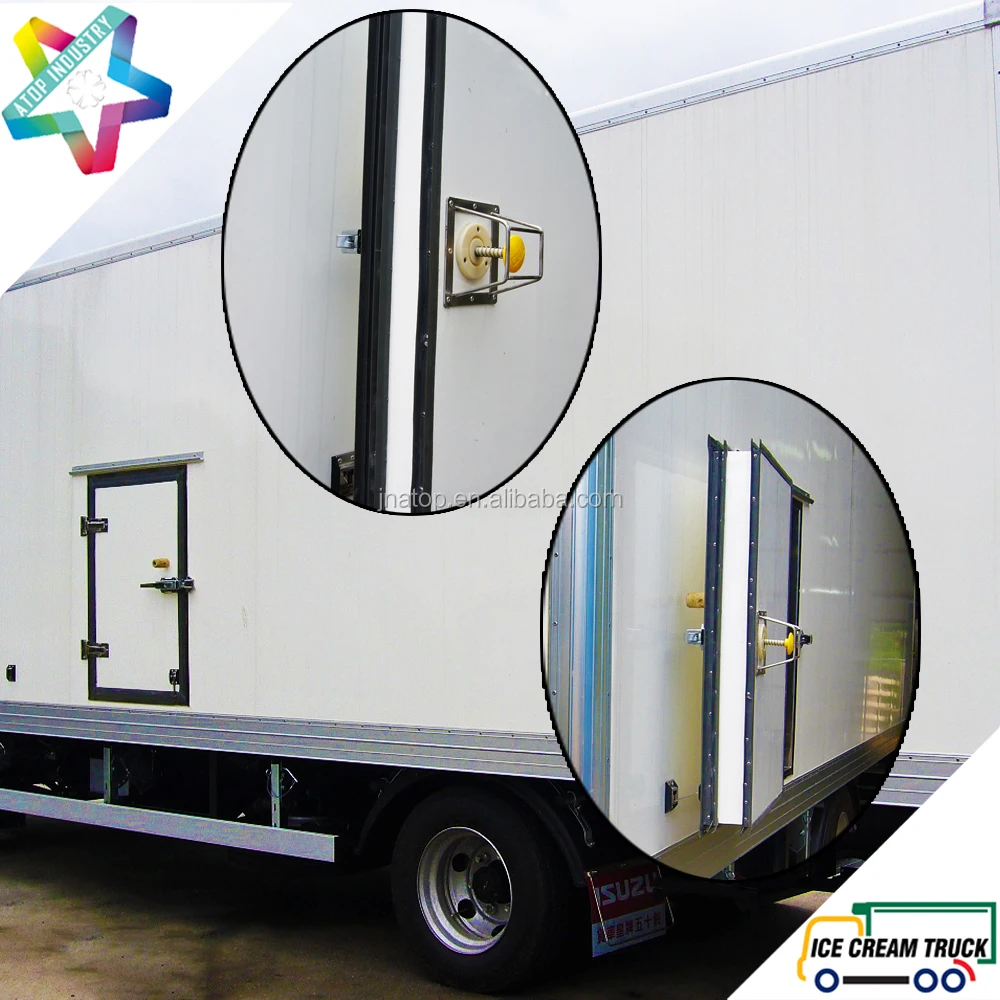

Customized Size Side Door

Customized size single opening side door with internal release device for emergency inside opening ice cream truck for sales ice cream truck for sales ice cream truck for sales

Refrigeration Units

ColdKing Kooltube eutectic system

is a holdover or latent heat storage system. It is one of the simplest refrigeration systems. Simply, it can be compared to a block of ice in a glass of water or to the freezer pack, which you freeze in your fridge at home and put into a cooler box to keep your drinks cold.The eutectic beams perform the same function as the block of ice or freezer pack while the condenser replaces your domestic fridge. The system is plugged into an electrical supply until the tubes are properly frozen, unplugged and then the vehicle used for its delivery round.
\t
Refrigeration Unit Model
\t
KT420-14N
\t
Refrigeration Unit Brand
\t
ColdKing
\t
Refrigeration Unit Type
\t
AC Power Driven Eutectic Solution, Condenser Split ice cream truck body
\t
Refrigeration Capacity
\t
3,145W(@ -40C)
\t
4,230W(@ -35C)
\t
7,140W (@ -25C)
\t
Total Refigeration Heat Exchange Rate
\t
13,524Kcal/h ice cream truck body
\t
Refrigerant
\t
HFC R404a
\t
Defrost
\t
Manual Warm Water
\t
Condenser Mounted Method
\t
Over-Cab Mounted
\t
Kooltube Beams Assembly
\t
4.2m(L) x 14 Pcs
\t
Compressor Brand & Power
\t
Bitzer 4.0Hp
\t
Expansion Valve
\t
Danfoss
\t
Condenser Fan
\t
EBM
\t
Thermometer
\t
REFCO
\t
Power Supply Voltage/Phase/Frequency
\t
220V/3Ph/60Hz ice cream truck body

4200mm(L)  x 14 pieces Kooltube Beams ice cream truck body

The Kooltube beam is extruded aluminum containing a non-toxic eutectic solution. A wide range of solutions is available for various temperature applications.  ice cream truck for sales ice cream truck

Quality Durable & Stable Compressor

Germany brand BITZER compact semi-Hermetic reciprocating compressors boast an efficient suction gas–cooled motor, high-quality valve plates, wear-resistant drive gears and adjustable capacity control. This gives the BITZER compressor, which can also be used at very low condensing temperatures, a beneficial seasonal energy efficiency beyond comparison.

Danfoss Parts

Schneider Electric Control

EBM Fan

Truck Chassis
\t
Chassis Brand
\t
Isuzu
\t
Chassis Model
\t
NPR 700P
\t
Steering Wheel
\t
Left Hand Drive
\t
Drive Train
\t
4 x 2 seafood truck
\t
Cab Style
\t
Single Cab seafood truck
\t
Seating Capacity
\t
2+1 seafood truck
\t
G.V.W
\t
10,000 Kgs
\t
Kerb Weight
\t
5,200 Kgs
\t
Rated Payload
\t
4,800 Kgs
\t
Overall Dimension
\t
6.9m(L) x 2.32m(W) x 3.2m(H)
\t
Wheelbase
\t
4,175mm seafood truck
\t
Max. Speed
\t
110Km/h seafood truck
\t
Rim/Tires
\t
8.25R16 x 7 seafood truck
\t
Front Track
\t
1,680mm
\t
Rear Track
\t
1,650mm

Manual Tiltable & Collapsible Steering Column; With Three Points Pre-Tensioner Seat Safety Belt; With AM/FM + AUX + USB Audio Device; With Fabric Seat Covers;  With 2 Audio Speaker;

\t
Engine Brand
\t
Isuzu
\t
Engine Model
\t
4HK1-TCG40 seafood truck
\t
Engine Emission
\t
EURO 4/EURO 5 seafood truck
\t
Displacement
\t
5,193cc seafood truck
\t
Max. Power
\t
139Kw (190Hp) seafood truck
\t
Max. Torque
\t
510N.m seafood truck
\t
No. of Cylinder
\t
4  seafood truck
\t
Key Features
\t
Intercooled; High Pressure Common Rail Direct Fuel Injection; Waste Gated Turbocharger
Optional Items

Hydraulic Tail Lift ice cream truc

Aluminium Alloy/Steel Platform Hydraulic Tail Lift Are Available

Roll Carts

Roll carts for rapid and efficient loading, delivery and unloading goods. It was customized made according to inner dimension & configuration of refrigeration truck body
