ANSI P20/P30/P40 welding tips tungsten carbide tips for brazed tool bits

Product Overview

Description

Zhuzhou Kerui P20/P30/P40 Welding Tips Tungsten Carbide Tips for Brazed Tool Bits

Zhuzhou Kerui manufactures a comprehensive line of brazed tips in a wide range of grades for metalworking applications, including grades for machining materials

from steels and cast irons to nonferrous metal etc.



Description of brazed tips

1. Product Application:

Brazed tools, also called carbide-tipped lathe tool bits and single-point brazed carbide-tipped

tools, are used for metal shaping on lathes. These single-point tools have a cutting edge at one

end that is a carbide tip brazed to a steel shaft. They come in multiple geometry styles for

different cutting applications

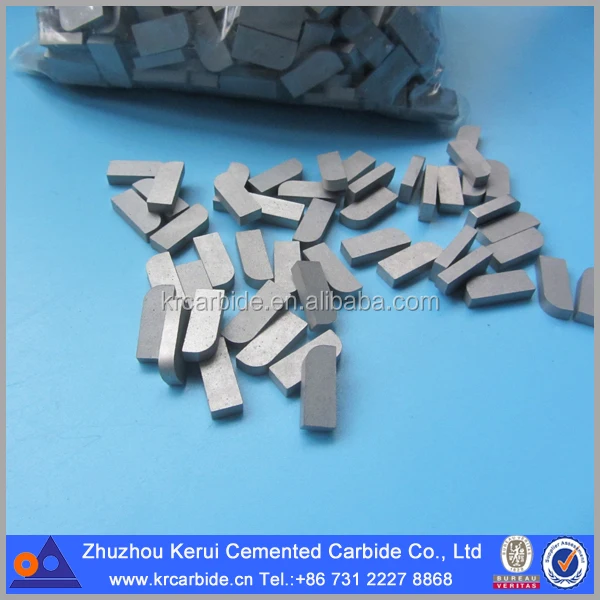

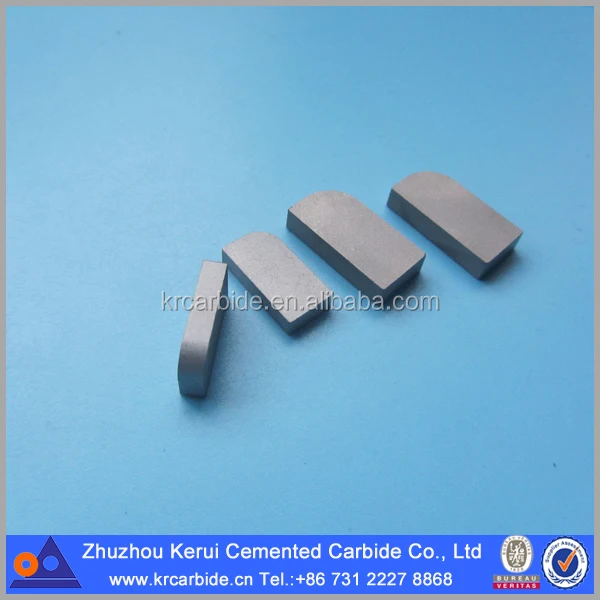

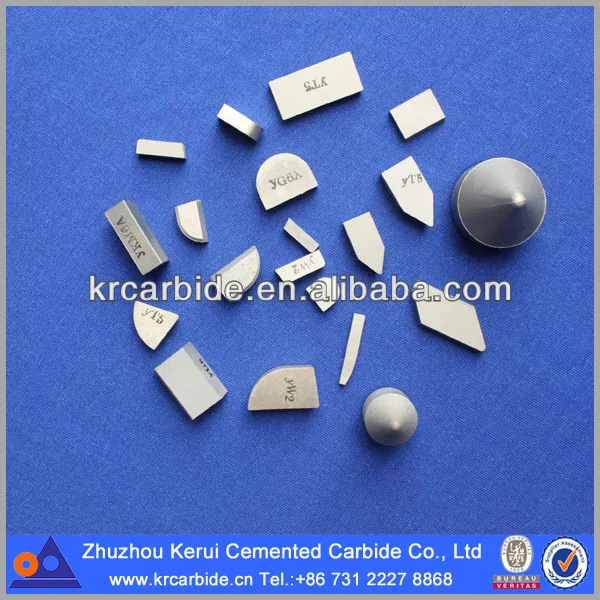

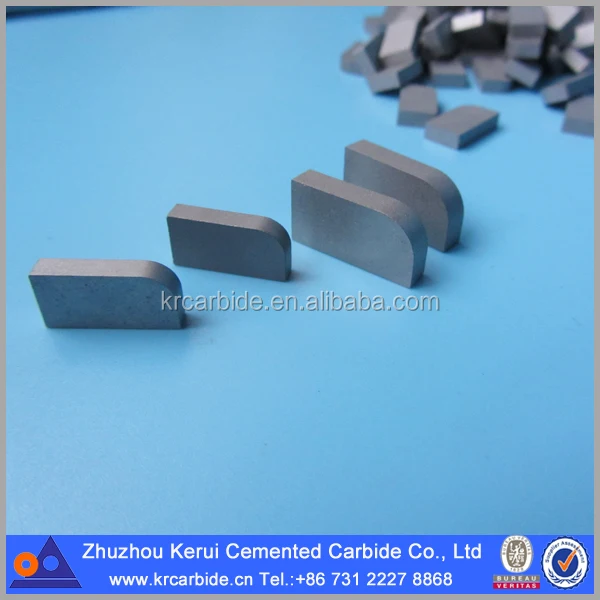

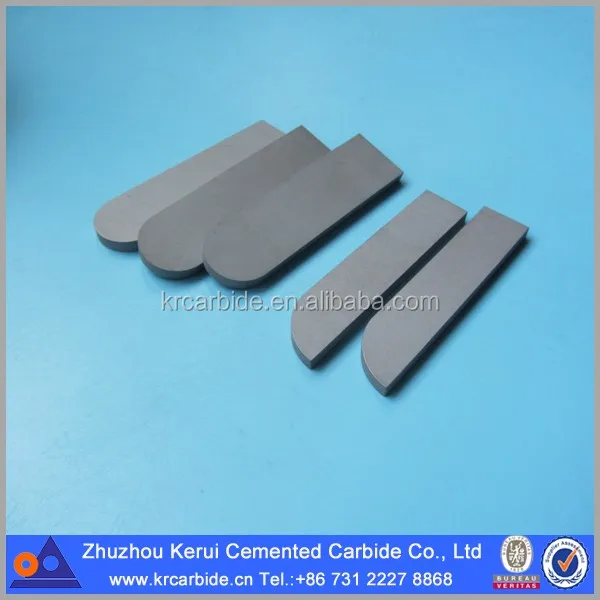

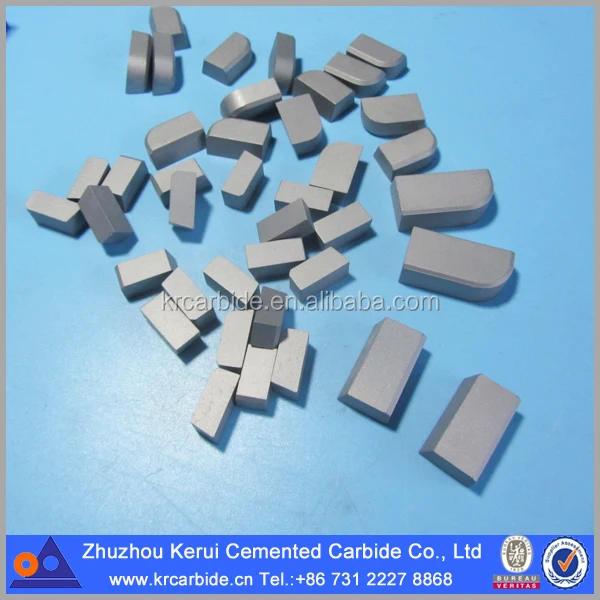

2. Product Picture for ANSI Welding Tips:



Type: 2190/2170/2050/2070 Grade: K10 Surface conditon: Blank, uncoated





Our equipment, versatility, and experience, allow us to offer much

more than the standard geometry presented above.



ISO Standard	China Domestic Standard





3. Product Specification:

 Available in a variety of metal cutting grades to fit your individual needs.

Grade	ISO grade	Density	Hardness	TRS
		(g/cm3)	(HRA)	(Mpa)
YG6	K20	14.95	91.0	1800
YG6X	K10	14.95	92.0	1800
YKM6A	K10	14.95	92.5	1800
YG8	K30	14.7-14.8	90.0	1950
YT5	P30	13	90.8	1900
YT14	P10-20	11.5	91.5	1500
YT15	P10-20	11.3	91.8	1450
YW1	M10-20	13.1	91.5	1600
YW2	M10-20	13.1	91.0	1600
YS25	P25	12.8	91.5	1900
YC30S	P30	12.8	91.0	2000
ZP35	P35	12.8	91.0	2000
YC40	P35	13.2	90.0	1850



Reference Packing

Plastic boxes inside with carton outside. Other packaging upon request.





Quality control system:

Every batches of material will be tested in density, HRA, TRS and magnetic saturation,

test report will be kept in our files.



We have a constant quality checks accompany the overall production process of the tungsten

carbide to assure our customers are receiving the highest quality carbide in the industry.
