Automatic aluminum can seaming machine
- Category: >>>
- Supplier: Zhangjiagang Sheenstar Technology Co. Ltd.
Share on (60425100223):
Product Overview
Description
Plastic can seaming machine
Product Description
1) Wholly sealed widow structure which is beautiful, concise, easy and highly operated;
2) Cycling tank design with precision polishing inside;
3) High precision and large flow rate filling valves to meet productive requirement;
4) Specially designed roller structure which is easy to be adjusted, locked and ensure sealing function;
5) Friendly and convenient operating panel with high expansibility.
6) The filling valve is adopts high precision mechanism valve, fast speed filling, high precision liquid level.
7) The filling vat adopts 316L material designed sealing vat, to achieve constant pressure filling.
8) The flow rate of the filling valve>125ml/s.
9) Main transmission adopts toothed belt and gearbox open-type transmission assemblies, high efficiency, low noise.
10) The main drive adopts step-less speed change for frequency conversion, the whole machine adopts PLC control; the capping machine and filling machine adopt coupling joint, to ensure synchronization of two machines.
11) With filling with can, no filling without can.
12) The filling manner is constant pressure filling, with fast filling speed and stable action.
13) Adopting introduce into full set of Switzerland (Ferrum) capping technology.
14) Capping trolley adopts high hardness alloy steel quench(HRC>62), capping curve adopts projection grinder precision machining, to ensure the quality of capping.
15) With capping with can, no capping without can control system, to ensure the normal running of the machine.
16) With CIP automatic rinsing function.
17) With centralized lubrication system.

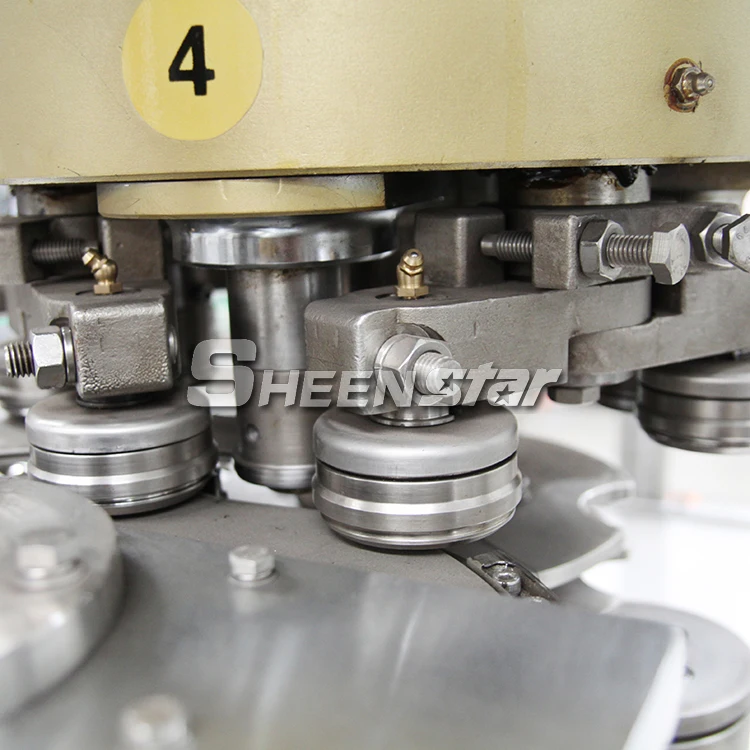

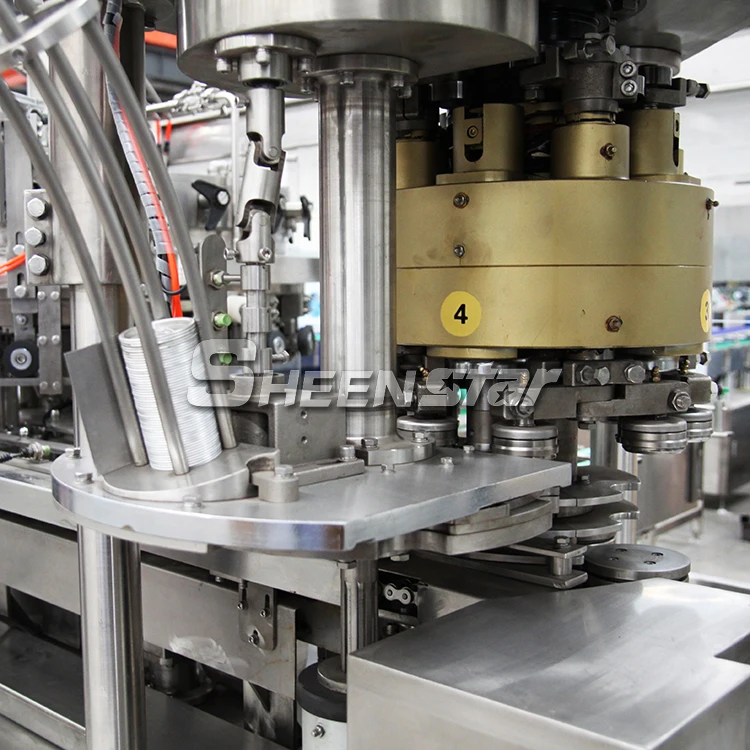

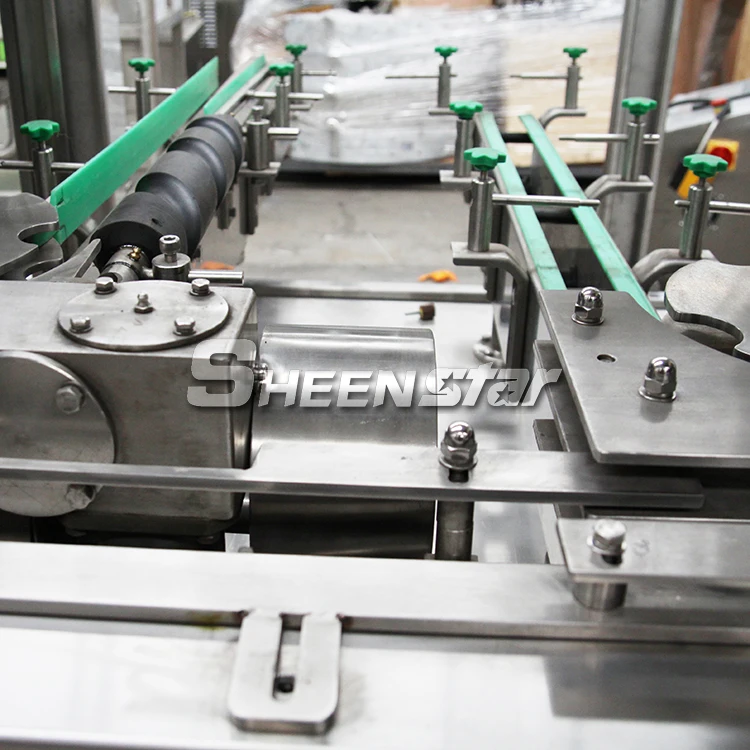

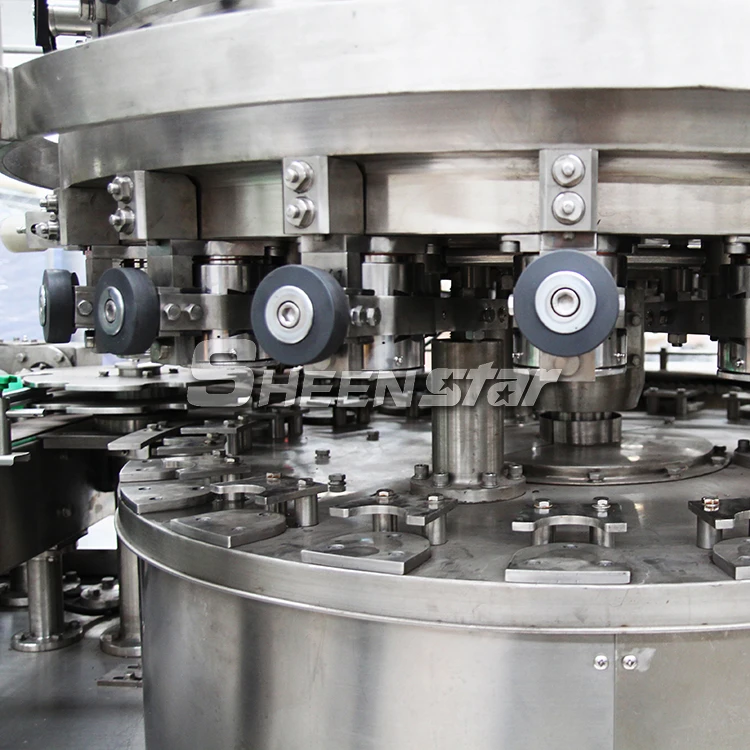

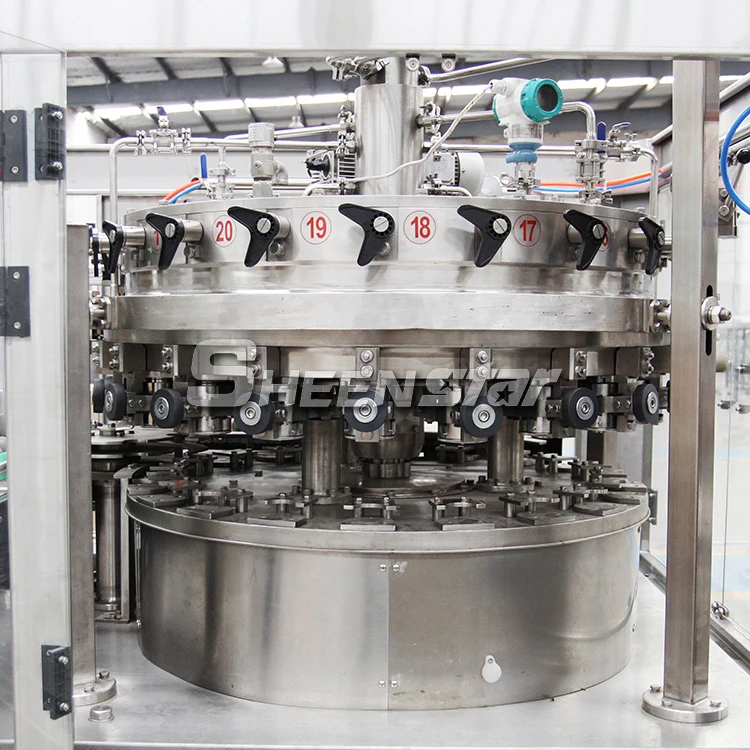

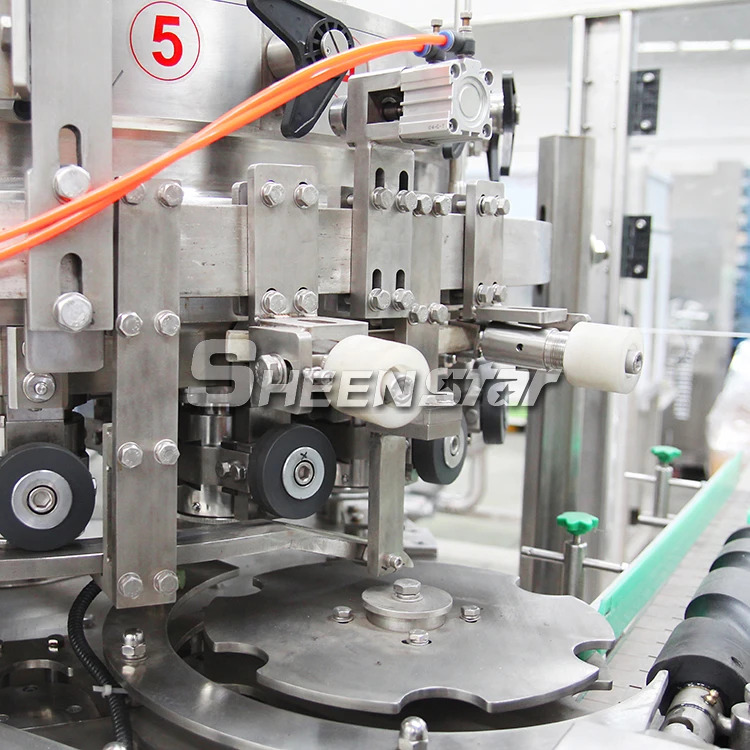

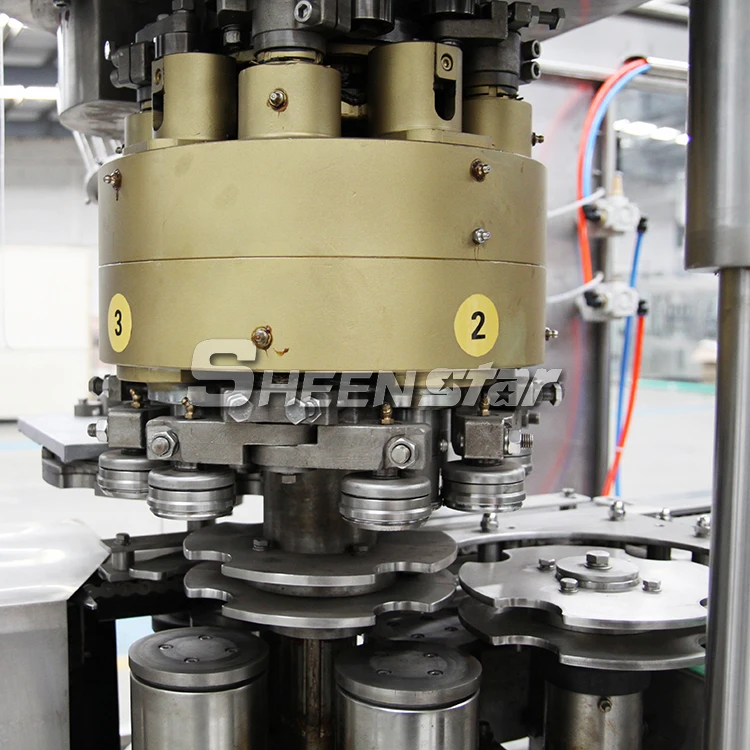

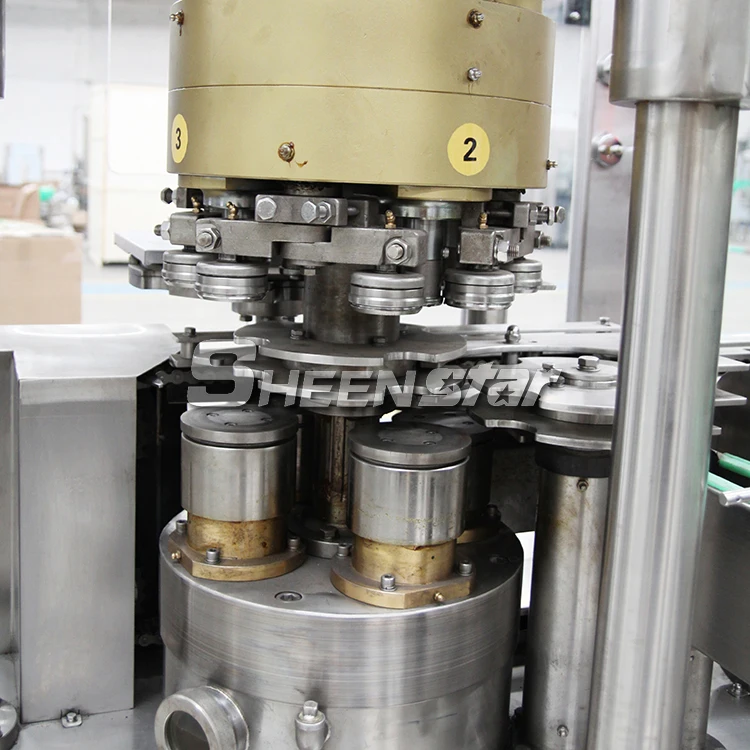

Image show
Technical data
Model | SG12-4 | SG18-4 | SG20-4 | SG30-6 |
The number of capping head | 4 | 4 | 4 | 6 |
The number of filling head | 12 | 18 | 20 | 30 |
Production capacity(cans/min) | 150 | 250 | 150 | 250 |
Can Diameter(mm) | 52.5-99 | 52.5-99 | 52.5-99 | 52.5-99 |
Can Height(mm) | 39-160 | 39-160 | 80-160 | 80-160 |
Power(kw) | 5.5 | 5.5 | 5.5 | 7.5 |
Weight(kg) | 3100 | 3800 | 4000 | 6000 |
Dimension(mm) | 2700*1400*1900 | 3050*1750*1900 | 3400*1950*1900 | 3900*2400*1900 |
Company Information
Working
Packaging & Shipping
Certifications
Customers
Machines Upgrade
FAQ
Q:Are you a manufacturer or trade company?
A:We are a manufacturer in beverage machine field more than 15 years, located at Leyu town,zhangjiagang,2 hours from Shanghai,1 hour from Wuxi by car. We will pick you up to visit our factory.
Q:Do you have any certification?
A:SGS,ISO,CE
Q:What about the delivery time?
A:Usually 40 Working days
Q:What about the machine’s capacity?
A:2000-20000 bottles in 500ml per hour.
Q:The after-sale service
A:24 months warranty.
solve basic questions by telephone, email, whatsapp, wechat and video call.
Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines.
Operating manuals will be sent with machine or by email.
We also have overseas service center
Q:If our bottle size changes, can we just do some adjustment on machine according to our new bottle?
A:Yes.
Q: If I want to buy a machine, what information do I need to tell you, do you need from me?
A:a. What kind beverage you want to produce?
b. bottle volume? 250ml, 330ml, 500ml, 750ml, etc.?
c. Producing capacity requirement? How many bottles per hour?
d.Raw water analysis report .
e.Voltage and altitude.
Q:What kinds of product you supply?
A: Drink water/juice/carbonated drink filling line.
5 gallon/20L/ can beverage/glass bottle beverage filling line
Water treatment system.
Bottle blowing making machine.
After packing system(label machine, PE film shrink packing machine, carton machine)
