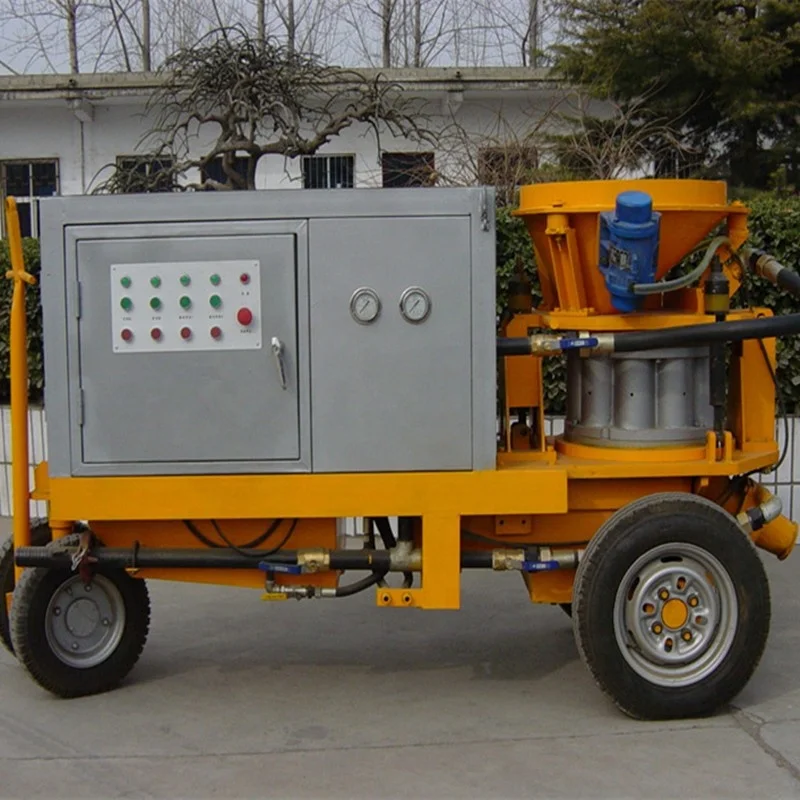

Small wet shotcrete machine Pzs 2 construction concrete machine gunite machine pz3

Share on (60425142639):


Price:

Quantity:


Product Overview

Description


              Small wet shotcrete machine Pzs-2 for construction concrete machine



Product Description

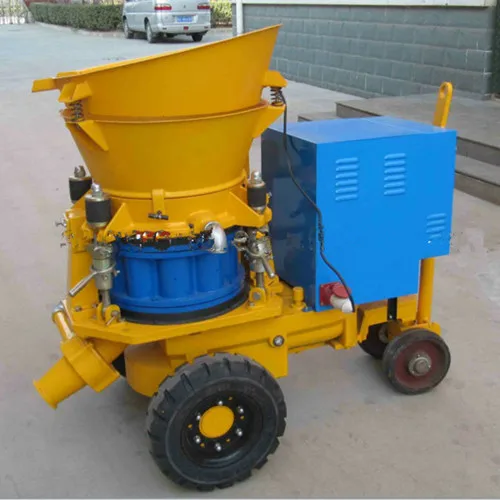

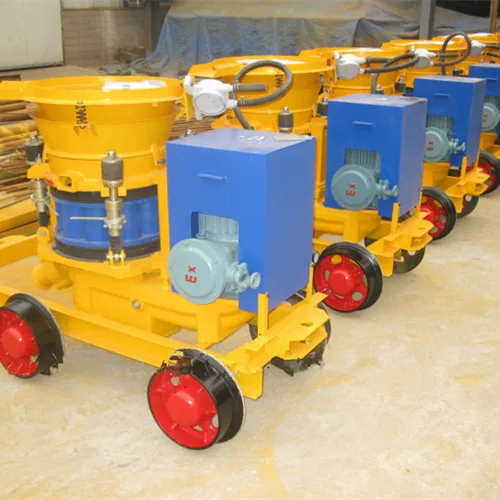

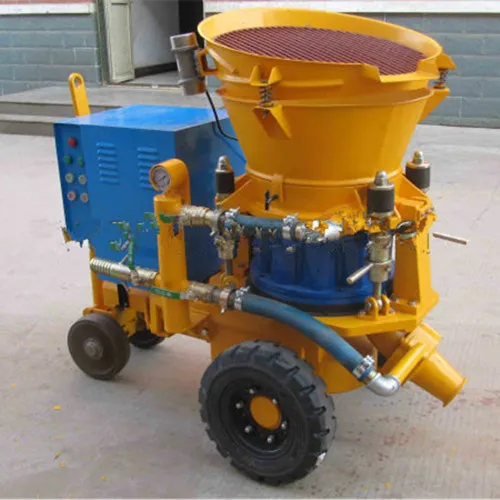

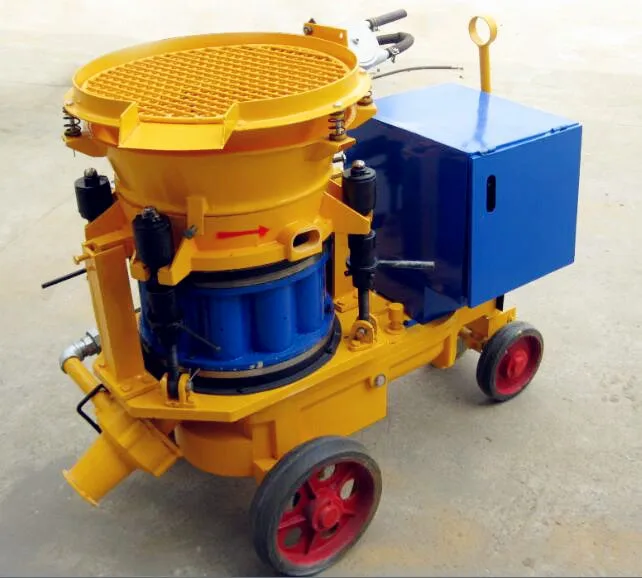

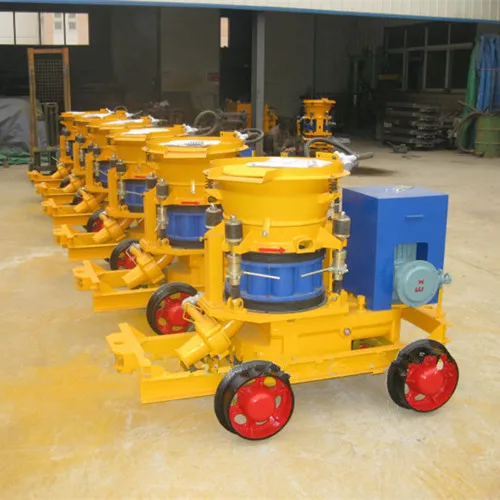

 2.jpg3 (2).jpg11 (2).jpg774817369_756_.jpg774820885_248_.jpg


♦ Applications of  Small wet shotcrete machine Pzs-2 for construction concrete machine





1. Concrete machine for tunnels,hydro-power engineering,mines,underground engineering,


     civil engineering and slope stabilization,etc.


2. Atificial soil seeding for no soil surface, such as rock, sand, and for no fertility


    soil surface.


3. Refractory material spraying and repair for industrial kilns or kilns’s inner liner.





 ♦ Features Small wet shotcrete machine Pzs-2 for construction concrete machine








1.Advantages: PZS-2 is a new & high-efficient concrete-spraying machine,


    mainly used for wet-mix shotcreting. It has the advantages of simple cooperation,


    low dust consisitency, low rebound, high-strength of  concrete layer, saving material


    and protecting environment.


2. This machine is suitable either for manual spraying or by means of a rototic arm.








♦Technical Data  Small wet shotcrete machine Pzs-2 for construction concrete machine

























































Item







Item







Output



5~6m3/h



Concrete slump



8-15cm



Max.convay dist.



35m



Discharge height



1.2m



Main electric motor model



Y132M-6



Main electric motor power



7.5kw



Max. aggregate size



15mm



Dosing pump output



17.5~88L/h



Operating air pressure



0.3~0.6Mpa



Dosing pump rated pressure



0.6Mpa



Air consumption



10~12m3/min



Overall dimension



2100×900×1200



Hose inner size



51/64mm



weight



1500kg

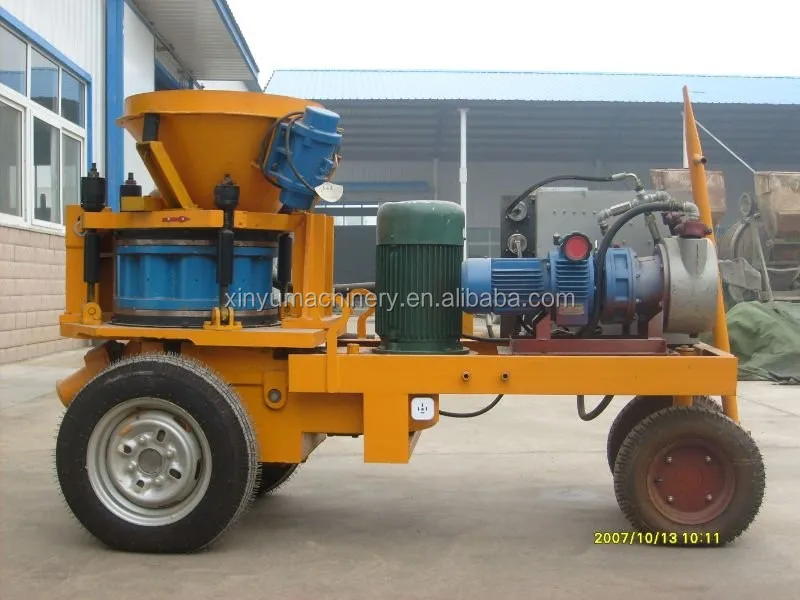

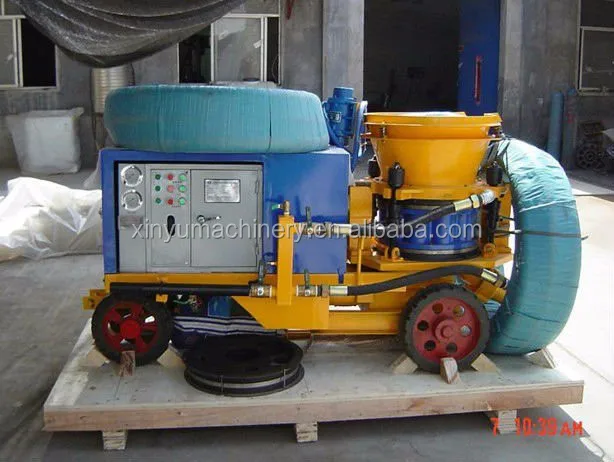

♦ Pictures of  Small wet shotcrete machine Pzs-2 for construction concrete machine





2

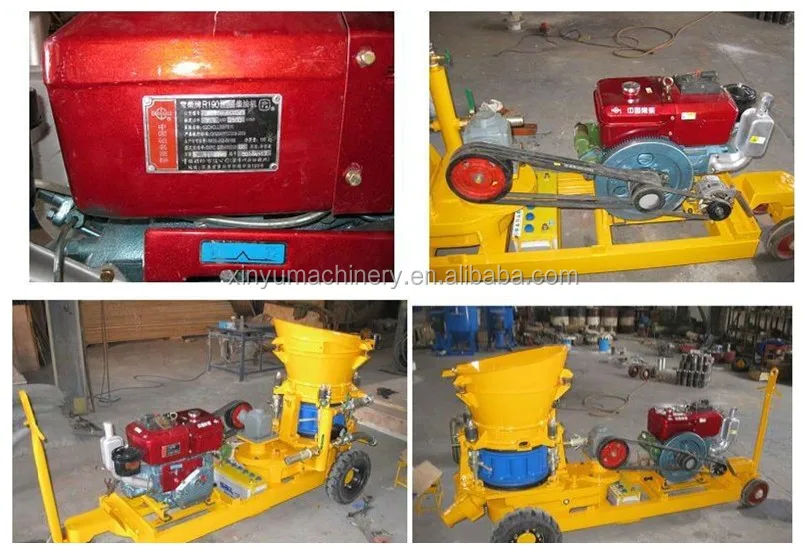

9

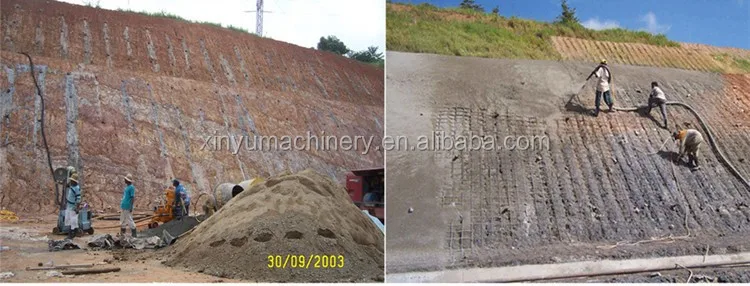

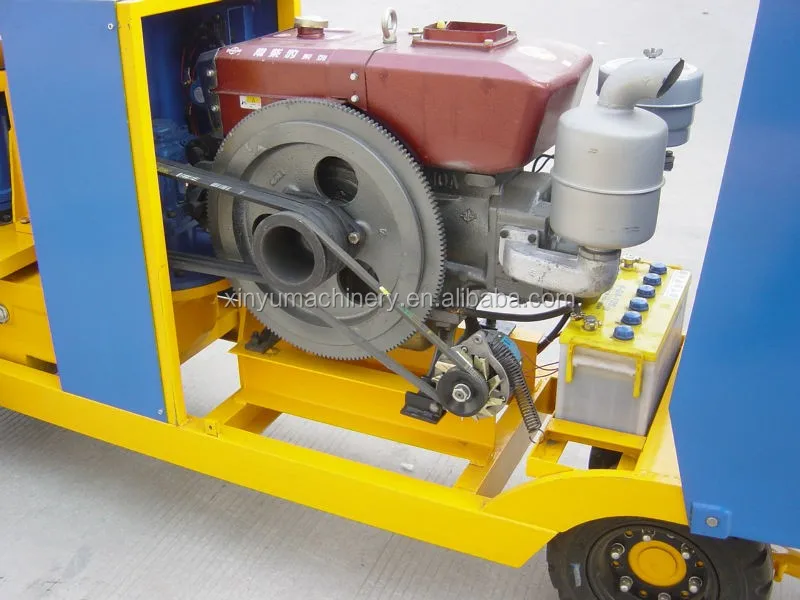

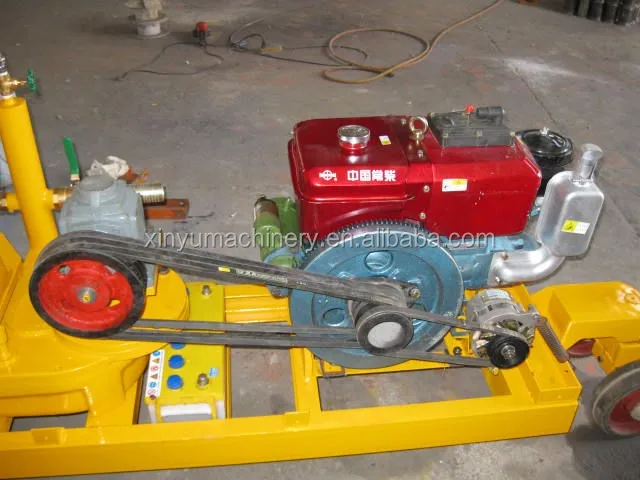

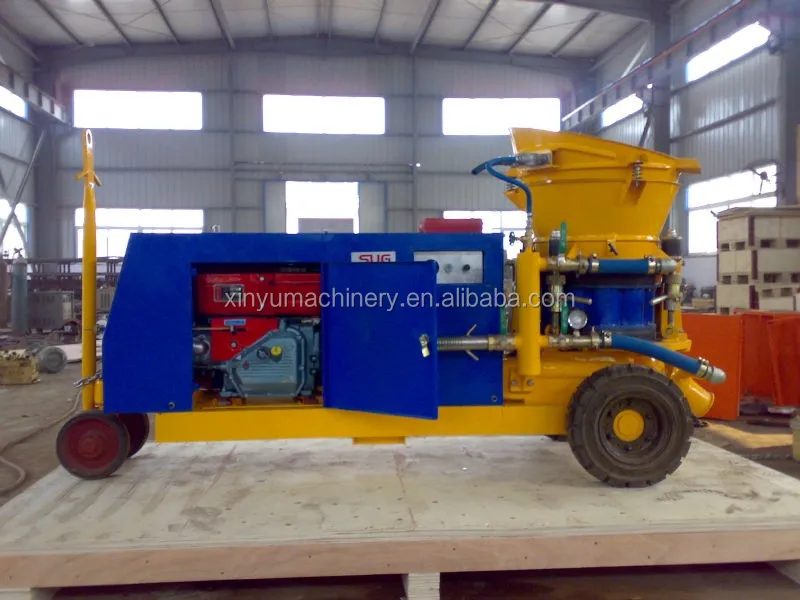

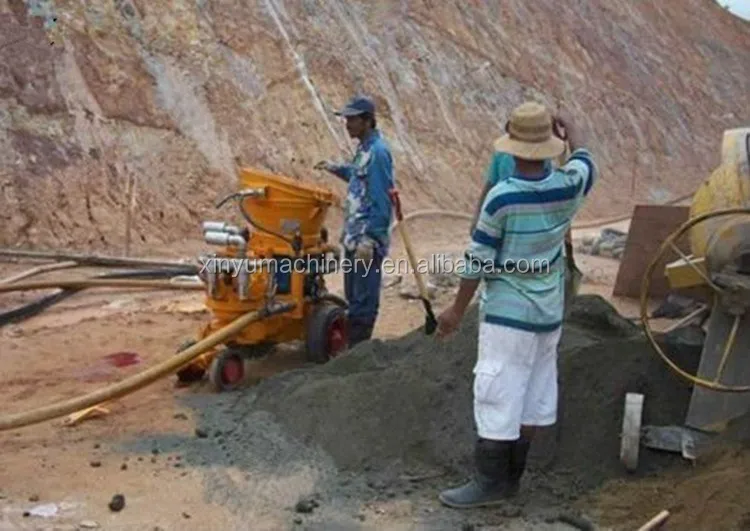

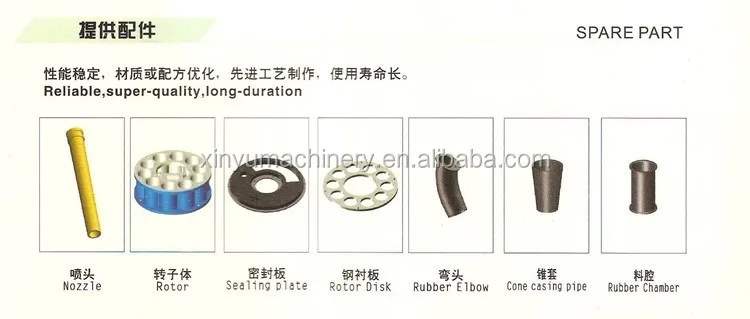

740993480_005740995234_883740993484_477works parts working pics











Packaging & Shipping


 Packaging detail:  Stanard fumigation wooden box or customized


                                  Thickness of lower board is 30cm


 delivery time : 7 workdays after your workable payment








Our Services





1.According to your inquiry, We will reply to you in 24 hours.


2.Best After-sales: We will send the technical personnel to the site for installation, commissioning and training work.


3.Warranty period 12 Months, in addition to the force majeure and man-made factors, the damage caused by design, process and manufacturing equipment, the seller is responsible for sending people to offer free repair.


4.We will send the spare parts as soon as possible when necessary, equipment repair parts provided by the seller are original, authentic, quality goods.














Company Information


 750 about us


Established in 1982, Zhengzhou Xinyu Machinery Manufacturing Co., Ltd. specializes in the design, manufacture and marketing of our superior concrete mixer, concrete mixing plant, concrete mixing truck , cement silo, screw conveyor, and numerous other top quality machines.


With more than 30 years of experience, our high quality products are popular in Russia, Southeast Asia, Central Asia, the Middle-East, South Africa, America, and more.





Welcome to visit our factory!


Customer satisfaction is of utmost importance at Xinyu!


company








FAQ


 faq


1.  Are you a trader or manufacturer?


We are manufacturer, which means that we can off you the best price and provide you the quick feedback after-sale service.


2. We want to buy a concrete batching plant, but we don’t know what model to choose.


According to your projects,we know want the capacity of discharging correct one hour you need, we can choose the best model for you.


3. What is the warranty term of your product?


The warranty term of our product is 12months. Within warranty, if there is any quality defect, we will solve this problem as soon as possible.
