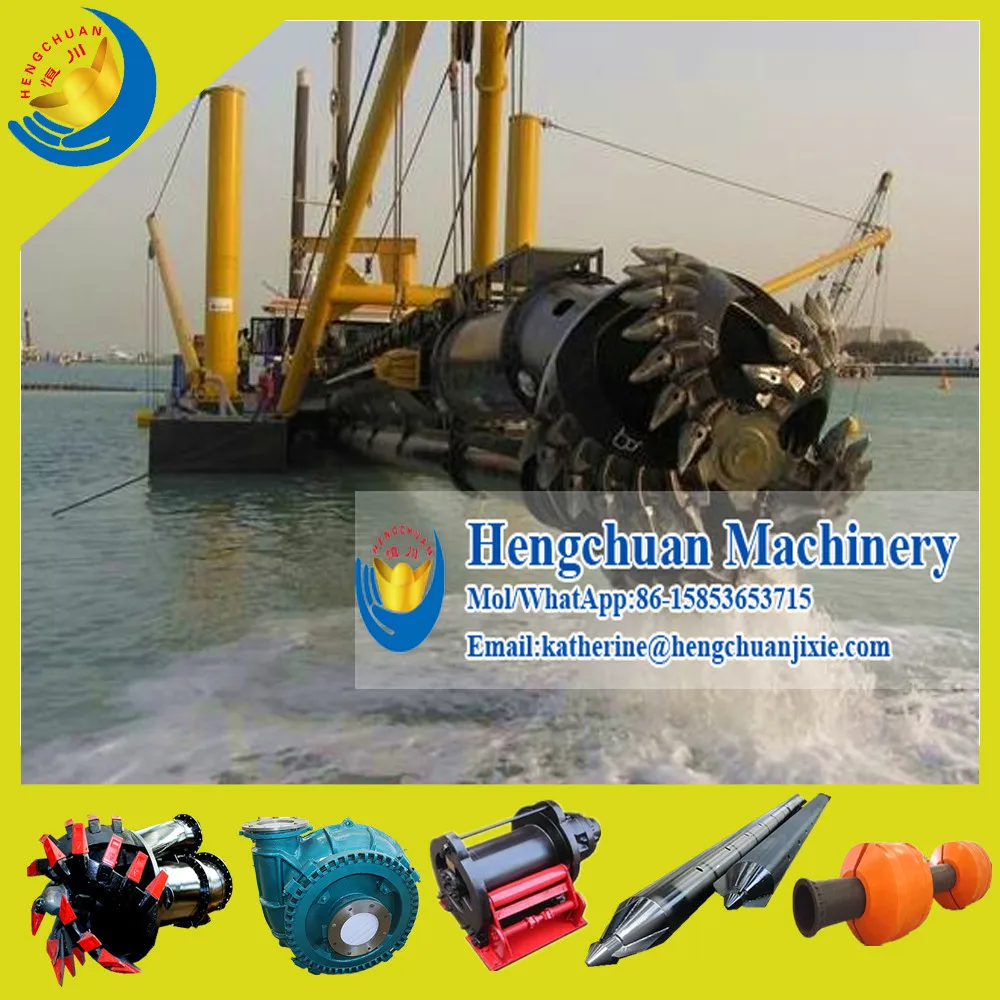

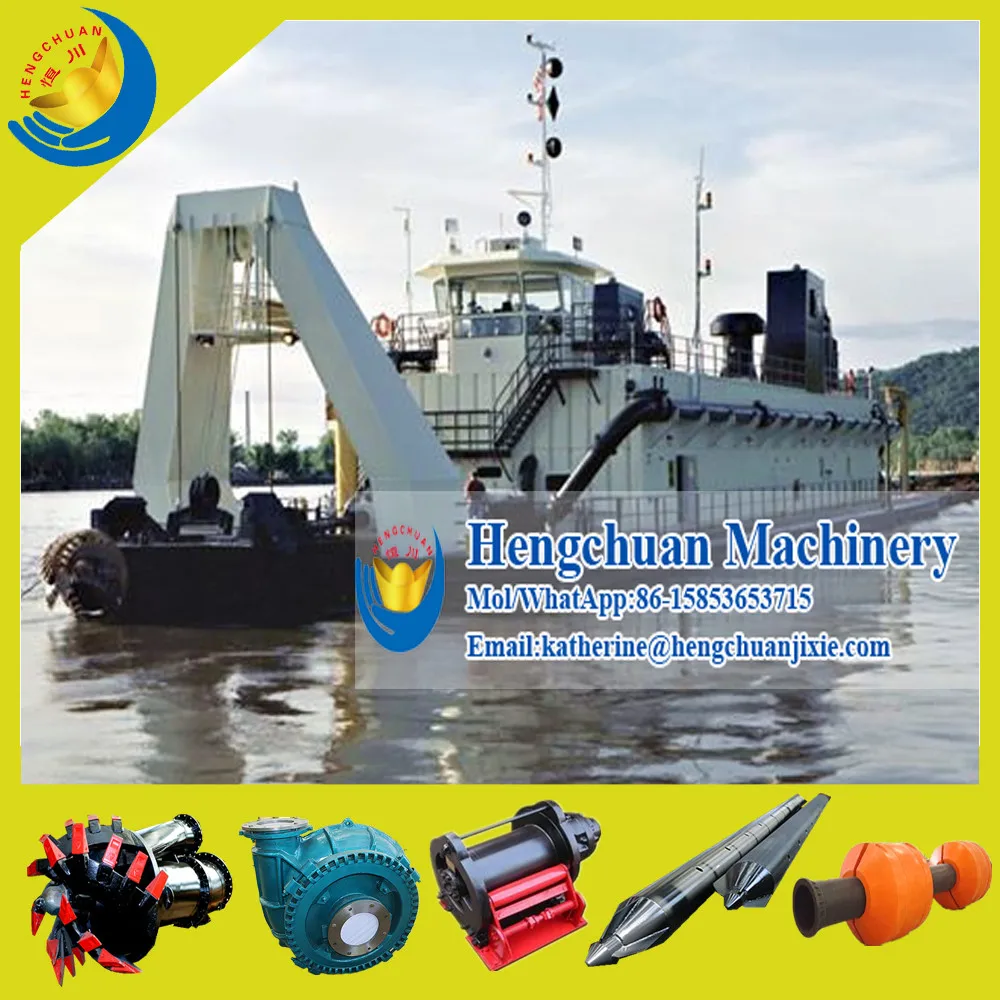

China Low Price Cutter Suction River Sand Dredger / Sea Dredgeing Machine for Sale
Product Description
What is the Description of low price river sand dredger?
A.Working environment:
Dredger can working in sea, port, lake, and river.
B.Soil conditions:
Relative hard soil, harden sand, sludge, sea sand, river sand, clay, mud, and so on.
C.Applications:
Sand mining, desilting, reclamation for channels&land, building roads.
This Hydraulic Cutter Suction Dredger is specially designed for cleaning sediment. Its working flow is that cut and stir the sediment first,then pump the solids to far place through discharge pipe.
What is the Features of our low price river sand dredger?
1).Cutter Suction Dredger of steel construction,dismountable type,is able to berth and dredge at water both in the coastal area and inland rivers.The dredger can be used to excavate and transport cohesive sediment below the class Ⅲ specified in code for dredging engineering construciton technique issued by Ministry of Water Resources(MWR) of P.R.China.
2).It's hull consiss of a main pontoon and two side pontoons which is easy to dismantle or mount for transportation by road,rail or water and easy to ressemble at project site. 3).The dredger is powered by diesel engines.
The auxiliary engine supplies power to all hydraylic system. The emergency genset supplies electricity for lighting and emergency use when the dredge doesn’t work.
The main diesel engine driven the dredge pump and auxiliary engine drives hydraulic system including cutter,swing winches,ladder winch and the spud rams etc.

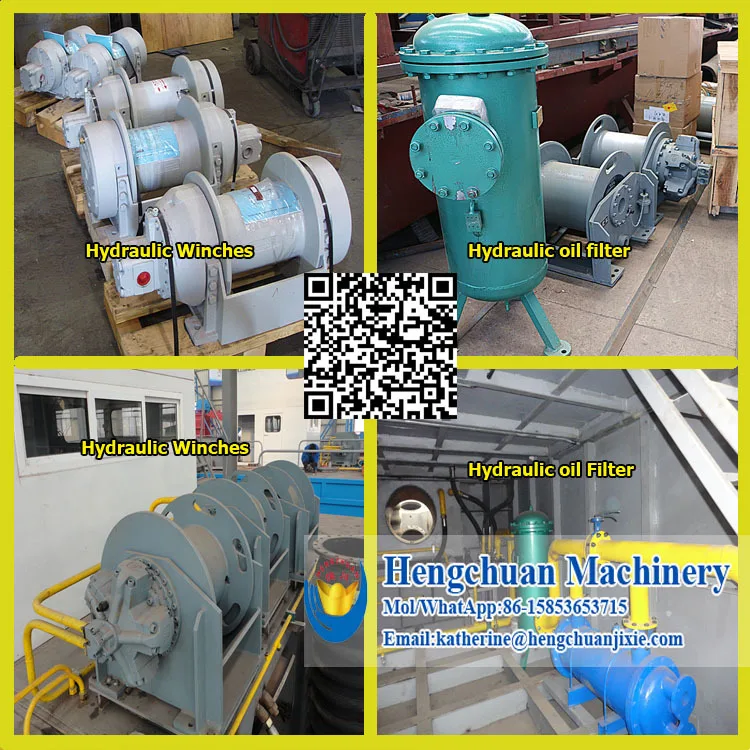

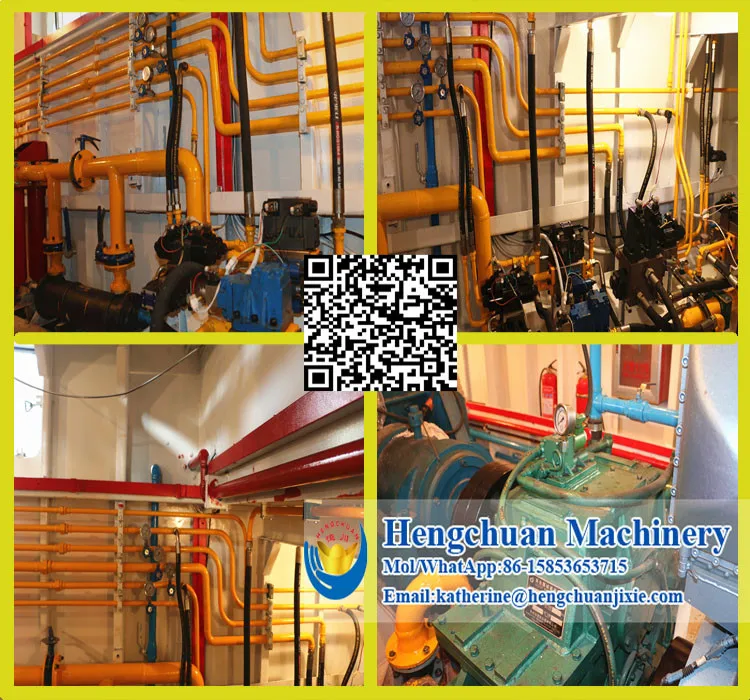

An integral hydraulic system includes hydraulic oil tanks, hydraulic pump, hydraulic valve manifold, solenoid valve, hydraulic pipes, hydraulic components, electrical actuator and so on. The hydraulic system requirements are very high and strict, it is the main artery of the entire dredger. The swing winches,lifting winch and cutter head are all driven by separate hydraulic motors.
The spud cylinder is hydraulic powered to lift spuds, the alternate swing of spuds will move the dredger.
4).The spacious control cabin is ergonomically designed with 360 degree view.All the operation buttons,swift,indicators and gauges are equipped on the control desk.Only two person can operate the dredger in operation room. 5).The dredger is sandblasted and painted by 4 layers of marine epoxy paint suitable for saltwater service.The Zinc anode can be used to give better anti-corrosion function.

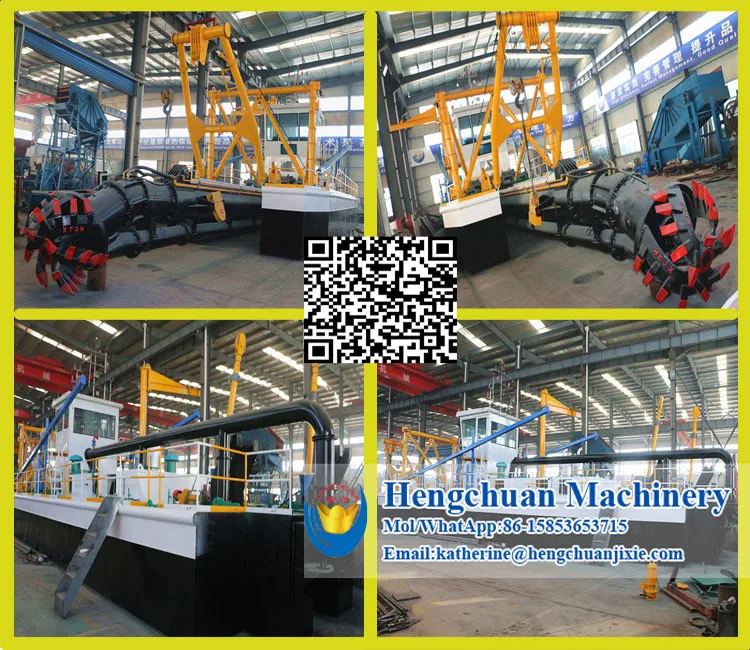

The hull consists of 3 box-like pontoons, one main pontoons and two side pontoons.The connection between pontoons is by high intensity bolts and nuts.All engines are installed in the central pontoon.
What is the Specifications of our low price river sand dredger?
Type
10/8 Inch Cutter Suction Dredger
Overall Length*Width*Height
22*5.2*1.8m
Main Hull
10*2.2*1.8m
Max Dredging Depth
9m
Mixture Capacity
900m3/h
Discharge Distance
500m

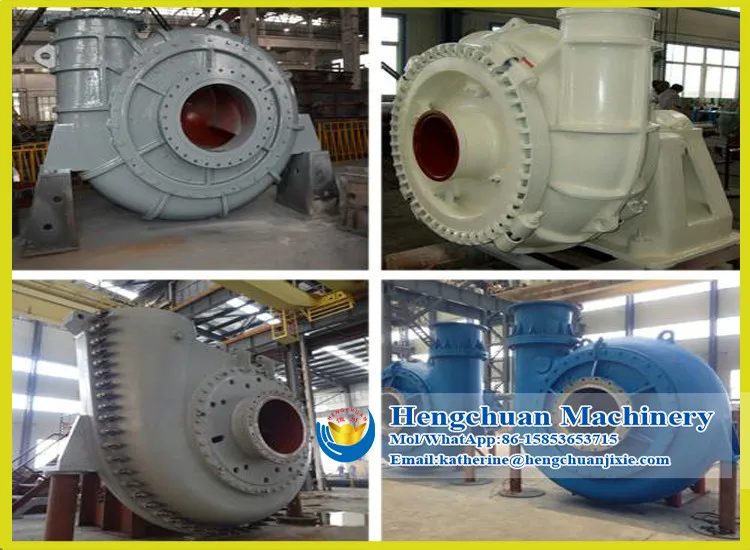

Dredging Pump Manufacturer (10/8")
Shijiazhuang Pump
Pump Shaft Power(Driven by Gearbox)
150kw
Engine Manufacturer
Cummins
Diesel Engine Power
336kw
Rotation Speed
1800r/min
Cutter Shaft Power
30kw
Cutter Diameter
1100mm
Cutter Rotation
30rmp
Ladder Winch
1 set
Swing Winch
2 set
Spud Length
13m
Spud Diameter
377mm
Spud Thickness
16mm
Spud Quantity
2 pcs
Detailed Images
What is the Details of our low price river sand dredger?

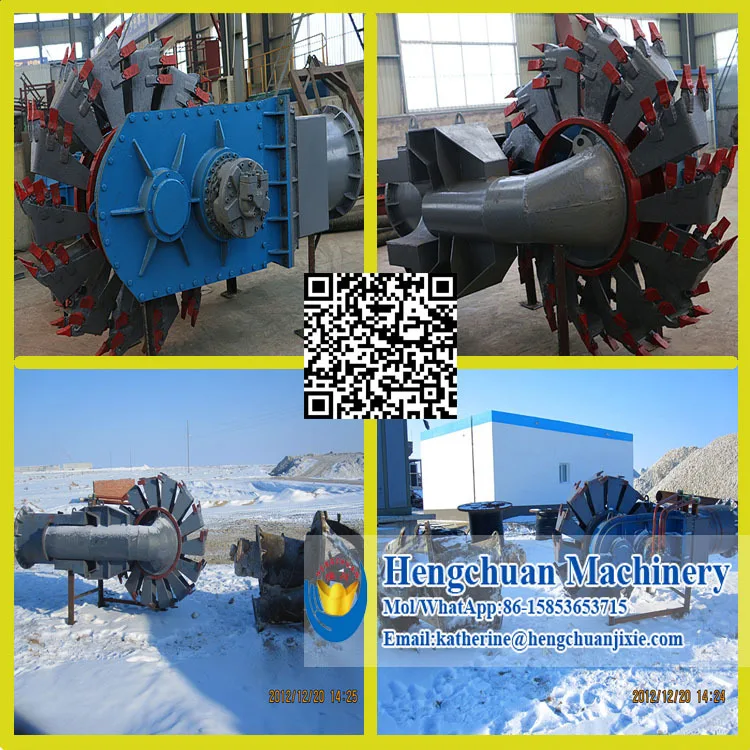

1).Cutter Suction Head is driven by hydraulic motor,the cutter teech is replaceable alloy steel.
The cutter head is replaceable harden steel excavator baldes.

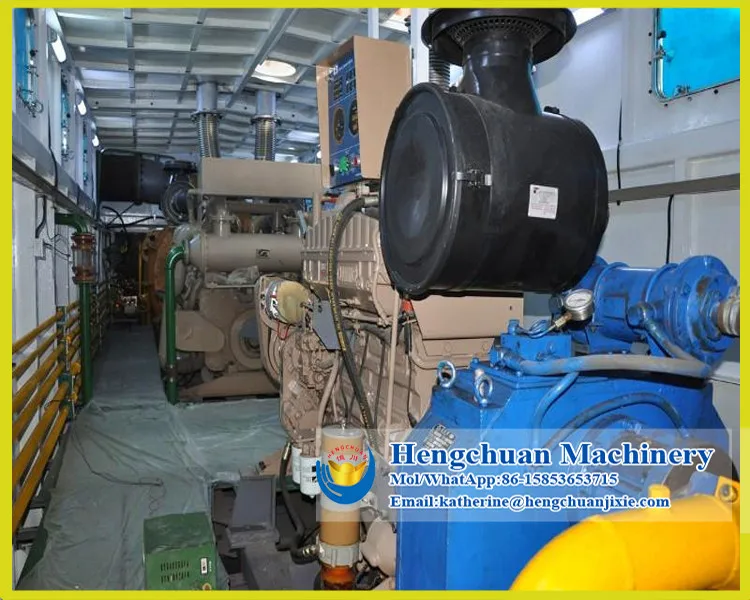

2).Cummins Engine is global warranty,spare parts can be available in short time.

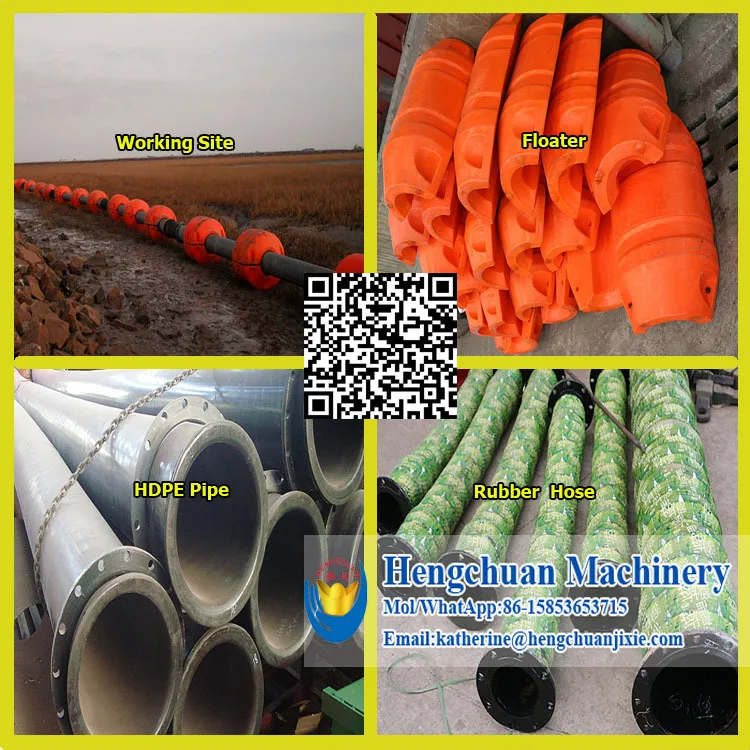

6).PE Pipe with light weight of 1/8 steel pipe is high wear resistance,flexible and high impact resistant.

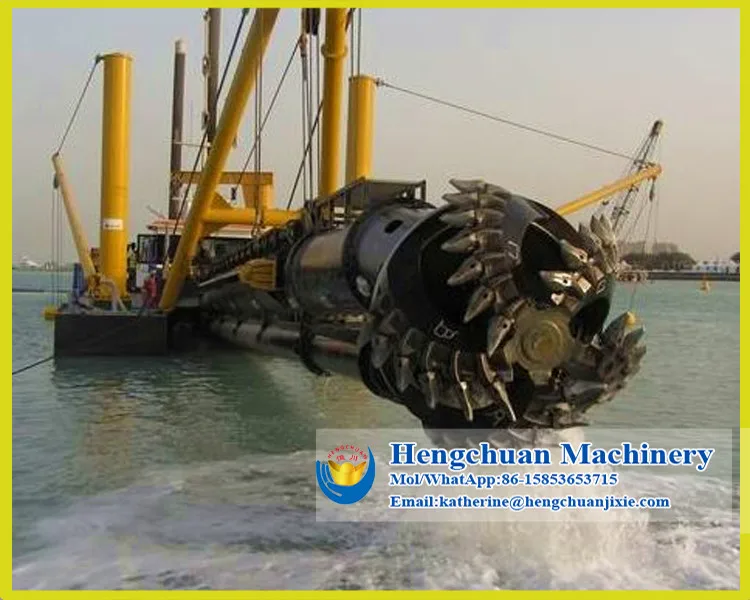

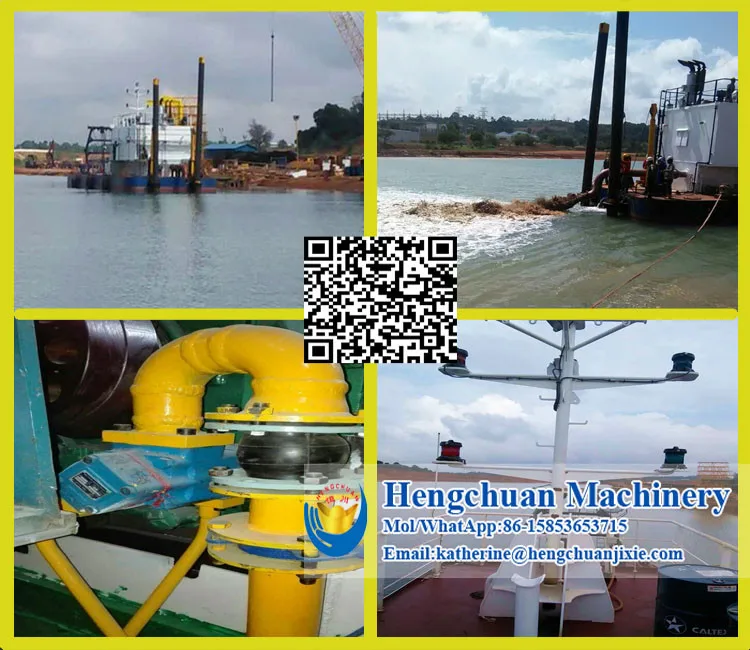

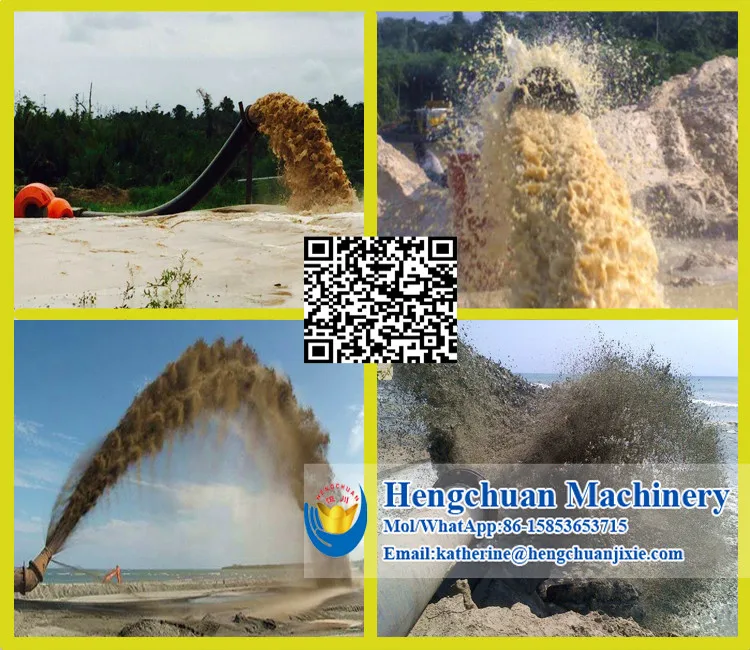

What is the Working Site of our low price river sand dredger?
What is the Current Clients of our low price river sand dredger?

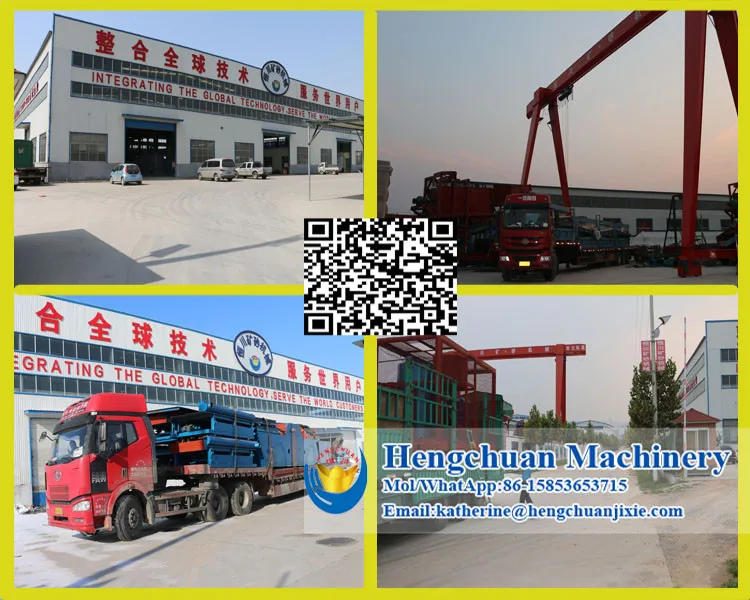

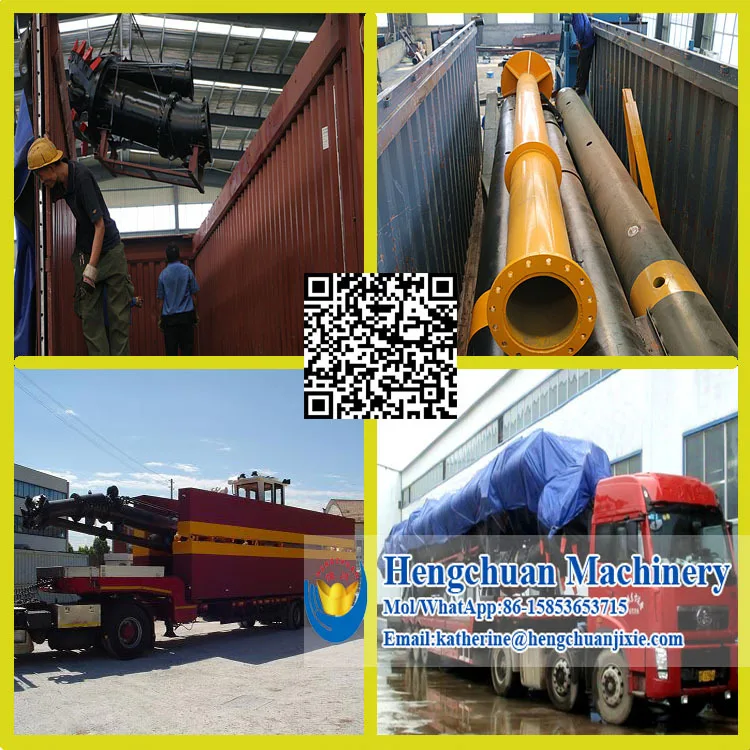

Packaging & Shipping
General Flow descri
Packaging & Shipping ,Trade Terms:
Why is the dredger shipped in bulk not in container? Because its size is large and can’t be putted into container.What’s more,if the dredger must be shipped in container, its main engine room has to be designed smaller, but it is inconvenient for maintaining or repairing in the long run. When all units arrived at your work sites, our engineers will come to guide, teach and train your staff to debug and operate the dredger until they can operate skillfully by themselves.
Shipping 1. By container if small model;
2.In Bulk if big size cutter suction dredger; 3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 30-90 days for building excluding the stock.
Payment Terms
1. Payment: T/T, Western Union, MoneyGram,PayPal; TT payment, 30% deposit, 40% before buy engine and pump, balance before shipment. 2.Warranty:1 year standard warranty time. But, we exported dredger from 2003, we have expeirence for after-sale serivce. There is no breakdown for the dredger within 3 years, just do good routine maintenance. Engineers are availble in anytime. 3.MOQ: 1set 4.Lifespan: 3-10 years average life 5.Package Informations: nude packing
2.We are a factory manufacturing mining dredger especially cutter suction dredger,best production capability ,best quality control, Best Service .
3.We supply one stop service of mining dredger service from inspectiong to installing and training.
4.100% QC inspection Before Shippment.
5.Our dredger can be classified by the ship classification society.
Company Information
Company View
1.We are a modern large-scale mineral processing equipment manufacturer devoting ourselves to fields of gold/ iron/diamond mining,sand pumping and desilting with long time exploring and R&D experience.We are experts at mining dredger solution from inspecting to installing and training.
2.All our products have been certified by ISO9001 and many of them have been exported to more than twenty five countries and regions such as Indonesia, Malaysia,Burma,Cambodia, Bangladesh,Fiji, Ghana, Mali, Colombia, Nigeria, Papua New Guinea, Sultan, North Korea, Sudan,Cameroon and so on.
FAQ
FAQ
1).The use of the dredger. Dredging silt ,reclaiming ,mining sand or what use? 2). Required capacity. You need the dredger to suck how many cubic meters material in one hour( m³/h )?
3).The max dredging depth? You need the dredger to suck how many meters under water at most?
4).Is there much gravel,clay even wood in the river bottom?
5).Content ratio of sand ,stone and mud (%)? No need very accurate,just let know approx percentage is ok.
Our Services
1. Shandong Hengchuan company signs a long-time after-sale service agreement with customers. 2.. Shandong Hengchuan company provides rational and practical design according to customers' request. 3. Shandong Hengchuan company sends experienced engineers to assemble and test the machine within the period as agreed in the contract. 4. Within warranty period, Shandong Hengchuan company provides free repair if quality problems emerge.
5. Shandong Hengchuan company provides free training of operation and maintenance for customers. 6. Shandong Hengchuan company supply high quality accessories in low price. 7. Shandong Hengchuan company make an excellent filing of customers for long-term following-up service. Any question or problem about the products can be answered via online support.
