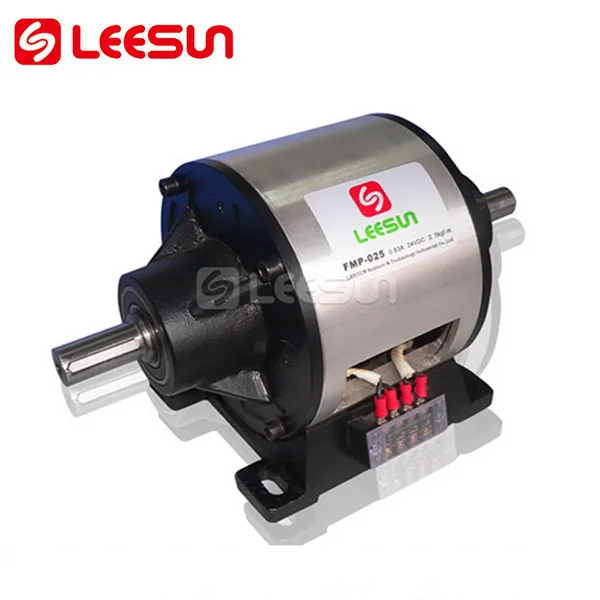

LEESUN supply clutch and brake units FMR 050

Product Overview

Description



                                              LEESUN supply CB units FMR-050

 Electromagnetic brake operation principle:

 Electromagnetic clutch brake group main USES are starting, stop, cut off, inching positioning, high frequency operation, and other positive &negative, power distribution,

suitable for packaging machinery, printing machinery, wire and cable equipment



 Electromagnetic brake  Product Features:

1. With non-asbestos lining, makes the product not easy to wear out and lasts long.

2. Start, stop, high-frequency operation, positioning.



3. Super thin designed doesn't occupy much space, input side at the fly wheel and output sleeve at the transmission shaft easy for installation



Electromagnetic brake  Data:

Electromagnetic clutch Specification:



Performance parameter



Model		FMR-006	FMR-015	FMR-025	FMR-050	FMR-100	FMR-200	FMR-400
Static Torque [kgf-m](N-m)		0.6(6)	1.5(15)	2.5(25)	5.0(50)	10(100)	20(200)	40(400)
Dynamic Torque  [kgf-m](N-m)		0.5(5)	1.0(10)	2.0(20)	4.0(40)	8.0(80)	16(160)	32(320)
Power [DC 24V] (W) at 20°C		11	15	20	25	35	45	60

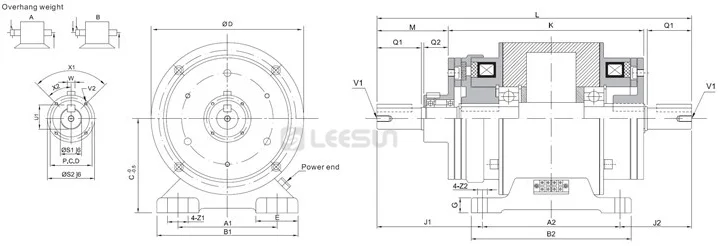

Overhang weight (kg)	A	30	45	70	90	140	200	290
	B	14	25	45	70	100	180	260
Wight (kg)		1.5	2.7	5.5	9.6	18.5	35	64
Maximum speed (r/min)	1800 r/min



Radius	A2	75	90	110	135	160	200	240
	B2	95	105	130	160	185	230	270
	G	10	10	12	15	15	18	20
	J1	65.5	78.5	98	121	149	187	238
	J2	40.5	40.5	62	74	90	117	154
	K	105.5	126.5	154	184	221	276	334
	L	181	217	270	330	399	504	632
	M	46.5	56.5	72	92	113	142	183
	Q1	25	30	40	50	60	80	110
	Q2	20	25	30	40	50	60	70
	V1	M4*0.7P*8L		M6*1P*11L			M10*1.5P*17L
	Z2	6.5	6.5	9	11	11	14	14
Shaft	A1	52.5	65	80	105	135	155	195
	B1	80	90	110	140	175	200	240
	C	55	65	80	90	112	132	160
	D	80	100	125	150	190	230	290
	E	27.5	27.5	32	35	42	45	47
	F	57	60	68	81	97	110	129
	N	33	37	49	56	65	79	101.5
	S1	11	14	19	24	28	38	42
	S2	38	45	55	64	75	90	115
	U1	12.5	16	21	27	31	41.5	45.5
	U2	39.5	47	57	67	78	93.5	118.5
	V2	M4*0.7P*6L		M4*0.7P*6L		M4*0.7P*6L
	W	4	5	7			10	12
	X1	3-120°	4-90°					8-45°
	X2	60°	45°					22.5°
	Z1	13.5	13.5	15	20	24	28	28
