Factory sale Robotsung 30ml package hot melt glue machine

Automatic Glue Dispenser Machine

Suitable glue dispensing

UV glue, AB glue, EPOXY(black glue), COB black glue,white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...

----------------------------------------------------------------------------------------------------------------------------

Key features

1. Full automatic robot glue dispenser, 3 axis. Locate precisely.

2. Can draw dispensing path and import from computer, or edit on the touch panel. Easy operation, high precision.

3. Glue Dispenser Function: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage on specified location of the product.

4. Big working platform for putting several pieces of product at a time. High dispensing efficiency. Working platform can be adjustable accoring to the size of procuct.

5. Can be equipped with several heads for working at the same time to increase dispensing efficiency.

6 Can set glue amount, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.

7. Suitable for kinds of fluid dispensing, e. G.: UV glue, AB glue, EPOXY(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...

 -------------------------------------------------------------------------------------------------------------------------------------

Specification

Operating principle

Compress the glue into the feed pipe connected to Piston Chamber by conpressing air into the glue botton(injector). When the piston is in the upstroke, the piston chamber is filled with glue.And When the piston is pushed down, the glue is extruded from the needle nozzle. The dispensing glue amount is decided by the distance of piston downstroke. The gule dispensing amount can be controlled by manual adjustment or by setting the program.

Improve dispensing speed, dispensing environment and dispensing quality.

 ----------------------------------------------------------------------------------------------------------------------------------------

Suitable for Industries

Dispenser can be applied to the following areas:
1 Electro-acoustic industry: speakers, buzzers, audio, headphones
2 Small transformers, SMD transformers, relays, small coil motors.
3. Communications industry: the phone keypad, mobile phone casing bonding, radio, telephone, fax
4 Computers, digital products, digital elephant machine, MP3, MP4, electronic toys, chassis bonding
5 Switches, connectors, wire, plug cable
6 Electronics: electronic components, integrated circuits, circuit board solder paste, electronic parts fixed and dust and moisture protection, LCD liquid crystal screen, etc.
7 Optics: optical lenses, bald, head
8 Mechanical Hardware
9 Battery Box Sealed
10 Trademarks fixed bond
11.LED industry, widely used in LED industry, LED dispenser

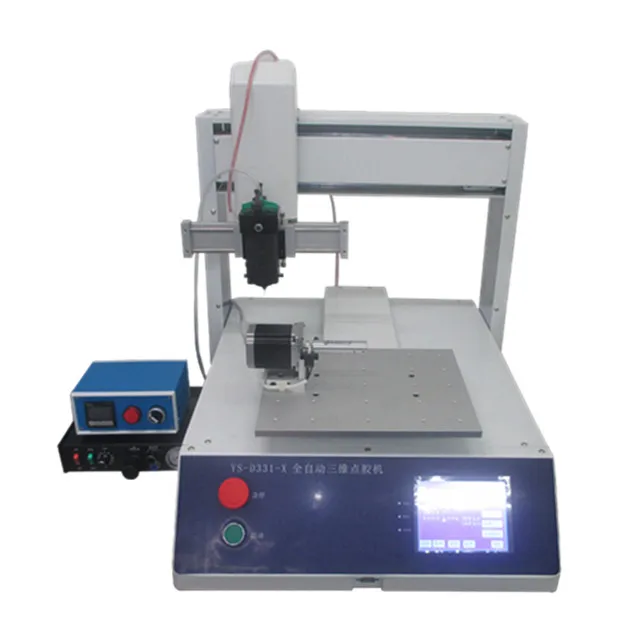

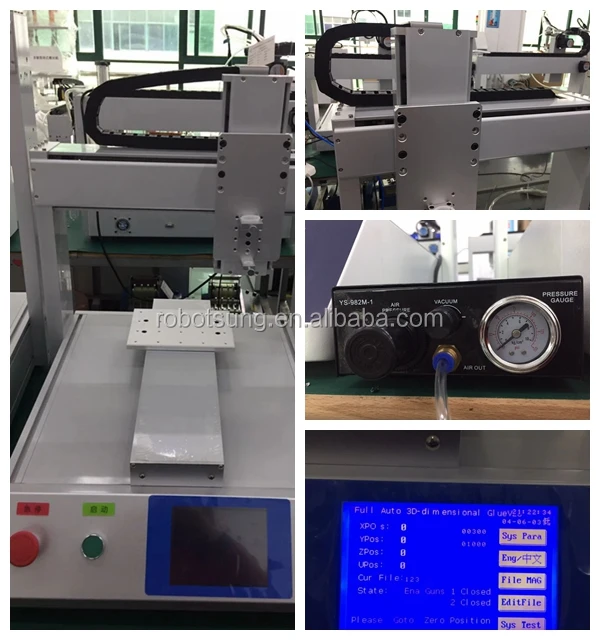

Machine pictures:
