21.5inch android system interactive smart touch table

Product Overview

Description

21.5inch android system interactive smart touch table



1.Features



Model	A215-TAD01
Panel Type	AUO LCD Panel (Optional)
Resolution	1920 x 1080
Display Area(mm)	476.64 (H) x 268.1 (V)
Brightness	300nits
Contrast Ratio	1000:1
Colors	16.7M colors (RGB 6-bit + Hi_FRC )
View Angle	89/89/89/89
Backlight Lifetime	50000
ODS Control	Auto Menu Select(+,-)Exit On/Off

Touch Screen
Type	Resistive, capacitive ,SAW, IR (Optional)
Resolution(pixel)	4096*4096
Touch Transmittance	>90%

Interface
Signal Input	CF/SD/USB
Touch Connectors	USB / RS232(Optional)

Power
Power Input	DC12V/4A (50~61HZ)-DC Jack (2.0mm)
Power Consumption	≤36W

Mechanical
Material	Steel chassis
Mounting	Support VESA Wall Mount and Embedded Mount

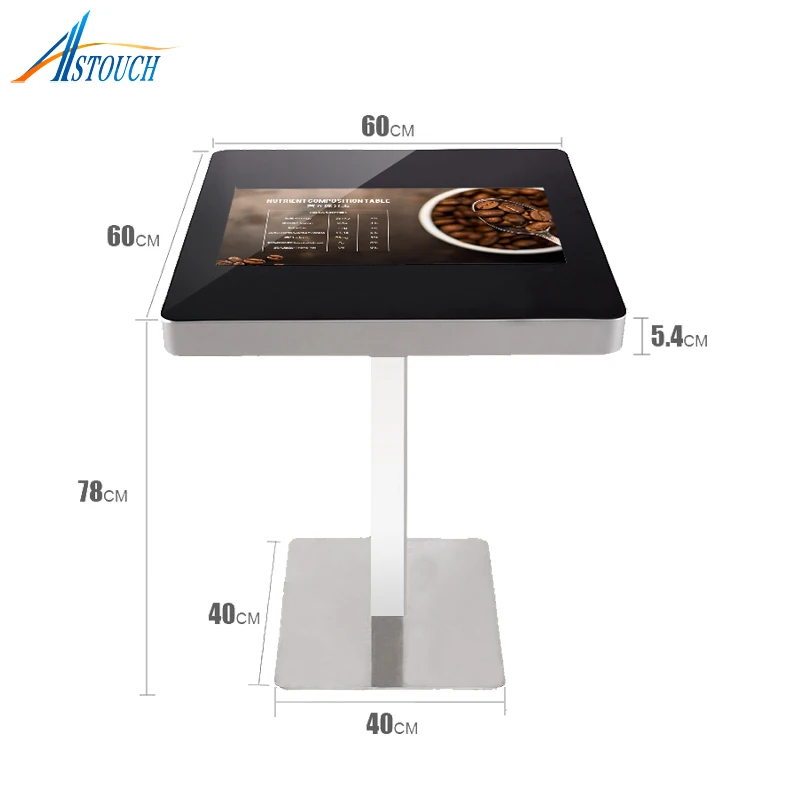

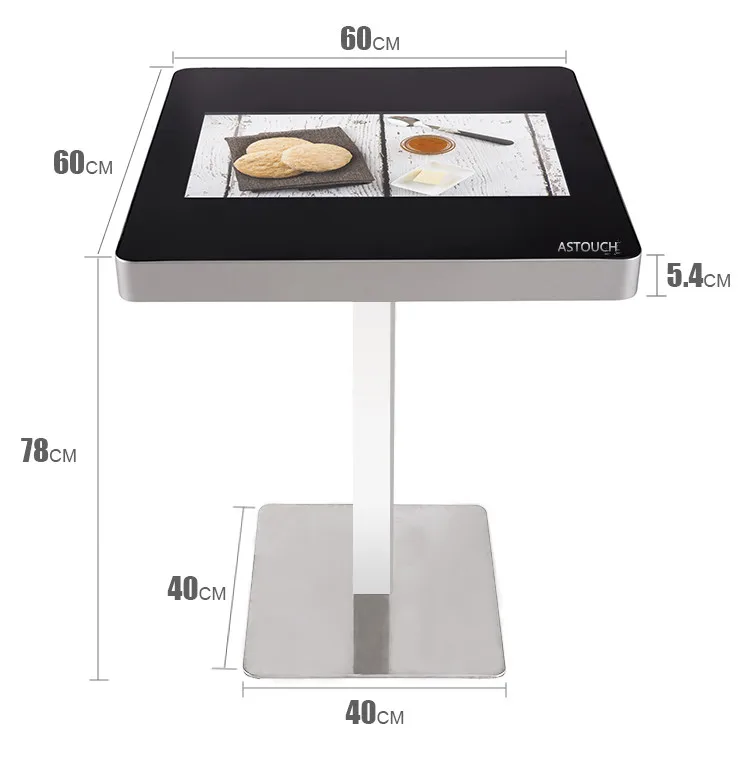

Dimensions

Environment
Operating Temp	-10~60℃
Storage Temp	-20~80℃
Relative Humidity	10~90% @40C° Non-condensing without touch screen
Vibration	1G peak,5~500Hz(Random)
Shock	15G peak acceleration (11msec.duration)
Certificates	CE FCC Rohs

1).Support 5 groups of auto power-on/off time setting one day or 7 days in one week,

automatically play and non-stop replay within the pre-set time frame.
2).No DVD style mechanical movement, hence more durable and suitable for long-hour advertising playing.
3).Built-in CF and SD card reader, support CF/SD/MS/MMS/XD card and USB drive, using CF and SD card as the source of programming, playing with high stability.
4).Upgrade contents of the memory card (or built-in memory) by simply inserting an USB flash drive, no need to take out of the memory card.
5).AUTO/NTSC/PAL video playing format is optional.
6).Playlists support functions, can set different folders, copy all target files to those different folders, system would default to play your target file one by one.
7).Capable of setting different kinds of rolling caption on the top, bottom, sides of the screen.
8).Built-in clock and calendar function in the system of player.
9).OSD Language: supports Chinese, English, Russian French, German, Italian, Spanish, Portuguese, Swedish, Danish, Korean, Japanese etc.
10).Touch Screen can be added



 2. Applications:





3. Product Warranty and After sale Services:



Product warranty is one year; Touch screen for three years.



1.1 Sales receive the complain from customer.

2.1 DOA: If products fail within one month, Astouch bears replacing goods and transportation fees.

2.2 RMA: If beyond one month and within one year, ASTOUCH guarantees free maintenance; but customer bears the transportation fee.

2.3 Paid service: Over one year warranty, customer could also send back for maintenace, yet should pay the cost for repair according to the secific problems.

3.1 DOA/RMA authorization number application:Customer should provide S/N on the sticker, and a detailed description of the problem, If not man made and intentional damage, astouch would repsonsible for it.

4.1 Quality Monthly Report self-criticisms :
     a. analysis of causes
     b. take preventive measures
     c. Verification of Effectiveness



4. Packaging and Shipping:





1) All Panels are packed with new and firm carton, capable of long distance transportation.

2) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

3) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.





Our products are.widely used in ATM, kiosk, digital signage, medical, transportation, and gaming machines, etc. Any OEM is available.



Astouch owns a professional R&D team, could design and produce exactly what you need.







Our products have exported to more than 30 countries, like Europe, North America, South America, South East Asia, Middle East, Africa, etc.With CE, FCC, ROHS, E-mark etc certification.
