Cnc made in china, high precision mill gantry milling machine
- Category: >>>
- Supplier: Ningbo Kaibo CNC Machinery Co. Ltd.
Share on (60425511616):
Product Overview
Description

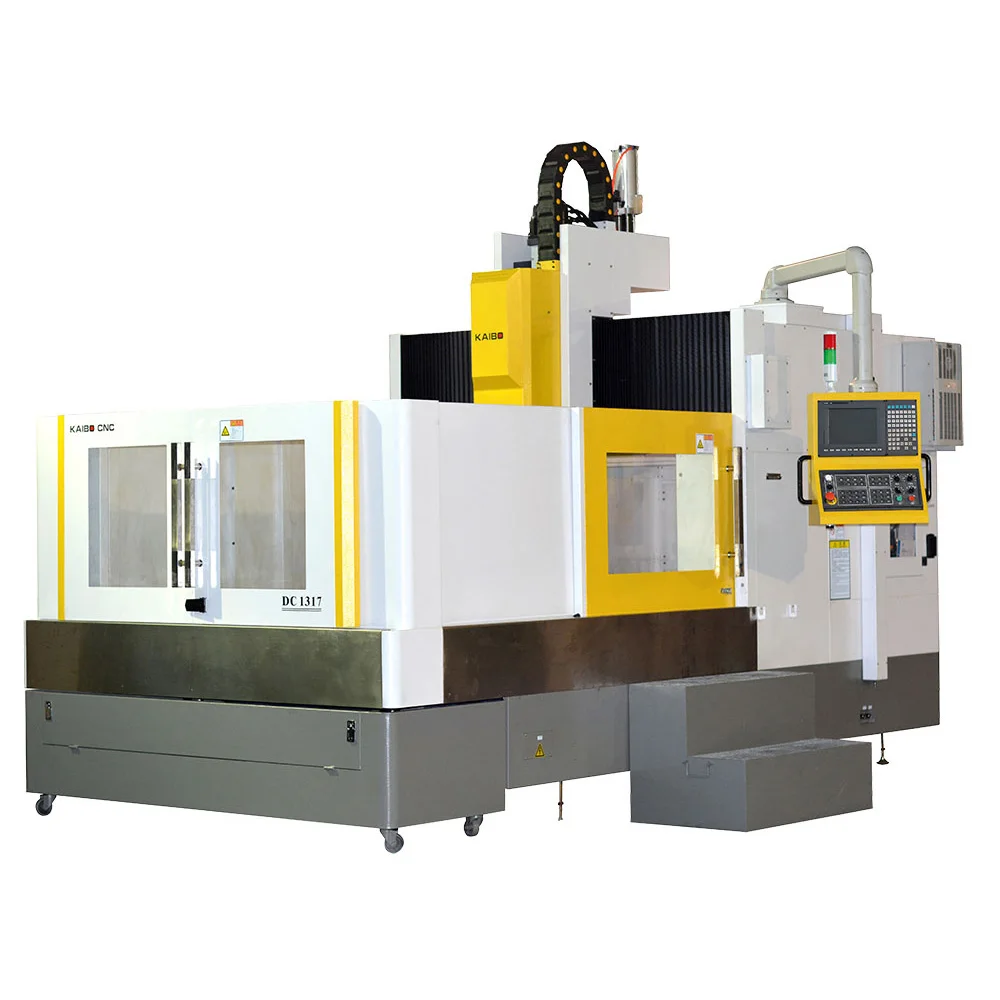

GANTRY TYPE CNC MILLING MACHINE DC1317
DC1317 is a Big type double column CNC milling center.
It is specially designed and produced for large-size and high-weight molds. The machine has stable transmission, high rigidity, a heavy body, and a large stroke, which can meet most of the mold production requirements on the market. BT40 mechanical spindle is standard, and BT50 spindle for heavy-duty cutting is also optional.
PRODUCT DETAILS

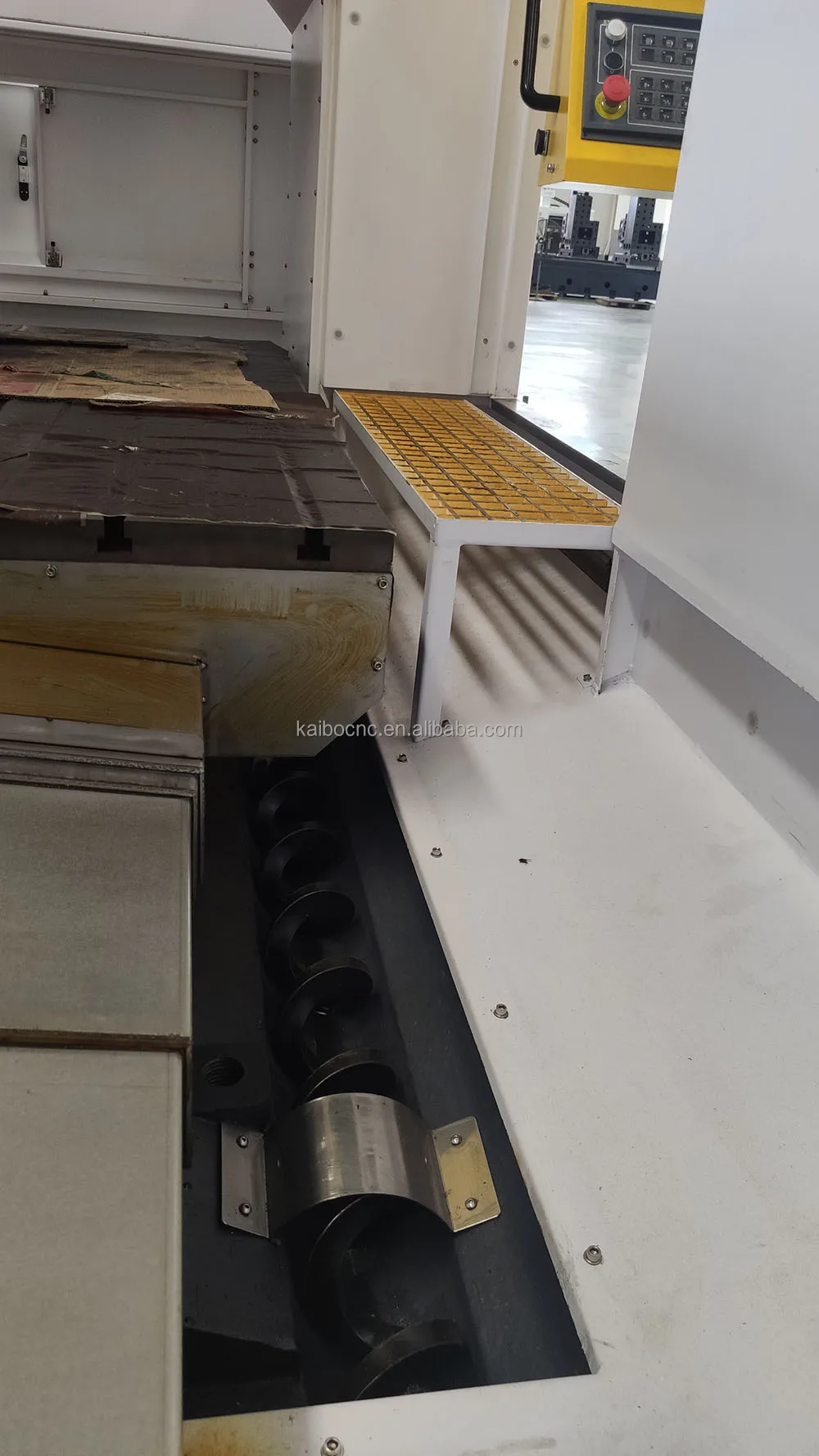

DC1317 is with a working table of 1300*1700mm, which allow loading molds around 1 meter; the Z-axis stroke has reached 500mm, which can capable of processing most molds; it is equipped with a mechanical spindle to greatly increase the cutting speed.It has a built-in screw type chip conveyor as standard, which can manually or automatically clean the internal environment of the machine tool for efficient cleaning.
A 24-tool arm is optional Type tool magazine to improve processing efficiency.

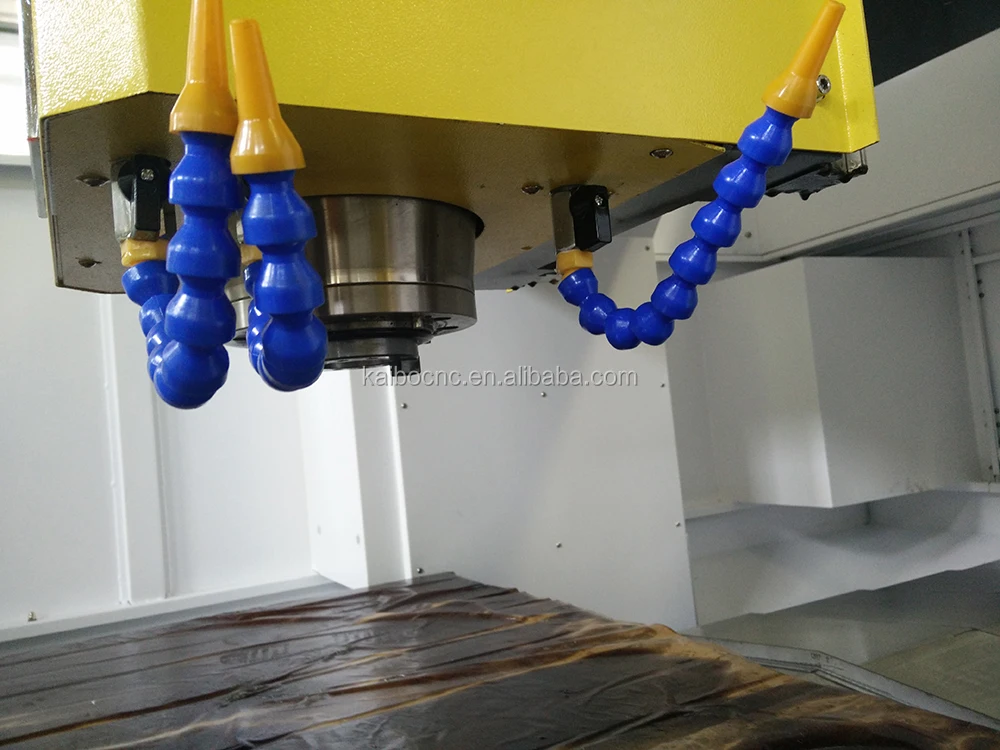

DC1317 provides through spindle coolant (TSC) systems as an option which ensures the CNC coolant is going to exactly the right spot to make the most difference. With Through Spindle Coolant, performance can be greatly increased. Even higher chip loads can be tolerated, holes can be deeper, and peck drilling can be all but eliminated due to the improved evacuation of chips.
The whole series of KAIBO CNC milling machine all adopts C class HIWIN or PMI/Taiwan ball screw, P class HIWIN or PMI/Taiwan linear guide, The guide (slider) adopts roller guide with a larger contact surface.
A 24-tool arm is optional Type tool magazine to improve processing efficiency.
DC1317 provides through spindle coolant (TSC) systems as an option which ensures the CNC coolant is going to exactly the right spot to make the most difference. With Through Spindle Coolant, performance can be greatly increased. Even higher chip loads can be tolerated, holes can be deeper, and peck drilling can be all but eliminated due to the improved evacuation of chips.
The whole series of KAIBO CNC milling machine all adopts C class HIWIN or PMI/Taiwan ball screw, P class HIWIN or PMI/Taiwan linear guide, The guide (slider) adopts roller guide with a larger contact surface.
PRODUCT FEATURES
Controller: Taiwan Syntec
X/Y/Z axis travel: 1300/1700/500mm
Spindle:BT40/11kw/12000rpm
Optional for BT50/11KW/6000 rpm spindle
Optional for 3/4/5axis
All linear guideways for enhanced rigidity and accuracy
Optional for TSC systems
Optional for loading automatic tool changer
X/Y/Z axis travel: 1300/1700/500mm
Spindle:BT40/11kw/12000rpm
Optional for BT50/11KW/6000 rpm spindle
Optional for 3/4/5axis
All linear guideways for enhanced rigidity and accuracy
Optional for TSC systems
Optional for loading automatic tool changer
PRODUCT PARAMENTERS
Parameter/Model | DC-1317 | ||
Accuracy | Positioning accuracy | 0.01mm | |
0.005mmRepeat positioning accuracy | 0.005mm | ||
Worktable | Worktable size | 1300*1700mm | |
T-slot size | 7T-18-190mm | ||
Max. load | 2000Kg | ||
Travel | X/Y/Z axis travel | 1300/1700/500mm | |
Gantry width | 1360mm | ||
Beam to worktable | 700mm | ||
Spindle nose to worktable | 150-650mm | ||
Door open width | 1350mm | ||
Feed | Max. feeding speed G00 | 15m/min | |
Max. working speed G01 | 10m/min | ||
X/Y/Z axis motor power | 2900w/2900w/2900w | ||
Spindle | Spindle motor power | 11KW | |
Spindle Max. speed | 12000rpm | ||
Tool holder | BT40 | ||
Common | Power supply and total capacity | 3P/380V/50Hz/30KVA | |
Machine weight | 12000Kg | ||
Dimension | 4520*2600*2880mm | ||
Main parts | Controller | Syntec 21MA/Taiwan | |
AC servo motor(Driver) | Yaskawa/Japan | ||
Spindle inverter | Inovance/China | ||
Linear guide way | 45 Hiwin,PMI/Taiwan | ||
Ball screw | 5010/5010/4010 Hiwin,PMI/Taiwan | ||
Electronic hand-wheel | EHDW-BA5S-1 Future/Taiwan | ||
Lubrication system | YET-A2P2 ISHAN/Taiwan | ||
Oil Coolant Chiller | Parsonthor/China | ||
Air conditioner | EA-6AP Parsonthor/China | ||
Pneumatic system | AirTAC/Taiwan | ||
Chip conveyor | Inside screw-type | ||
Chip conveyor | 323L | ||
Water pump power | 480W | ||
Tool Magazine（Opt.) | ATC type | Arm type | |
ATC capacity | 24pcs | ||

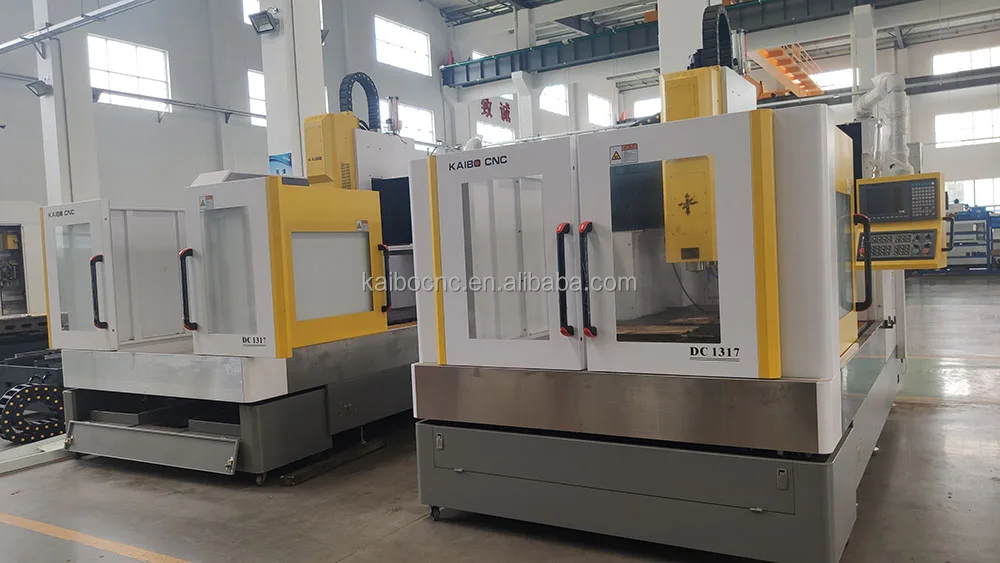

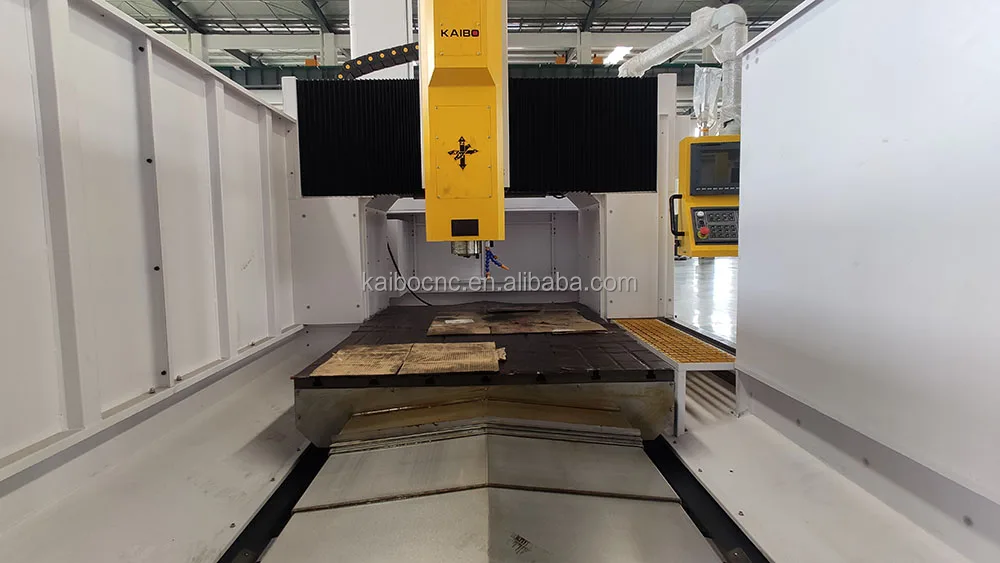

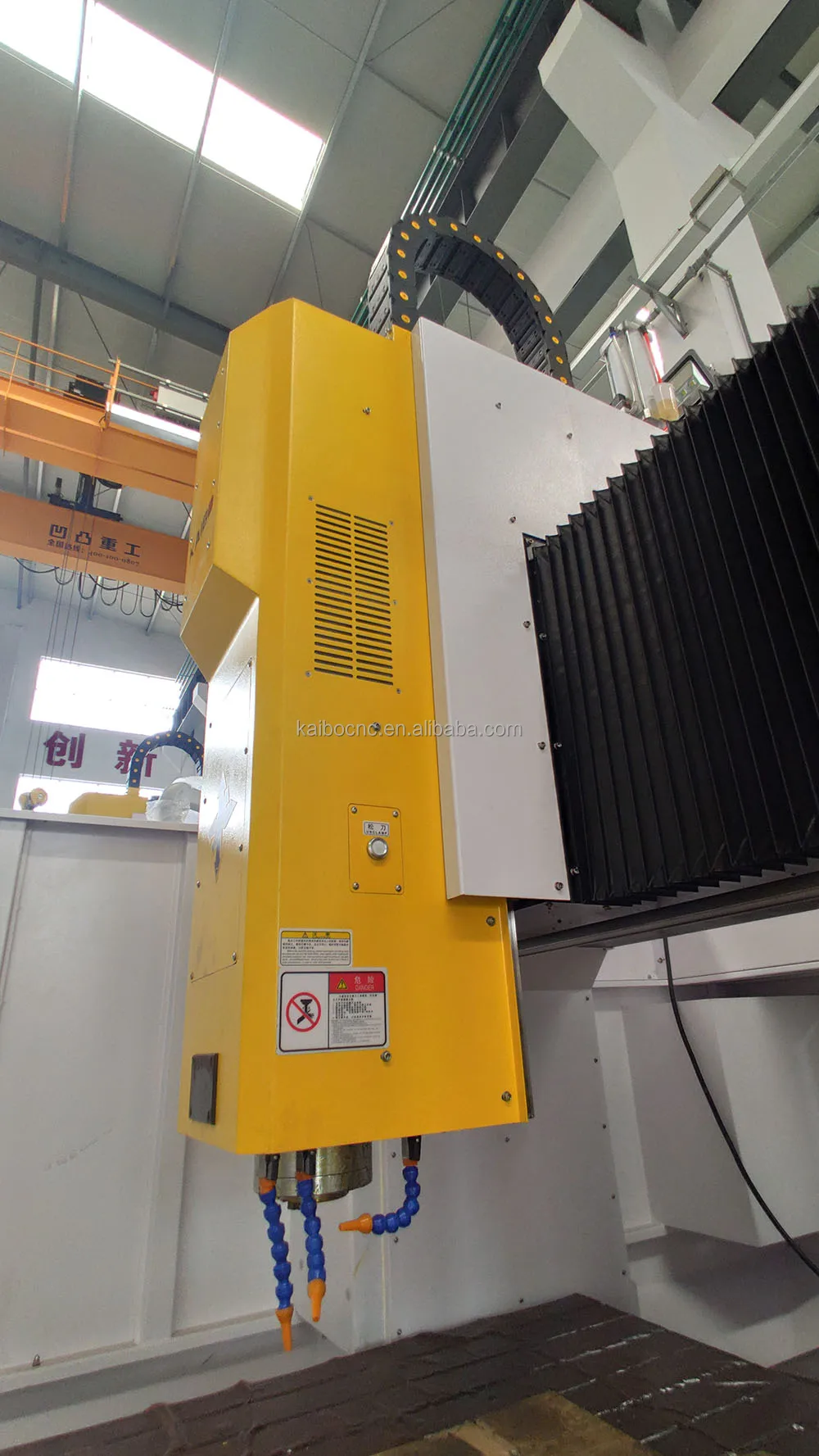

PHOTOS OF PRODUCT
Ningbo Kaibo CNC Machinery Co., Ltd.
Ningbo KAIBO CNC Machinery Co., Ltd. grew out of Ninghai FEIHE Mechanical Engraving Factory which was established in 1994. In 2003, KAIBO CNC was officially established.
KAIBO CNC is a high-tech enterprise integrating R&D, manufacturing, and marketing. KAIBOCNC has more than 52000 square meters of standard factory buildings and more than 360 staff. Specializing in the production of 3/4/5 axis VMC, CNC Engraving Milling Machine, and Customized CNC machines.
KAIBO CNC is a high-tech enterprise integrating R&D, manufacturing, and marketing. KAIBOCNC has more than 52000 square meters of standard factory buildings and more than 360 staff. Specializing in the production of 3/4/5 axis VMC, CNC Engraving Milling Machine, and Customized CNC machines.

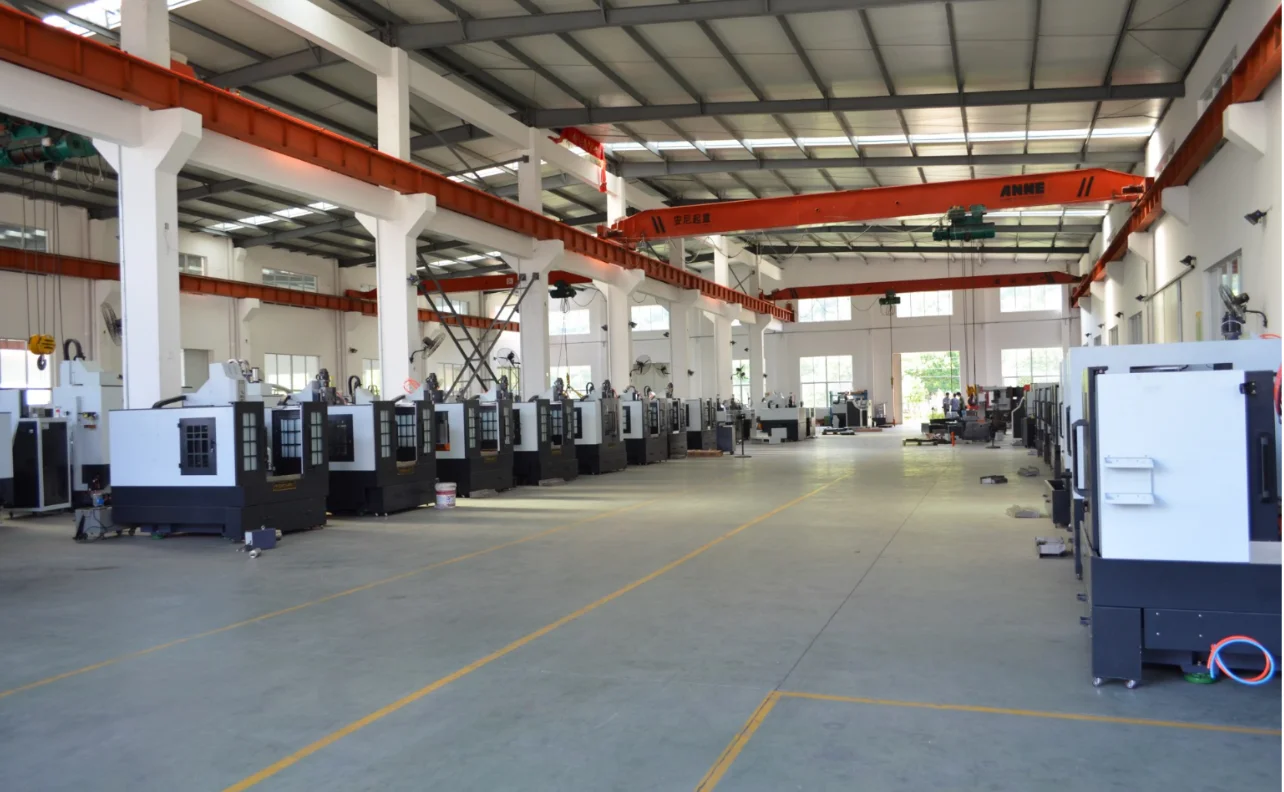

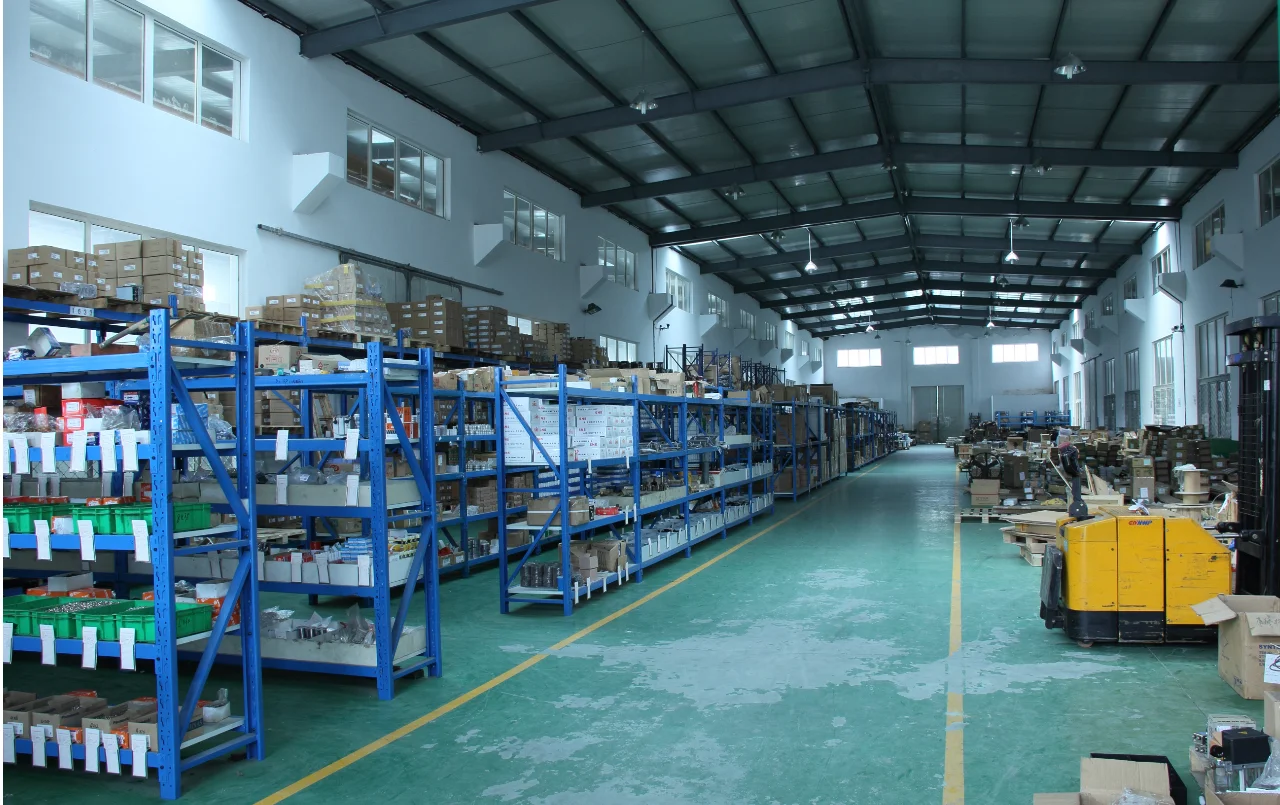

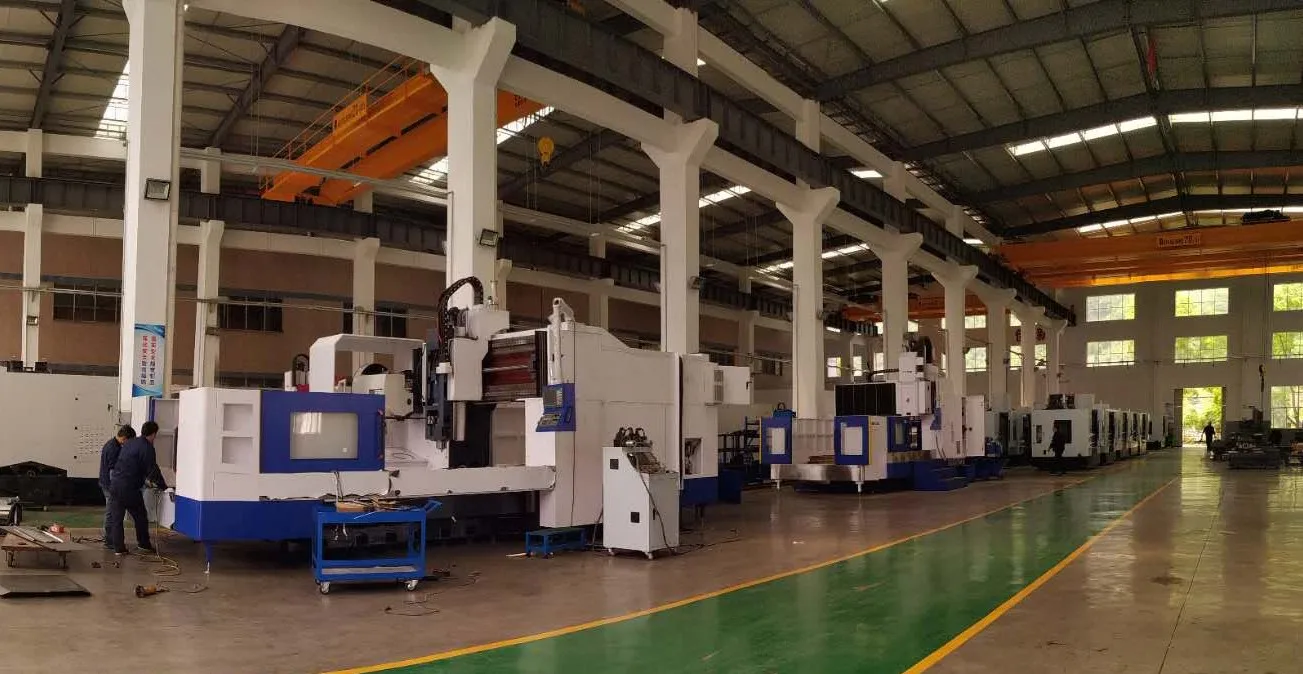

WORK SHOP
FAQ
1.Are your a direct manufacturer?
A: Yes,we are an experienced manufacturer which has been in the field of CNC Machine for 28 years.
2. How to choose the best fit for your machine?
A: If you have special request for the machine tool configuration,And the budget is limited,We can also according to your need to change the configuration.
3.What servic can we enjoy as for the after-service?
A: Yes,we are an experienced manufacturer which has been in the field of CNC Machine for 28 years.
2. How to choose the best fit for your machine?
A: If you have special request for the machine tool configuration,And the budget is limited,We can also according to your need to change the configuration.
3.What servic can we enjoy as for the after-service?
A: Technician available for training and installation at customer's company. Internet service by sending emails and videos,communicating online or calling. 1 year warrantee.During the warranty period,we will sent damage of the machine parts(non-human factors) for free.
