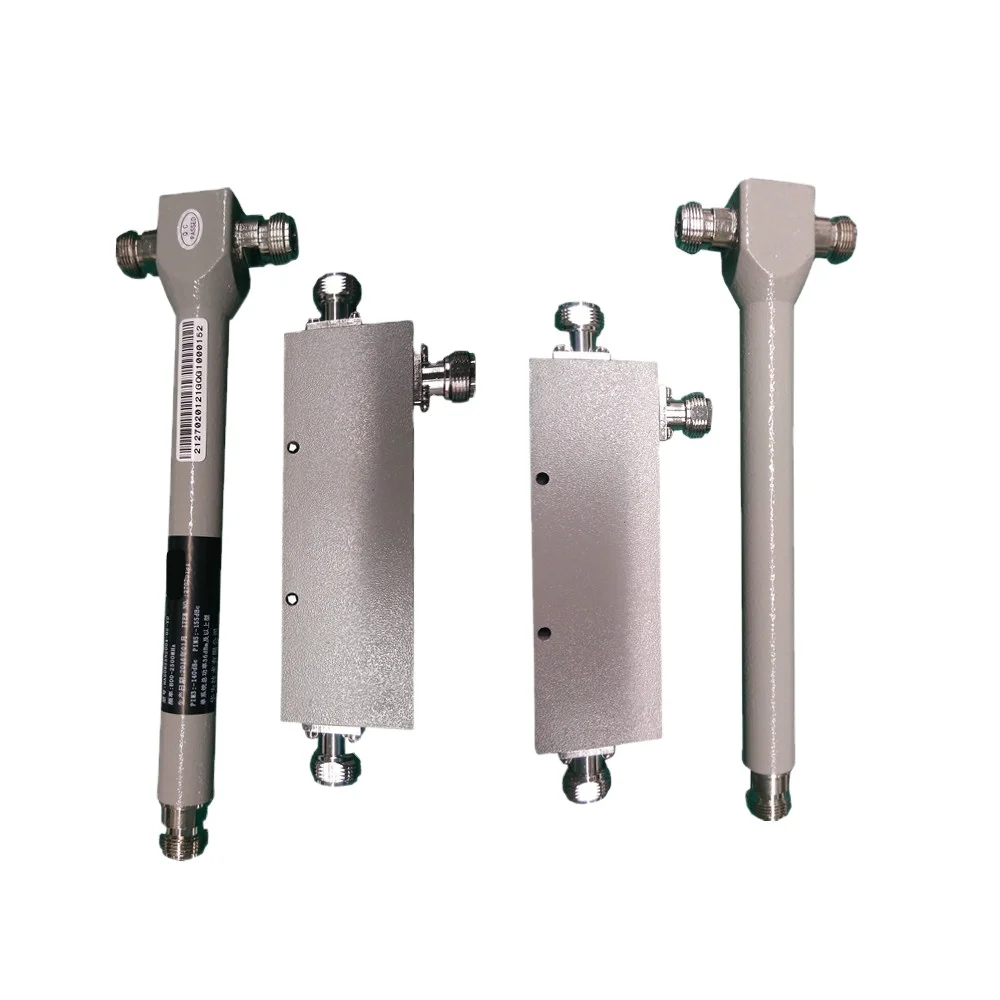

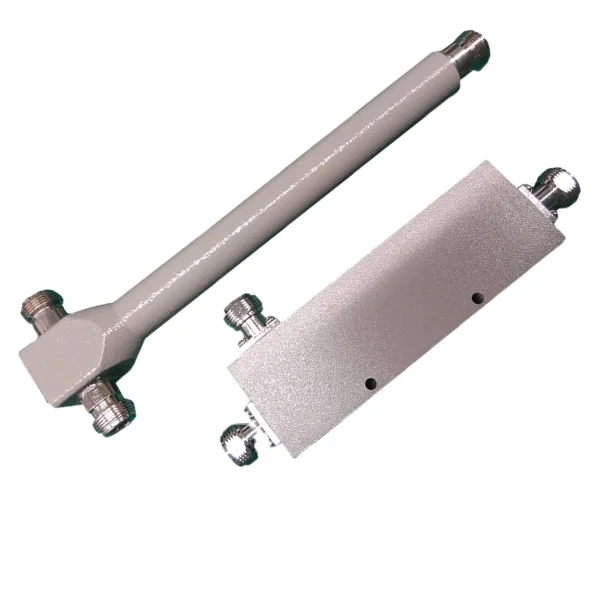

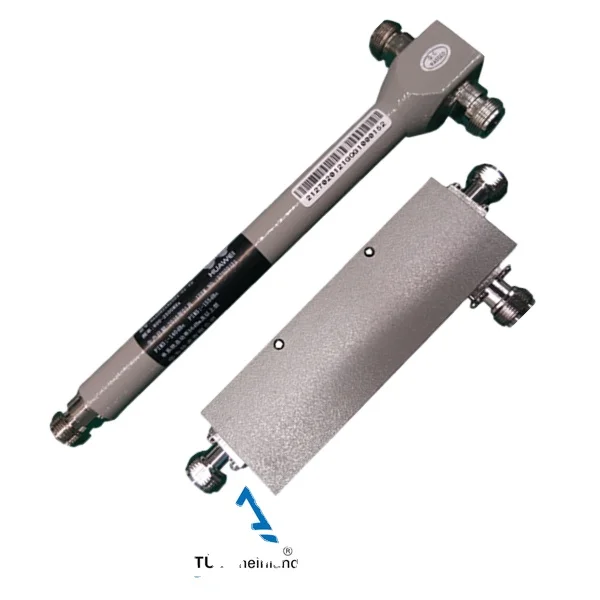

 800-2500MHz 6dB rf directional coupler and power splitter

Electrical features

Product Item

HM-MCP-N8025B-6-140

HM-MCP-N8025B-7-140

HM-MCP-N8025B-10-140

Product Code

11106014R

11107014R

1110014R

Frequency range(MHz)

800-2500

Coupling

6

7

10

Insertion loss(dB)

≤1.76

≤1.47

≤0.96

VSWR

≤1.25

≤1.25

Coupling Deviation (dB)

1.2

1.2

1.2

PIM3(dBc)

≤-140(@2*43dBm)

Power Capacity(W)

300W

Impedance(Ω)

50

Connecter

N-F

Appearance Features

size(without connecter mm)

120*40*16

Size (with connecter mm)

156*58*16

weight(g)

170

color

Black

Environmental features

Working Temperature(℃)

-30~+55

Humidity(%)

≤95

Storage temperature(℃)

-55℃ ~ +85℃

Packing size

Packing size(mm)

165*65*20

Packing weignt(g)

180

Amount/Box(pcs)

50

Box Size(mm)

350*350*130
