L&B factory sale stainless steel twin screw pump with ABB motor

Share on (60425627732):


Price:$2,800.00

Quantity:


Product Overview

Description



product details

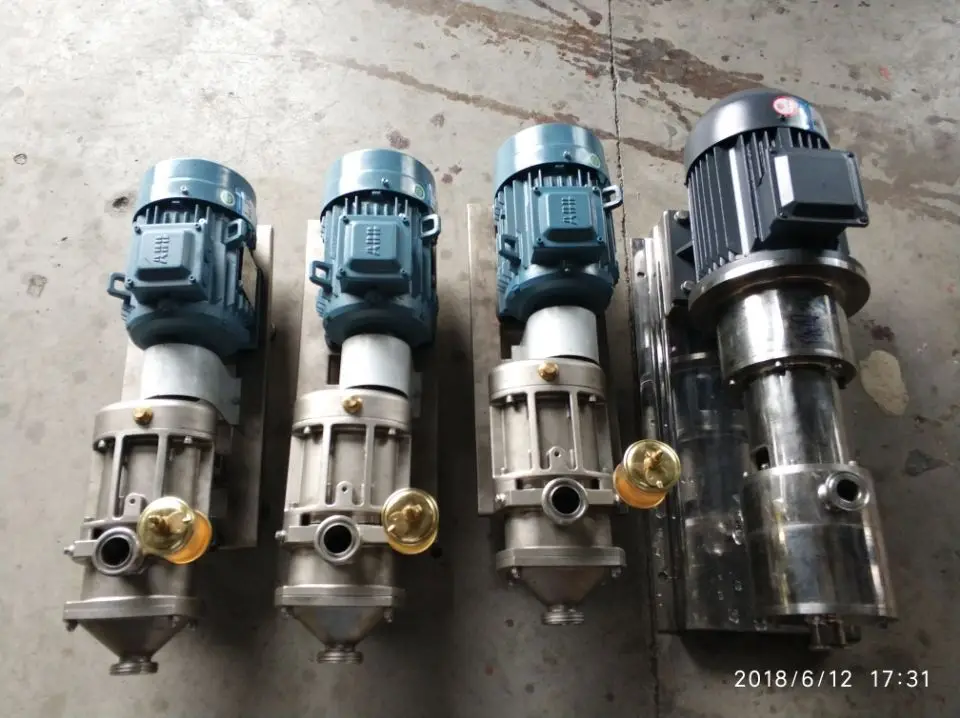

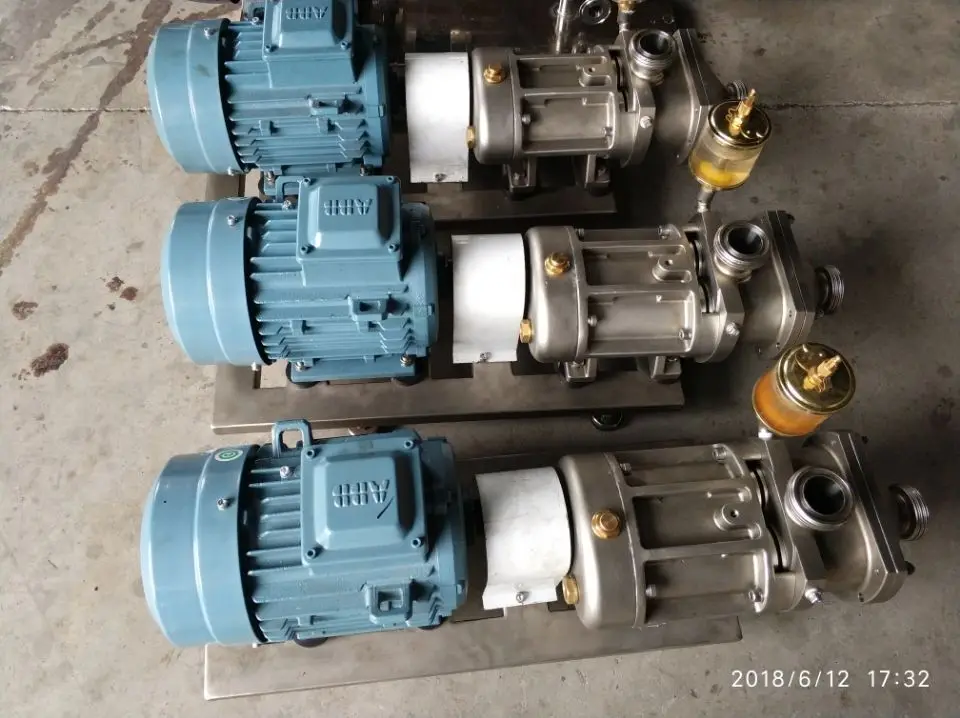

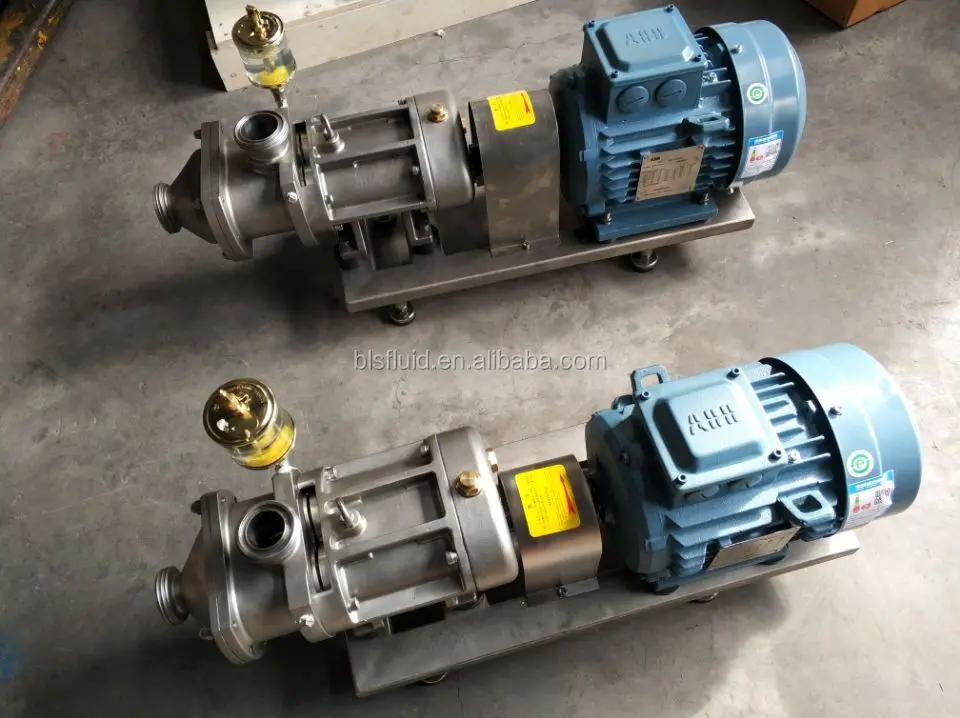

L&B company stainless steel sanitary twin screw pump with ABB motor
Specification:
Name:positive displacement pump
Temperature: -20-+180 degree
Max:18bar
Material: SUS304/AISI316L
Brand:BLS
Mechanical seal:Single mechanical seal or double mechanical seal
Technical advantage:20 years manufacture
products advantage:10 years export experience
High quality and favorable price

Application range:
high viscosity liquid transfer pumps is used in all fields widely to transfer all kinds of medium, running at a constant pressure
continuously, without pulse and damage when feeding medium, and change the gauging aim through adjusting rotation speed

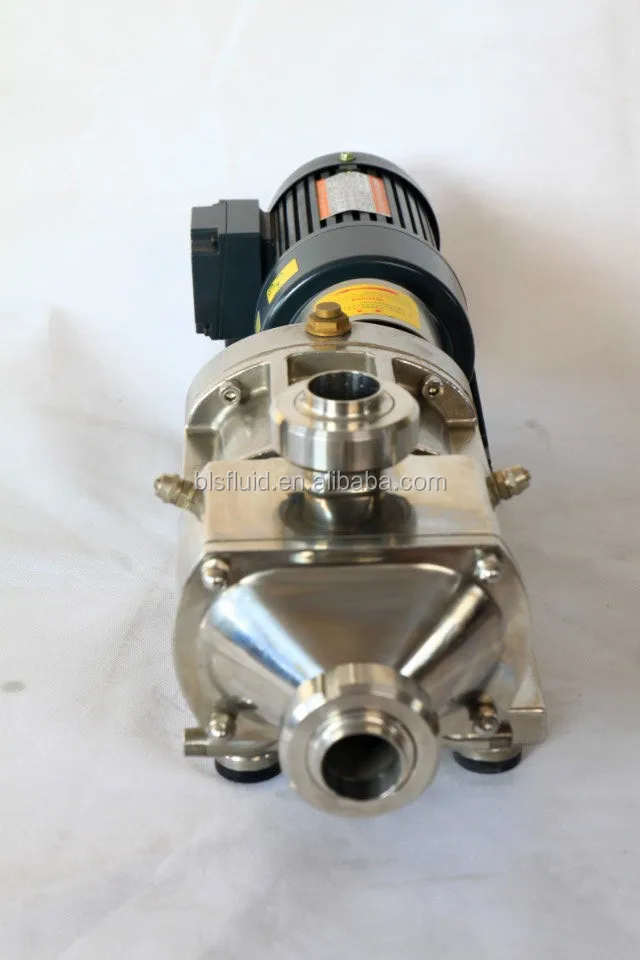

inlet and outlet which can be made into tri-clamp or flange or union as per your requirement

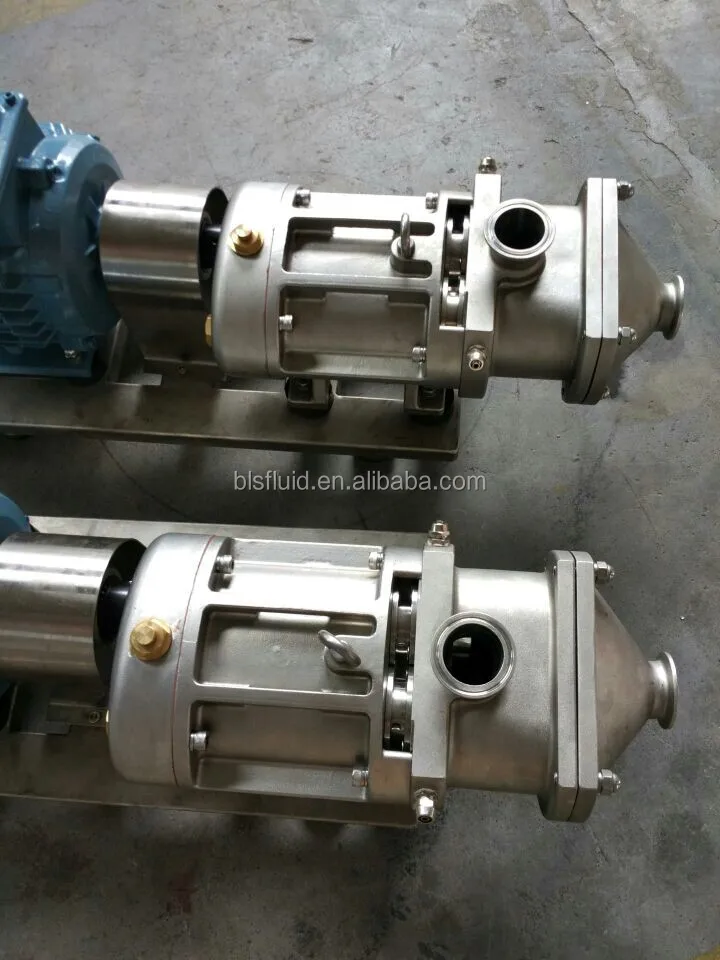

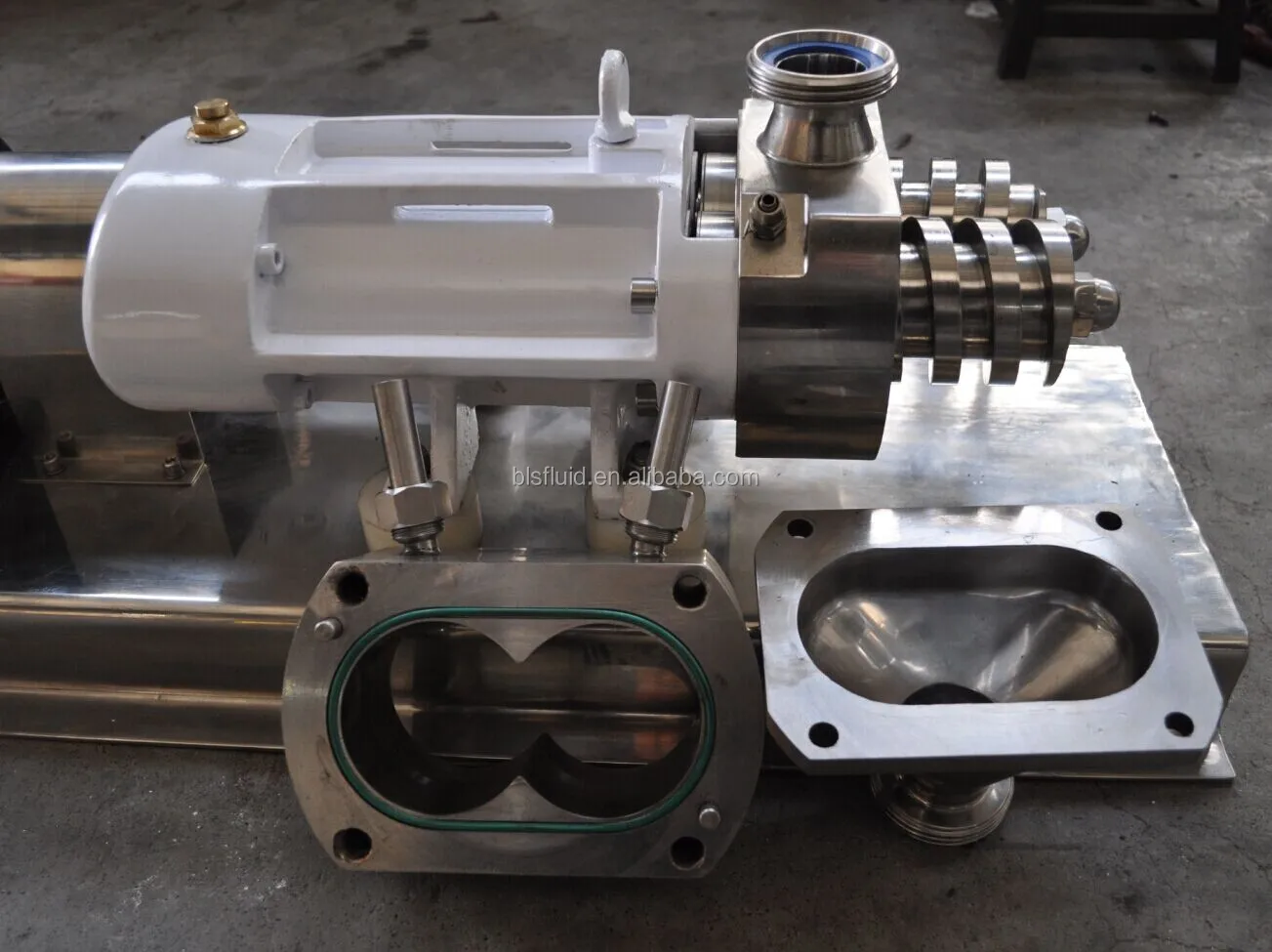

1. double screw rotor

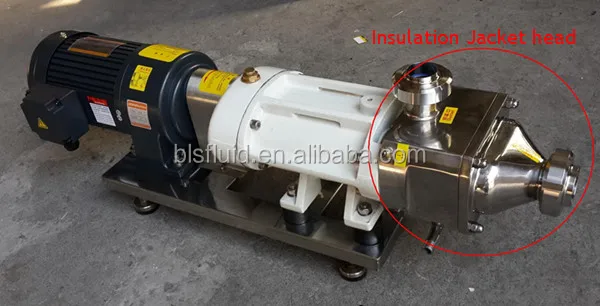

stainless steel ss304/ss316 pump,if your products need to keep warm,we can also make warm jacket for the pump

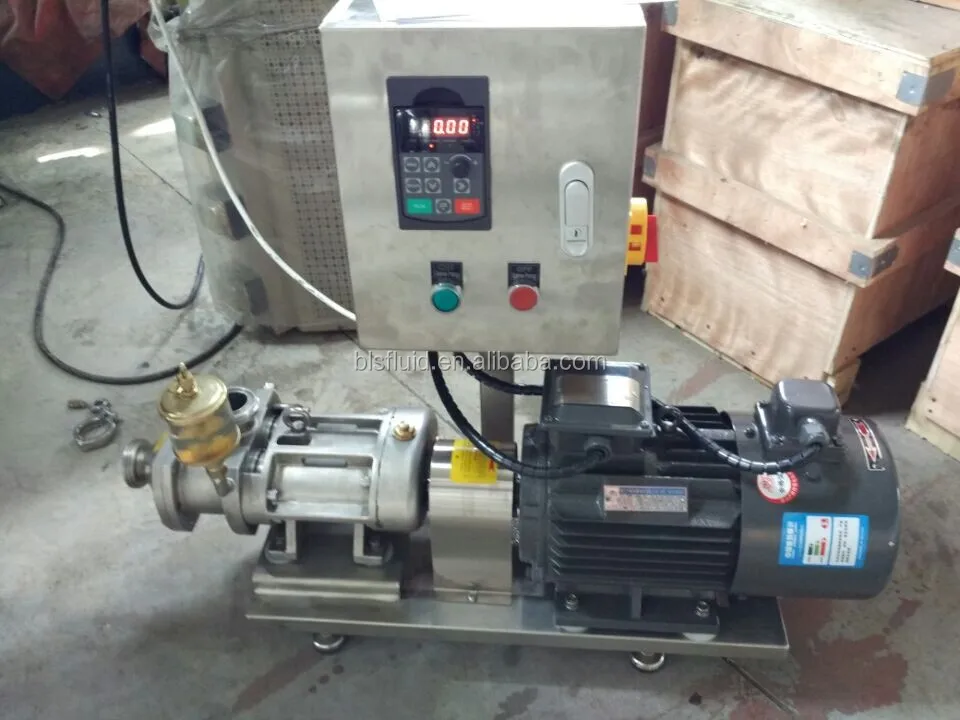

with speed converter to adjust the speed and control cabinet to operate the start and stop

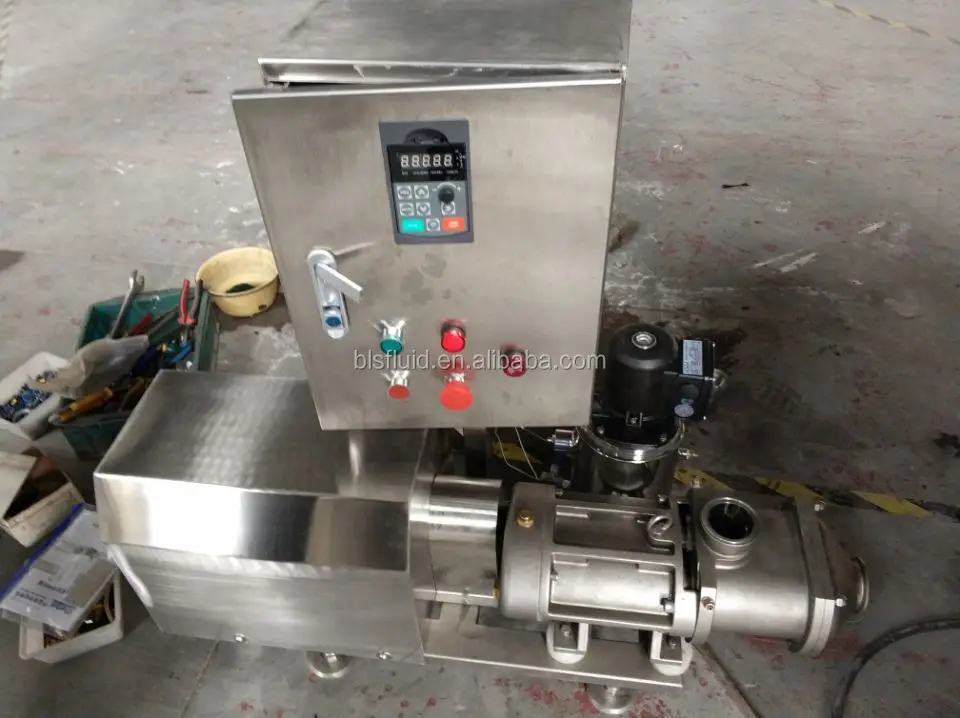

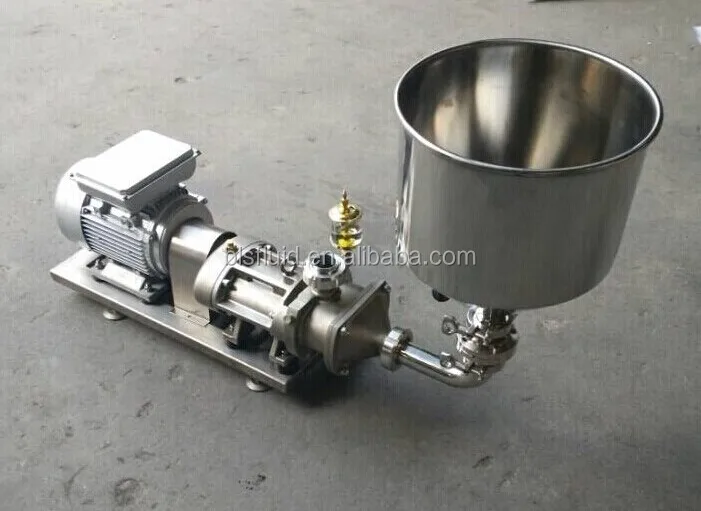

hopper for your choice

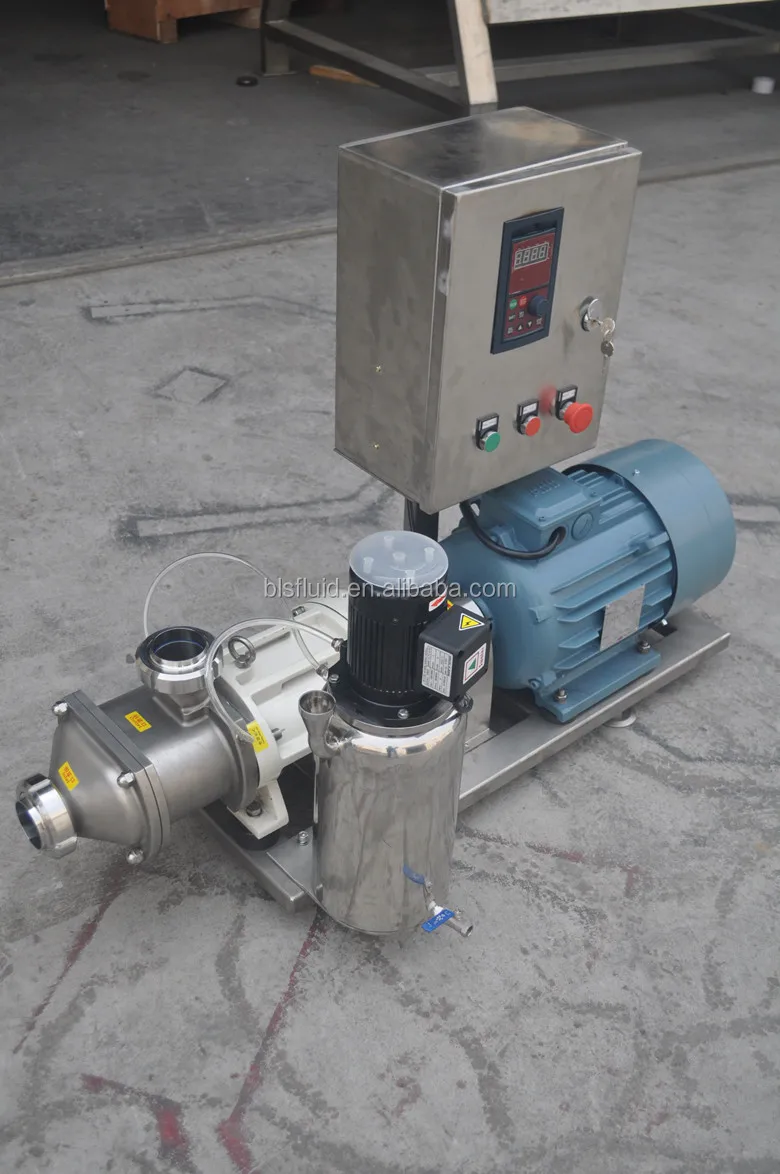

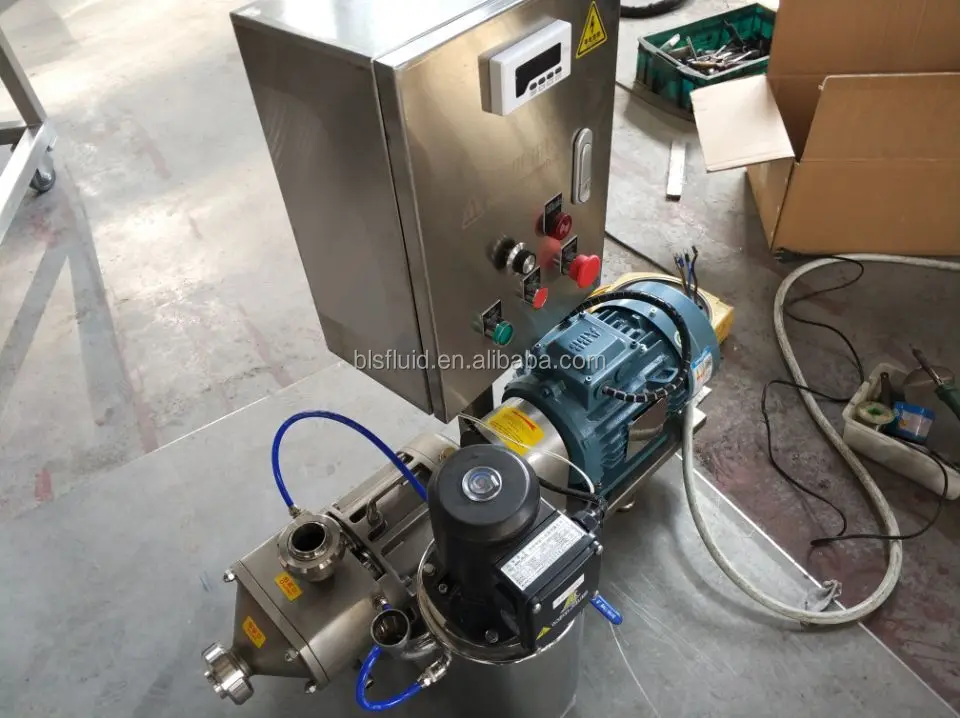

Sanitary single mechanical seal/Double mechanical seal with cooling system

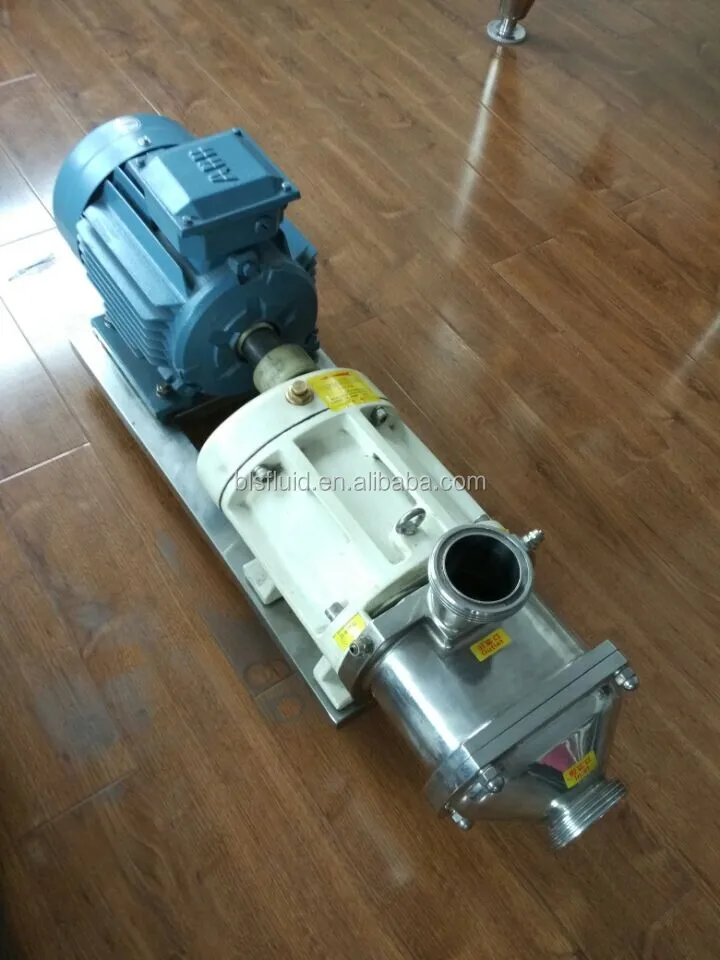

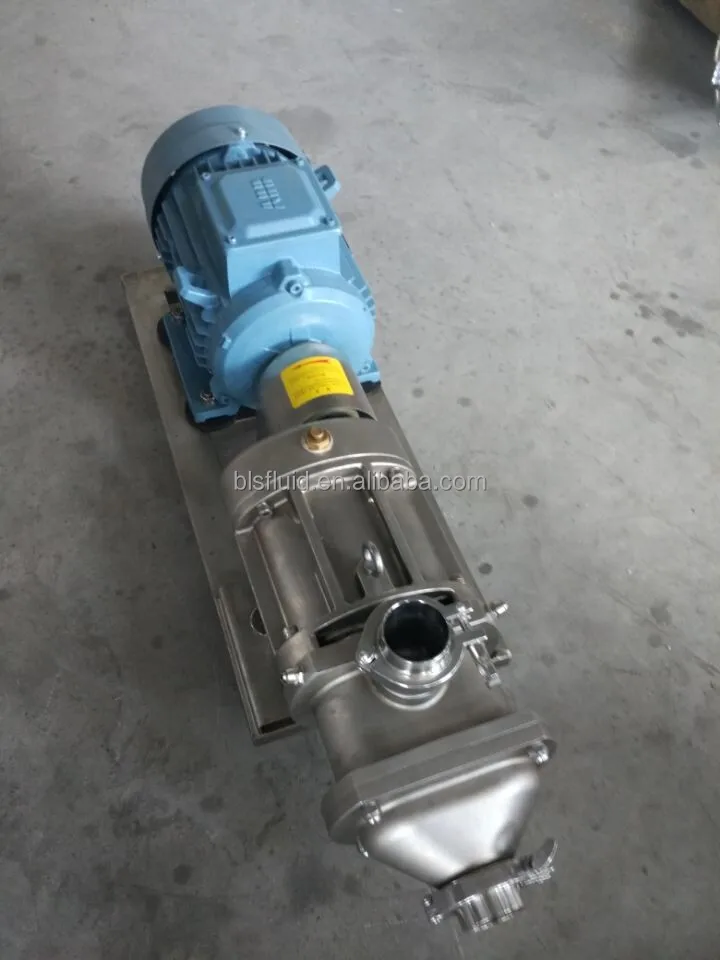

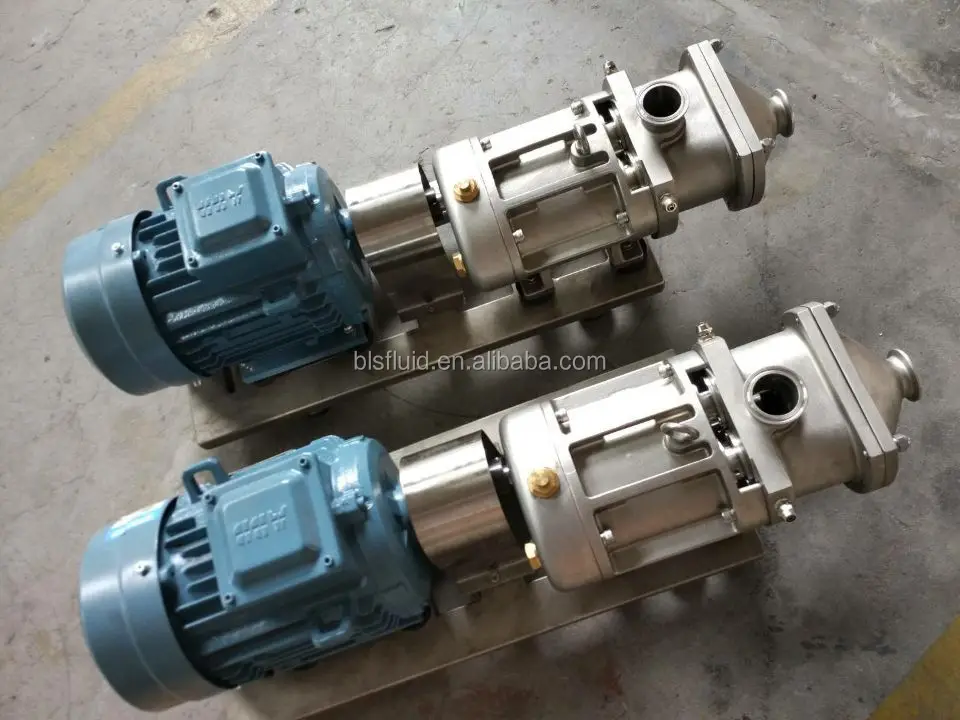

* standard

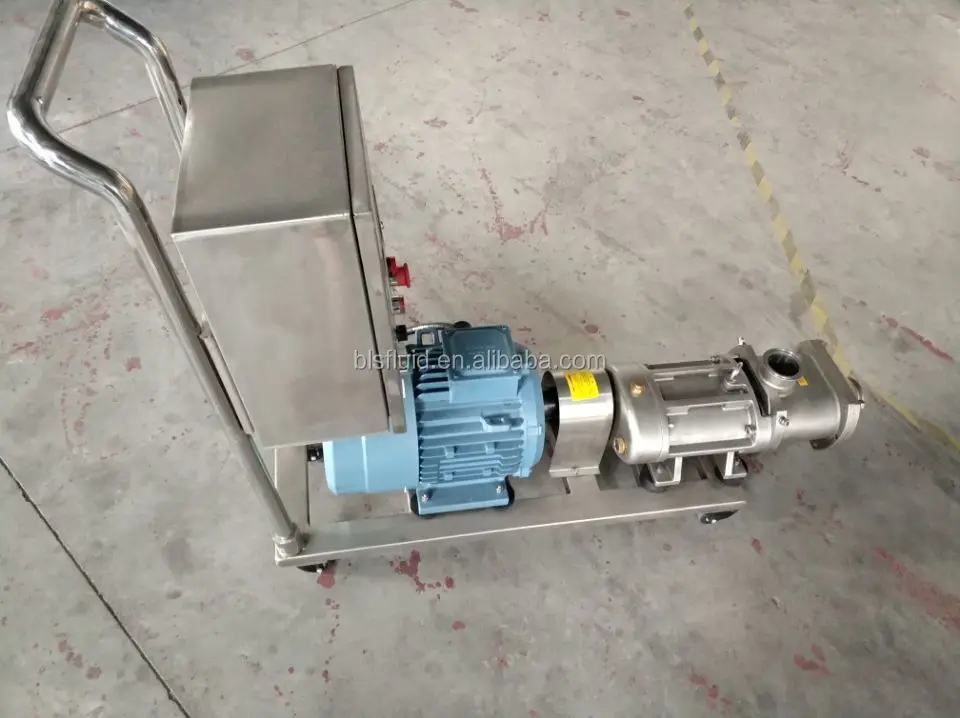

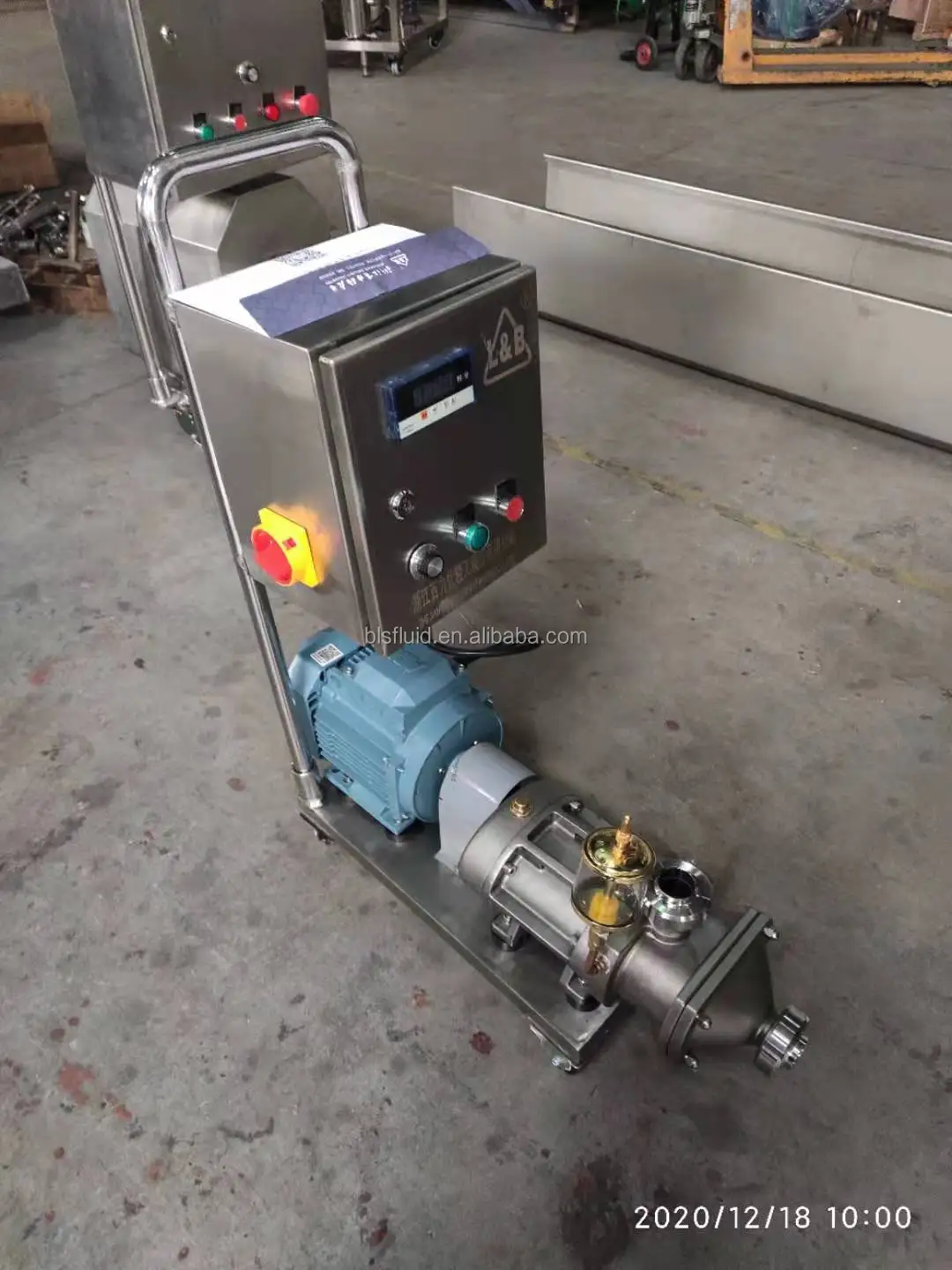

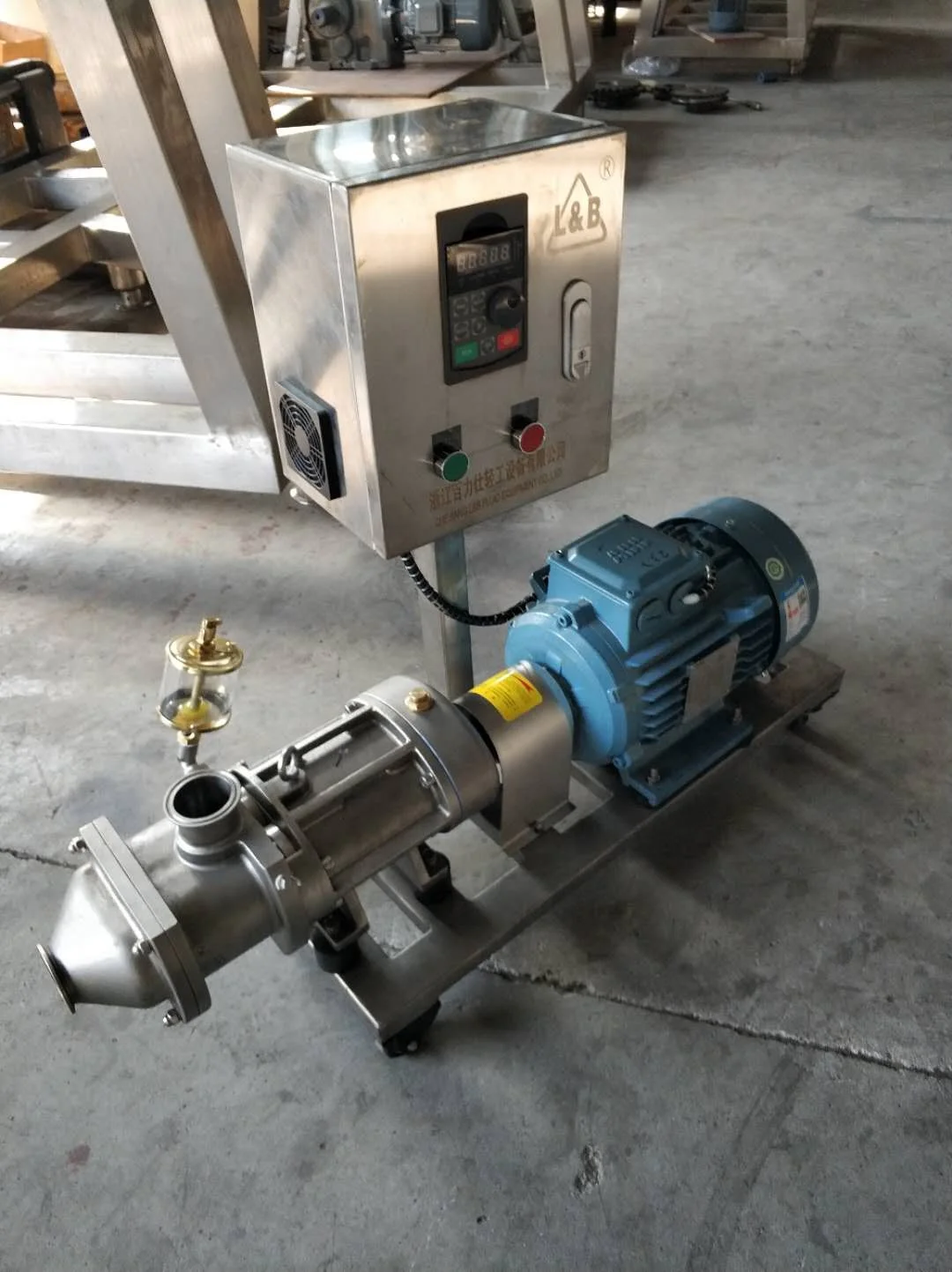

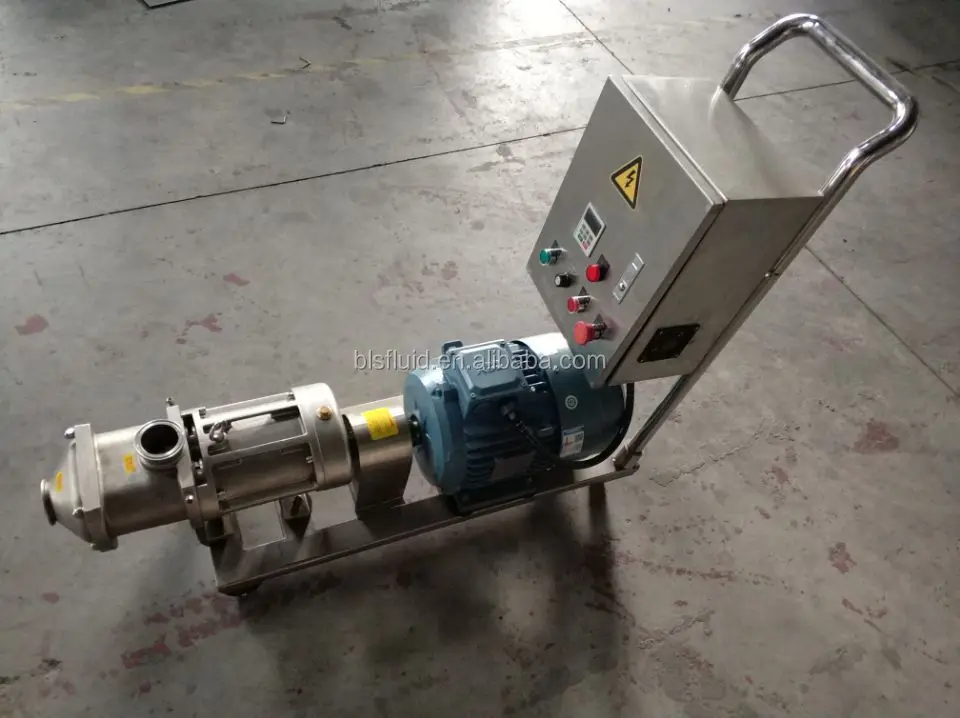

*customized with trolley and control cabinet


we can design all accessory as per your requirement

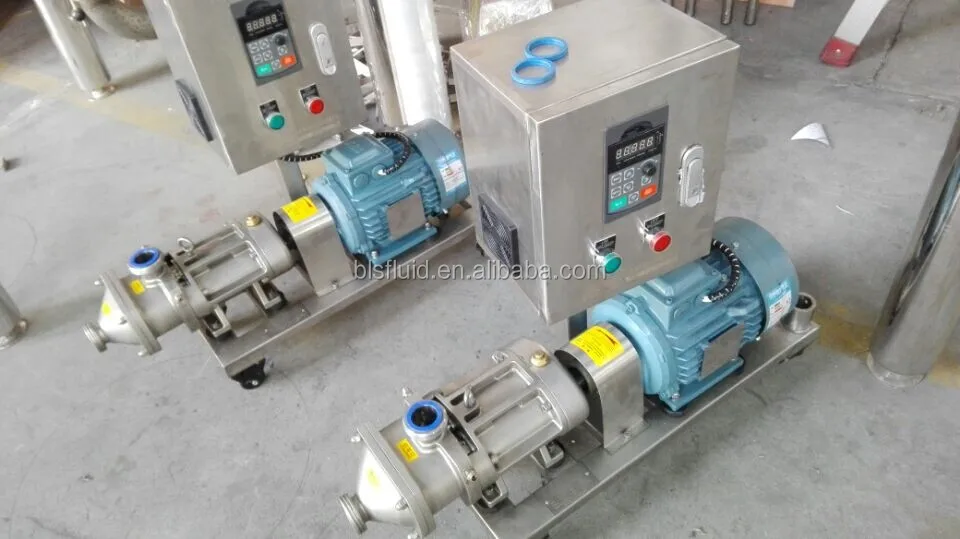

trollety and control cabinet












Technical Paramenters


Model
Flow (T/H)
Inlet/Outlet (mm)
Weight
Speed (rpm)
Outlet pressure (mpa)
Power (kw)
FSL-03-15
0-3
1.5''/1.25''
72
1480
≤1.0
1.5
FSL-05-22
0-5
2''
81
1480
≤1.5
2.2
FSL-10-40
0-10
2.5''
96
1480
≤1.5
4.0
FSL-15-55
0-15
3''
112
1480
≤1.5
5.5
FSL-20-75
0-20
3''
132
1480
≤1.5
7.5




related product

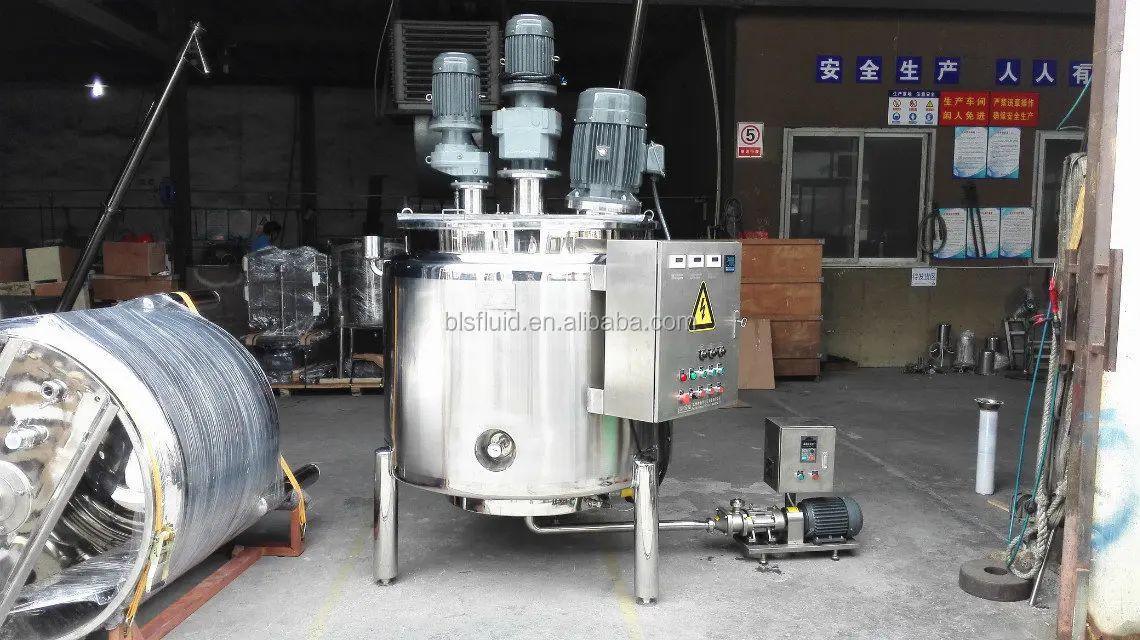

the screw pump can be connected to the tank for transfer the liquid,if you are interested in the combination,you can click the picture to know more.




Our Company




Zhejiang L & B Light Industry Machinery Co.,Ltd established in 1995,Located in BinHai Industrial Zone. Wenzhou City.
Our main products including colloid mills,Stainless Steel Tank, high shear mixer, beer fermenterand Sanitary pumps etc.
Meanwhile we also accept customized stainless steel parts and components for all industries.

BLS products could applied in food, beverage, cosmetics industries etc

We now exports our goods to United States, Australia, Newzealand and Japan etc.
