Copper Ore Processing Ball Mill With High Quality
- Category: >>>
- Supplier: Zhengzhou Hengxing Heavy Equipment Co. Ltd.
Share on (60425728421):
Product Overview
Description
Hot Sale Copper Ore Processing Ball Mill With High Quality
Product Description

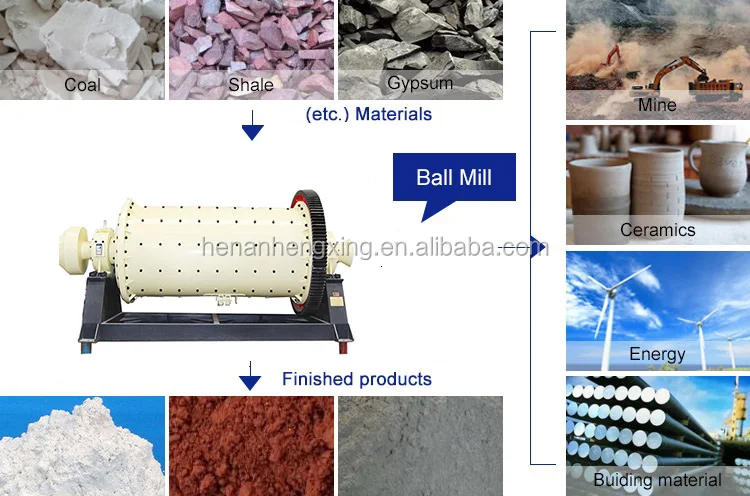

The ball mill is a key equipment for grinding materials, widely used in powder-making production line such as cement, silicate sand, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc. Ball mill can grind various ores and materials with dry type or wet type. There are two kinds of ball mills, grate type and overfall type due to different ways of discharging material.

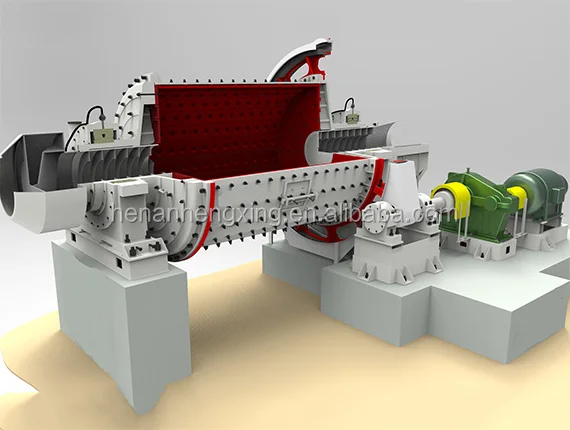

The Interior Structure of Copper Ore Processing Ball Mill:
The machine is composed by feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition.
Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.

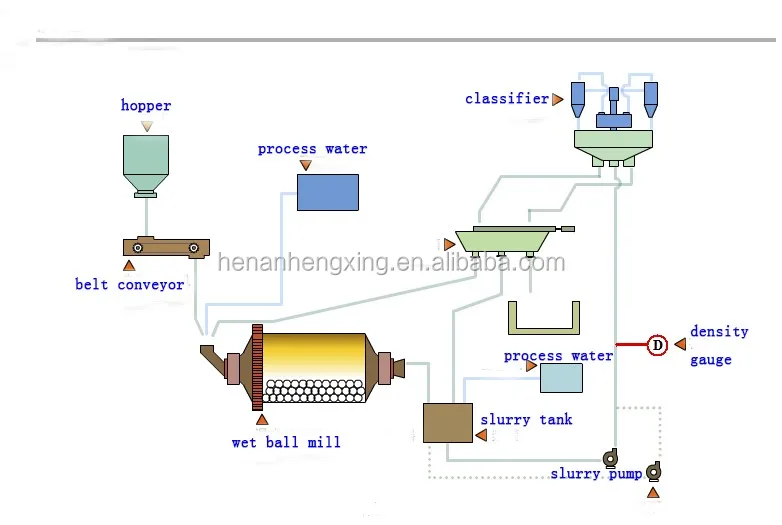

The Working Principle of copper ore processing ball mill:
This machine is a skeleton pattern ball mill with horizontal cylindrical turning gear, driven by outer gear and two hoppers. The material goes to the first hopper after the spiraling by the quill shaft from the feeding equipment. The hopper has ladder sheathing or corrugated sheathing with steel balls inside, which will fall under the effect of centrifugal force by barrel and grind material. After the kibbling in the first hopper, by monolayer partition panel, the material will enter the second hopper, which has plane scale board with steel ball inside to grind material. The powder material will be discharged from the grid plate to finish the grinding.
Copper ore processing ball mill main technical parameters :
| Model | Shell rotation speed (r/min) | Ball load (t) | Feeding size (mm) | Discharging size (mm) | Capacity (t/h) | Motor power (kw) | Total weight (t) |
| 900×1800 | 36-38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 5.85 |
| 900×3000 | 36 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 6.98 |
| 1200×2400 | 36 | 3 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30 | 13.6 |
| 1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 14.3 |
| 1200×4500 | 32.4 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 15.6 |
| 1500×3000 | 29.7 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 | 19.5 |
| 1500×4500 | 27 | 11 | ≤25 | 0.074-0.4 | 3-6 | 110 | 22 |
| 1500×5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 25.8 |
| 1830×3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 | 34.5 |
| 1830×4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 155 | 38 |
| 1830×6400 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 43 |
| 1830×7000 | 24.1 | 23 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 43.8 |
| 2100×3000 | 23.7 | 15 | ≤25 | 0.074-0.4 | 6.5-36 | 155 | 45 |
| 2100×4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 | 56 |
| 2100×7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 12-48 | 280 | 59.5 |
| 2200×4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 280 | 54.5 |
| 2200×6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 | 61 |
| 2200×7000 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 | 62.5 |
| 2200×7500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 | 64.8 |
| 2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 7-50 | 245 | 58 |
| 2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 320 | 72 |
| 2700×4000 | 20.7 | 40 | ≤25 | 0.074-0.4 | 22-80 | 380 | 95 |
| 2700×4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 26-90 | 480 | 102 |
| 3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | As per process conditions | 630 | 149 |
Packaging & Shipping
Package and shipping :

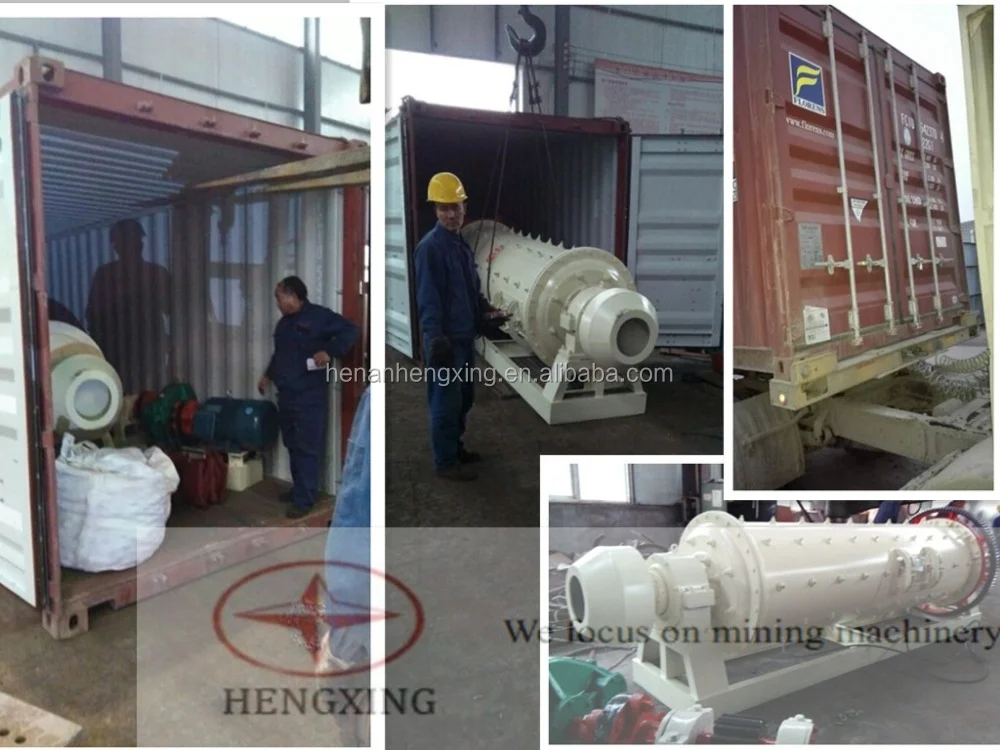

The copper ore processing ball mill will start delivery in 15-30 days after payment. It will be packed in the export standard container, its main motor and spare parts will be put in the water-proof and sealed wooden case.
We promise that the rotary dryer will be shipped to you timely and safely.
Packaging Detail:
Packing Requirement: StandarContainers
Inner Packing: Product wrapped by PP-Bubble
Outer Packing: Load container, Spare Parts in wooden case
Storage Requirement: waterproof, put in the flat ground
Transportation:

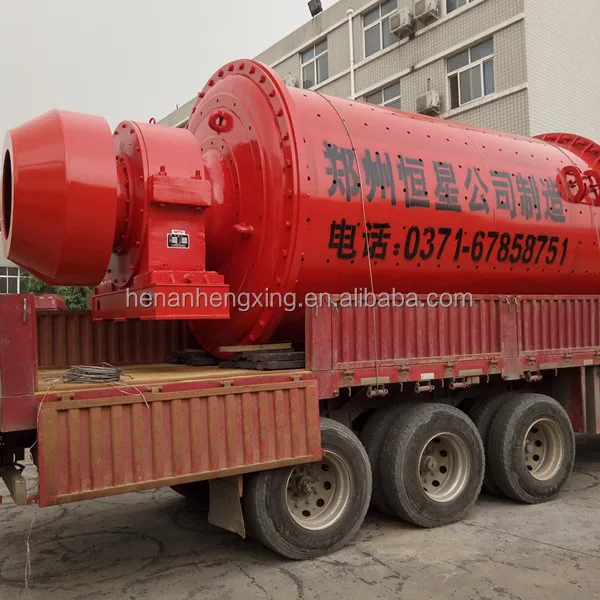

These copper ore processing ball mill machines are processed to be rustproof and moisture proof before delivery.

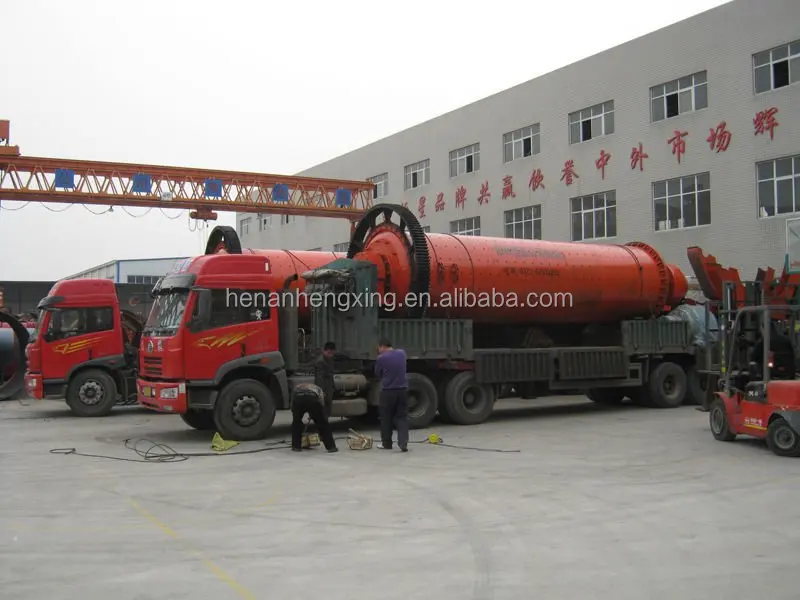

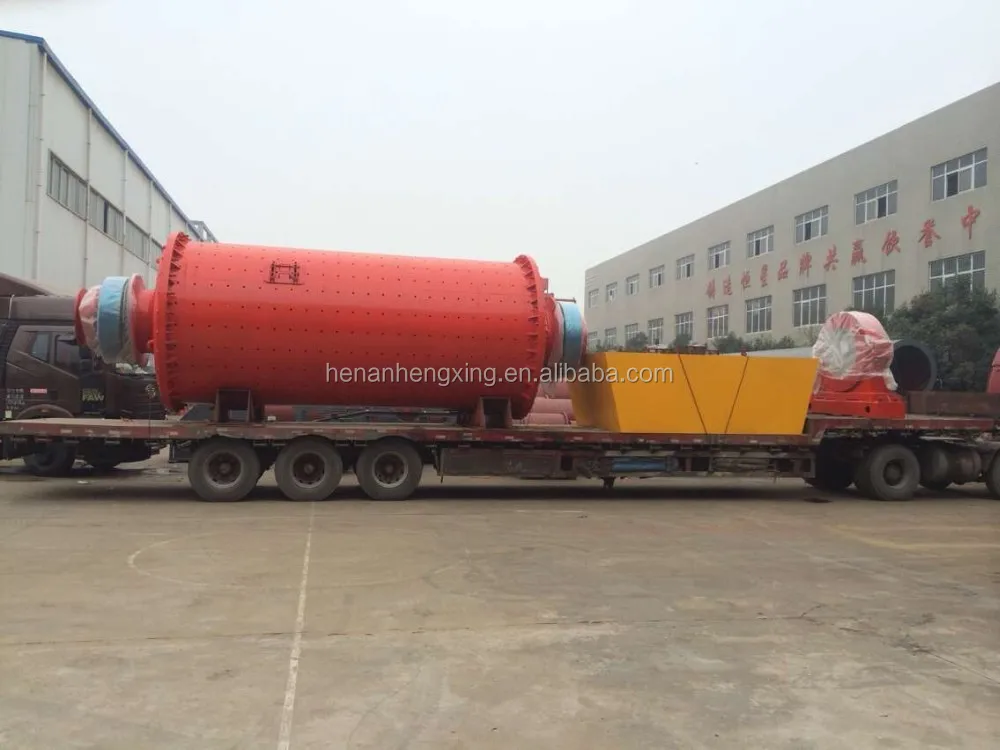

Large mainframes are in nude, while small spare parts and motors are in wooden boxes.
All items are in bulk or containers, details will be negotiated by both parts afterwards.
Our Services
Hengxing equipment can provide turkey service for customers, such as engineering consultation, engineering design, equipment manufacturing, packing & transportation, installation & commissioning personnel training etc.
About Spare Parts
Hengxing equipment will be dedicated to provide our customers with genuine spare parts with high quality. With our technological advice, the life cycle of your machine can be prolonged and sustained significantly with high effectiveness.
About Training
Hengxing equipemnt could offer excellent facilities and comfortable environment and training services to different customers. The training should include product training, safety training, operation training, maintenance know-how, technical know-how training, and regulations training, etc. All of the training is customized to fulfill every customer’s expectations. Training programs can be conducted in our workshop, or at customer’s site.
About Installation and Commissioning
Hengxing equipment are able to guide the overall installation of whole set production line, including crushing production line and cement equipment production line, etc., which will allow you to start the normal operation of equipment immediately. After installation,we will make inspection of the whole machine commissioning and operation condition and provide you testing data report of installation.
Company Information
Zhengzhou Hengxing Heavy Equipment Co.,Ltd is a joint stock corporation integrating with research, manufacture and sale which targeted at the large and medium sized series of heavy equipments. Our main products are stone crushing machines, sand making machine ,ball mill machine ,mineral ore dressing machines,rotary dryer,rotary kiln, AAC block making machine,coal briquetting machine,which were widely used in mineral processing and construction industry.
Our company is located at the National High-Tech Development Zone in Zhengzhou city, Henan province. Since the establishment of our company, a passel of scientific elites has been gathered with our modernized management system and accurate product positioning. Our company has set up the computer information-based management with production, CAD and CAPP on production research and processing design. Besides, our company has been equipped with powerful machines and equipments for machining, forging, rivet welding, carburization heat processing. With the long term cooperative relationship to the research institutes at home and abroad, we have introduced advanced technology, processing and detecting equipment for the development of the new products and promotion of our workmanship.
Workshop processing capacity :
Certificate:
Customer visit :
FAQ
Why choose us?
1We have special Machinery Research Institute
2Our product quality has been in line with international level
3Our products are exported to ninety countries and regions
4We are dedicated to providing best solutions and turnkey projects
5A variety of honor to witness, 100% professional
6We provide you with all-round, one stop services
