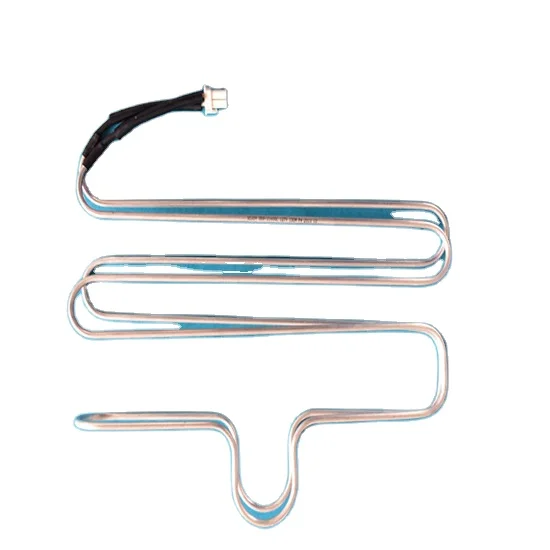

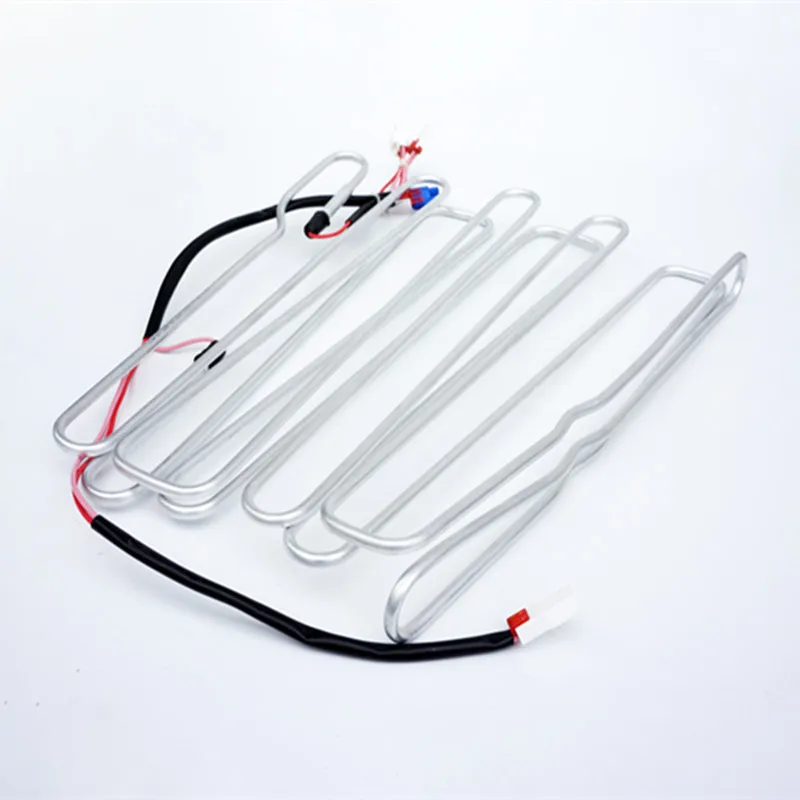

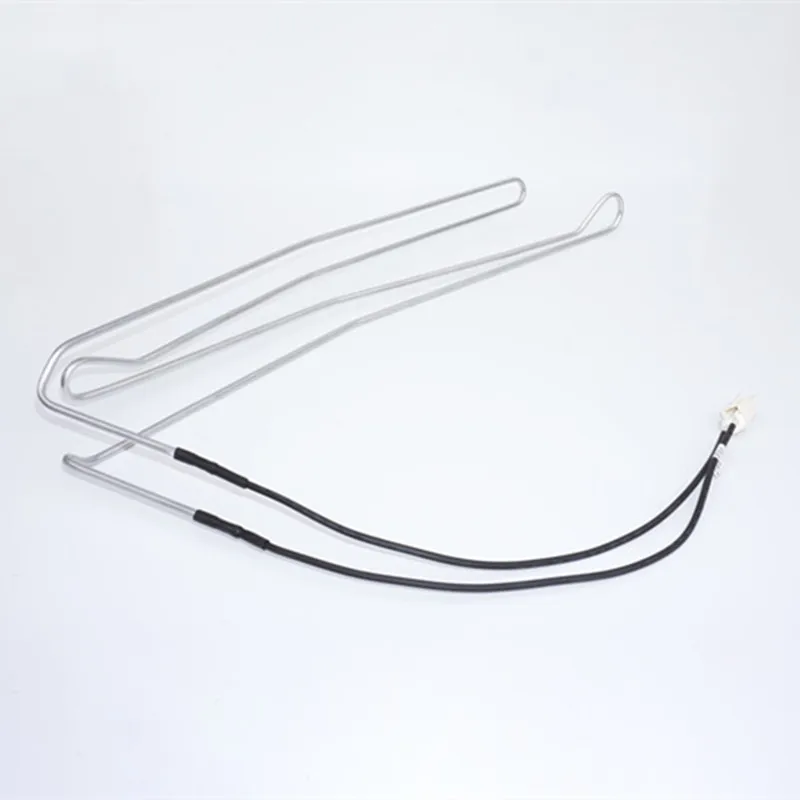

high quality rubber insulation aluminum tube heating element defrost heater
Keywords
aluminum tube heater
Type
aluminum tube heating element
Application
Home Appliance
Heating Wire
PVC or Silicone Rubber
Lead Wire
PVC
Terminal
Customized
Tube
Aluminum Tube
Tube Diameter
4mm, 4.5mm, 5mm, 6.35mm or customize
Certification
CE, TUV, UL, ROHS
Warranty
1year
Applications
Aluminum tube heating element is easier to use in narrow space, aluminum tube has good deformation capability, can be bent into complex shapes, is applicable to all kinds of space, in addition to tubes with heat conduction performance good, improve defrosting and heating effect.
It is widely used to defrosting and heat preservation for refrigerator and freezer as well as other electrical equipment. It is with rapid speed on heat and with equality, security, through thermostat, power density, insulation material, temperature switch, heat scatter conditions can be required on temperature, mainly for frost elimination in refrigerator, frozen elimination and other power heat appliance.
Configuration
Aluminum tube heating element uses aluminum pipe as heat carrier.
Put heater wire component in aluminum tube to form different shape components.
Diameter of aluminum tube: Ø4, Ø4.5, Ø5, Ø6.35
*If you have any special requirements, we could also customize for you.
Technical data
Model
RLGV
RLGG
Electrical insulation
105℃PVC
Silicon rubber
Dimension
Any dimension on request
Voltage
Any voltage on request
Output
Up to 15W/m
Up to 60W/m
Tolerances
≤±5% on resistance
Insulation resistance in normal temperature
≥100 MΩ
Dielectric strength in normal temperature
1800V 2S, No flashover and break down
Leakage current in working temperature
≤0.02 mA/m

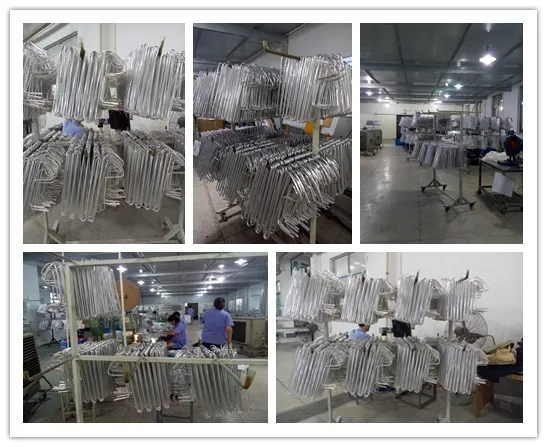

Workshop
Packaging & Shipping
Packaging & Shipping
Packing : customized.
Shipping: FOB SHANGHAI / NINGBO / OTHER PORTS
Our Services
Our Services
We gurantee our delivery time and responsible for the quality.

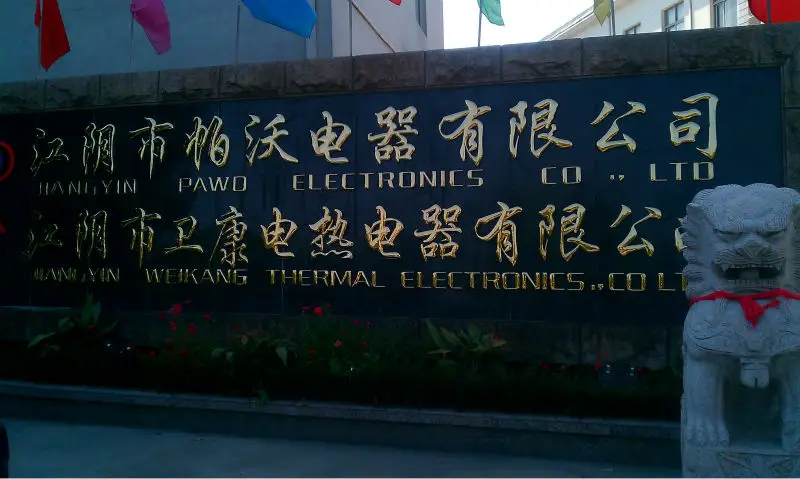

Company Information
Company Information
We Jiangyin PAWO Electronics Co.,ltd has been established for nearly 30 years. We specialize in producing various defrost heaters. And we are responsible for our products and customers.We have many certificates for our products, like CE, VDE, CSA, UL, CUL, TUV, RHOS, etc. We are the global market to provide heating element of high-quality, meet the various needs of different application fields.
FAQ
FAQ
Q: Are you a trading company or manufacturer?
A: Yes, we are a manufacturer with factory.
Q: What certifications do you have for aluminum tube heaters?
A : We have CE, ROHS, UL, TUV certificates.
Q:Do you accept OEM service?
A: Yes, please offer your required specifications and drawing.
Q: What's your Delivery Time?
A: Normally within 15 days,please confirm with us before order!
Q:What's the Payment Terms?
A:Usually,30% as deposit,70% before shipment by T/T,L/C,D/A,D/P.
Q:How you pack products?
A:Plastic bag inside and exporting carton outside, or according to customers.
Q:What's your available port of Shippment?
A:Shanghai,Ningbo or other ports according to customers' requirement.
