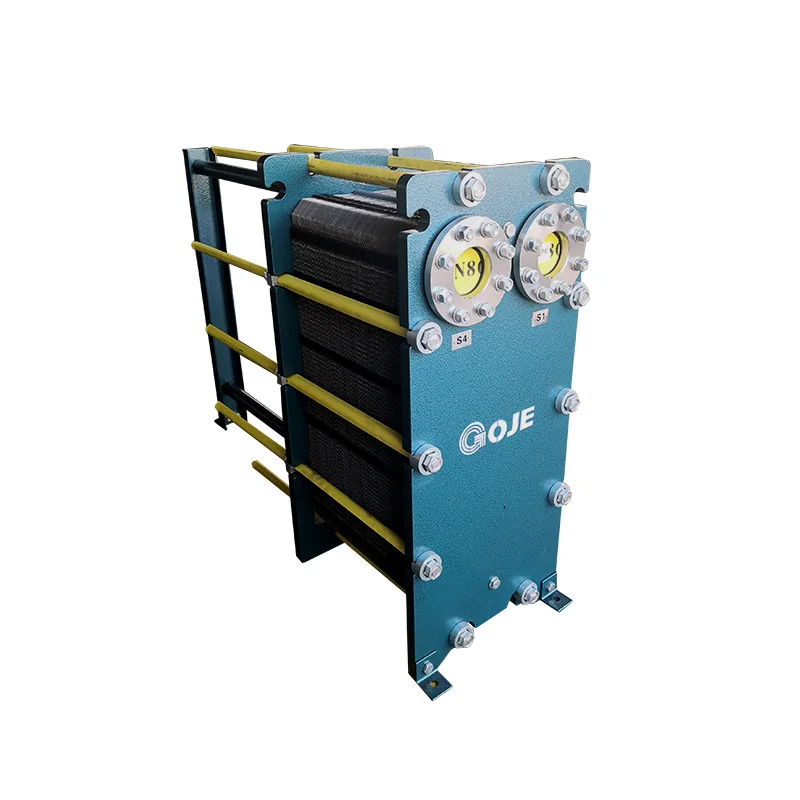

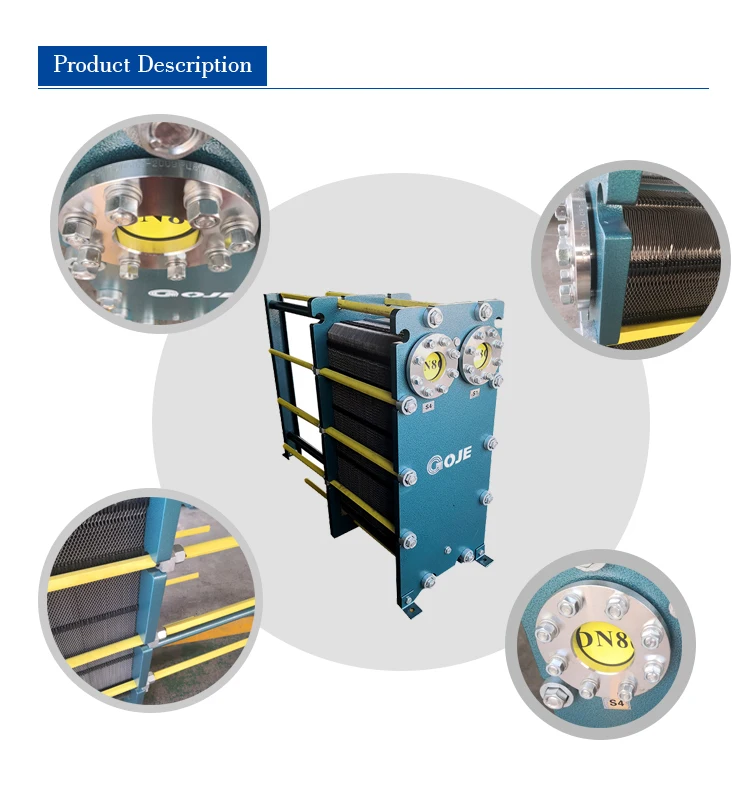

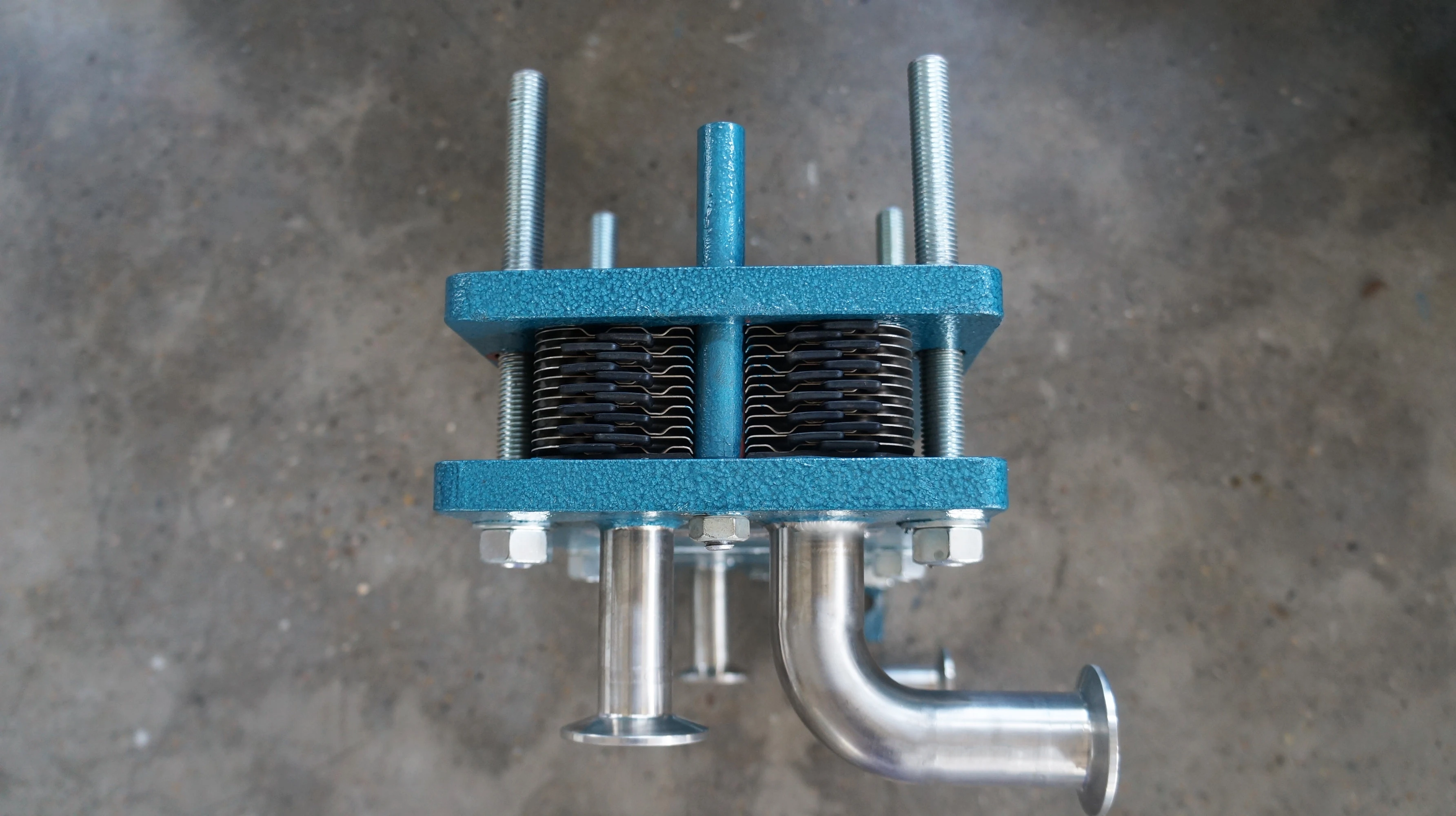

Dairy detachable plate heat exchanger

SS304

Drink water, None Corrosive Liquid, Oils, Fresh Steam etc.

SS316L

Well water, river water, closed circulating water and other water with complex components, Dilute sulfuric acid with temperature ≤ 50 ℃ and concentration ≤ 10% etc.

Titanium

Liquid that contains chlorine iron, Sea water etc.

Titanium Palladium Alloy

Higher temperature and corrosion resistance than titanium.

Nickel 20

It is mainly used for caustic solution (NaOH, Koh, etc.) with high concentration (50% ~ 70%) and high temperature (boiling point).

Hastelloy C-276

It has good corrosion resistance, almost not affected by Cl -, excellent corrosion resistance to various concentrations of
sulfuric acid, and is one of the few materials that can be used in hot concentrated sulfuric acid, widely used in organic acids
(such as formic acid, acetic acid), high temperature HF acid and a certain concentration of hydrochloric acid (< 40%), phosphoric
acid (< 50%); chloride, fluoride.

NBR

-25~120℃

Alkane, olefin and other non-polar media, all kinds of mineral oil, animal and vegetable oil, hot water, salt water, etc。

EPDM

-50~170℃

Superheated water, steam, atmospheric ozone, non petroleum based lubricating oil, weak acid, weak base, ketone alcohol, etc

HNBR

-25~150℃

Crude oil, sulfur-containing oil and organic sulfur compounds, some heat transfer oil, new refrigerant 134a, etc

Viton

-25~150℃

Nonpolar mineral oil, high temperature water vapor, sulfuric acid, chlorine water, phosphate with concentration above 98%
