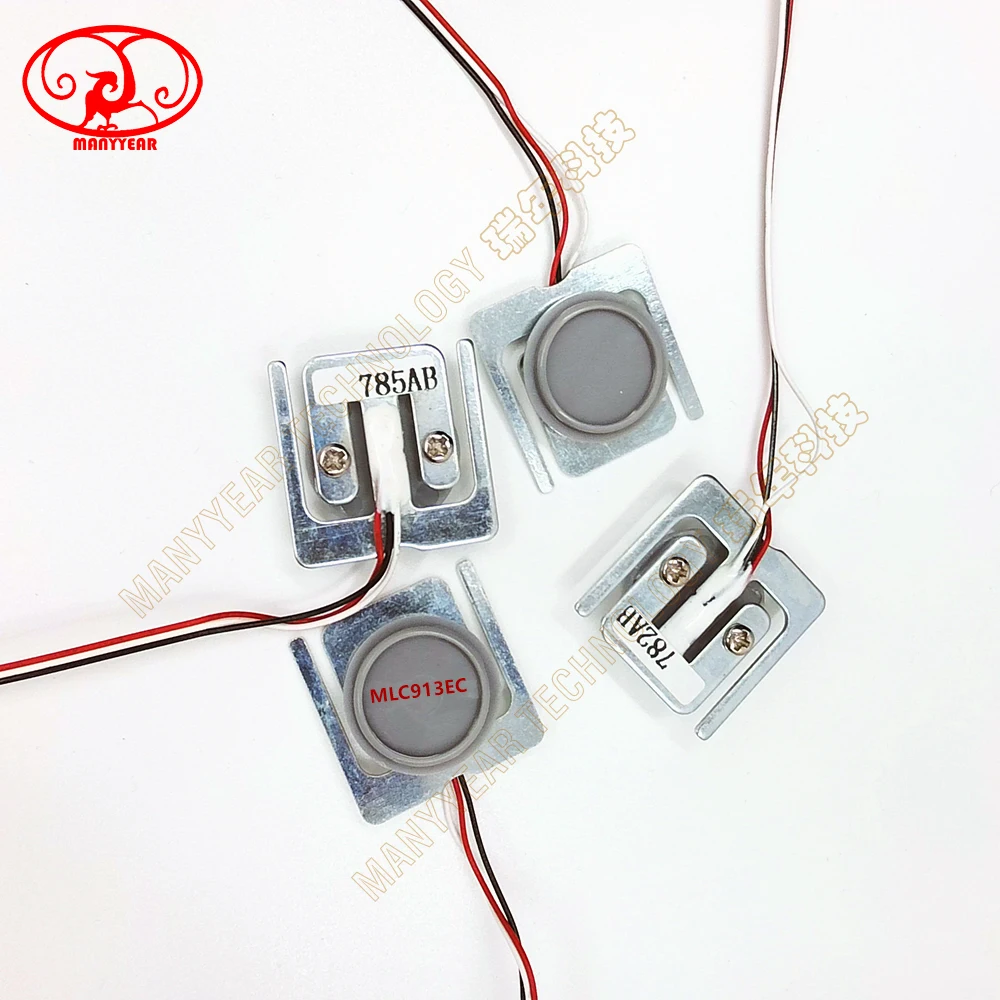

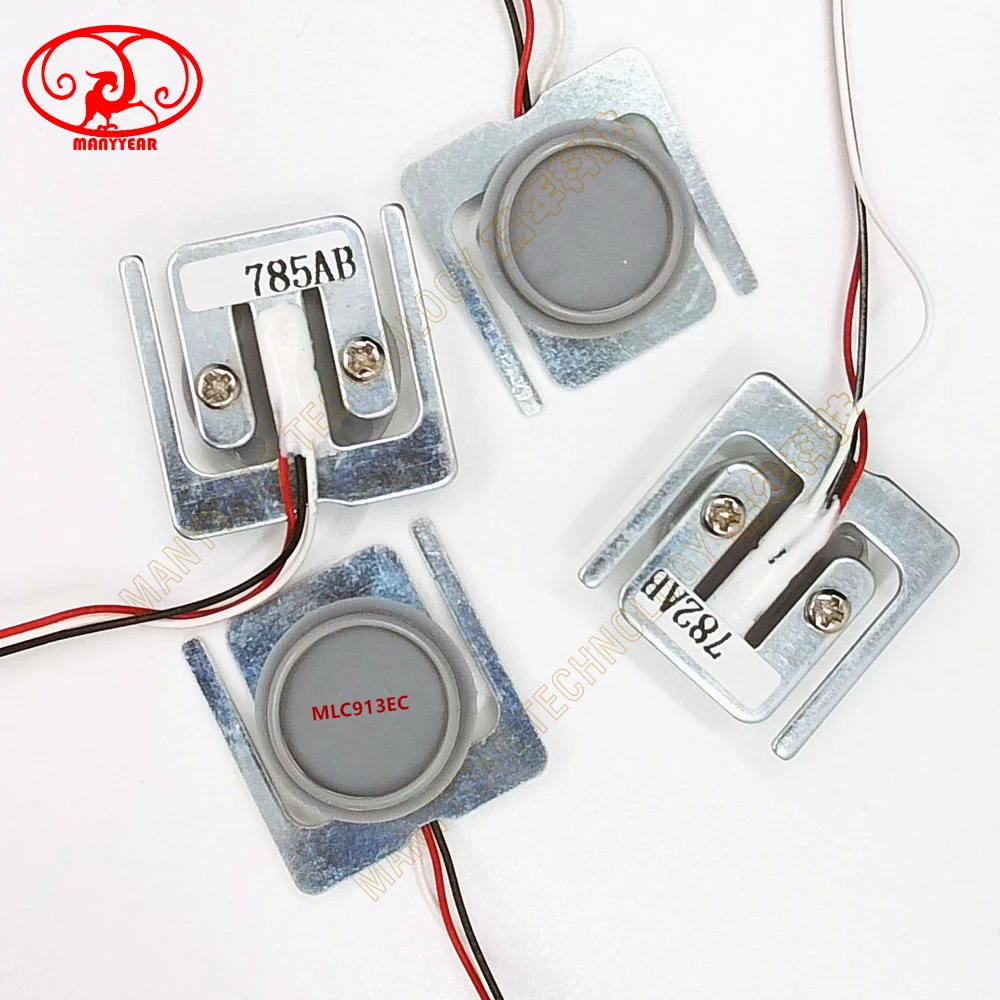

MLC913EC Flat thin kitchen scale half bridge load cell weight sensor 5kg
- Category: >>>
- Supplier: Manyyear Technology Company Limited
Share on (60425816925):
Product Overview
Description
Product Description
MLC913EC Flat thin kitchen scale half bridge load cell weight sensor 5kg
Model: MLC913EC
Catalog: Micro load cell
Rated load: 3kg, 5kgMaterial: alloy steel

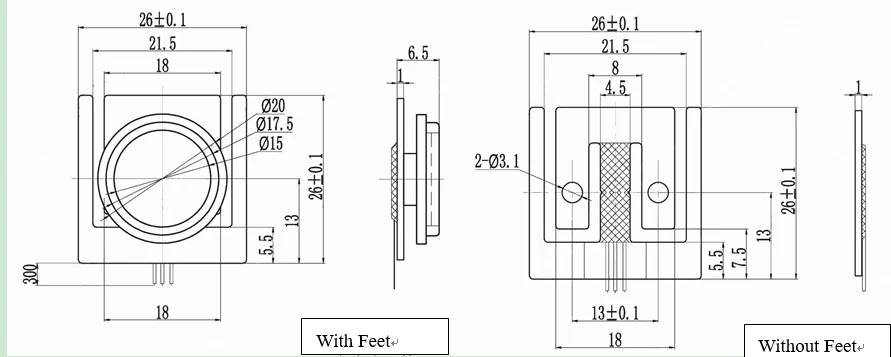

Dimension:26*26*6.5mm (with feet)
Safe overload:150%; Ultimate overload: 200%
Application: kitchen scale, electronic pricing scale, micro force test equipment
Application: kitchen scale, electronic pricing scale, micro force test equipment
Technology Specification
Below spec is only for customer design reference. we can provide ODM product.
Comprehensive error: | 0.1%FS | Output resistance: | 500/1000±10Ω |
Rated output: | 1.0±0.15mV/V 1.5±0.15mV/V | Insulation resistance: | ≥2000MΩ(100VDC) |
Non-linearity: | 0.05%FS | Excitation voltage: | 5~10VDC |
Hysteresis: | 0.1%FS | Compensated temp: | -10~+40℃ |
Repeatability: | 0.03%FS | Use temperature: | -20~+55℃ |
Creep: | 0.1%FS/10min | Temp effect on zero: | 0.2%FS/10℃ |
Zero balance: | 0.3mV/V | Temp effect on span: | 0.1%FS/10℃ |
Input resistance: | 500/1000±10Ω | Defend grade: | IP66 |

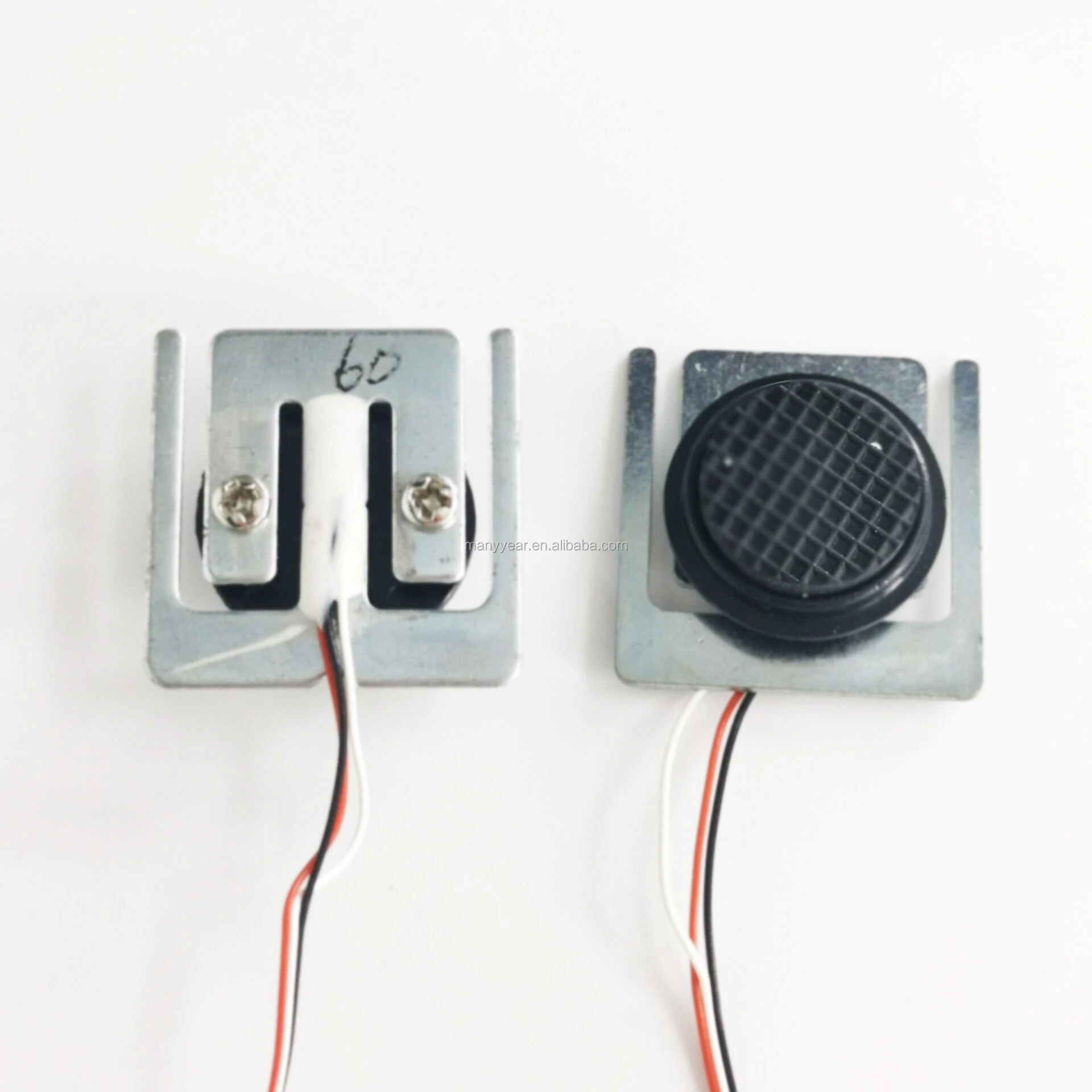

Product Assembly Structure
Blow force structure is for reference.
Product Process
for the load cell product process, include total 26 word step, take about 20days.

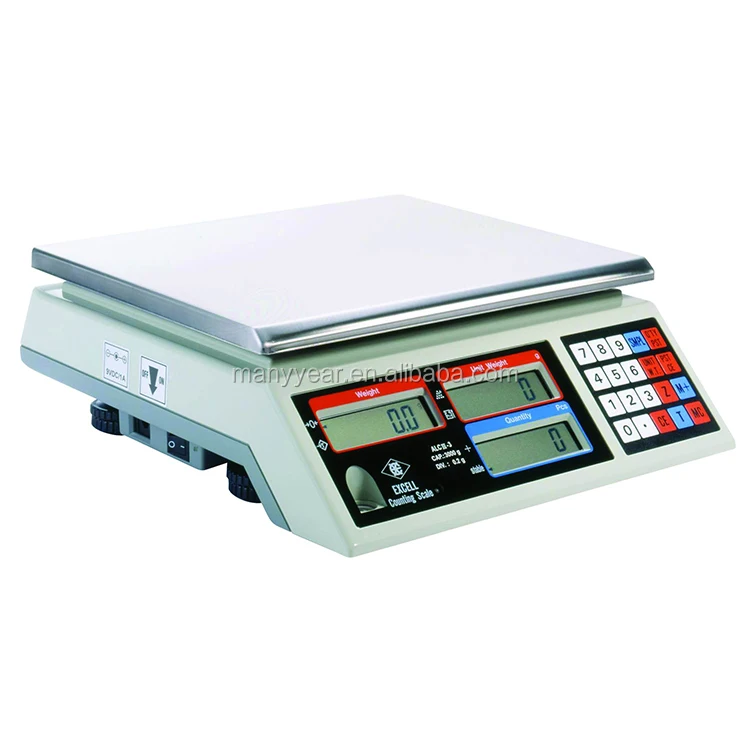

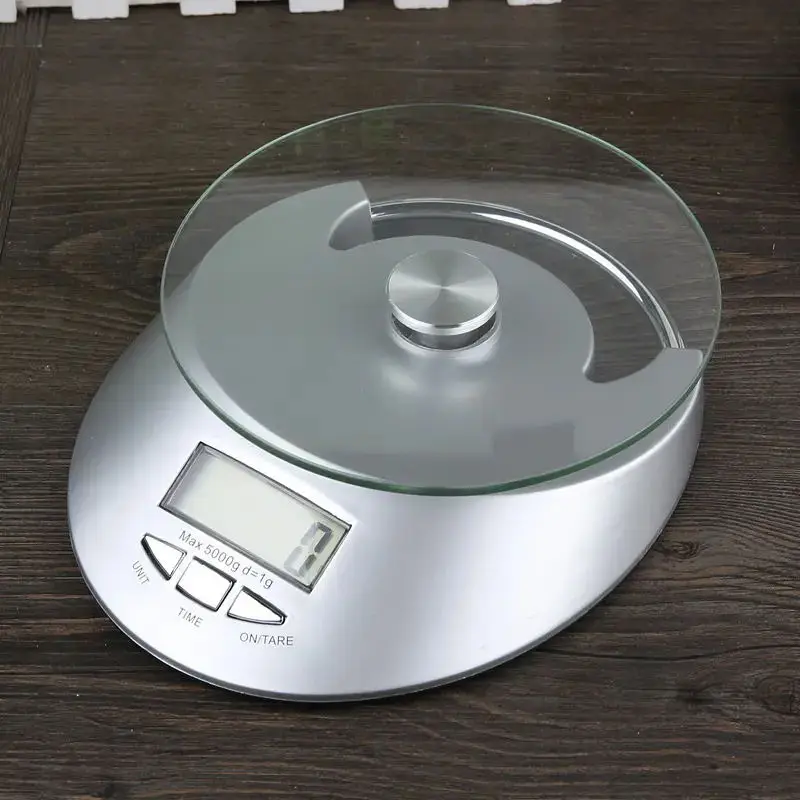

Product Application
this load cell can apply to pricing scale, packing scale, platform scale.
Delivery and Shipment
this load cell can apply to pricing scale, packing scale, platform scale.
