DS-120 Open Area Dust Control System Dust Fighter Sprayer at Quarry Raw Material Crushers, Truck Dumping Point
Product Description
Model
DS-80
DS-100
DS-120
DS-150
DS-200
Max Throw(M)
no wind
80
100
120
150
200
Coverage Area (M2)
no wind
17000~ 20000
27000~ 31000
23000~ 27000
60000~ 70000
100000~ 120000
Nozzles q-ty(pcs)
60(2 rings) or customized
80(2 rings) or customized
90(2 rings) or customized
100(2 rings) or customized
120(2 rings) or customized
Flow (Adjustable)
(L/min)
105~118
120~160
120~140
150~200
200~300
Total Power(kw)
37
59
77
112
147
Power Supply
3-Phase,380V/50HZ(or customized)
Fog Droplet Size (Adjustable )
30-200µm
30-300µm
Water Pressure (Mpa)
1.0-3.5
Horizontal Rotation
Angle
320°
Pitching Angle
-10°~45°
-10°~40°
Control Method
Remote control
Applicable Environment
Temperature
-30℃~+45℃
Color
Green, Orange, Grey, Blue or customized
>>Advantage
1.Strong capability, high & far throw range, wide coverage area.
2.Customizable nozzles achieve precise volume spraying, high efficiency and spray speed.
3.Flexible power: three-phase 380V and diesel generator power supply optional

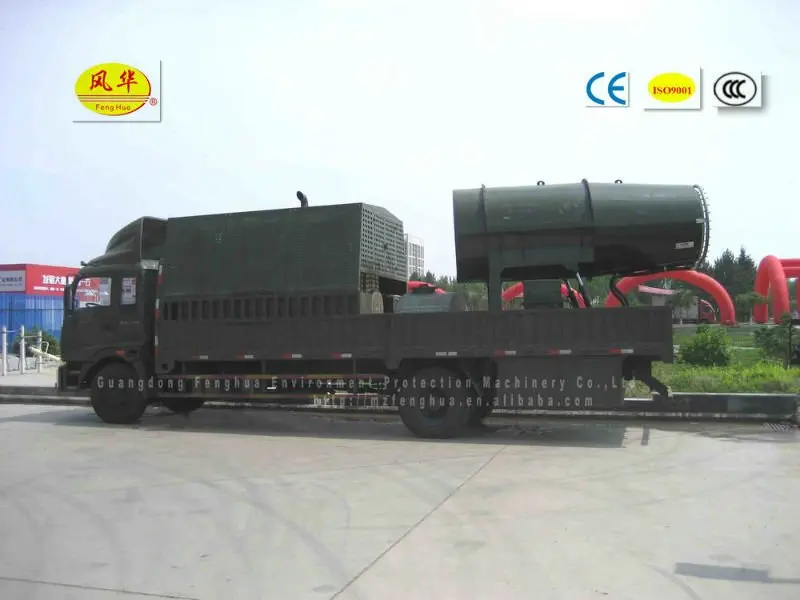

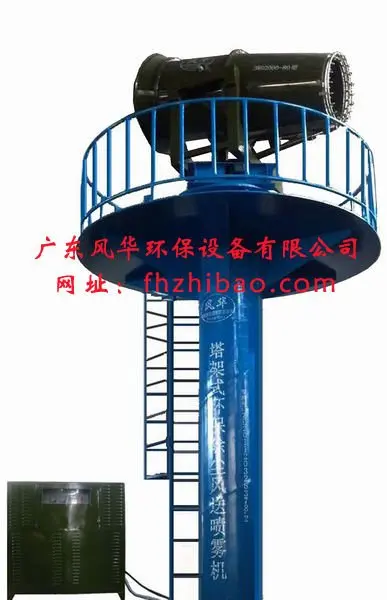

4.Flexible installation, fixed on the concrete platform or diesel generator-powered vehicles optional.
5.Remove control.Easily adjust the spray angle of horizontal rotation.
6.Compare to tank car, water consumption save 70% ~80%.
>>Application Area
1.Environmental protection: City pm2.5/10 dust control, Disinfection epidemic prevention, City Demolition,Odor control at waste disposal & landfill sites,Humidifying, cooling and dust control on construction site, etc.

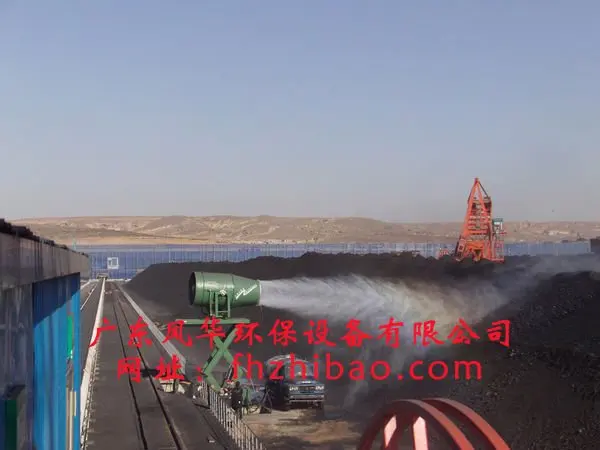

2.Industry dust suppression:Open pit mining blasting/digging/ load&transport dust , Port material storage yard dust , Wharf Bulk Ships loading&unloading dust, Iron & steel plant stockpile & slag disposal dust, Power plant coal storage yard dust, Conveyor belt blanking point dust, Coal mine crushing dust,Haul roads dust,Storage and handling of bulk materials dust, etc.
3.Agriculture protection:The sprayer can used for pest control in agriculture, orchard, garden areas,farmland, forest, road greening, grassland, pasture ,etc.
Company Information

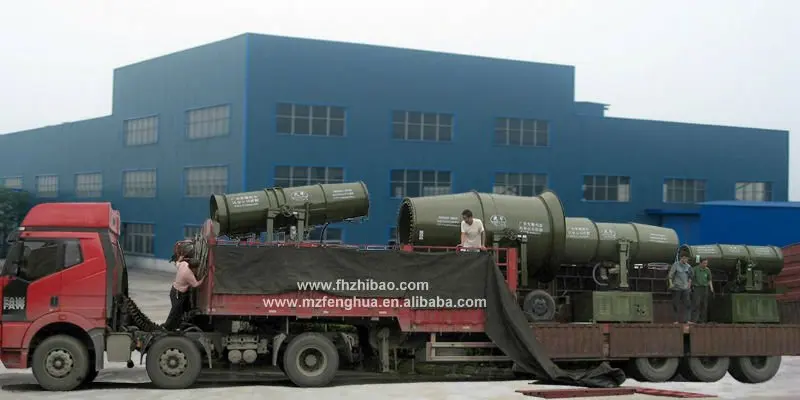

Packaging & Shipping
1. Outside package: standard export plywood case 2. Inner package: air bubble film and screwed to the pallet.
3. Different design need different shipping way: LCL or FCL.
Our Services
For any special requests, please go to ask us for the details, we can customize the products for you if your
order quantity is considerable! (Such as spare parts, water tank, material, output, pump.)
1. Warranty time is 12 months from the date of commission, or 18 months from the factory delivery, the first shall prevail.
2.Special Operation and maintenance vedio guide for the Customers.
3.Technical person work-site commission service support.We can send engineers to support you to install
large sprayer machine.
4.Help you do worker training
5.On-line support every day.
FAQ
1.Q:Are you a factory or trading company?
A: We are a factory since 1996.
2.Q:Where is your factory located? How can I visit there? A:Our factory is located in Meizhou City, Guangdong Province, China, near to the Guangzhou City,
Shenzhen City andJieyang City. You can fly to Meixian airport directly. All our clients, from home
or abroad, arewarmly welcome to visit us!
3.Q:What is the material of your products? A: The material is Steel A3. We can also choose material as customers’ requirements.
4.Q: What is the warranty time of your products?
A: The warranty time is 12months from the date of the commissioning, or 18months from the
factory delivery, the first shall prevail. All quick-wear spare parts will be provided for free within
the warranty period. After the warranty, we also can ensure that you can buy any necessary spare
parts with favorable price within 5 years.
5.Q:How does your factory do regarding quality control? A:"Quality is priority. We always attach great importance to quality controlling from the very beginning
to the very end. Our factory has gained ISO9001:2008 authentication.
♥ If you want to know more information about our products and company.
Welcome to contact us in any time, and welcome to our company!
