Touch free Infrared Automatic Toilet Sensor With Push Button Toilet Flush Valve Kit
- Category: >>>
- Supplier: Fuzhou Pepe Electronics Technology Co. Ltd.
Share on (60426209580):
Product Overview
Description
Design Your System

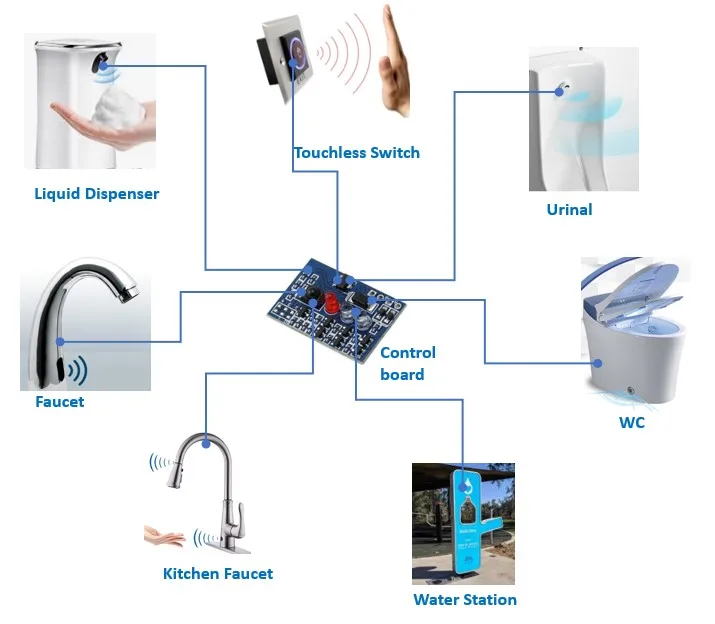

Application
Product Description
Automatic infrared toilet sensor with a push button toilet flush valve kit
Features:
Fast, accurate distance-ranging detection.
Single power supply.
Anti-vibration and shock.
Works with various types of cover materials,
Reliable water and humidity-proof circuit that provides accurate control for all electrical parts.
Low power consumption guarantees extended battery life.
Model number: | EJ-P0271 |
Power supply mode: | DC 4.5V-6.6V |
Adjustable detection range: | Water sensor: 0-350 mm , 350-850 mm Smart home: 0-900 mm |
Sensro type: | Active Sensor |
Output pulse width: | 45 ms |
Low power consumption: | <20 uA |
Response time: | 0.5 S |
Maximum output current: | 800 mA |
Low voltage indicator: | < 4.5 V |
Ingress protection: | IP 67 |

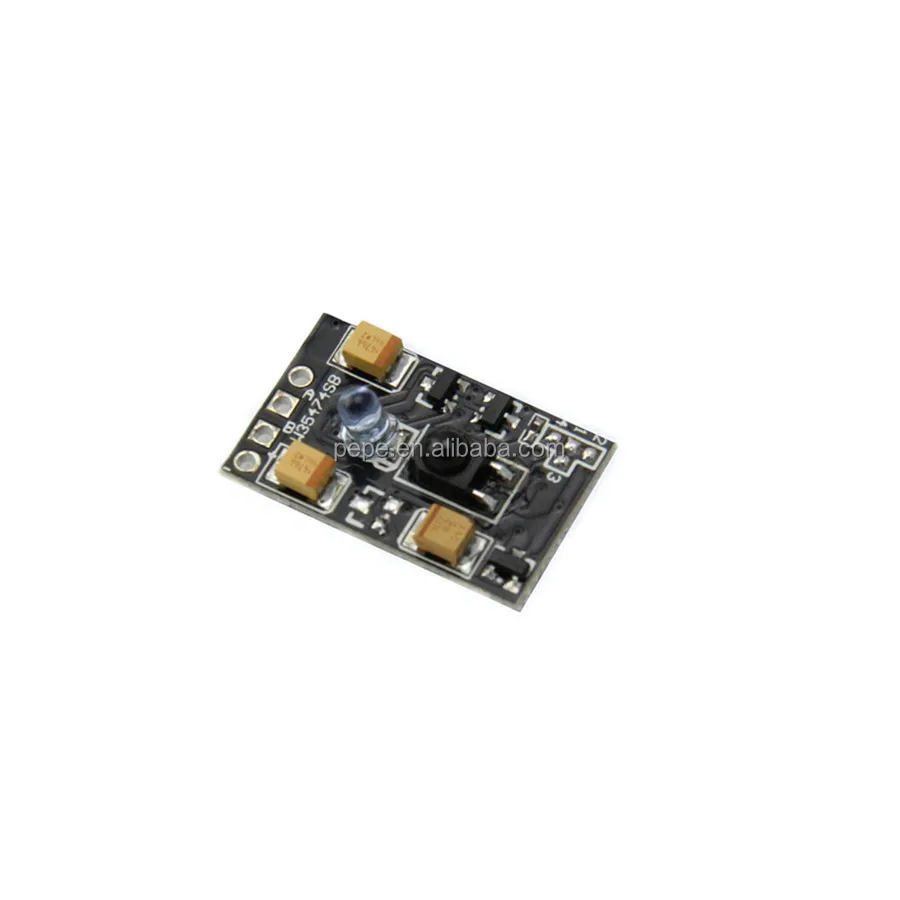

15*24 mm IR sensor PCB
The control board withstands sunlight, lights, and batteries to prevent false triggers. Can work with various cover materials.
Plastic sensor cover
Abrasion, weathering, corrosion resistance, and strong hardness can be well-protected electronics; with optional colors and materials.
Abrasion, weathering, corrosion resistance, and strong hardness can be well-protected electronics; with optional colors and materials.
Transformer
110-240V AC input by 6V DC output
110-240V AC input by 6V DC output
Allows the equipment to be powered by the main or batteries without the added bulk of internal power components.
Waterproof remote controller
You have a remote and APP assist, allowing you to manage or customize your system easily.
You have a remote and APP assist, allowing you to manage or customize your system easily.
Company Profile
Related Products
Automatic Control Box-EJ-B003
Battery Holder -B002
Auto flush valve-EJ-S0006

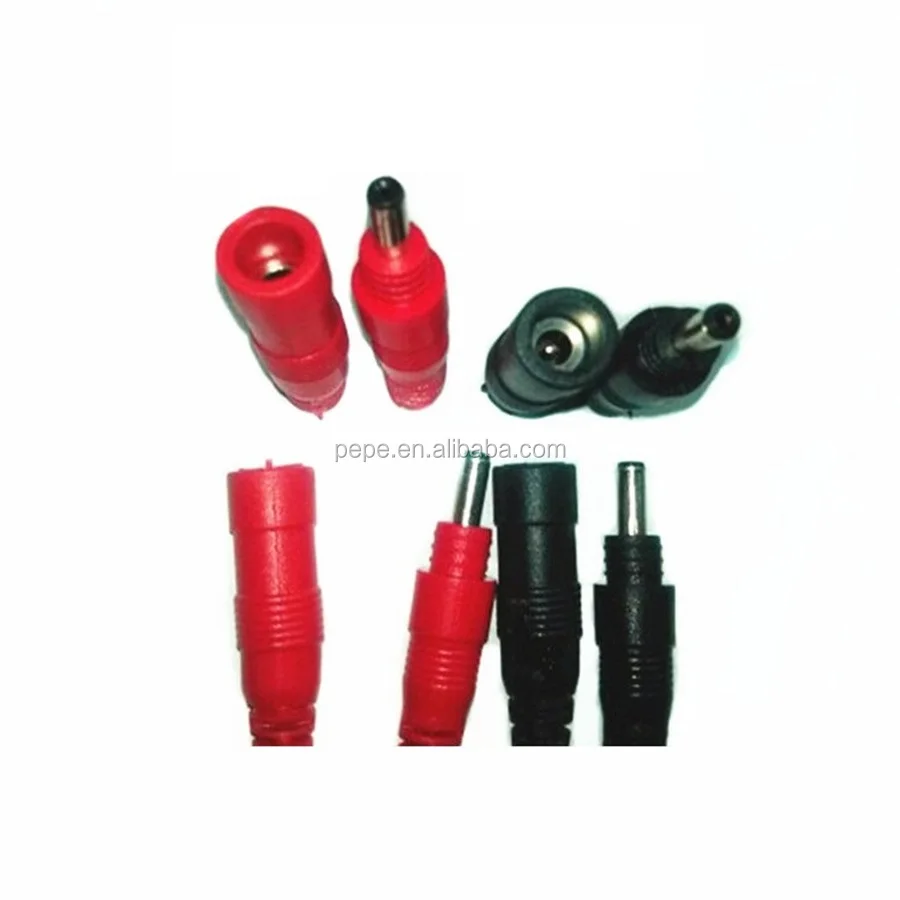

Sensor Cable-EJ-002
Waterproof Cable -EJ-005
2 PIN wire connection-EJ-008
Packing & Delivery
Packing
Automatic infrared toilet sensor with push button toilet flush valve kit
Packaging: 20 PC/ kraft box, 200 PC/CTN
Inner packing: white box and kraft carton, Meas: 21.5* 17 * 14.5 CM
Outer packing: kraft carton, 200 PC /ctn,or customized acceptable. Meas: 52.5*44.5*32 CM.
N.W: 10.5 KGS/PC, G.W: 12.5 KGS/CTN
Customized packages are accepted for volume order with quantities at least 500 pieces
Delivery
3-5 days in stock, 10-15 days if customized.
