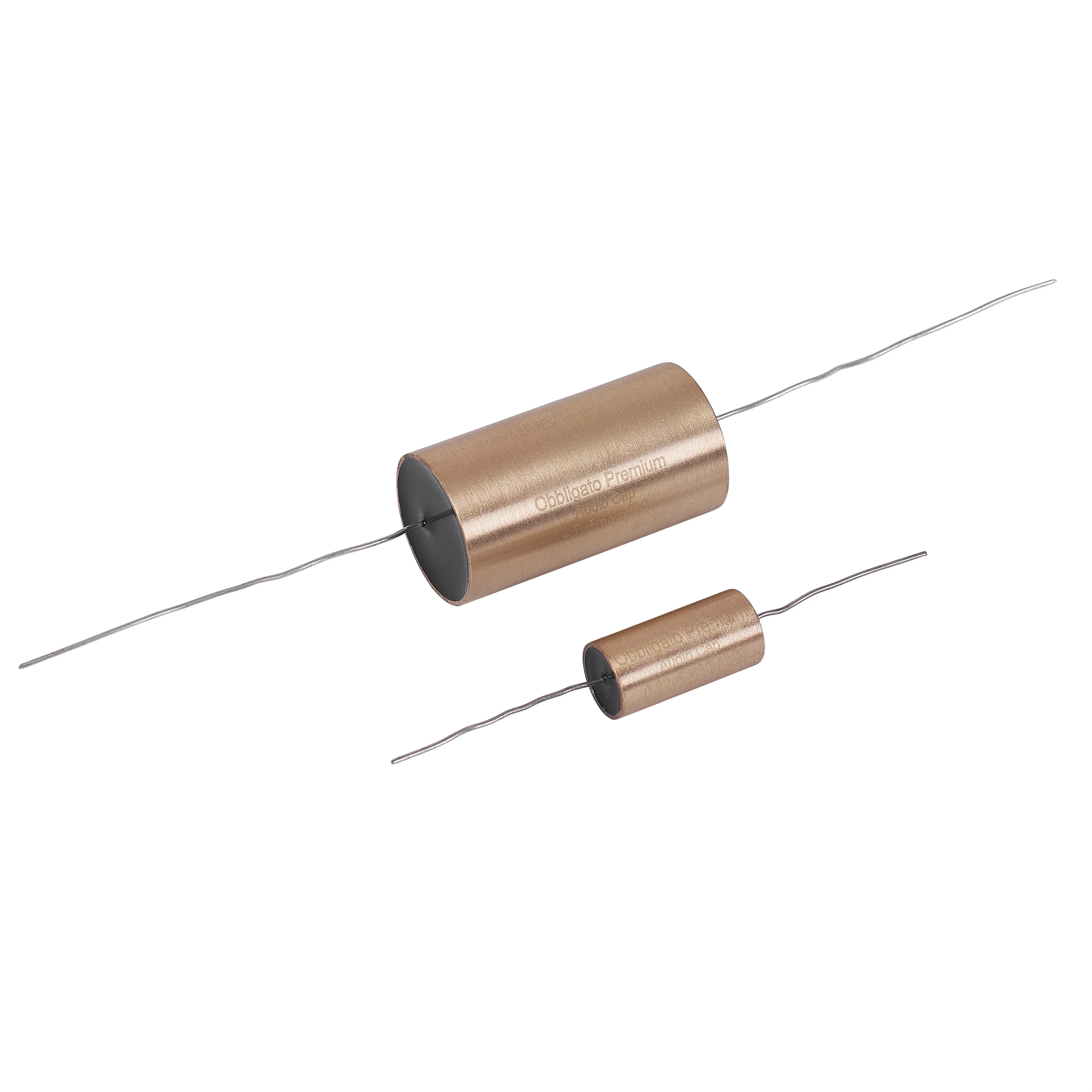

Copper tube Audio Capacitor ROHS QMS Car Sound equipment

Product Overview

Description

Copper Car Audio Capacitor



1.Temperature Feature:    -45 C to +85 C

2.Capacitance:                    0.022uF--100uF

3.Dissipate Factor:              <1%

4.Insulation Resistor:          >3000 M Ohms

5.Rated Voltage:                 100VDC/250VDC/400VDC/630VDC....

6.Withstand Voltage:          150VDC/372.5VDC/600VDC/945VDC...

7.Dielectric Strength:          1.5 Vr

8.Capacitance Tolerance  J(+-5%),K(+-10%)



Features:

These film caps have a solid copper case, soldered copper lead-out wires and individually wrapped.extra tight winding, no voids and thick-coated aluminium film .Very low inductance. Lead-outs are tinned copper,solid core. All measure very close to rated value, max 5% but typically 1-2%. Wound tight with no voids and give a very transparent, smooth sound. have a very smooth and clean sound. polypropylene film, in a non-magnetic case, with pure copper solder-dipped leads. The values are laser etched on the body. These caps are very highly rated sonically.



              Dimension D*L (unit:mm)
