F105 Binocular biological microscope for laboratory use

Product Overview

Description

F105 Binocular biological microscope for laboratory use





1.  objective: 4x,10X,40X ( spring ),100X( spring,oil )(185)



                         4x,10X,40X ( spring ),100X( spring,oil )(195) optional



2.  Wide Field Eyepiece  :WF10X,(WF16X optional)



3. Viewing head :  Compensation free binocular head



4. Nosepiece :   quadruple



5. Stage : double layer mechanical stage



6. Focusing : coaxial coarse and fine adjustment , focusingr range  20mm



7. Condenser : N.A=1.25 Abbe condenser &Iris diaphragm



8. Illumination :  halogen Lamp or LED



9. Power : AC Input 220V or 110V,DC ouput 12V



 Optional : DC power supply or rechargable





Configuration
Objective	4X,10X,40X ( spring ),100X( spring,oil )(185)
Eyepiece	Wide field eyepieces WF10X,(WF16X optional)
Viewing head	Compensation free binocular head
Nosepiece	Quadruple Nosepiece
Stage	Double layer mechanical stage,size:125x135mm
Focusing	Coaxial Coarse And Fine Adjustment , Focusing Range 20mm
Condenser	N.A=1.25 Abbe condenser &Iris diaphragm
IIIlumination	Electric light source: LED (Halogen Lamp   optional)
Power	AC Input 220V or 110V,DC ouput 12V

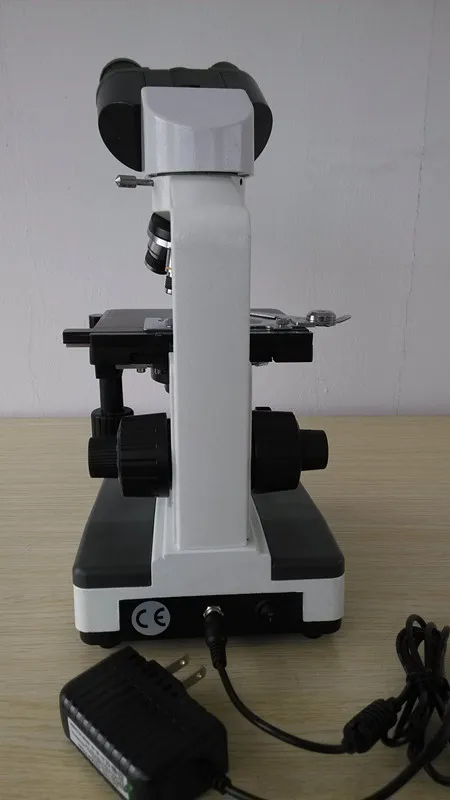

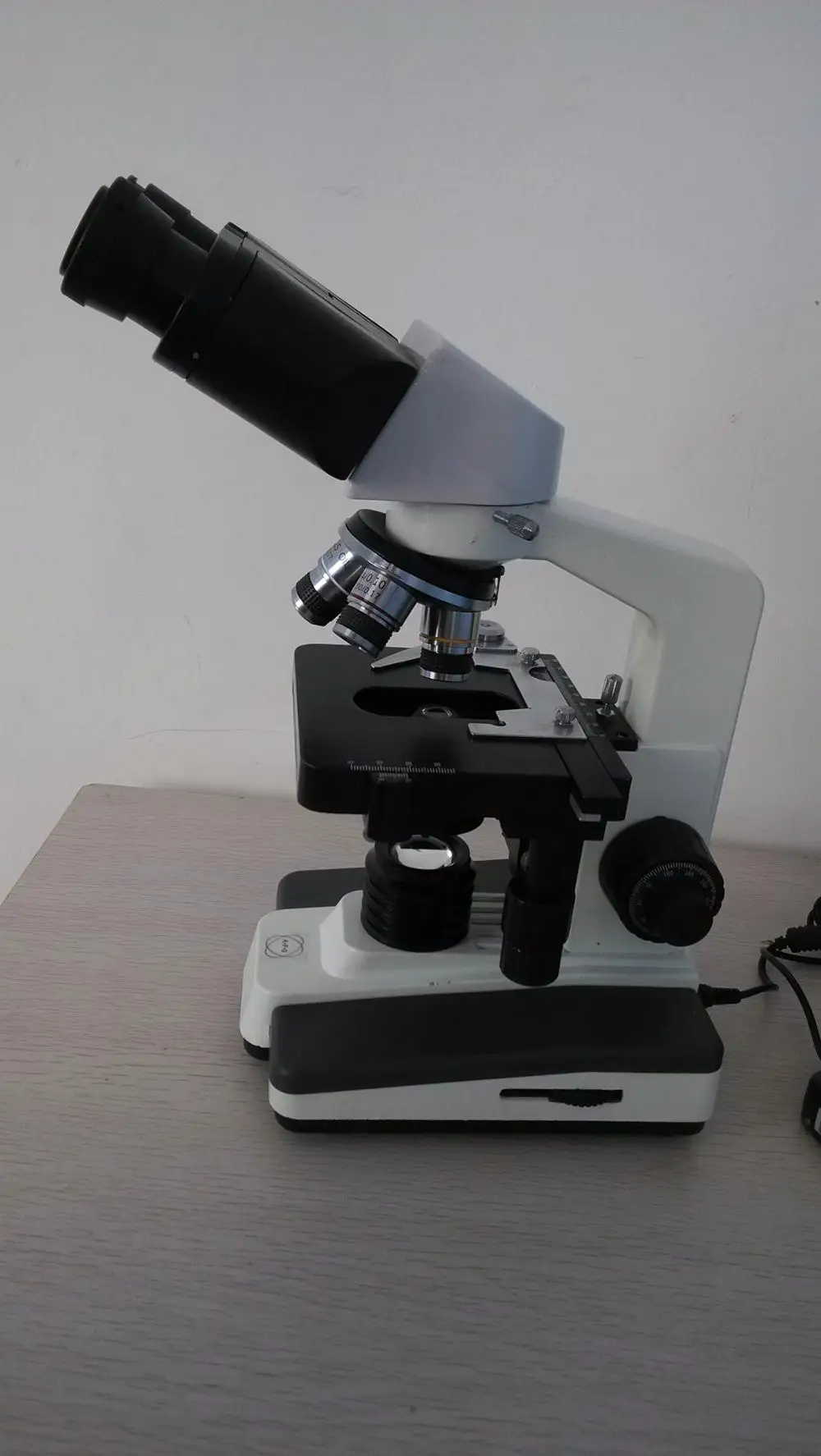

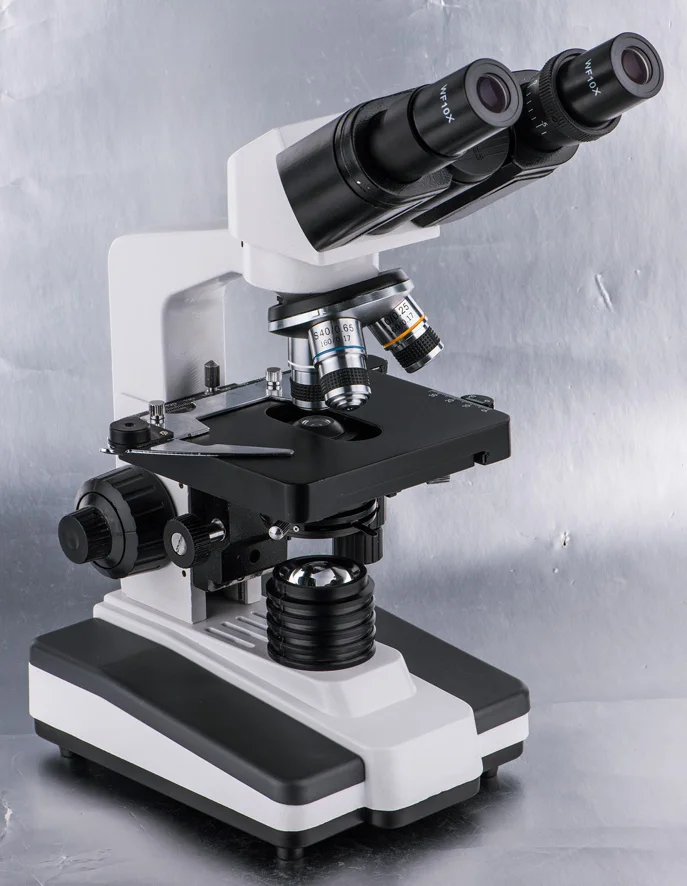

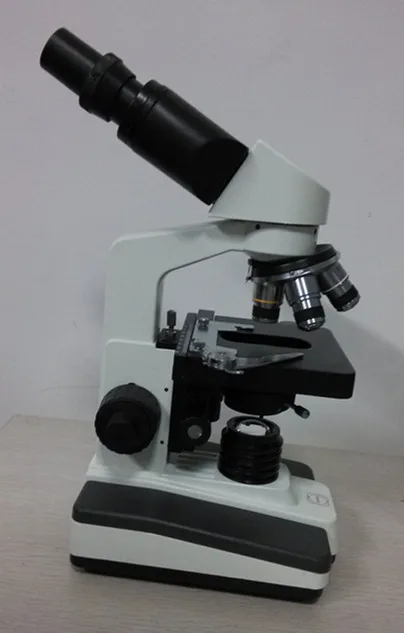

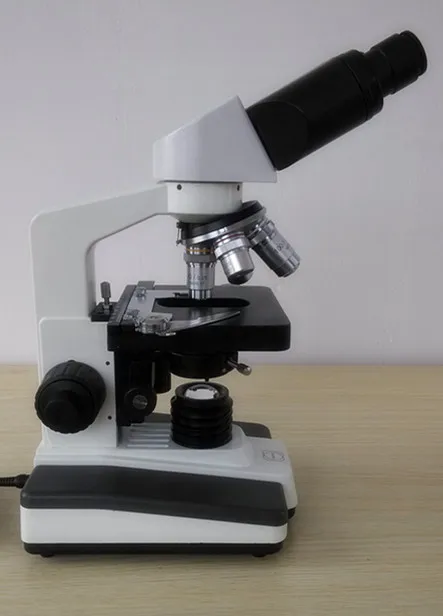

F105 Binocular biological microscope for laboratory use picture:







F105 Binocular biological microscope for laboratory use packing:





1.foam with carton

2.wooden box

3.plastic carrying case









F105 Binocular biological microscope for laboratory use  shipping:



1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;



Why Choose us?



1.We are Alibaba Assessed  Gold Supplier.



2.We are a factory manufacturing microscope best production capability ,

    best quality control, Best Service .



3.100% QC inspection Before Shippment.



4. CE/FCC listed,competitve price.





Our microscope  product including:

biological microscopes, student microscopes,stereo microscopes as well as corresponding accessories and

components such as electronic eyepiece, digital eyepiece, electronic camera, optical lenses, etc.



Our factory located in NINGBO ,nearly the port , so we can provide convenient transportation for your company .



 1.Production Workshop:







  2.Assembly Workshop:





Our Certifications







FAQ



 Q1:Can I choose the color of customized parts accessories and function?

A1:Yes, we are a professional factory of microscope, we provide batch product fittings custom color, such as the      handwheel, base decorative plate.We support the function to reduce or increase at the same time, the                concrete can ask us, we will give you professional answer.





Q2:Could I use my own logo or design?

A2:Yes,customized logo and design on mass production are available.





Q3:How to inspect the goods?

A3:Products will be checked by our QC staff first,then our project manager,client can come and check by                  themselves or third party check is available.





Q4:Is there cheap shipping cost to import to our country?

 A4: For small order,express will be best.And for bulk order,sea ship way is best but take much time.

For urgent orders,we suggest via air to airport plus our ship partner send to your door.





Q5:Can we get support if we have our own market position?

A5: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
