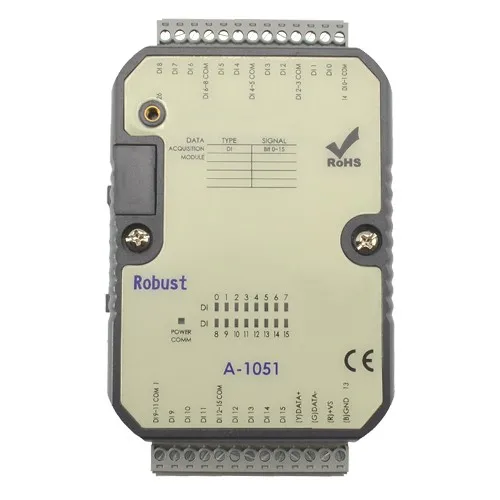

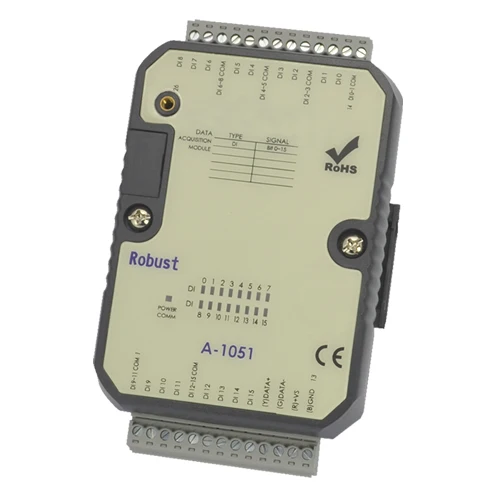

16DI Digital I/O Module Input Module with Modbus (A 1051)
- Category: >>>
- Supplier: Shenzhen ATC Technology Co. Ltd
Share on (60426596319):
Product Overview
Description
Product Description
1) 16DI NPN/PNP(Isolation input)
2) Support RS-485 Modbus RTU / ASCII
3) LED Indicate state of DI
4) Digital input Isolation voltage: 5000 VDC
5) Dual watchdog timer
6) Surge , EFT and ESD protection
7) Wide operation temperature : -20 ~ +75 °C
8) Free PC configuration software "ATC Utility"
Specifications
Technical Specifications | ||||||
Inputs | 16DI(Isolated Digital) | |||||
Outputs | None | |||||
Interface Type | RS-485 | |||||
Support Protocols | ModBus RTU / ModBus ASCII | |||||
Data Rate | 1200bps ~ 115200bps | |||||
Data Bit | 8 bits | |||||
Parity | Odd, Even, None | |||||
Stop Bits | 1,2 bits | |||||
Isolation Voltage | 5000 VDC | |||||
Intput Rating | Logic Level 0 | +1 VDC (Max) | ||||
Logic Level 1 | +3.5~30 VDC | |||||
Input Type | PNP | |||||
Software | ||||||
Configure Options | Utility | |||||
OS support | Windows XP/2000/2003/Vista/7 | |||||
LED Indicators | POWER/RUN BAT/COMM | Orange/Orange/Flash | ||||
Input/Output | Red | |||||
Power Supply | 10~30VDC | |||||
Power Consumption | Nearly 24VDC 1.66W | |||||
Physical Characteristics | ||||||
Installation | DIN-Rail Mounting | |||||
Housing | Plastic ABS | |||||
Weight | 0.2Kg | |||||
Dimensions | 118 × 76 × 40.7 mm | |||||
Operating Temperature | -20 ~ 75°C | |||||
Storage Temperature | 40 ~ 85°C | |||||
Ambient Relative Humidity | 5% to 95%(non-condensing) | |||||
Standards and Certifications | RoHS, CE | |||||
Protocol

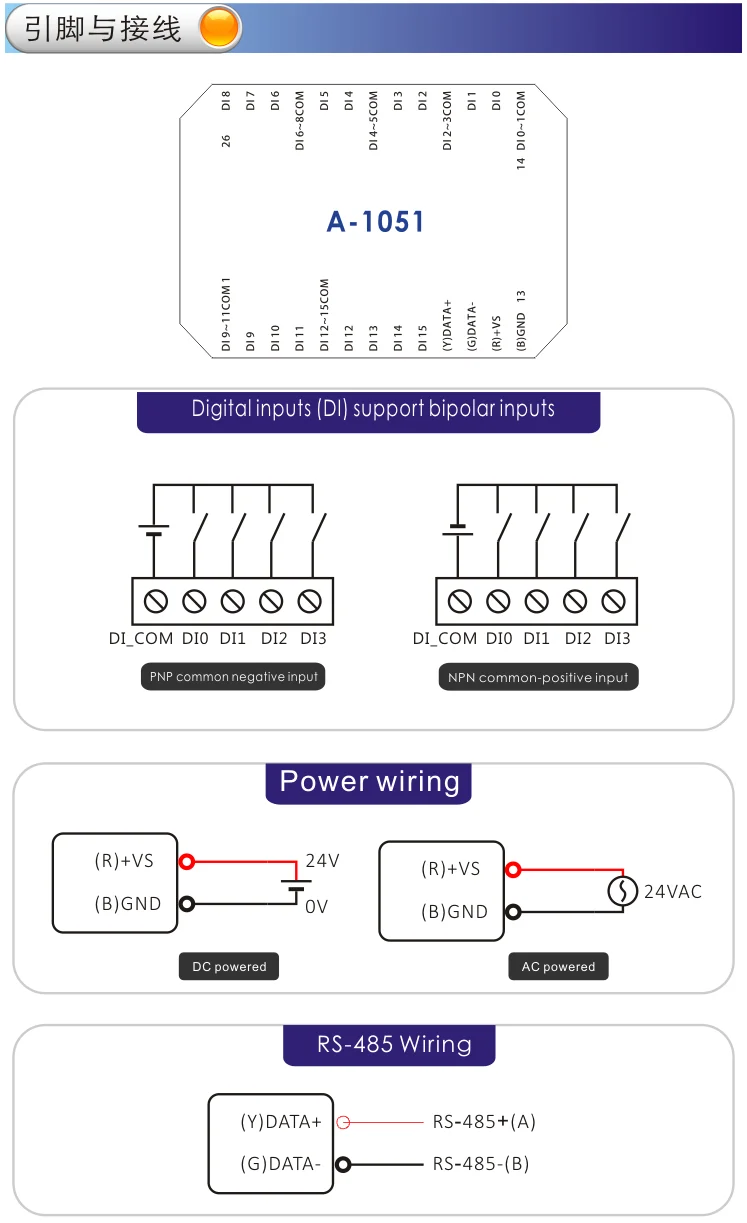

Pins and wiring
Software download
Details Images
