Oilless vane air motor, HXNL32 pneumatic motor, 0.42HP
- Category: >>>
- Supplier: Rudong Hongxin Machinery Co. Ltd.
Share on (60426604881):
Product Overview
Description

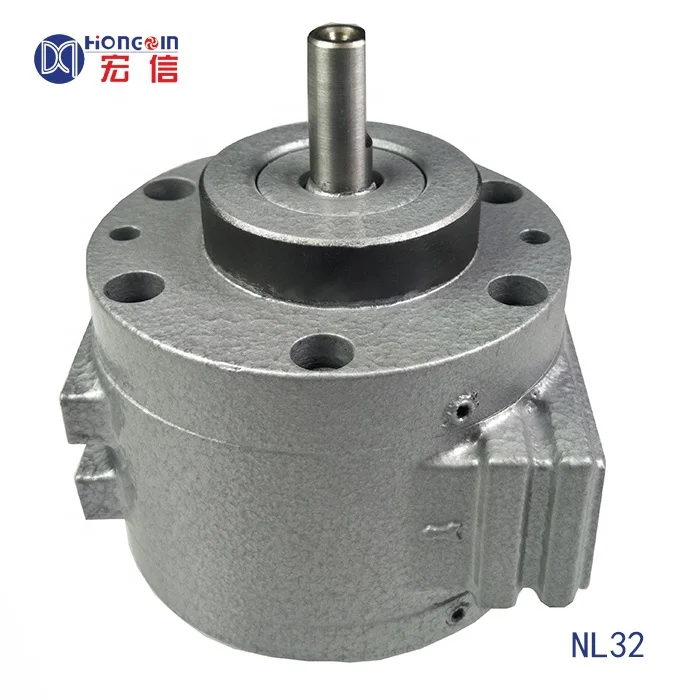

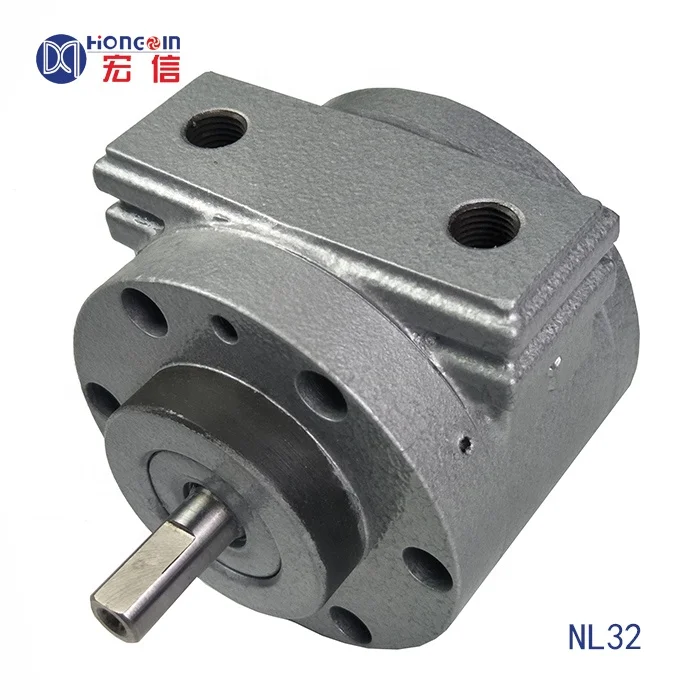

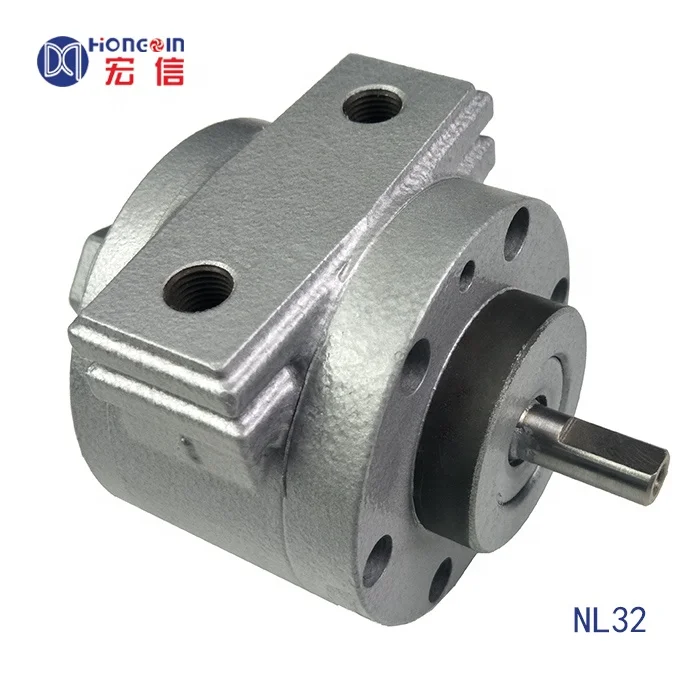

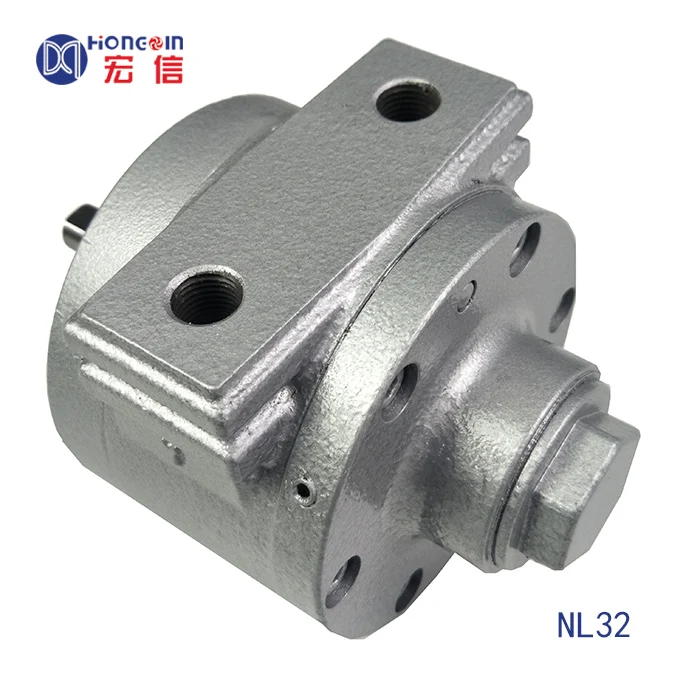

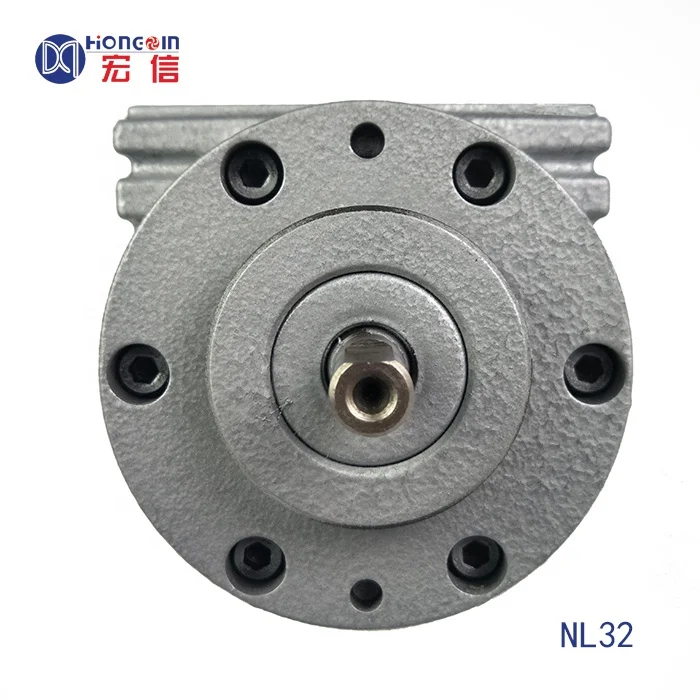

Oilless vane air motor, HXNL32 pneumatic motor, 0.42HP
Oilless vane air motors make use of the expansion of compressed air to convert pressure energy into mechanical energy.They have corrosion resistance, firm structure and reliable performance. And they are not required periodic inspection.
Applictions It can work in humid, high temperatures, high dust and other proof working environment. Besides mine, rock drilling and loading, it was also widely used for ships, metallurgical, chemical, paper and other industries.
Features Variable speed,variable direction,non-electrical sparking,cool running,compact and portable,operate in all positions,mounting flexibility
Performance Overview
| Model | Operation Data | Maximum Torque | ||||||||
| Power | Torque | Rotate Speed | Air Consumption | Rotate Speed | Torque | |||||
| hp | kw | Nm | lb.in | rpm | m3/h | cfm | rpm | Nm | lb.in | |
| HXNL32 | 0.42 | 0.31 | 1.5 | 13.5 | 2000 | 51 | 30 | 300 | 2.5 | 21 |
| HXNL42 | 0.82 | 0.61 | 2.9 | 25.5 | 2000 | 70 | 41 | 500 | 5 | 44 |
| HXNL52 | 2.5 | 1.86 | 8.9 | 78.75 | 2000 | 115 | 68 | 500 | 11.3 | 100 |
Dimensions(Inches/mm)
