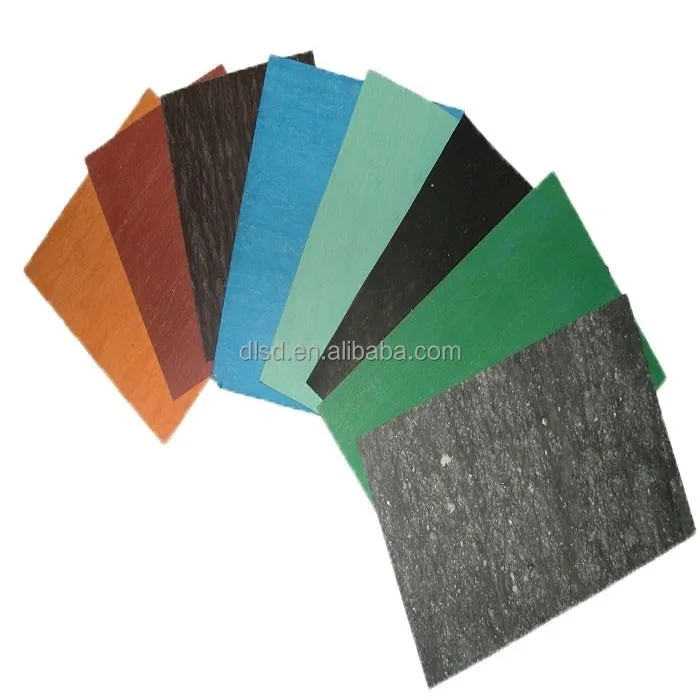

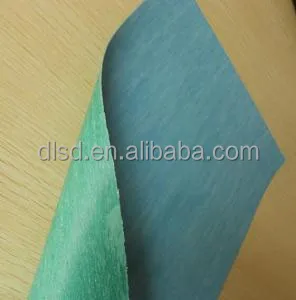

Sell Well in Pakistan CAF Jointing Sheet non Asbestos Rubber Sheet

Product Overview

Description

We are Factory of  Non Asbestos Sheet.

We are in this line for more than 23 years.



Asbestos Free Rubber sheet also called non Asbestos Sheet

                                              Compressed non Asbestos Fiber Jointing Sheet

                                              non Asbestos Jointing Sheet

                                              non Asbestos Gasket Sheet

                                              Sealing Gasket

                                              Sealing Sheet

                                              non Paronite





    We produce kinds of  Asbestos Free Sheet. It is without asbestos, but we also produce the sheet with it.



Non Asbestos Rubber Sheet without asbestos or with it   XB150-XB510    NXB150-NXB510

Non Asbestos Rubber Sheet with Graphite and wire mesh

Non Asbestos Latex Sheet with Punched Sheet







Non-Asbestos Rubber Sheet / Sealing Gasekt Sheet physical property
GB/T3985-1995
Item	XB150	XB200	XB250	XB300	XB350	XB400	XB450	XB510
Thickness	0.4mm ~ 6.0mm
Density	2.0 g/cm3
Burning loss≤	30%		30%			28%
Rebound degree	40		40			45
Temperature  °c	150~170	200~220	250~270	300~320	350~370	400~420	450~470	510~550
Pressure MPa	1.5~2	2~3	3~4	4~5	7~8	8~9	11~12	14~15
Tensile Strength ≥	5MPa	6MPa	7~8MPa	9MPa	12MPa	15MPa	19MPa	22Mpa
Steam airtightness	with the temp of 150~170 °c and the pressure of 1.5~2MPa, keep for 30 min without puncture	with the temp of 200~220°c and the pressure of 2~3MPa, keep for 30 min without puncture	with the temp of 250~270°c and the pressure of 3~4MPa, keep for 30 min without puncture	with the temp of 300~320°c and the pressure of 4~5MPa, keep for 30 min without puncture	with the temp of 350~370°c and the pressure of 7~8MPa, keep for 30 min without puncture	with the temp of 400~420°c and the pressure of 8~9MPa, keep for 30 min without puncture	with the temp of 450~470°c and the pressure of 11~12MPa, keep for 30 min without puncture	with the temp of 510~550°c and the pressure of 14~15MPa, keep for 30 min without puncture
Aging Coefficient ≥	0.9
Compressibility %	12±5
Stress-relaxation ≤	50
Pliability	No Crack
Color	Black, green, red, grey, yellow, or as request
Size	4120mmx1520mm, 2060mmx1520mm, 1520mmx1350mm, 3180mmx1270mm, 1270mmx1270mm, 1520mmx1520mm, 1520mmx1020mm, or as request.
P.S.	Available with wire/metal mesh reinforcing or graphite coating









     3. Packaging



1. For 0.4mm-3.0mm in rolls with kraft  paper inside and weave bags outside.

    For 4.0mm-6.0mm with wooden pallets.

2. As customer's requirements, with wooden pallets.
